GC

Samples

Carbonyl Sulfide , Hydrogen Sulfide , Carbon Disulfide , Methyl Mercaptan , Ethyl Mercaptan , Dimethyl Sulfide , Benzene(Solvent) , Dimethyl Disulfide

Applications

Sulfur Compounds of Air Pollution

Column

1,2,3-TCEP 25% Shimalite 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Injection port temp.

180°C

Detector temp.

180°C

Detector

FPD

View detail

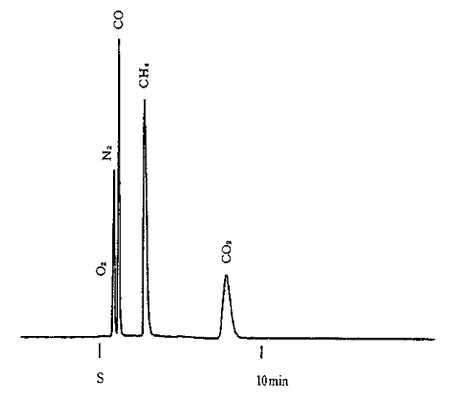

GC

Samples

Air , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Gas (Air, CO, CH4, CO2)

Column

Activated Charcoal 60-80

Column Size

1.6m×3.2mm

Column temp.

50°C

Carrier gas

He,50ml/min

Injection port temp.

50°C

Detector temp.

50°C(TCD)

View detail

GC

Samples

Hydrogen Sulfide , Sulfur Dioxide , Methyl Mercaptan , Ethyl Mercaptan , Dimethyl Sulfide , Carbon Disulfide , Benzene , Dimethyl Disulfide

Applications

Air pollution sulfur compound (1)

Column

PPE-5rings 10% Shimalite TPA 60-80

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Injection port temp.

180°C

Detector temp.

180°C(FPD)

View detail

GC

Samples

n-Hexane , Methyl Alcohol , Acetone , Isopropyl Alcohol , Ethyl Acetate , Methyl Ethyl Ketone , Benzene , Trichloroethylene , Isobutyl Alcohol , Isobutyl Acetate , Toluene , n-Butyl Acetate , Isoamyl Alcohol , Ethylbenzene , m-Xylene , o-Xylene , n-Propylbenzene , Cyclohexanone

Applications

Organic solvent in the air (ppm level)

Column

SBS-100 10% Shimalite TPA 60-80

Column Size

3.1m×3.2mm

Column temp.

110°C

Carrier gas

N2,30ml/min

Injection port temp.

200°C

Detector temp.

200°C(FID)

View detail

GC

Samples

Air , Carbon Monoxide , Methane , Ethane , Carbon Dioxide , Ethylene

Applications

Gas (O2, N2, CO, Methan, Ethan, CO2, Ethylene)

Column

Silica Gel 60-80

Column Size

1.6m×3.2mm

Column temp.

50°C

Carrier gas

He,60ml/min

Injection port temp.

50°C

Detector temp.

50°C(TCD)

View detail

GC

Samples

Carbon Disulfide , Hydrogen Sulfide , Methyl Mercaptan ,Ethyl Mercaptan , DMS , Benzene . DMDS

Applications

Air pollution sulfur compound (3)

Column

β,β-ODPN 25% Chromosorb W 60-80 (AW-DMCS-ST)

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Detector temp.

180°C(FPD)

Injection volume

-

View detail

GC

Samples

Dichloromethane , trans-1,2-Dichloroethylene , Chloroform , 1,2-Dichloroethane , 1,1,1-Trichloroethane , Carbon tetrachloride , Trichloroethylene , Toluene , Tetrachloroethylene , Chlorobenzene , 1,1,2,2,-Tetrachloroethane , o-Dichlorobenzene

Applications

Measurement of chlorinated solvents in air using Shinwasorb

Column

SBS-300 10% Shinwasorb-S 60/80

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

100℃

Carrier gas

30 mL/min N₂

Injection port temp.

240℃

Detector temp.

240℃

Detector

FID

Injection volume

1.0 mL

View detail

GC

Samples

liquefied petroleum gas (LPG)

Applications

Measurement of liquefied petroleum gas (LPG) using Shinwasorb

Column

DBM+ODPN (95:5) 35% Shinwasorb-U 60/80

Column Size

6.0 m (3.0 m+3.0 m) x 3.0 mm I.D. stainless steel

Column temp.

40℃

Carrier gas

45 mL/min N₂

Injection port temp.

50℃

Detector temp.

50℃

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Air , HCl , Water

Applications

Analysis of Hydrogen chloride

Column

SF-96 15% Shimalite-F 20/80

Column Size

3.1 m × 3.2 mm glass

Column temp.

60°C

Carrier gas

He, 30 ml/min

Injection port temp.

190°C

Detector temp.

190°C

Detector

TCD

Injection volume

1.0 ml

View detail

LC

Samples

Terbutaline

Applications

Bronchodilator agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

5 µL (ca. 0.25 mg/mL)

View detail

LC

Samples

Montelukast sodium

Applications

Analysis of Montelukast sodium

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3OH = 60/40

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail
