Shinwa Chemical Industries Ltd.
LC/GC Search / Application Note

Shinwa Chemical Industries
Application Search

Search result
"Benzoic Acid" Filtered 13 Item.

Graph

GC

Samples
Sorbic Acid , Dehydroacetic Acid , Benzoic Acid , trans-Stilbene(I.S.)
Applications
Antiseptics in the food
Column
Advance-DS 5% Shinchrom A 80-100 (DMCS)
Column Size
2.1m×3.2mm
Column temp.
210°C
Carrier gas
N2,60ml/min
Injection port temp.
260°C
Detector temp.
260°C(FID)

View detail


Graph

GC

Samples
Sorbic Acid , Dehydroacetic Acid , Benzoic Acid , trans-Stilbene
Applications
Antiseptics (2)
Column
DEGS+H3PO4(2%+0.5%) Chromosorb W 60-80 (AW-DMCS)
Column Size
2.1m×3.2mm
Column temp.
200°C
Carrier gas
N2,40ml/min
Injection port temp.
260°C
Detector temp.
260°C(FID)

View detail


Graph

GC

Samples
Sorbic Acid , Dehydroacetic Acid , Benzoic Acid , trans-Stilbene(I.S.)
Applications
Antiseptics (1)
Column
DEGS+H3PO4(5%+1%) Chromosorb W 60-80 (AW-DMCS)
Column Size
2.1m×3.2mm
Column temp.
185°C
Carrier gas
N2,60ml/min
Injection port temp.
260°C
Detector temp.
260°C(FID)

View detail


Graph

GC

Samples
Sorbic acid , Dehydroacetic acid , Benzoic acid , trans-Stilbene
Applications
Analysis of preservatives using Shinwasorb -1-
Column
DEGS+H3PO4 5.0+0.5% Shinwasorb-S 40/60
Column Size
2.1 m x 3.2 mm I.D. Glass
Column temp.
185℃
Carrier gas
50 mL/min N₂
Injection port temp.
260℃
Detector temp.
260℃
Detector
FID
Injection volume
1.0 μL

View detail


Graph

GC

Samples
preservatives
Applications
Analysis of preservatives using Shinwasorb -2-
Column
Advance-DS+H3PO4 2+0.25% Shinwasorb-S 60/80
Column Size
2.1 m x 3.2 mm I.D. Glass
Column temp.
200℃
Carrier gas
50 mL/min N₂
Injection port temp.
260℃
Detector temp.
260℃
Detector
FID
Injection volume
1.0 μL

View detail


Graph

LC

Samples
Citric acid , Tartaric acid , Malonic acid , Succinic acid , Lactic acid , Acetic acid , Gallic acid , Propionic acid , Phthalic acid , Phenoxyacetic acid , m-Hydroxybenzoic acid , p-Hydroxybenzoic acid , Vanilic acid , Caffeic acid , Benzoic acid , o-Hydroxybenzoic acid
Applications
Elution position of the aromatic organic acid
Column
ULTRON PS-80H
Column Size
300 mm L × 8.0 mm I.D.
Mobile phase
HClO4aq. (pH 2.1)/CH3CN = 90/10
Frow rate
1.0 mL/min
Column temp.
60°C

View detail


Graph

LC

Samples
Saccharin, Aspartame, Benzoic acid, Sorbic acid
Applications
Saccharin, Aspartame, Benzoic acid, Sorbic acid
Column
STR ODS-II
Column Size
150 mm L × 4.6 mm I.D.
Mobile phase
40 mM Acetate buffer (pH 4.0)/CH3OH = 3/1
Frow rate
1.0 mL/min
Column temp.
40°C

View detail


Graph

LC

Samples
Arbutin , Hydroquinone , Gallic acid
Applications
Arbutin in the Bearberry Leaf end
Column
STR ODS-II
Column Size
150 mm L × 4.6 mm I.D.
Mobile phase
100 mM Phosphoric acid buffer (pH 2.1)/CH3OH = 40/1
Frow rate
0.9 mL/min
Column temp.
35°C

View detail

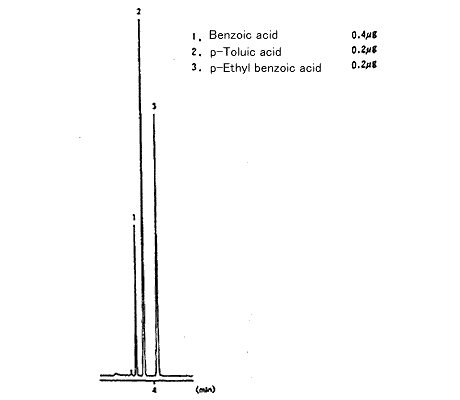

Graph

LC

Samples
Benzoic acid , p-Toluic acid , p-Ethylbenzoic acid
Applications
The elution behavior of the acid sample
Column
STR ODS-II
Column Size
150 mm L × 4.6 mm I.D.
Mobile phase
CH3CN/0.1% Phosphoric acid = 50/50
Frow rate
1.0 mL/min
Column temp.
30°C

View detail


Graph

LC

Samples
Salicylic acid , Diphenhydramine , Methyl salicylate , α-Camphor , Thymol
Applications
The component of the anti-inflammatory agent
Column
STR ODS-II
Column Size
150 mm L × 4.6 mm I.D.
Mobile phase
10 mM Phosphoric acid buffer(pH 2.6) + 20 mM Heptane sodium sulphonate/CH3OH/CH3CN = 3/2/2
Frow rate
1.0 mL/min
Column temp.
45°C

View detail


Graph

LC

Samples
p-Hydroxybenzoic acid , m-Hydroxybenzoic acid , Phenol , Acetylsalicylic acid , Benzoic acid , Salicylic acid
Applications
Acidic compounds
Column
ULTRON VX-ODS
Column Size
150 mm L × 4.6 mm I.D.
Mobile phase
10 mM (NH4)3PO4(pH 2.5)/CH3CN = 80/20
Frow rate
1.0 mL/min
Column temp.
30°C

View detail


Graph

LC

Samples
Cortisone acetate , Butyl p-hydroxybenzoate
Applications
Cortisone acetate, Butyl p-hydroxybenzoate
Column
ULTRON VX-ODS
Column Size
150 mm L × 4.6 mm I.D.
Mobile phase
CH3CN/H2O = 35/65
Frow rate
1.0 mL/min
Column temp.
30°C

View detail


Graph

LC

Samples
Acesulfame K , Saccharin , Caffeine , Sorbic acid , Benzoic acid , Quinine , Aspartame
Applications
Analysis of food additives
Column
ULTRON AF-HILIC-CD
Column Size
150 mm L × 3.0 mm I.D.
Mobile phase
A: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90, B: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 70/30
Frow rate
Refer to the picture
Column temp.
30°C
Injection volume
2.0 µL
Diluent
H2O /CH3CN = 50/50

View detail
