LC/GC Search / Application Note

Shinwa Chemical Industries
Application Search

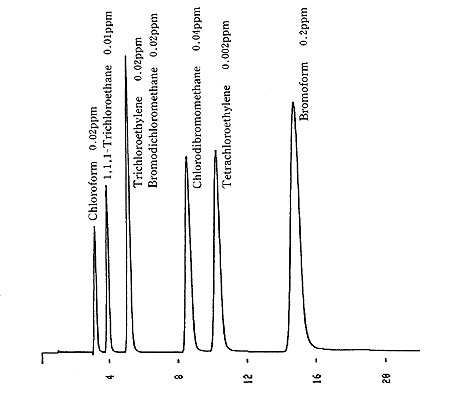

GC
Samples: Chloroform , 1,1,1-Trichloroethane , Trichloroethylene , Bromodichloromethane , Chlorodibromomethane , Tetrachloroethylene , Bromoform
Applications: Trihalomethane standard mixed sample (2)
Column: Silicone DC 200 20% Chromosorb W 80-100 (AW-DMCS)
Column Size: 3.1m×3.2mm
Column temp.: 80°C
Carrier gas: N2,60ml/min
Injection port temp.: 220°C
Detector temp.: 220°C(ECD)

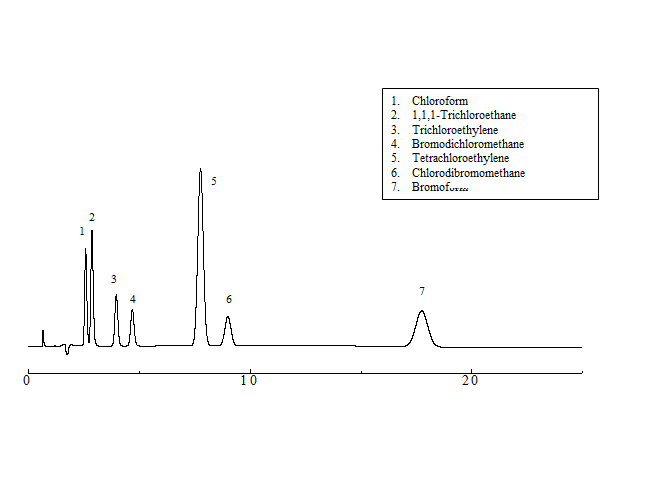

GC
Samples: Chloroform , 1,1,1-Trichloroethane , Trichloroethylene , Bromodichloromethane , Tetrachloroethylene , Chlorodibromomethane , Bromoform
Applications: Trihalomethane standard mixed sample (1)
Column: Silicone DC 550 20% Chromosorb W 80-100 (AW-DMCS)
Column Size: 3.1m×3.2mm
Column temp.: 90°C
Carrier gas: N2,60ml/min
Injection port temp.: 220°C
Detector temp.: 220°C(ECD)

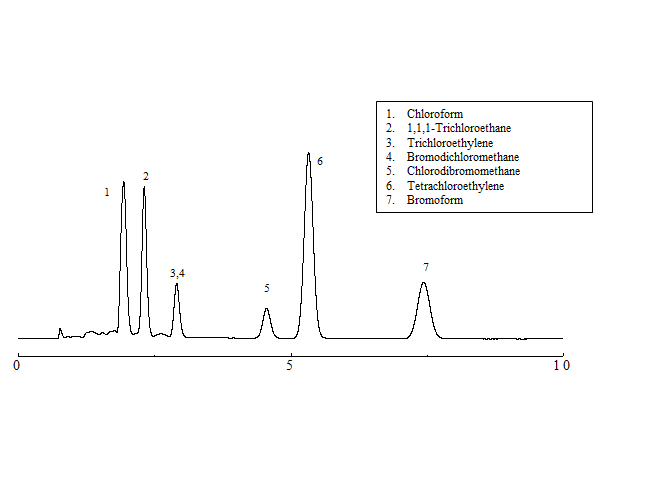

GC
Samples: 1,1,1-Trichloroethane , Trichloroethylene , Bromodichloromethane , Chlorodibromomethane , Tetrachloroethylene , Bromoform
Applications: Measurements of trihalomethanes using Shinwasorb -1-
Column: Silicone DC-200 10% Shinwasorb-S 60/80
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 100℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 240℃
Detector temp.: 240℃
Detector: FID
Injection volume: 1.0 μL

GC
Samples: 1,1,1-Trichloroethane , Trichloroethylene , Bromodichloromethane , Chlorodibromomethane , Tetrachloroethylene , Bromoform
Applications: Measurements of trihalomethanes using Shinwasorb -2-
Column: Silicone DC-550 10% Shinwasorb-S 60/80
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 90℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 220℃
Detector temp.: 220℃
Detector: FID
Injection volume: 1.0 μL
