GC

Samples

HCl , SO2 , Cl2 , CHCl3 , SO2Ci2 , CCl4 ,

Applications

Analysis of sulfuryl chloride

Column

TAKU-1 20% Shimalite-F 40/80

Column Size

5.1 m × 3.2 mm glass

Column temp.

70°C

Carrier gas

He, 40 ml/min

Injection port temp.

150°C

Detector temp.

150°C

Detector

TCD

Injection volume

1.5 μL

View detail

LC

Samples

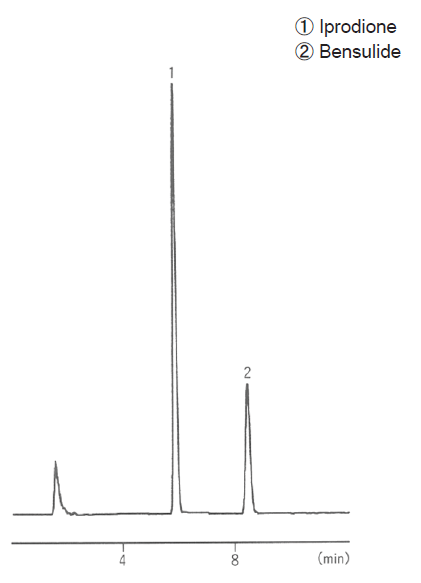

Iprodione, Bensulide

Applications

Iprodione, Bensulide

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 60/40

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Cetirizine hydrochloride

Applications

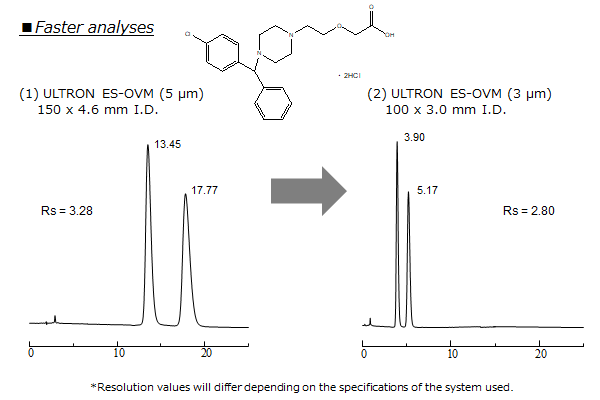

Analyses of Cetirizine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Cetirizine hydrochloride

Applications

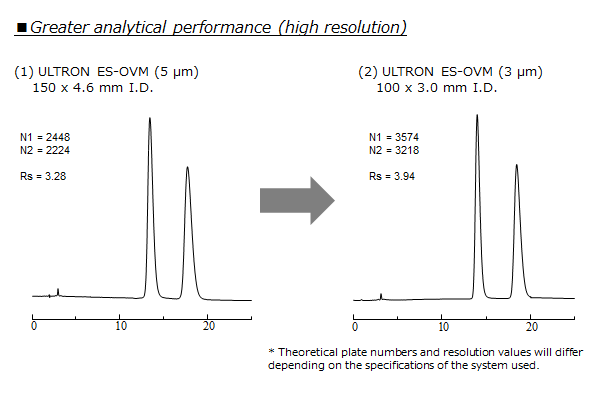

Analyses of Cetirizine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Cetirizine hydrochloride

Applications

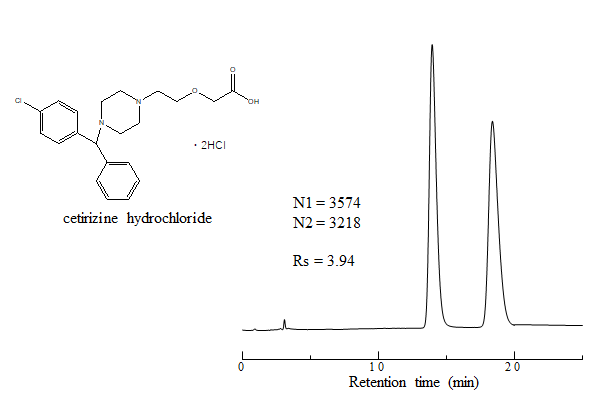

Analysis of Cetirizine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

mobile phase

View detail
