GC

Samples

Carbonyl Sulfide , Hydrogen Sulfide , Carbon Disulfide , Methyl Mercaptan , Ethyl Mercaptan , Dimethyl Sulfide , Benzene(Solvent) , Dimethyl Disulfide

Applications

Sulfur Compounds of Air Pollution

Column

1,2,3-TCEP 25% Shimalite 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Injection port temp.

180°C

Detector temp.

180°C

Detector

FPD

View detail

GC

Samples

Hydrogen Sulfide , Sulfur Dioxide , Methyl Mercaptan , Ethyl Mercaptan , Dimethyl Sulfide , Carbon Disulfide , Benzene , Dimethyl Disulfide

Applications

Air pollution sulfur compound (1)

Column

PPE-5rings 10% Shimalite TPA 60-80

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Injection port temp.

180°C

Detector temp.

180°C(FPD)

View detail

GC

Samples

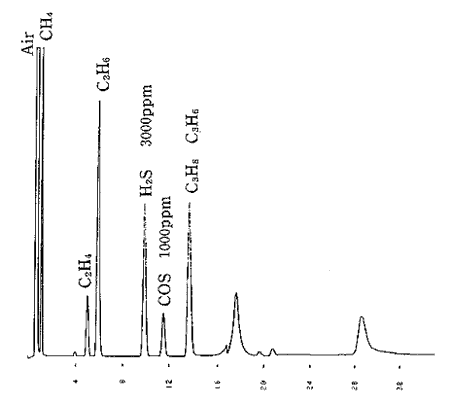

Methane , Ethane , Propane , Hydrogen Sulfide , Carbonyl Sulfide

Applications

Hydrogen sulfide and Sulfurization carbonium in Lower Hydrocarbons(C1〜C3)

Column

Sunpak-S 80-100

Column Size

2.1m×3.2mm

Column temp.

40°C→140°C(6°C/min)

Carrier gas

He,50ml/min

Injection port temp.

180°C

Detector temp.

180°C(TCD)

View detail

GC

Samples

Methane , Ethane , Hydrogen Sulfide , Cabonyl Sulfide , Propane , Isobutane , Methyl Mercaptane , n-Butane

Applications

Sulfur compounds in Lower Hydrocarbon

Column

Sunpak-S 80-100

Column Size

2.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,50ml/min

Injection port temp.

180°C

Detector temp.

180°C(FPD)

View detail

GC

Samples

Carbon Disulfide , Hydrogen Sulfide , Methyl Mercaptan ,Ethyl Mercaptan , DMS , Benzene . DMDS

Applications

Air pollution sulfur compound (3)

Column

β,β-ODPN 25% Chromosorb W 60-80 (AW-DMCS-ST)

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Detector temp.

180°C(FPD)

Injection volume

-

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gas and Lower hydrocarbons (8) Analysis by the 8m column

Column

Micropacked-ST

Column Size

2m ×　1mmI.D.

Column temp.

80°C

Carrier gas

Ar,200kPa

Detector temp.

80°C

Injection volume

0.05mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane

Applications

Inorganic gas and Lower hydrocarbons (10) Analysis by the 8m column

Column

Micropacked-MS

Column Size

2m ×　1mmI.D.

Column temp.

80°C

Carrier gas

He,200kPa

Detector temp.

80°C

Injection volume

0.05mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane

Applications

Inorganic gas and Lower hydrocarbons (11) Analysis by the 8m column

Column

Micropacked-MS

Column Size

2m ×　1mmI.D.

Column temp.

80°C

Carrier gas

Ar,200kPa

Detector temp.

80°C

Injection volume

0.05mL

View detail

GC

Samples

Carbonyl sulfide , Hydrogen sulfide , Carbon disulfide , Methyl mercaptan , Ethyl mercaptan , Dimethyl sulfide , Dimethyl disulfide

Applications

Analysis of methyl mercaptan, hydrogen sulfide, dimethyl sulfide, and dimethyl disulfide using Shinwasorb

Column

β,β’-Oxydipropionitrile 12.5% Shinwasorb-S 60/80 ST

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

70℃

Carrier gas

50 mL/min N₂

Injection port temp.

180℃

Detector temp.

180℃

Detector

FPD (S)

Injection volume

1.0 μL

View detail

GC

Samples

H2 , HD , D2

Applications

Analysis of deuterium (heavy hydrogen)

Column

Shinwa OGO-SP

Column Size

3.0 m x 3.0 mm I.D. Stainless steel

Column temp.

-196℃

Carrier gas

60 mL/min He

Injection port temp.

40℃

Detector temp.

100℃

Detector

TCD 120 mA

Injection volume

1.0 mL

View detail

GC

Samples

Carbon sulfide , Hydrogen sulfide , Carbon disulfide , Methyl mercaptan , Ethyl mercaptane , Dimethyl sulfide

Applications

Measurements of offensive odor substances using Shinwasorb -3-

Column

1,2,3-TCEP 25% Shinwasorb-S 80/100 ST

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

70℃

Carrier gas

50 mL/min N₂

Injection port temp.

180℃

Detector temp.

180℃

Detector

FPD

Injection volume

1.0 μL

View detail

GC

Samples

HCl , SO2 , Cl2 , CHCl3 , SO2Ci2 , CCl4 ,

Applications

Analysis of sulfuryl chloride

Column

TAKU-1 20% Shimalite-F 40/80

Column Size

5.1 m × 3.2 mm glass

Column temp.

70°C

Carrier gas

He, 40 ml/min

Injection port temp.

150°C

Detector temp.

150°C

Detector

TCD

Injection volume

1.5 μL

View detail

GC

Samples

Air , HCl , Water

Applications

Analysis of Hydrogen chloride

Column

SF-96 15% Shimalite-F 20/80

Column Size

3.1 m × 3.2 mm glass

Column temp.

60°C

Carrier gas

He, 30 ml/min

Injection port temp.

190°C

Detector temp.

190°C

Detector

TCD

Injection volume

1.0 ml

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Shincarbon-ST column 2m

Column

Shincarbon-ST 50/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

40°C (3 min. hold) - 200°C (20°C/min.)

Carrier gas

50 mL/min Ar

Injection port temp.

200°C

Detector temp.

200°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Shincarbon-ST column 6m

Column

Shincarbon-ST 50/80 mesh

Column Size

6.0 m x 3.0 mm I.D. Stainless

Column temp.

40°C (8 min. hold) - 200°C (20°C/min.)

Carrier gas

50 mL/min Ar

Injection port temp.

200°C

Detector temp.

200°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane

Applications

Inorganic gases analysis including hydrogen by Molecular Sieve 5A column

Column

Molecular Sieve 5A 60/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

60°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane

Applications

Inorganic gases analysis including hydrogen by Molecular Sieve 13X column

Column

Molecular Sieve 13X 60/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

60°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Activated Charcoal column

Column

Activated Charcoal 60/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

60°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Silica Gel column

Column

Silica Gel 60/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

60°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Sunpak-A column

Column

Sunpak-A 50/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

40°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Micropacked-ST column

Column

Micropacked-ST

Column Size

2.0 m x 1.0 mm I.D. Stainless

Column temp.

80°C

Carrier gas

200 kPa Ar

Injection port temp.

80°C

Detector temp.

80°C

Detector

TCD

Injection volume

0.05 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane

Applications

Inorganic gases analysis including hydrogen by Micropacked-MS column

Column

Micropacked-MS

Column Size

2.0 m x 1.0 mm I.D. Stainless

Column temp.

80°C

Carrier gas

200 kPa Ar

Injection port temp.

80°C

Detector temp.

80°C

Detector

TCD

Injection volume

0.05 mL

View detail

LC

Samples

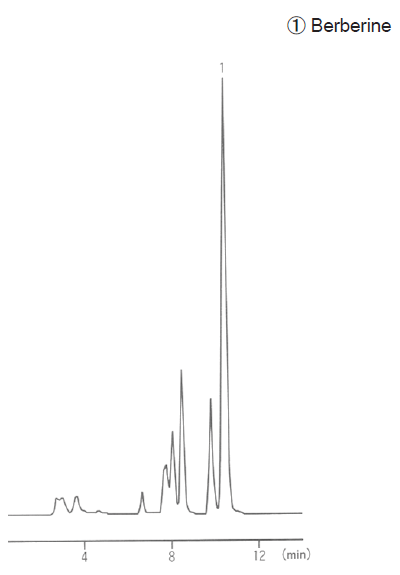

Berberine

Applications

Berberine in the Coptis end

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

The result of dissolving potassium dihydrogenphosphate 3.4 g and sodium lauryl sulfate 1.7 g at water 1 L/CH3CN = 1/1

Frow rate

0.5 mL/min

Column temp.

40°C

View detail

LC

Samples

Hypoxanthine , Inosine 5'-monophosphate , Adenosine 5'-diphosphate , Adenosine 5'-monophosphate , Inosine , Adenosine 5'-triphosphate

Applications

The freshness K value

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

24 mM 2-Diethylaminoethanol + 16 mM Citric acid

Frow rate

2.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Nicotinic acid , Nicotinamide , Pantothenic acid , Pyridoxine , Riboflavin phosphate , Thiamine , Caffeine , Folic acid , Biotin , Riboflavin

Applications

The water-soluble vitamin (1)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

100 mM Phosphoric acid buffer(pH 2.1) + 0.8 mM Octane sodium sulphonate/CH3CN = 9/1

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analyses of Clopidogrel Related Compounds in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)10.0 µL (2)3.0 µL

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analysis of Clopidogrel Related Compounds

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

10.0 µL

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analysis of Clopidogrel Related Compounds

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

3.0 µL

View detail
