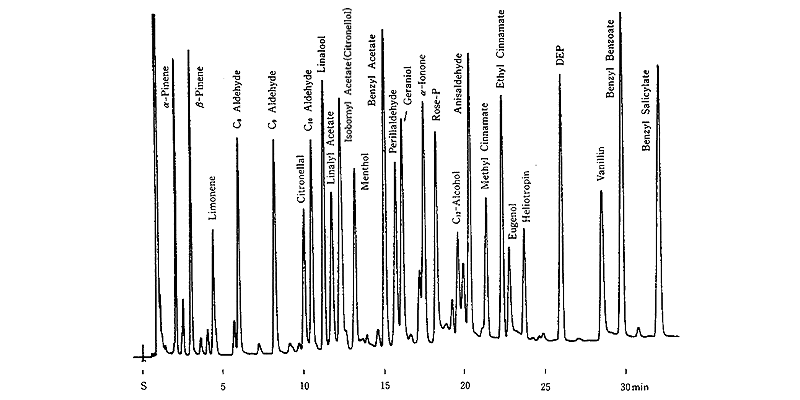

GC

Samples

α-Pinene , β-Pinene , Limonene , Octyl Aldehyde , Nonyl Aldehyde , Citronellal , Decyl Aldehyde , Linalool , Linalyl Acetate , Isobornyl Acetate(Citronellol) , Menthol , Benzyl Acetate , Perillaldehyde , Geraniol , α-Ionone , Rose-P , C12-Alcohol , Anisaldehyde , Methyl Cinnamate , Ethyl Cinnamate , Eugenol , Heliotropin , DEP , Vanillin , Benzyl Benzoate , Benzyl Salicylate

Applications

The mixed sample of perfume component

Column

Thermon-3000 5% Chromosorb W 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

80°C→250°C(6°C/min)

Carrier gas

N2,60ml/min

Injection port temp.

290°C

Detector temp.

280°C(FID)

View detail

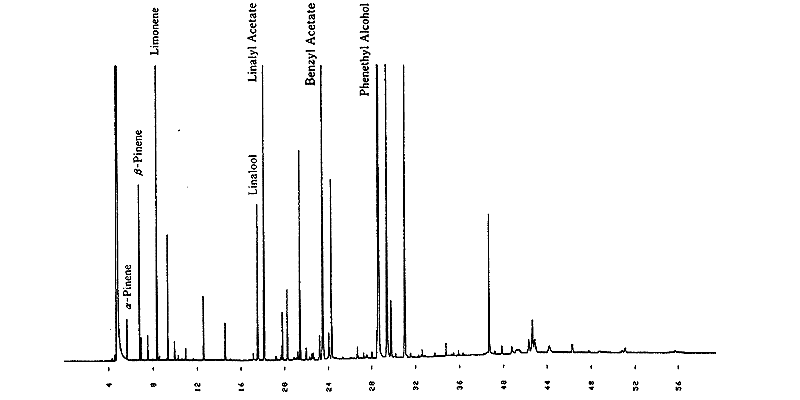

GC

Samples

α-Pinene , β-Pinene , Limonene , Linalool , Linalyl Acetate , Benzyl Acetate , Phenethyl Alcohol

Applications

perfume (1)

Column

ULBON HR-Thermon-600T

Column Size

50m×0.25mm

Column temp.

70°C→230°C(4°C/min)

Carrier gas

He,1.1ml/min

Detector temp.

250°C(FID)

View detail

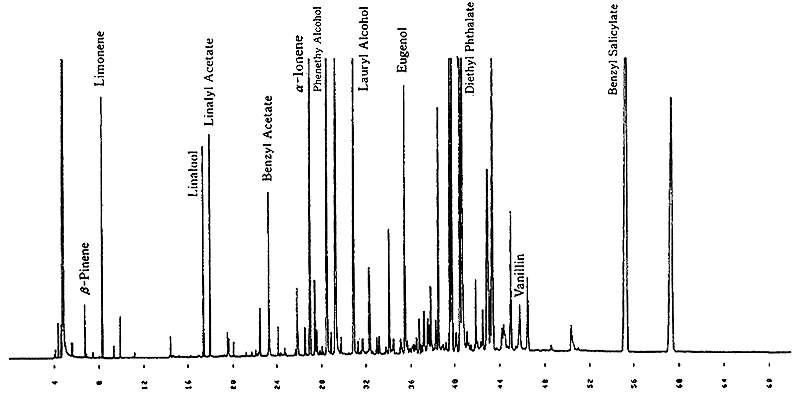

GC

Samples

β-Pinene , Limonene , Linalool , Linalyl Acetate , Benzyl Acetate , α-Ionene , Phenethyl Alcohol , Lauryl Alcohol , Eugenol , Diethyl Phthalate , Vanillin , Benzyl Salicylate

Applications

perfume (2)

Column

ULBON HR-Thermon-600T

Column Size

50m×0.25mm

Column temp.

70°C→230°C(4°C/min)

Carrier gas

He,1.1ml/min

Detector temp.

250°C(FID)

View detail

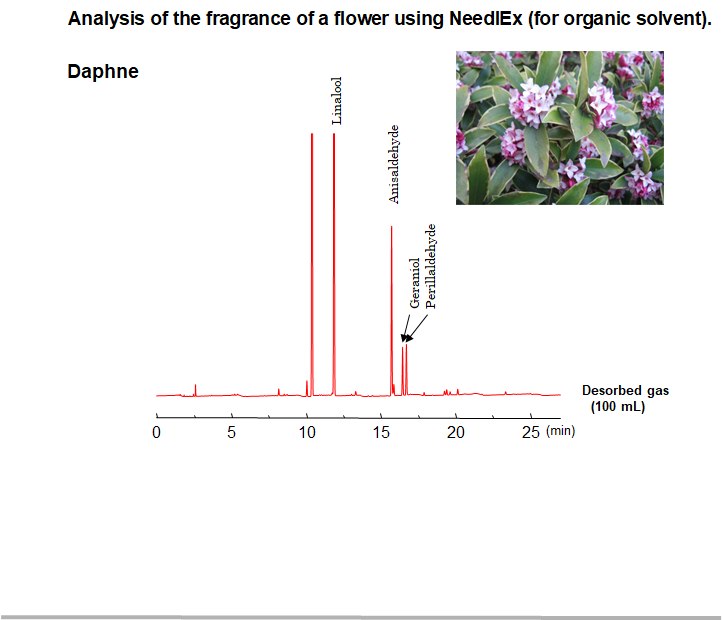

GC

Samples

Linalool , Anisaldehyde , Geraniol , Perillaldehyde

Applications

Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　2

Column

ULBON HR-1

Column Size

0.32mmI.D. × 30m (0.26um)

Column temp.

50°C→200°C(5°C/min)

Carrier gas

He,2.4ml/min

Detector temp.

250°C(FID)

Injection volume

-

View detail

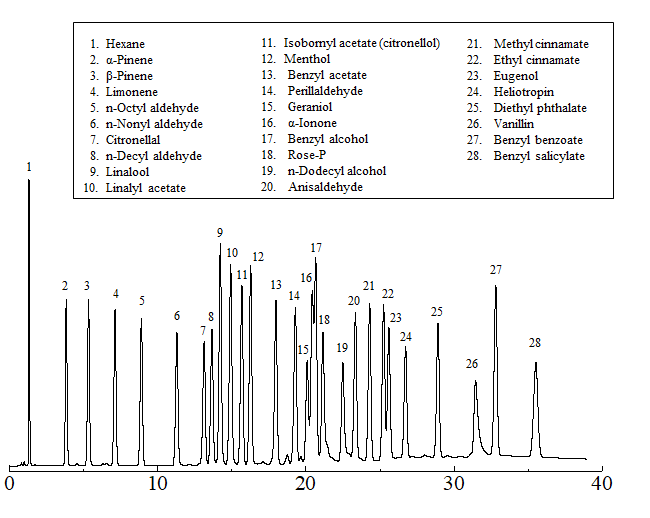

GC

Samples

Fragrance

Applications

Measurements of fragrance using Shinwasorb

Column

Thermon-3000 5% Shinwasorb-S 80/100

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

80～260℃（6℃/min)

Carrier gas

50 mL/min N₂

Injection port temp.

280℃

Detector temp.

280℃

Detector

FID

Injection volume

1.0 μL

View detail
