Search result
"Linoleic acid" Filtered 11 Item.

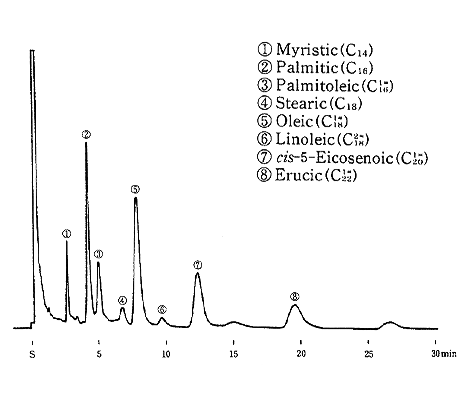

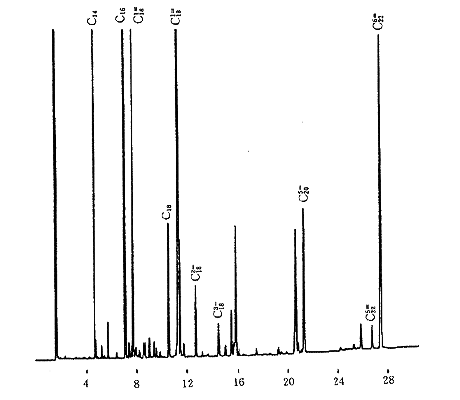

Graph

GC

Samples
Myristic Acid , Palmitic Acid , Palmitoleic Acid , Stearic Acid , Oleoic Acid , Linoleic Acid , cis-5-Eicosenoic Acid , Erucic Acid
Applications
Free fatty acid of fish oil (salmon)
Column
Advance-DS 5% Shinchrom A 80-100 (DMCS)
Column Size
2.1m×3.2mm
Column temp.
225°C
Carrier gas
N2,40ml/min
Injection port temp.
260°C
Detector temp.
260°C(FID)

View detail

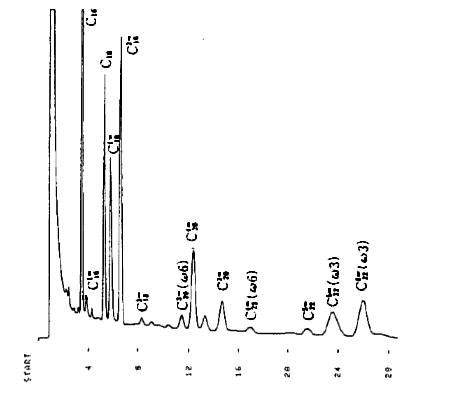

Graph

GC

Samples
Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , gamma-linolenic Acid Methyl Ester , Arachidonic Acid Methyl Ester , 11,14,17-Eicosadienoic Acid Methyl Ester , 7,10,13,16-Docatetranoic Acid Methyl Ester , Docosapentanoic Acid Methyl Ester
Applications
Fatty acid methyl ester in the serum
Column
Shinchrom E71 5% Shimalite 80-100 (AW)
Column Size
3.1m×3.2mm
Column temp.
230°C
Carrier gas
N2,40ml/min
Injection port temp.
260°C
Detector temp.
260°C(FID)

View detail

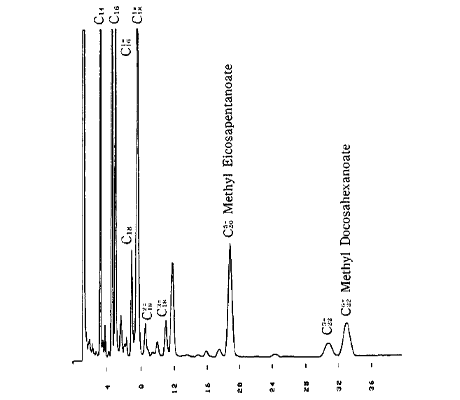

Graph

GC

Samples
Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , 5,8,11,14,17-Eicosapentaenoic Acid Methyl Ester , Docosapentanoic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester
Applications
Fatty acid methyl ester of fish oil (yellow-tail)
Column
Shinchrom E71 5% Shimalite 80-100 (AW)
Column Size
3.1m×3.2mm
Column temp.
230°C
Carrier gas
N2,40ml/min
Injection port temp.
260°C
Detector temp.
260°C(FID)

View detail

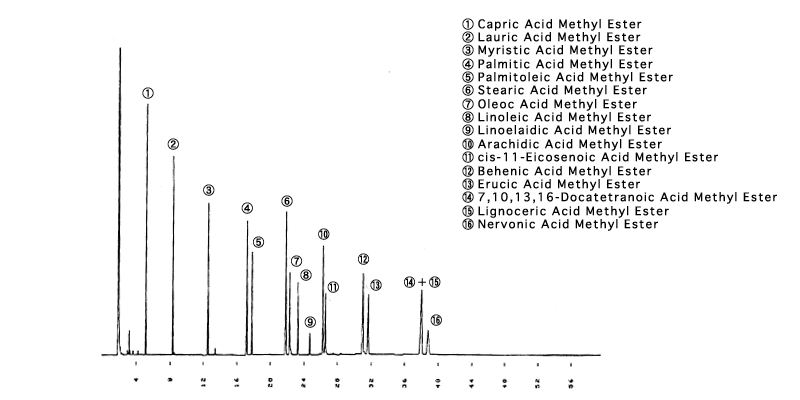

Graph

GC

Samples
Capric Acid Methyl Ester , Lauric Acid Methyl Ester , Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoc Acid Methyl Ester , Linoleic Acid Methyl Ester , Linoelaidic Acid Methyl Ester , Arachidic Acid Methyl Ester , cis-11-Eicosenoic Acid Methyl Ester , Behenic Acid Methyl Ester , Erucic Acid Methyl Ester , 7,10,13,16-Docatetranoic Acid Methyl Ester , Lignoceric Acid Methyl Ester , Nervonic Acid Methyl Ester
Applications
Fatty acid methyl esters
Column
ULBON HR-20M
Column Size
25m×0.25mm(0.25μm)
Column temp.
130°C→240°C(4°C/min)
Carrier gas
He,1.1ml/min
Detector temp.
250°C(FID)
Injection volume
1.0μm

View detail


Graph

GC

Samples
Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester
Applications
Fatty acid methyl ester of the carp
Column
ULBON HR-SS-10
Column Size
25m×0.25mm
Column temp.
170°C→200°C(2°C/min)
Carrier gas
He,1.5ml/min
Detector temp.
250°C(FID)

View detail


Graph

GC

Samples
Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , 5,8,11,14,17-Eicosapentaenoic Acid Ethyl Ester , Docosapentanoic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester
Applications
Fatty acid methyl ester of the yellow-tail
Column
ULBON HR-SS-10
Column Size
25m×0.25mm
Column temp.
150°C→220°C(2°C/min)
Carrier gas
He,1.5ml/min
Detector temp.
250°C(FID)

View detail

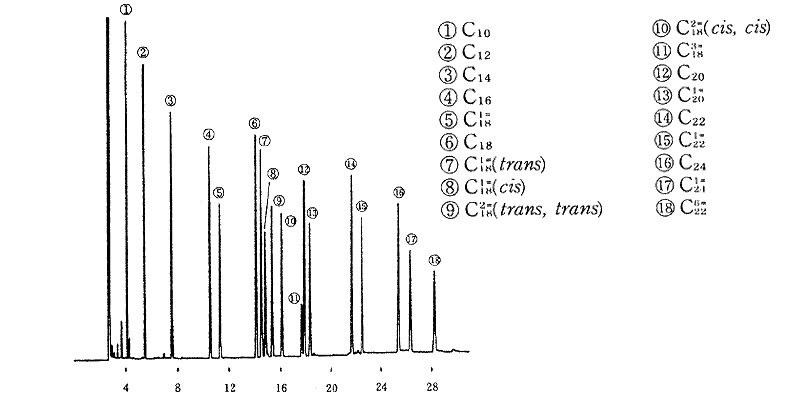

Graph

GC

Samples
Capric Acid Methyl Ester , Lauric Acid Methyl Ester , Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Oleoic Acid Methyl Ester , Stearic Acid Methyl Ester , Elaidic Acid Methyl Ester , Linoelaidic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , Arachidic Acid Methyl Ester , cis-11-Eicosenoic Acid Methyl Ester , Behenic Acid Methyl Ester , Erucic Acid Methyl Ester , Lignoceric Acid Methyl Ester , Nervonic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester
Applications
Standard data Fatty acid methyl ester standard (2)
Column
ULBON HR-SS-10
Column Size
50m×0.32mm
Column temp.
150°C→220°C(3°C/min)
Carrier gas
He,3.4ml/min
Detector temp.
250°C(FID)

View detail


Graph

GC

Samples
Myristic Acid Methyl Ester , Palmitic Acid Methyl Este , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , 5,8,11,14,17-Eicosapentaenoic Acid Ethyl Ester , Docosapentanoic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester
Applications
Fatty acid methyl ester of the tuna ( trolley )
Column
ULBON HR-SS-10
Column Size
25m×0.25mm
Column temp.
150°C→220°C(2°C/min)
Carrier gas
He,1.5ml/min
Detector temp.
250°C(FID)

View detail

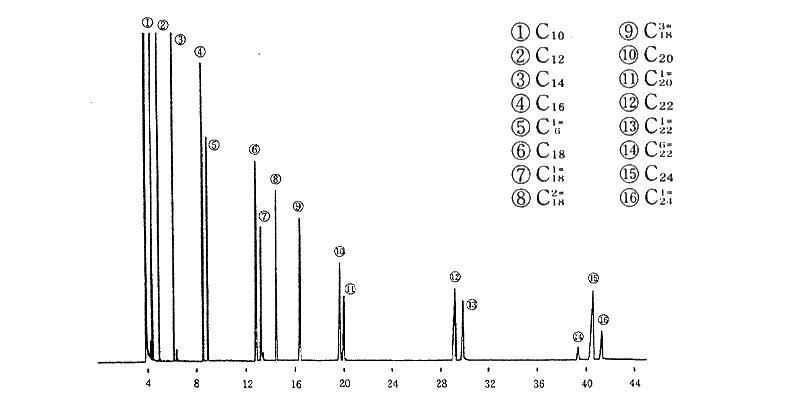

Graph

GC

Samples
Capric Acid Methyl Ester , Lauric Acid Methyl Ester , Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , Arachidic Acid Methyl Ester , cis-11-Eicosenoic Acid Methyl Ester , Behenic Acid Methyl Ester , Erucic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester , Lignoceric Acid Methyl Ester , Nervonic Acid Methyl Ester
Applications
Standard data Fatty acid methyl ester standard (1)
Column
ULBON HR-Thermon-3000B
Column Size
50m×0.25mm
Column temp.
180°C→220°C(1°C/min)
Carrier gas
He,1.7ml/min
Detector temp.
250°C(FID)

View detail

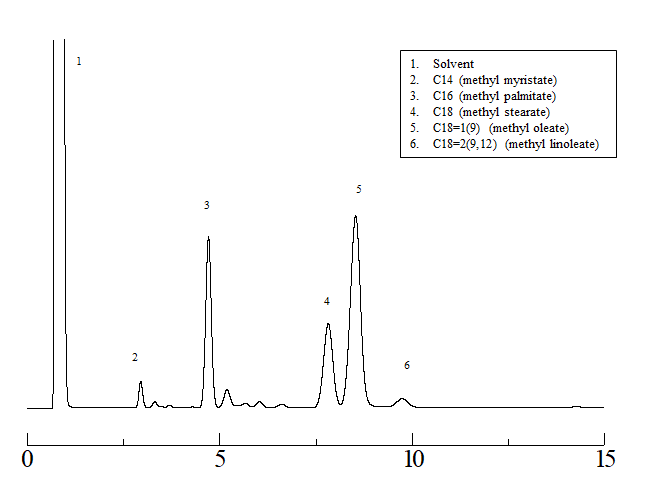

Graph

GC

Samples
beef tallow
Applications
Measurement of Measurement of beef tallow fatty acid methyl esters (FAMEs) using Shinwasorb
Column
Shinchrom E71 5% Shinwasorb-U 60/80
Column Size
3.1 m x 3.2 mm I.D. Glass
Column temp.
210℃
Carrier gas
40 mL/min N₂
Injection port temp.
260℃
Detector temp.
260℃
Detector
FID
Injection volume
1.0 μL

View detail


Graph

GC

Samples
Palmitic acid , Stearic acid , Oleic acid , Linoleic acid , Linolenic acid
Applications
Measurement of fatty acid methyl esters (soy bean oil) using Shinwasorb
Column
Shinchrom E71 5% Shinwasorb-U 60/80
Column Size
3.1 m x 3.2 mm I.D. Glass
Column temp.
230℃
Carrier gas
40 mL/min N₂
Injection port temp.
260℃
Detector temp.
260℃
Detector
FID
Injection volume
1.0 μL

View detail
