Application Search

Search result
"Nitrogen" Filtered 21 Item.

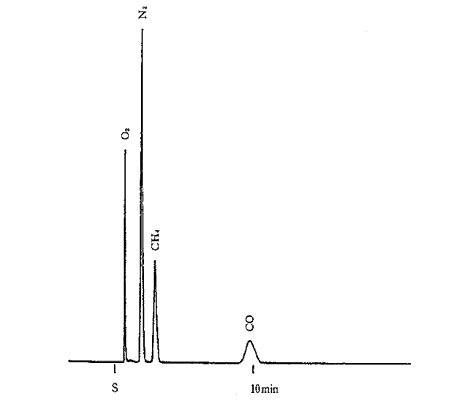

GC
Samples: Oxygen , Nitrogen , Methane , Carbon Monoxide
Applications: Gas (O2, N2, CH4, CO)
Column: Molecular Sieve 5A 60-80
Column Size: 1.6m×3.2mm
Column temp.: 50°C
Carrier gas: He,40ml/min
Injection port temp.: 50°C
Detector temp.: 50°C(TCD)

View detail

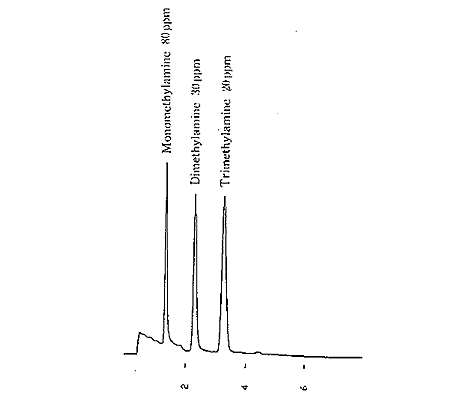

GC
Samples: Monomethylamine , Dimethylamine , Trimethylamine
Applications: Tri-, di-, monomethylamine in Nitrogen
Column: Thermon-3000+KOH(5%+1%) Sunpak-A
Column Size: 2.1m×3.2mm
Column temp.: 150°C
Carrier gas: N2,50ml/min
Injection port temp.: 240°C
Detector temp.: 240°C(FID)

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (3) Analysis by the 2m column
Column: Shincarbon-ST
Column Size: 2m × 3mmI.D.
Column temp.: 40°C (5min. hold) → 200°C (10°C/min.)
Carrier gas: He
Detector temp.: 200°C
Injection volume: 0.5mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (4) Analysis by the 4m column
Column: Shincarbon-ST
Column Size: 4m (2m×2) × 3mmI.D.
Column temp.: 40°C (7min. hold) → 200°C (10°C/min.)
Carrier gas: He
Detector temp.: 200°C
Injection volume: 0.5mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (5) Analysis by the 6m column
Column: Shincarbon-ST
Column Size: 6m (2m×3)) × 3mmI.D.
Column temp.: 40°C (12min. hold) → 200°C (10°C/min.)
Carrier gas: He
Detector temp.: 200°C
Injection volume: 0.5mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (6) Analysis by the 8m column
Column: Shincarbon-ST
Column Size: 8m (2m×4) × 3mmI.D.
Column temp.: 40°C (20min. hold) → 200°C (10°C/min.)
Carrier gas: He
Detector temp.: 200°C
Injection volume: 0.5mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (7) Analysis by the 8m column
Column: Micropacked-ST
Column Size: 2m ×　1mmI.D.
Column temp.: 35°C (2min. hold) → 200°C (25°C/min.)
Carrier gas: He,200kPa
Detector temp.: 200°C
Injection volume: 0.05mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gas and Lower hydrocarbons (8) Analysis by the 8m column
Column: Micropacked-ST
Column Size: 2m ×　1mmI.D.
Column temp.: 80°C
Carrier gas: Ar,200kPa
Detector temp.: 80°C
Injection volume: 0.05mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gas and Lower hydrocarbons (9) Analysis by the 8m column
Column: Micropacked-ST
Column Size: 3m ×　1mmI.D.
Column temp.: 35°C (3.5min. hold) → 80°C (10°C/min.)
Carrier gas: He,300kPa
Detector temp.: 80°C
Injection volume: 0.05mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gas and Lower hydrocarbons (10) Analysis by the 8m column
Column: Micropacked-MS
Column Size: 2m ×　1mmI.D.
Column temp.: 80°C
Carrier gas: He,200kPa
Detector temp.: 80°C
Injection volume: 0.05mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gas and Lower hydrocarbons (11) Analysis by the 8m column
Column: Micropacked-MS
Column Size: 2m ×　1mmI.D.
Column temp.: 80°C
Carrier gas: Ar,200kPa
Detector temp.: 80°C
Injection volume: 0.05mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Shincarbon-ST column 2m
Column: Shincarbon-ST 50/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 40°C (3 min. hold) - 200°C (20°C/min.)
Carrier gas: 50 mL/min Ar
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Shincarbon-ST column 6m
Column: Shincarbon-ST 50/80 mesh
Column Size: 6.0 m x 3.0 mm I.D. Stainless
Column temp.: 40°C (8 min. hold) - 200°C (20°C/min.)
Carrier gas: 50 mL/min Ar
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gases analysis including hydrogen by Molecular Sieve 5A column
Column: Molecular Sieve 5A 60/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 60°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gases analysis including hydrogen by Molecular Sieve 13X column
Column: Molecular Sieve 13X 60/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 60°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Activated Charcoal column
Column: Activated Charcoal 60/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 60°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Silica Gel column
Column: Silica Gel 60/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 60°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Sunpak-A column
Column: Sunpak-A 50/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 40°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Micropacked-ST column
Column: Micropacked-ST
Column Size: 2.0 m x 1.0 mm I.D. Stainless
Column temp.: 80°C
Carrier gas: 200 kPa Ar
Injection port temp.: 80°C
Detector temp.: 80°C
Detector: TCD
Injection volume: 0.05 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gases analysis including hydrogen by Micropacked-MS column
Column: Micropacked-MS
Column Size: 2.0 m x 1.0 mm I.D. Stainless
Column temp.: 80°C
Carrier gas: 200 kPa Ar
Injection port temp.: 80°C
Detector temp.: 80°C
Detector: TCD
Injection volume: 0.05 mL

View detail

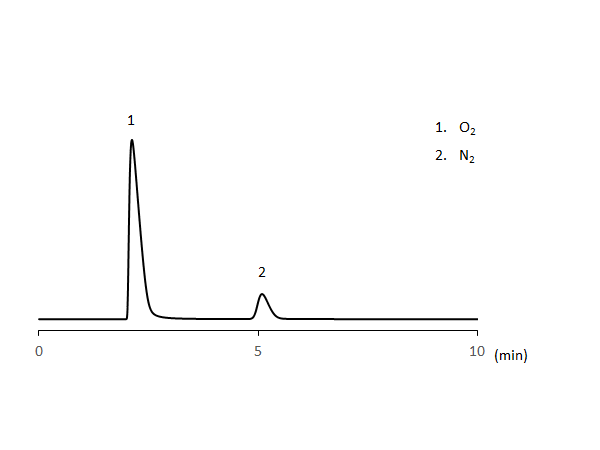

GC
Samples: Oxigen , Nitrogen
Applications: Oxygen purity test (JP) by Molecular Sieve 5A column
Column: Molecular Sieve 5A 45/60 mesh
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 50°C
Carrier gas: 30 mL/min He
Injection port temp.: 80°C
Detector temp.: 80°C
Detector: TCD
Injection volume: 1.0 mL

View detail
