GC

Samples

Formic Acid , Acetic Acid , Propionic Acid

Applications

Formic acid and propionic acid in the acetic acid

Column

FON 5% Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

160°C

Carrier gas

He,55ml/min

Injection port temp.

260°C

Detector temp.

260°C(TCD)

View detail

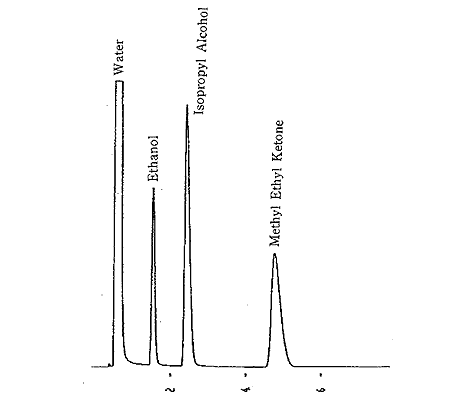

GC

Samples

Ethanol , Isopropyl Alcohol , Methyl Ethyl Ketone

Applications

Lower alcohol in water and Ketones

Column

Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

180°C

Carrier gas

N2,60ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

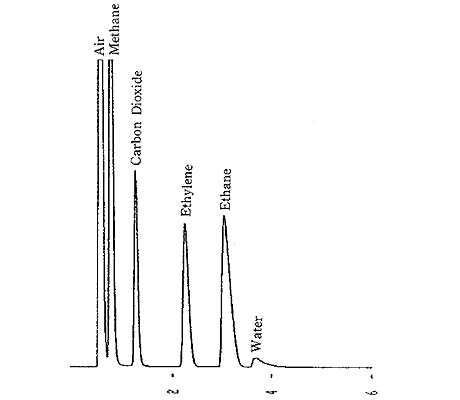

GC

Samples

Methane , Carbon Dioxide , Ethylene , Ethane , Water

Applications

Methane CO2 Ethylene Ethane

Column

Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

50°C

Carrier gas

He,50ml/min

Injection port temp.

150°C

Detector temp.

150°C(TCD)

View detail

GC

Samples

Ethanol , Acetonitrile , Isopropanol , n-Hexane

Applications

Lower alcohol in water and Hydrocarbon

Column

Thermon-1000 5% Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

180°C

Carrier gas

N2,50ml/min

Injection port temp.

250°C

Detector temp.

230°C(FID)

View detail

GC

Samples

Methanol , Acetaldehyde , Ethanol , Isopropanol , n-Propanol , Ethyl Acetate , Isobutanol , n-Butanol , Isoamyl Alcohol

Applications

Lower alcohol in water

Column

Thermon-1000 5% Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

180°C

Carrier gas

N2,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

IPA , Methyl Cellosolve , n-Butanol , 1-Methoxy-2-Propanol , Ethyl Cellosolve , Butyl Cellosolve

Applications

Lower alcohol and Cellosolves

Column

Thermon-1000 5% Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

170°C→220°C(6°C/min)

Carrier gas

N2,50ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Acrylonitrile , Methyl Methacrylate Monomer , DMF , Chlorobenzene , Styrene Monomer , α-Methylstyrene Monomer , N,N-Dimetylformamide

Applications

Residual solvent in the packaging material

Column

Thermon-1000 5% Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

220°C

Carrier gas

N2,50ml/min

Injection port temp.

260°C

Detector temp.

260°C

Detector

FID

Injection volume

1 μL

View detail

GC

Samples

Methyl Alcohol , Acetaldehyde , Ethyl Alcohol , n-Propyl Alcohol , Isobutyl Alcohol , Isoamyl Alcohol

Applications

Aldehyde in the wine and Lower alcohol

Column

Thermon-1000 5% Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

140°C→180°C(6°C/min)

Carrier gas

N2,60ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Monomethylamine , Dimethylamine , Trimethylamine

Applications

Tri-, di-, monomethylamine in Nitrogen

Column

Thermon-3000+KOH(5%+1%) Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

150°C

Carrier gas

N2,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

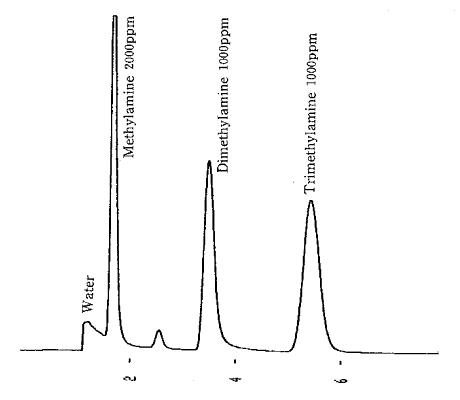

GC

Samples

Methylamine , Dimethylamine , Trimethylamine

Applications

Tri-, di-, monomethylamine in water

Column

Thermon-3000+KOH(5%+1%) Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

140°C

Carrier gas

N2,50ml/min

Injection port temp.

250°C

Detector temp.

230°C(FID)

View detail

GC

Samples

Methanol , Acetaldehyde , Ethanol , Trimethylamine

Applications

Methanol Ethanol Acetaldehyde Trimethylamine in water

Column

Thermon-3000+KOH(5%+1%) Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

120°C

Carrier gas

N2,50ml/min(headspace)

Injection port temp.

220°C

Detector temp.

220°C(FID)

View detail

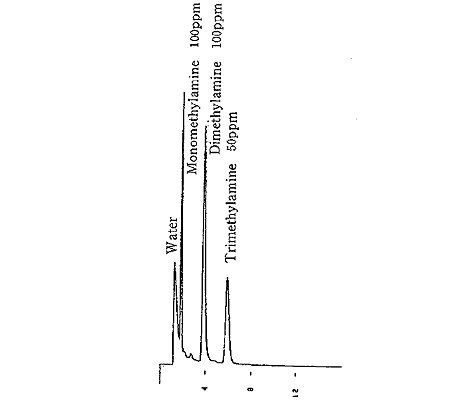

GC

Samples

Monomethylamine , Dimethylamine , Trimethylamine

Applications

Tri-, di-, monomethylamine in water

Column

Thermon-3000+KOH(5%+1%) Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

140°C

Carrier gas

N2,50ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Propyleneglycol , 1,3-propanediol

Applications

Measurement of food additives using Sunpak-A

Column

Sunpak-A 50/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

180℃

Carrier gas

50 mL/min N₂

Injection port temp.

200℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Propyleneglycol , 1,3-propanediol

Applications

Measurement of food additives using Sunpak-A

Column

Sunpak-A 50/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

180℃

Carrier gas

50 mL/min N₂

Injection port temp.

200℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

ethanol , 1-propanol , , ,

Applications

Analysis of doxycycline hydrochloride hydrate using Sunpak-A

Column

Sunpak-A 80/100

Column Size

1.6m×3.2mm glass

Column temp.

115°C

Carrier gas

30 mL/min N2

Injection port temp.

200°C

Detector temp.

200°C

Detector

FID

Injection volume

1.0 µL

View detail

GC

Samples

Methanol in ethanol

Applications

Analysis of etidronate disodium using Sunpak-A ~Purity test (4) Methanol~

Column

Sunpak-A 50/80

Column Size

2.1m x3.2 mm I.D. Glass

Column temp.

130℃

Carrier gas

30 mL/min N2 (Adjust so that the retention time of methanol is about 2 minutes.)

Injection port temp.

200°C

Detector temp.

200°C

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

water, acetonitrile in methanol

Applications

Analysis of panipenem using Sunpak-A ~Water~

Column

Sunpak-A 80/100

Column Size

2.1m x 3.2 mm I.D. Glass

Column temp.

125℃

Carrier gas

29 mL/min He (Adjust so that the retention time of acetonitrile is about 8 minutes.)

Injection port temp.

200°C

Detector temp.

200°C

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Organic solvents

Applications

Analysis of organic solvents using Sunpak-A -1-

Column

Sunpak-A 50/80

Column Size

2.0 m x 3.0 mm I.D. Glass

Column temp.

150℃ ～ 220℃ (3 min hold) program rate 4℃/min

Carrier gas

50 mL/min N₂

Injection port temp.

250°C

Detector temp.

250°C

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Organic solvents

Applications

Analysis of organic solvents using Sunpak-A -2-

Column

Sunpak-A 50/80

Column Size

2.0 m x 3.0 mm I.D. Glass

Column temp.

150℃ ～ 220℃ (3 min hold) program rate 4℃/min

Carrier gas

50 mL/min N₂

Injection port temp.

250°C

Detector temp.

250°C

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

liquefied petroleum gas (LPG)

Applications

Measurement of liquefied petroleum gas (LPG) using Supak-A

Column

Supak-A 50/80

Column Size

2.1 m x 3.2 mm I.D. glass

Column temp.

60℃～120℃ (5°C/min.)

Carrier gas

50 mL/min N₂

Injection port temp.

200℃

Detector temp.

200℃

Detector

FID

Injection volume

0.5 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Sunpak-A column

Column

Sunpak-A 50/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

40°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail
