Search result
"Thermon-HG" Filtered 7 Item.

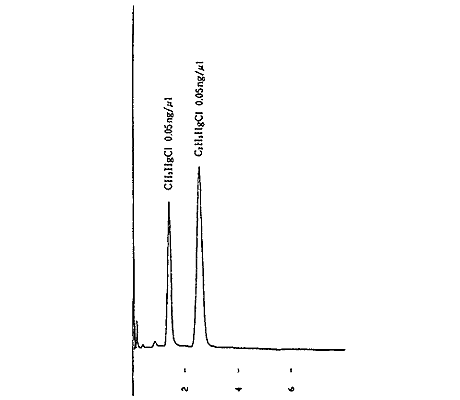

Graph

GC
Samples: Ethylmercury Chloride , Methylmercury Chloride
Applications: Methyl Mercury and Ethylmercury
Column: Thermon-HG 10% Chromosorb W 80-100 (AW-DMCS)
Column Size: 0.5m×3.2mm
Column temp.: 160°C
Carrier gas: N2,55ml/min
Injection port temp.: 250°C
Detector temp.: 250°C(ECD)

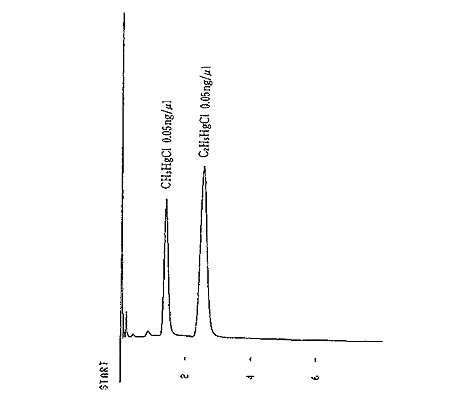

Graph

GC
Samples: Methylmercury Chloride , Ethylmercury Chloride
Applications: Organic mercury (1)
Column: Thermon-HG 10% Chromosorb W 80-100 (AW-DMCS)
Column Size: 0.5m×3.2mm
Column temp.: 160°C
Carrier gas: N2,55ml/min
Injection port temp.: 260°C
Detector temp.: 260°C(ECD)

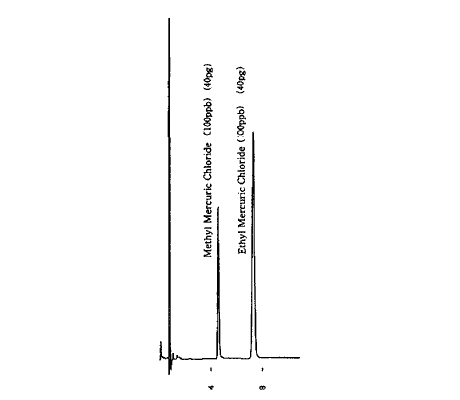

Graph

GC
Samples: Methyl Mercuric Chloride , Ethyl Mercuric Chloride
Applications: Alkyl Mercury
Column: ULBON HR-Thermon-HG
Column Size: 15m×0.53mm
Column temp.: 150°C
Carrier gas: N2,4.5ml/min
Detector temp.: 220°C(ECD)
Injection volume: 1μl

Graph

GC
Samples: Tri-n-Butyltin Chloride
Applications: Tri-n-Butyltin Chloride
Column: ULBON HR-Thermon-HG
Column Size: 15m×0.53mm
Column temp.: 150°C
Carrier gas: N2,4.5ml/min
Detector temp.: 220°C(ECD)
Injection volume: 1μl

Graph

GC
Samples: Methyl mercuric chloride , Ethyl mercuric chloride
Applications: Measurement of alkyl mercury compounds (each 100 ppb in n-hexane) using Shinwasorb
Column: Thermon-HG 5% Shinwasorb-U 60/80
Column Size: 0.5 m x 3.0 mm I.D. Glass
Column temp.: 160℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 250℃
Detector temp.: 250℃
Detector: ECD
Injection volume: 1.0 μL

Graph

GC
Samples: Methyl mercuric chloride
Applications: Measurement of methylmercury in black bass using Shinwasorb
Column: Thermon-HG 5% Shinwasorb-U 60/80
Column Size: 0.5 m x 3.0 mm I.D. Glass
Column temp.: 170℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 200℃
Detector temp.: 200℃
Detector: ECD
Injection volume: 1.0 μL

Graph

GC
Samples: Methyl mercuric chloride
Applications: Measurement of methylmercury in tuna using Shinwasorb
Column: Thermon-HG 5% Shinwasorb-U 60/80
Column Size: 0.5 m x 3.0 mm I.D. Glass
Column temp.: 170℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 200℃
Detector temp.: 200℃
Detector: ECD
Injection volume: 1.0 μL
