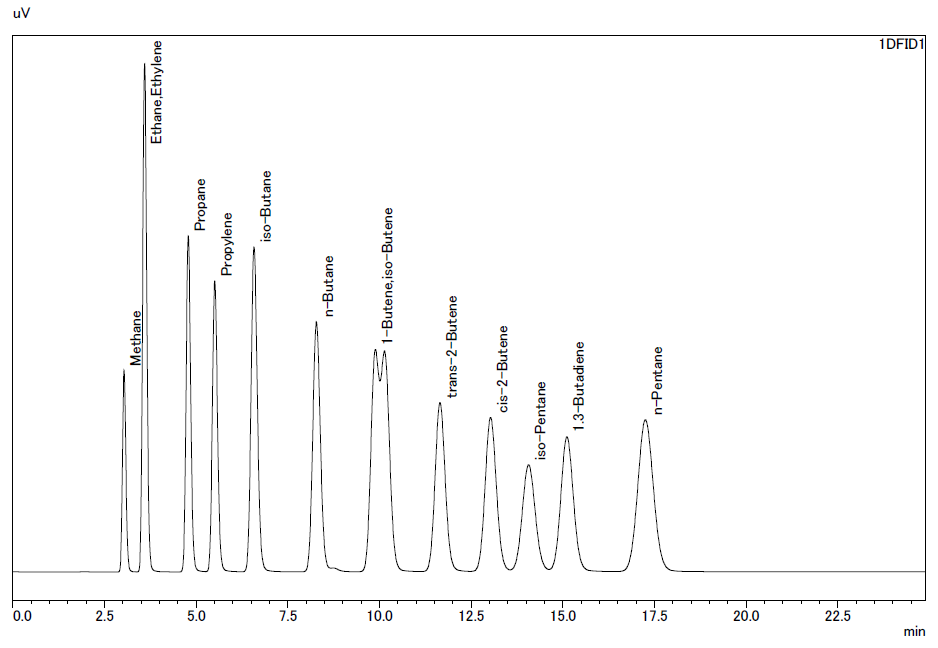

GC

Samples

Methane , Ethane , Ethylene , Propane , Propylene , iso-Butane , n-Butane , 1-Butene , iso-Butene , trans-2-Butene , cis-2-Butene , iso-Pentane , 1,3-Butadiene , n-Pentane ,

Applications

Liquefied petroleum gas (LPG)

Column

SM-6

Column Size

6.0 m × 3.0 mm Stainless steel

Column temp.

40°C

Carrier gas

He, 25 ml/min

Injection port temp.

40°C

Detector temp.

40°C

Detector

TCD

Injection volume

1.0 mL

View detail

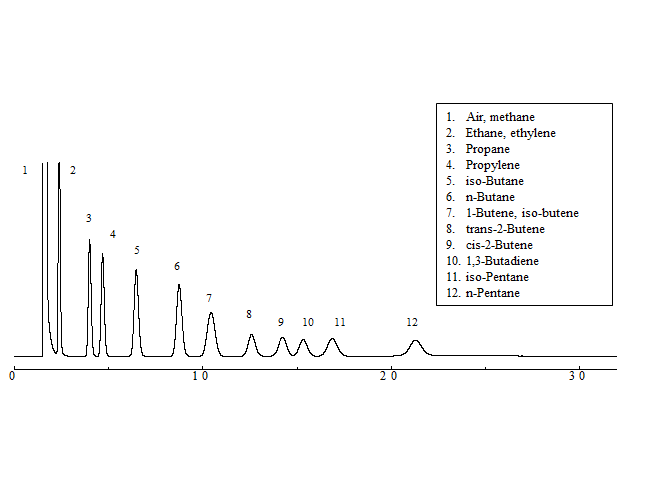

GC

Samples

liquefied petroleum gas (LPG)

Applications

Measurement of liquefied petroleum gas (LPG) using Shinwasorb

Column

DBM+ODPN (95:5) 35% Shinwasorb-U 60/80

Column Size

6.0 m (3.0 m+3.0 m) x 3.0 mm I.D. stainless steel

Column temp.

40℃

Carrier gas

45 mL/min N₂

Injection port temp.

50℃

Detector temp.

50℃

Detector

TCD

Injection volume

1.0 mL

View detail
