GC

Samples

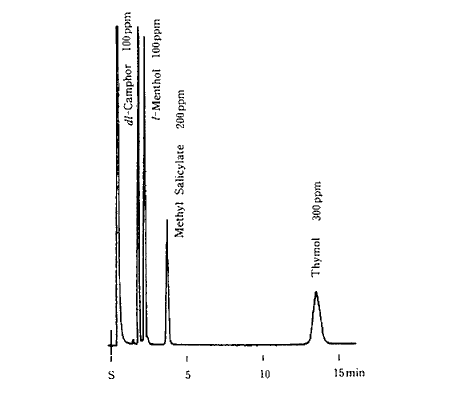

dl-Camphor , l-Menthol , Methyl Salicylate , Thymol

Applications

The component of the liniment

Column

Thermon-3000 10% Chromosorb W 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

175°C

Carrier gas

N2,60ml/min

Injection port temp.

250°C

Detector temp.

250°C(FID)

View detail

GC

Samples

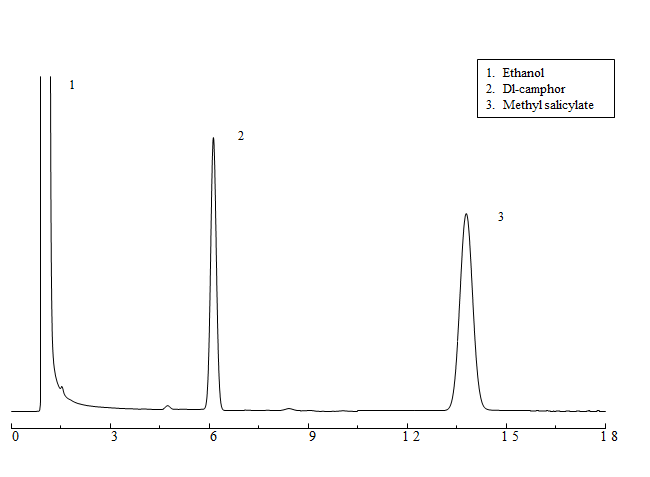

Ethanol , Dl-camphor , Methyl salicylate ,

Applications

Analysis of dl-camphor using Shinwasorb

Column

PEG 20M 5% Shinwasorb-S 60/80

Column Size

3.1m×3.2mm glass

Column temp.

160°C

Carrier gas

45 mL/min N2

Injection port temp.

200°C

Detector temp.

200°C

Detector

FID

Injection volume

2.0 μL

View detail
