GC

Samples

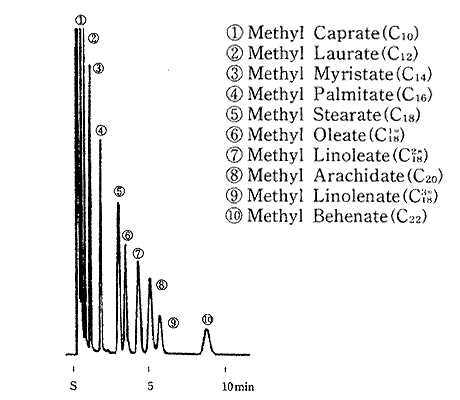

Methyl Caprate , Methyl Laurate , Methyl Myristate , Methyl Palmitate , Methyl Stearate , Methyl Oleate , Methyl Linoleate , Methyl Arachidate , Methyl Linolenate , Methyl Behenate

Applications

Standard Mixture of Fatty Acid Methyl Esters

Column

Advance-DS 5% Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

200°C

Carrier gas

N2,40ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Caprylic Acid , Capric Acid , Lauric Acid , Myristic Acid , Palmitic Acid , Stearic Acid , Oleoic Acid

Applications

Free fatty acid in the cocoanut oil

Column

Advance-DS 5% Shinchrom A 80〜100(DMCS)

Column Size

2.1m×3.2mm

Column temp.

225°C

Carrier gas

N2,60ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Myristic Acid , Palmitic Acid , Palmitoleic Acid , Stearic Acid , Oleoic Acid , Linoleic Acid , cis-5-Eicosenoic Acid , Erucic Acid

Applications

Free fatty acid of fish oil (salmon)

Column

Advance-DS 5% Shinchrom A 80-100 (DMCS)

Column Size

2.1m×3.2mm

Column temp.

225°C

Carrier gas

N2,40ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Acetic Acid , Propionic Acid , Isobutyric Acid , Butyric Acid . Isovaleric Acid , Isocaproic Acid , Caproic Acid , Enanthic Acid

Applications

[ DEGS + H3PO4 ] Apprication of Lower free fatty acid

Column

DEGS+H3PO4(10%+1%) Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

160°C

Carrier gas

N2,50ml/min

Injection port temp.

250°C

Detector temp.

250°C(FID)

View detail

GC

Samples

Acetic Acid , Propionic Acid , Isobutyric Acid , Butyric Acid , Isovaleric Acid , Isocaproic Acid , Caproic Acid , Enanthic Acid

Applications

Free lower fatty acids in water (2) (each 50ppm)

Column

FAL-M 10% Shimalite TPA 60-80

Column Size

2.1m×3.2mm

Column temp.

160°C

Carrier gas

N2,60ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Acetic Acid , Propionic Acid , Isobutyric Acid , Butyric Acid , Isovaleric Acid , Valeric Acid , Isocaproic Acid , Caproic Acid

Applications

Free lower fatty acids (4) (each 100ppm)

Column

FFAP+H3PO4(0.3%+0.3%) Graphitecarbon 60〜80

Column Size

1.6m×3.2mm

Column temp.

80°C→220°C(16°C/min)

Carrier gas

N2,60ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Acetic Acid , Propionic Acid , Isobutyric Acid , Butyric Acid , Isovaleric Acid , Valeric Acid , Isocaproic Acid , Caproic Acid

Applications

Free lower fatty acids in Acetone(each 200ppm)

Column

FON 20% Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

170°C

Carrier gas

N2,50ml/min

Injection port temp.

250°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Acetic Acid , Propionic Acid , Isobutyric Acid , Butyric Acid , Isovaleric Acid , Isocaproic Acid , Caproic Acid , Enanthic Acid

Applications

Free lower fatty acids in water (3) (each 50ppm)

Column

PEG 6000 10% Shimalite TPA 60-80

Column Size

2.1m×3.2mm

Column temp.

160°C

Carrier gas

N2,60ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Acetic Acid , Propionic Acid , Isobutyric Acid , Butyric Acid , Isovaleric Acid , Valeric Acid , Isocaproic Acid , Caproic Acid , Methyl Lactate , Dimethyl Succinate

Applications

Free lower fatty acids (C2〜C6), Lactic acid methyl and Succinic acid methyl

Column

Reoplex 400 10% Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

140°C

Carrier gas

N2,60ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , gamma-linolenic Acid Methyl Ester , Arachidonic Acid Methyl Ester , 11,14,17-Eicosadienoic Acid Methyl Ester , 7,10,13,16-Docatetranoic Acid Methyl Ester , Docosapentanoic Acid Methyl Ester

Applications

Fatty acid methyl ester in the serum

Column

Shinchrom E71 5% Shimalite 80-100 (AW)

Column Size

3.1m×3.2mm

Column temp.

230°C

Carrier gas

N2,40ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , 5,8,11,14,17-Eicosapentaenoic Acid Methyl Ester , Docosapentanoic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester

Applications

Fatty acid methyl ester of fish oil (yellow-tail)

Column

Shinchrom E71 5% Shimalite 80-100 (AW)

Column Size

3.1m×3.2mm

Column temp.

230°C

Carrier gas

N2,40ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Acetic Acid , Propionic Acid , Isobutyric Acid , Butyric Acid , Isovaleric Acid , Isocaproic Acid , Caproic Acid , Enanthic Acid

Applications

[ Thermon-1000+H3PO4 ] Apprication of Lower free fatty acid

Column

Thermon-1000+H3PO4(10%+1%) Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

160°C

Carrier gas

N2,50ml/min

Injection port temp.

250°C

Detector temp.

250°C(FID)

View detail

GC

Samples

Isobutyric Acid , Isovaleric Acid , Isocaproic Acid , Caproic Acid , Enanthic Acid , Lactic Acid

Applications

Free lower fatty acids in water and Lactic acid (1)

Column

Thermon-3000 3% Shimalite TPA 60-80

Column Size

1.6m×3.2mm

Column temp.

170°C

Carrier gas

N2,60ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Capric Acid Methyl Ester , Lauric Acid Methyl Ester , Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoc Acid Methyl Ester , Linoleic Acid Methyl Ester , Linoelaidic Acid Methyl Ester , Arachidic Acid Methyl Ester , cis-11-Eicosenoic Acid Methyl Ester , Behenic Acid Methyl Ester , Erucic Acid Methyl Ester , 7,10,13,16-Docatetranoic Acid Methyl Ester , Lignoceric Acid Methyl Ester , Nervonic Acid Methyl Ester

Applications

Fatty acid methyl esters

Column

ULBON HR-20M

Column Size

25m×0.25mm(0.25μm)

Column temp.

130°C→240°C(4°C/min)

Carrier gas

He,1.1ml/min

Detector temp.

250°C(FID)

Injection volume

1.0μm

View detail

GC

Samples

Acetic Acid , Propionic Acid , iso-Butyric Acid , n-Butyric Acid , iso-Valeric Acid , iso-Caproic Acid , n-Caproic Acid , n-Heptanoic Acid

Applications

Lower fatty Acid in water

Column

ULBON HR-20M

Column Size

30m×0.53mm(3.0μm)

Column temp.

150°C

Carrier gas

He,10.5ml/min

Detector temp.

280°C(FID)

Injection volume

0.4μl

View detail

GC

Samples

Arachidic Acid Methyl Ester , Behenic Acid Methyl Ester , Lignoceric Acid Methyl Ester , Cerotic Acid Methyl Ester , Montanic Acid Methyl Ester , Melissic Acid Methyl Ester

Applications

Higher fatty acid esters in Calnaubawax

Column

ULBON HR-52

Column Size

25m×0.25mm(0.25μm)

Column temp.

200°C→320°C(5°C/min)

Carrier gas

He,0.5ml/min

Detector temp.

330°C(FID)

Injection volume

1μl

View detail

GC

Samples

Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester

Applications

Fatty acid methyl ester of the carp

Column

ULBON HR-SS-10

Column Size

25m×0.25mm

Column temp.

170°C→200°C(2°C/min)

Carrier gas

He,1.5ml/min

Detector temp.

250°C(FID)

View detail

GC

Samples

Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , 5,8,11,14,17-Eicosapentaenoic Acid Ethyl Ester , Docosapentanoic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester

Applications

Fatty acid methyl ester of the yellow-tail

Column

ULBON HR-SS-10

Column Size

25m×0.25mm

Column temp.

150°C→220°C(2°C/min)

Carrier gas

He,1.5ml/min

Detector temp.

250°C(FID)

View detail

GC

Samples

Capric Acid Methyl Ester , Lauric Acid Methyl Ester , Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Oleoic Acid Methyl Ester , Stearic Acid Methyl Ester , Elaidic Acid Methyl Ester , Linoelaidic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , Arachidic Acid Methyl Ester , cis-11-Eicosenoic Acid Methyl Ester , Behenic Acid Methyl Ester , Erucic Acid Methyl Ester , Lignoceric Acid Methyl Ester , Nervonic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester

Applications

Standard data Fatty acid methyl ester standard (2)

Column

ULBON HR-SS-10

Column Size

50m×0.32mm

Column temp.

150°C→220°C(3°C/min)

Carrier gas

He,3.4ml/min

Detector temp.

250°C(FID)

View detail

GC

Samples

Myristic Acid Methyl Ester , Palmitic Acid Methyl Este , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , 5,8,11,14,17-Eicosapentaenoic Acid Ethyl Ester , Docosapentanoic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester

Applications

Fatty acid methyl ester of the tuna ( trolley )

Column

ULBON HR-SS-10

Column Size

25m×0.25mm

Column temp.

150°C→220°C(2°C/min)

Carrier gas

He,1.5ml/min

Detector temp.

250°C(FID)

View detail

GC

Samples

Capric Acid Methyl Ester , Lauric Acid Methyl Ester , Myristic Acid Methyl Ester , Palmitic Acid Methyl Ester , Palmitoleic Acid Methyl Ester , Stearic Acid Methyl Ester , Oleoic Acid Methyl Ester , Linoleic Acid Methyl Ester , Linolenic Acid Methyl Ester , Arachidic Acid Methyl Ester , cis-11-Eicosenoic Acid Methyl Ester , Behenic Acid Methyl Ester , Erucic Acid Methyl Ester , 4,7,10,13,16,19-Docosahexaenoic Acid Methyl Ester , Lignoceric Acid Methyl Ester , Nervonic Acid Methyl Ester

Applications

Standard data Fatty acid methyl ester standard (1)

Column

ULBON HR-Thermon-3000B

Column Size

50m×0.25mm

Column temp.

180°C→220°C(1°C/min)

Carrier gas

He,1.7ml/min

Detector temp.

250°C(FID)

View detail

GC

Samples

long-chain fatty acid methyl esters (FAMEs)

Applications

Measurement of long-chain fatty acid methyl esters (FAMEs C10～C24) using Shinwasorb

Column

Shinchrom E71 5% Shinwasorb-U 60/80

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

230℃

Carrier gas

40 mL/min N₂

Injection port temp.

250℃

Detector temp.

250℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

palm oil

Applications

Measurement of fatty acid methyl esters (palm oil) using Shinwasorb

Column

Shinchrom E71 5% Shinwasorb-U 60/80

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

210℃

Carrier gas

40 mL/min N₂

Injection port temp.

260℃

Detector temp.

260℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

beef tallow

Applications

Measurement of Measurement of beef tallow fatty acid methyl esters (FAMEs) using Shinwasorb

Column

Shinchrom E71 5% Shinwasorb-U 60/80

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

210℃

Carrier gas

40 mL/min N₂

Injection port temp.

260℃

Detector temp.

260℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Palmitic acid , Stearic acid , Oleic acid , Linoleic acid , Linolenic acid

Applications

Measurement of fatty acid methyl esters (soy bean oil) using Shinwasorb

Column

Shinchrom E71 5% Shinwasorb-U 60/80

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

230℃

Carrier gas

40 mL/min N₂

Injection port temp.

260℃

Detector temp.

260℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Acetic acid , Propionic acid , Isobutyric acid , Butyric acid , Isovaleric acid , Valeric acid , Isocaproic acid , Capric acid , Enanthic acid

Applications

Measurement of short-chain free fatty acids using Shinwasorb -1-

Column

Thermon-1000+H3PO4 2.5+0.25% Shinwasorb-U 60/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

150℃

Carrier gas

50 mL/min N₂

Injection port temp.

250℃

Detector temp.

240℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Acetic acid , Propionic acid , Isobutyric acid , Butyric acid , Isovaleric acid , Valeric acid , Isocaproic acid , Capric acid , Enanthic acid

Applications

Measurement of short-chain free fatty acids using Shinwasorb -2-

Column

FAL-M Shinwasorb-S 60/80 PA

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

150℃

Carrier gas

50 mL/min N₂

Injection port temp.

260℃

Detector temp.

260℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Acetic acid , Propionic acid , iso-butyric acid , n-butyric acid , iso-valeric acid , n-valeric avid , iso-caproic acid , n-caproic acid

Applications

Lower free fatty acid in water

Column

Sunpak-H 60/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

175℃

Carrier gas

50 mL/min N₂

Injection port temp.

250°C

Detector temp.

250°C

Detector

FID

Injection volume

1.0 μL

View detail

LC

Samples

Linolenic acid , Myristic acid , Palmitoleic acid , Arachidonic acid , Linoleic acid , Palmitic acid , Oleic acid

Applications

Analysis of Long-chain fatty acid

Column

STR ODS-Ⅱ

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/0.1% H3PO4 aq = 80/20

Frow rate

1.0 mL/min

Column temp.

40°C

Injection volume

5 µL

Diluent

ethyl acetate

View detail
