Search result
"n-Heptane" Filtered 3 Item.

Graph

GC
Samples: n-Pentane , n-Hexane , n-Heptane , n-Octane , Acrolein , Carbon Tetrachloride , Benzene , Acrylonitrile , Acetonitrile , Perchloroethylene , Toluene , Ethylbenzene , m-Xylene , o-Xylene , n-Dodecane , Styrene monomer , n-Tridecane , p-Xylene
Applications: Organic solvent in work environment (1)
Column: Thermon-1000 25% Shimalite 80-100 (AW-DMCS)
Column Size: 3.1m×3.2mm
Column temp.: 130°C
Carrier gas: N2,40ml/min
Injection port temp.: 240°C
Detector temp.: 240°C(FID)

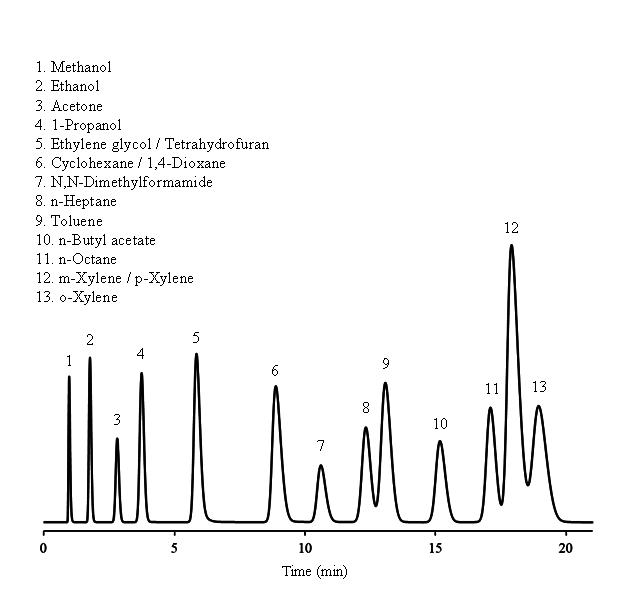

Graph

GC
Samples: Organic solvents
Applications: Analysis of organic solvents using Sunpak-A -1-
Column: Sunpak-A 50/80
Column Size: 2.0 m x 3.0 mm I.D. Glass
Column temp.: 150℃ ～ 220℃ (3 min hold) program rate 4℃/min
Carrier gas: 50 mL/min N₂
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 1.0 μL

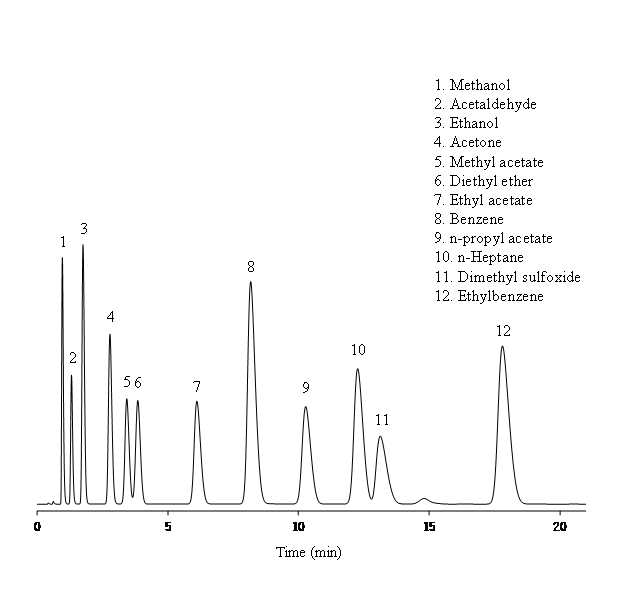

Graph

GC
Samples: Organic solvents
Applications: Analysis of organic solvents using Sunpak-A -2-
Column: Sunpak-A 50/80
Column Size: 2.0 m x 3.0 mm I.D. Glass
Column temp.: 150℃ ～ 220℃ (3 min hold) program rate 4℃/min
Carrier gas: 50 mL/min N₂
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 1.0 μL
