Search result
"n-Propanol" Filtered 4 Item.

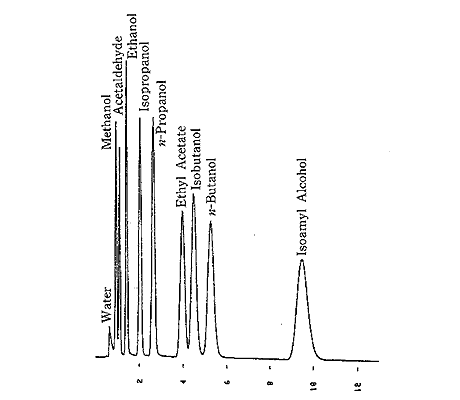

Graph

GC
Samples: Methanol , Acetaldehyde , Ethanol , Isopropanol , n-Propanol , Ethyl Acetate , Isobutanol , n-Butanol , Isoamyl Alcohol
Applications: Lower alcohol in water
Column: Thermon-1000 5% Sunpak-A
Column Size: 2.1m×3.2mm
Column temp.: 180°C
Carrier gas: N2,50ml/min
Injection port temp.: 240°C
Detector temp.: 240°C(FID)

Graph

GC
Samples: Methanol , Ethanol , Acetone , IPA , n-Propanol , Ethyl Acetate , MEK , Chloroform , Benzene , n-Butanol , Toluene , MIBK , Isobutyl Acetate , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cellosolve Acetate
Applications: Solvents (2)
Column: ULBON HR-1701
Column Size: 25m×0.32mm(0.5μm)
Column temp.: 40°C→90°C(2°C/min)
Carrier gas: He,0.83ml/min
Detector temp.: 200°C(FID)
Injection volume: 1μl

Graph

GC
Samples: Methanol , Ethanol , Acetone , n-Propanol , n-Hexane , Ethyl Acetate , Chloroform , Benzene , MIBK , Toluene , Isobutyl Acetate , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cellosolve Acetate
Applications: Solvents (1)
Column: ULBON HR-52
Column Size: 25m×0.32mm(0.5μm)
Column temp.: 40°C→90°C(2°C/min)
Carrier gas: He,0.83ml/min
Detector temp.: 200°C(FID)
Injection volume: 1μl

Graph

GC
Samples: Mixture of 22 organic solvents
Applications: Measurement of organic solvents using Shinwasorb -2-
Column: PEG1500 12.5% Shinwasorb-U 40/60
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 60～120℃ (4℃/min)
Carrier gas: 40 mL/min N₂
Injection port temp.: 200℃
Detector temp.: 200℃
Detector: FID
Injection volume: 1.0 μL
