Search result
"Cyclopentanol" Filtered 3 Item.

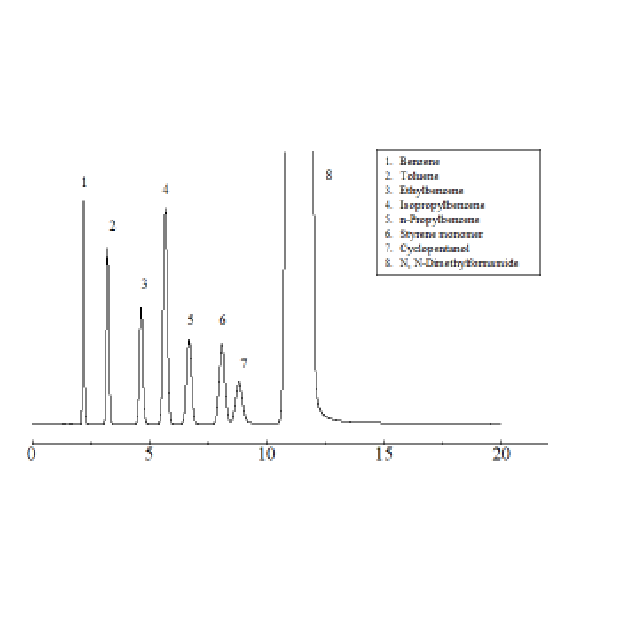

Graph

GC
Samples: Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene Monomer , Cyclopentanol
Applications: Residual styrene monomer in the packaging material
Column: FFAP 20% Chromosorb W 80-100 AW
Column Size: 3.1m×3.2mm
Column temp.: 130°C
Carrier gas: N2,50ml/min
Injection port temp.: 240°C
Detector temp.: 240°C(FID)

Graph

GC
Samples: Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene monomer , Cyclopentanol , N,N-Dimethylformamide
Applications: Measurement of styrene monomer in DMF using Shinwasorb
Column: FON 10% Shinwasorb-S 60/80
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 110℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 230℃
Detector temp.: 230℃
Detector: FID
Injection volume: 1.0 μL

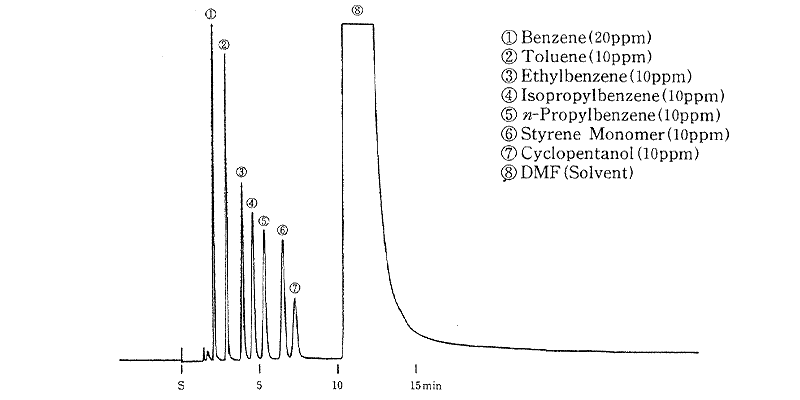

Graph

GC
Samples: Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene monomer , Cyclopentanol , N, N-Dimethylformamide ,
Applications: Measurement of styrene monomer in DMF using Shinwasorb
Column: FFAP 10% Shinwasorb-U 60/80
Column Size: 3.1m×3.2mm glass
Column temp.: 120°C
Carrier gas: 50 mL/min N2
Injection port temp.: 240°C
Detector temp.: 240°C
Detector: FID
Injection volume: 1.0 μL
