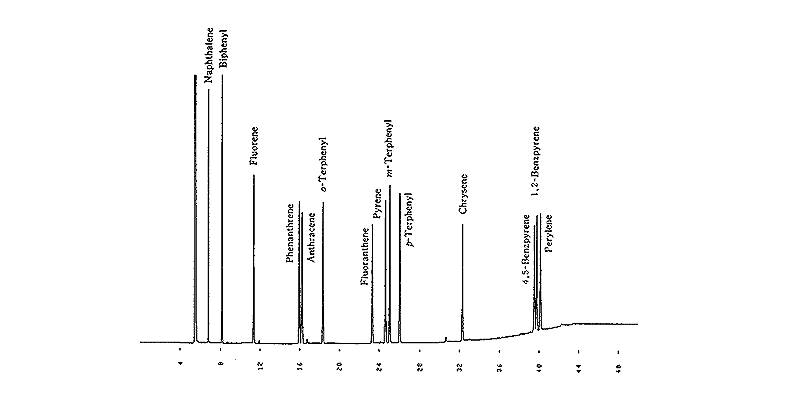

GC

Samples

Naphthalene , Biphenyl , Fluorene , Phenanthrene , Anthracene , o-Terphenyl , Fluoranthene , Pyrene , m-Terphenyl , p-Terphenyl , Chrysene , 4,5-Benzpyrene , 1,2-Benzpyrene , Perylene

Applications

Polycyclic aromatic hydrocarbon

Column

ULBON HR-1

Column Size

50m×0.25mm(0.25μm)

Column temp.

200°C→320°C(4°C/min)

Carrier gas

He,068ml/min

Detector temp.

330°C(FID)

Injection volume

1μl

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , p-Xylene , m-Xylene , iso-Propylbenzene , o-Xylene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,2,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , Naphthalene

Applications

Aromatic hydrocarbons in Premium gasoline

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

50°C→180°C(2°C/min)

Carrier gas

He,1.04ml/min

Detector temp.

250°C(FID)

Injection volume

0.2μl

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , p-Xylene , m-Xylene , iso-Propylbenzene , o-Xylene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,2,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , Naphthalene

Applications

Aromatic hydrocarbons in Regular gasoline

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

50°C→180°C(2°C/min)

Carrier gas

He,1.04ml/min

Detector temp.

250°C(FID)

Injection volume

0.2μl

View detail

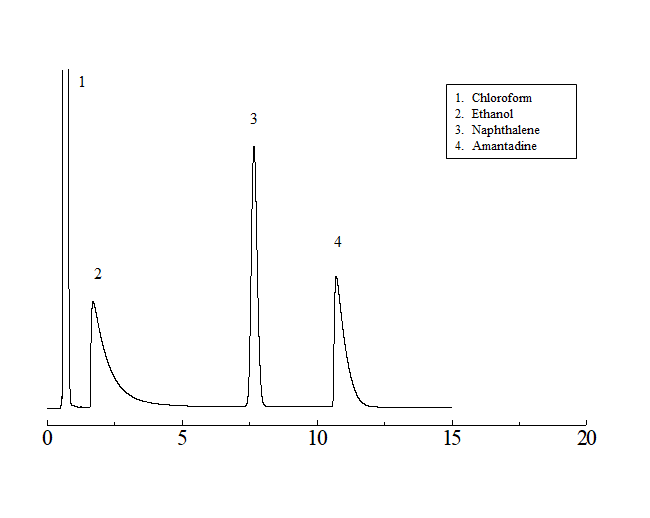

GC

Samples

Chloroform , Ethanol , Naphthalene , Amantadine

Applications

Measurements of amantadine hydrochloride using Shinwasorb

Column

Apiezone L+KOH 2+1% Shinwasorb-S 80/100

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

125℃(5 min hold)～150℃(5℃/min)～150℃ (10 min hold)

Carrier gas

50 mL/min N₂

Injection port temp.

200℃

Detector temp.

200℃

Detector

FID

Injection volume

2.0 μL

View detail

GC

Samples

Cyclohexane , N,N-dimethylaniline , Naphthalene ,

Applications

Analysis of ampicillin hydrate using Shinwasorb

Column

Silicone OV-17 1.5% Shinwasorb-S 60/80

Column Size

2.1 m x 2.6 mm I.D. Glass

Column temp.

105℃

Carrier gas

20 mL/min He（adjust so that the retention time of N,N-dimethylaniline is about 5 minutes.)

Injection port temp.

200°C

Detector temp.

200°C

Detector

FID

Injection volume

1.0 μL

View detail

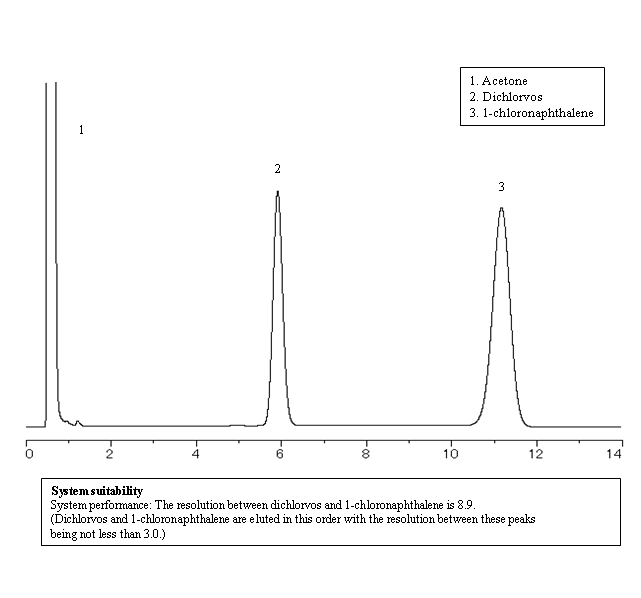

GC

Samples

Acetone , Dichlorvos , 1-chloronaphthalene

Applications

Analysis of dichlorvos using Shinwasorb

Column

Silicone DC-550 10% Shinwasorb-S 60/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

180℃

Carrier gas

40 mL/min N₂ (Adjust so that the retention time of dichlorvos is about 6 minutes.)

Injection port temp.

230°C

Detector temp.

230°C

Detector

FID

Injection volume

2.0 μL

View detail

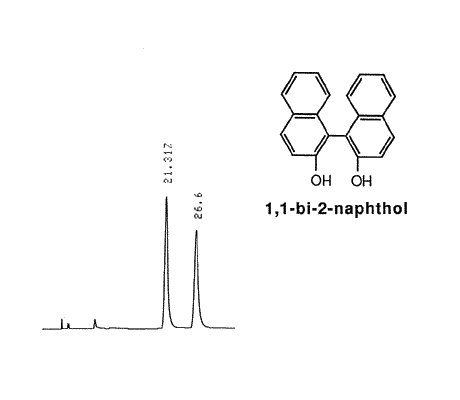

LC

Samples

1,1'-Bi-2-naphthol

Applications

1,1'-Bi-2-naphthol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

n-Hexane/Dichloromethane/CH3OH = 75/25/5

Frow rate

1.2 mL/min

Column temp.

25°C

View detail
