GC

Samples

2,6-Xylenol , o-Cresol , Phenol , 2,4-Xylenol , p-Cresol , m-Cresol , 3,5-Xylenol , 3,4-Xylenol

Applications

Cresol isomer and Xylenol

Column

FAP-S Chromosorb W 60-80 (AW)

Column Size

3.1m×3.2mm

Column temp.

160°C

Carrier gas

N2,60ml/min

Injection port temp.

250°C

Detector temp.

250°C(FID)

View detail

GC

Samples

Phenetole , o-Cresol , Phenol , p-Cresol , m-Cresol , 3,4-Xylenol

Applications

Cresol isomer and Phenol (each 1000ppm)

Column

Lanoline(Denatured) 10% Chromosorb W 80-100 (AW-DMCS)

Column Size

1.6m×3.2mm

Column temp.

180°C

Carrier gas

N2,55ml/min

Injection port temp.

250°C

Detector temp.

250°C(FID)

View detail

GC

Samples

Acetone , Isopropyl Alcohol , n-Hexane , Ethyl Acetate , Chloroform , Carbon Tetrachloride , n-Butyl Alcohol , Methyl Isobutyl Ketone , Isobutyl Acetate , Toluene , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cyclohexanone , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , o-Dichlorobenzene

Applications

Organic solvents of the atmosphere (ppm level)

Column

SBS-200 20% Shimalite W 100-120 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Dichloromethane , trans-1,2-Dichloroethylene , Chloroform , 1,2-Dichloroethane , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , Toluene , Tetrachloroethylene , Chlorobenzene , 1,1,2,2-Tetrachloroethane , o-Dichlorobenzene

Applications

Chlorinated solvents of the atmosphere (ppm level)

Column

SBS-300 20% Shimalite W 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,30ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Ethyl Acetate , Acetaldehyde-2,4-Dinitrophenylhydrazone

Applications

Acetaldehyde -2,4- dinitrophenylhydrazone

Column

Silicone OV-17 1% Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

220°C

Carrier gas

N2,60ml/min

Injection port temp.

270°C

Detector temp.

270°C(FID)

View detail

GC

Samples

o-Phenylenediamine , p-Phenylenediamine , m-Phenylenediamine

Applications

Phenylenediamine

Column

Thermon-1000+KOH(10%+3%) Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

250°C

Carrier gas

N2,60ml/min

Injection port temp.

280°C

Detector temp.

280°C(FID)

View detail

GC

Samples

Catechol , Hydroquinone , Resorcinol

Applications

Dihydric phenol in water

Column

Thermon-3000 1% Shimalite TPA 60-80

Column Size

0.5m×3.2mm

Column temp.

160°C

Carrier gas

N2,60ml/min

Detector temp.

260°C(FID)

View detail

GC

Samples

β-Phenylethyl Acetamide , Lauryl Acetamide

Applications

Acetamide

Column

Thermon-3000 5% Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

200°C

Carrier gas

N2,60ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

Diphenhydramine

Applications

Diphenhydramine

Column

Thermon-3000 5% Chromosorb W 80-100 (AW-DMCS)

Column Size

1.1m×3.2mm

Column temp.

200°C

Carrier gas

N2,80ml/min

Injection port temp.

260°C

Detector temp.

260°C(FID)

View detail

GC

Samples

2,6-Xylenol , p-Cresol , m-Cresol , 2,4,6-Trimethylphenol , 2,4-Xylenol , 2,5-Xylenol , 2,3,6-Trimethylphenol , 2,3-Xylenol , p-Ethylphenol , m-Ethylphenol , 3,5-Xylenol , 3,4-Xylenol

Applications

Analysis of the impurity in the 3,5- xylenol ( 10% benzene solution )

Column

ULBON ALPhen

Column Size

50m×0.20mm

Column temp.

130°C

Carrier gas

N2,0.39ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μm

View detail

GC

Samples

Phenol , o-Cresol , p-Cresol , m-Cresol

Applications

Analysis of m-cresol in the p-cresol ( 10% benzene solution )

Column

ULBON ALPhen

Column Size

50m×0.20mm

Column temp.

130°C

Carrier gas

N2,0.39ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μm

View detail

GC

Samples

Phenol , 2,6-Xylenol , o-Cresol , p-Cresol , m-Cresol , o-Ethylphenol , 2,4,6-Trimethylphenol , 2,4-Xylenol , 2,5-Xylenol , 2,3,6-Trimethylphenol , 2,3-Xylenol , p-Ethylphenol , m-Ethylphenol , 3,5-Xylenol , 3,4-Xylenol , 2,3,5-Trimethylphenol

Applications

Alkylphenol isomer

Column

ULBON ALPhen (WCOT)

Column Size

50m×0.20mm

Column temp.

130°C

Carrier gas

N2,0.39ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μl

View detail

GC

Samples

o-Ethoxybenzamide , Phenacetin , Caffeine , Aminopyrine , Chlorpheniramine Maleate

Applications

Medicine

Column

ULBON HR-1

Column Size

15m×0.53mm(1.0μm)

Column temp.

180°C

Carrier gas

He,7.2ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μl

View detail

GC

Samples

Naphthalene , Biphenyl , Fluorene , Phenanthrene , Anthracene , o-Terphenyl , Fluoranthene , Pyrene , m-Terphenyl , p-Terphenyl , Chrysene , 4,5-Benzpyrene , 1,2-Benzpyrene , Perylene

Applications

Polycyclic aromatic hydrocarbon

Column

ULBON HR-1

Column Size

50m×0.25mm(0.25μm)

Column temp.

200°C→320°C(4°C/min)

Carrier gas

He,068ml/min

Detector temp.

330°C(FID)

Injection volume

1μl

View detail

GC

Samples

α-Pinene , β-Pinene , Limonene , Linalool , Linalyl Acetate , Benzyl Acetate , Phenethyl Alcohol

Applications

perfume (1)

Column

ULBON HR-Thermon-600T

Column Size

50m×0.25mm

Column temp.

70°C→230°C(4°C/min)

Carrier gas

He,1.1ml/min

Detector temp.

250°C(FID)

View detail

GC

Samples

β-Pinene , Limonene , Linalool , Linalyl Acetate , Benzyl Acetate , α-Ionene , Phenethyl Alcohol , Lauryl Alcohol , Eugenol , Diethyl Phthalate , Vanillin , Benzyl Salicylate

Applications

perfume (2)

Column

ULBON HR-Thermon-600T

Column Size

50m×0.25mm

Column temp.

70°C→230°C(4°C/min)

Carrier gas

He,1.1ml/min

Detector temp.

250°C(FID)

View detail

GC

Samples

1,8-Cineole , β-Phenethyl Alcohol , Benzyl Acetate

Applications

Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　1

Column

ULBON HR-1

Column Size

0.32mmI.D. × 30m (0.25um)

Column temp.

50°C→200°C(5°C/min)

Carrier gas

He,2.4ml/min

Detector temp.

250°C(FID)

Injection volume

-

View detail

GC

Samples

α-Pinene , 1,8-Cineole , β-Phenethyl Alcohol

Applications

Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　5

Column

ULBON HR-1

Column Size

0.32mmI.D. × 30m (0.26um)

Column temp.

50°C→200°C(5°C/min)

Carrier gas

He,2.4ml/min

Detector temp.

250°C(FID)

Injection volume

-

View detail

GC

Samples

Benzyl Alcohol , β-Phethyl Alcohol , Eugenol

Applications

Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　8

Column

ULBON HR-1

Column Size

0.32mmI.D. × 30m (0.26um)

Column temp.

50°C→200°C(5°C/min)

Carrier gas

He,2.4ml/min

Detector temp.

250°C(FID)

Injection volume

-

View detail

GC

Samples

Chloroform , Fenitrothion , Fluoranthene

Applications

Analysis of fenitrothion using Shinwasorb

Column

Polyphenyl Ether (5 rings) 1.5% Shinwasorb-S 100/120

Column Size

1.1 m x 3.2 mm I.D. Glass

Column temp.

195℃

Carrier gas

55 mL/min N₂

Injection port temp.

230℃

Detector temp.

230℃

Detector

FID

Injection volume

2.0 μL

View detail

GC

Samples

2,6-Xylenol , o-Cresol , Phenol , 2,4-Xylenol , p-Cresol , m-Cresol , 3,5-Xylenol , 3,4-Xylenol

Applications

Measurements of cresol and xylenol isomers using Shinwasorb

Column

FAP-S Shinwasorb-U 60/80

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

160℃

Carrier gas

50 mL/min N₂

Injection port temp.

250℃

Detector temp.

250℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

N,N-dimethylformamide , Triphenylantimony , Spectinomycin ,

Applications

Analysis of spectinomycin hydrochloride hydrate using Shinwasorb

Column

Silicone SE-52 2.5% Shinwasorb-S 80/100

Column Size

0.6 m x 3.2 mm I.D. Glass

Column temp.

180℃

Carrier gas

37 mL/min N2

Injection port temp.

215℃

Detector temp.

220℃ 　

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Pyridine , 2-ethyl-2-phenylmalonediamide , Stearylalcohol ,

Applications

Analysis of primidone using Shinwasorb ～Purity test (3) 2-ethyl-2-phenylmalonediamide～

Column

Silicone OV-17 1.5% Shinwasorb-S 100/120

Column Size

1.6 m x 3.2 mm I.D. Glass

Column temp.

195℃

Carrier gas

31 mL/min N2 (Adjust so that the retention time of stearylalcohol is about 10 minutes.)

Injection port temp.

250°C

Detector temp.

250°C

Detector

FID

Injection volume

2.0 μL

View detail

GC

Samples

Chloroform , Fenitrothion , Fluoranthene

Applications

Analysis of fenitrothion using Shinwasorb

Column

Polyphenyl Ether (5 rings) 1.5% Shinwasorb-S 100/120

Column Size

1.1 m x 3.2 mm I.D. Glass

Column temp.

195℃

Carrier gas

55 mL/min N₂ (Adjust so that the retention time of fenitrothion is about 16 minutes.)

Injection port temp.

230°C

Detector temp.

230°C

Detector

FID

Injection volume

2.0 μL

View detail

GC

Samples

Dichlorvos, Diphenyl in Acetone

Applications

Analysis of dichlorvos resin strip using Shinwasorb

Column

Silicone OV-11 10% Shinwasorb-U 60/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

170℃

Carrier gas

35 mL/min N₂（Adjust so that the retention time of dichlorvos is about 8 minutes.)

Injection port temp.

230°C

Detector temp.

230°C

Detector

FID

Injection volume

3.0 μL

View detail

LC

Samples

Eperisone

Applications

Muscle relaxant

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

0.6 mL/min

Column temp.

25°C

View detail

LC

Samples

Clorprenaline

Applications

Clorprenaline

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 94/6

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlormezanone

Applications

Chlormezanone

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 93/7

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Alimemazine

Applications

Antihistaminic drug

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/CH3CN = 70/30

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Thioridazine

Applications

Thioridazine

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 75/25

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Methylphenidate

Applications

The central neuron stimulant

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/CH3CN = 90/10

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Flavanone

Applications

Flavanone

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Benzoin

Applications

Benzoin

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 88/12

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlorpheniramine maleate

Applications

Chlorpheniramine maleate

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 83/17

Frow rate

1.0 mL/min

Column temp.

15°C

View detail

LC

Samples

Mephobarbital

Applications

Mephobarbital

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

0.6 mL/min

Column temp.

25°C

View detail

LC

Samples

PTH-valine

Applications

PTH-valine

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3OH = X/Y

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

1,2-Diphenylethylamine

Applications

1,2-Diphenylethylamine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Oxprenolol

Applications

Oxprenolol

Column

ULTRON ES-OVM

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/CH3CN = 100/10

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Arotinolol

Applications

β-Blocking agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bay K 8644

Applications

Calcium rivalry medicine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Verapamil

Applications

Calcium rivalry medicine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Prenylamine

Applications

Calcium rivalry medicine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/CH3CN = 100/15

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Clorprenaline

Applications

Bronchodilator agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)/C2H5OH = 100/3

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bupivacaine

Applications

The local anesthetic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlormezanone

Applications

Muscle relaxant

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Tolperisone

Applications

Muscle relaxant

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Flurbiprofen

Applications

Flurbiprofen

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Ibuprofen

Applications

Ibuprofen

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Ketoprofen

Applications

Antiinflammatory agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Mepenzolate bromide

Applications

Anticholinergic agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Thioridazine hydrochloride

Applications

Antipsychotic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 77/23

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Mephobarbital

Applications

Antiepileptic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Acetylpheneturide

Applications

Antiepileptic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/7.5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Biperiden

Applications

Antiparkinsonic agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Profenamine

Applications

Antiparkinsonic agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Trihexyphenidyl

Applications

Antiparkinsonic agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Alimemazine

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlorpheniramine

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Homochlorcyclizine

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/20

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Promethazine

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Hydroxyzine

Applications

Antianxiety agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Disopyramide phosphate

Applications

Disopyramide phosphate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/C2H5OH = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Glutethimide

Applications

Hypnotic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Thyroxine

Applications

Thyroxine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/CH3CN = 100/20

Frow rate

1.2 mL/min

Column temp.

15°C

View detail

LC

Samples

Benproperine

Applications

Antitussive drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Meclizine

Applications

Meclizine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/C2H5OH = 100/35

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Flavanone

Applications

Flavonoid

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/CH3CN = 100/30

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Benzoin

Applications

Benzoin

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlorphenesin

Applications

Muscle relaxant

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 5.5)

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Eperisone

Applications

Muscle relaxant

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 5.5)/C2H5OH = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Cloperastine

Applications

Antitussive drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/C2H5OH = 100/15

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Atenolol

Applications

Atenolol

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 + 20mM K2HPO4 (pH 6.0)/C2H5OH = 99/1

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Alprenolol

Applications

β-Blocking agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.9 µL (0.6 mg/mL)

View detail

LC

Samples

Bufetolol

Applications

β-Blocking agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

1.0 µL (ca. 1 mg/mL)

View detail

LC

Samples

Salbutamol

Applications

Bronchodilator agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

1.0 µL (0.25 mg/mL)

View detail

LC

Samples

α-Phenylethylamine , (S)-(-)-α-Methylbenzylamine

Applications

α-Phenylethylamine

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 95/5

Frow rate

0.6 mL/min

Column temp.

15°C

View detail

LC

Samples

α-Phenylethylalchol

Applications

α-Phenylethylalchol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

0.6 mL/min

Column temp.

15°C

View detail

LC

Samples

Acetylpheneturide

Applications

Antiepileptic

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 76/24

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Atenolol

Applications

Atenolol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 90/10

Frow rate

0.3 mL/min

Column temp.

25°C

View detail

LC

Samples

Alprenolol

Applications

Alprenolol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Arotinolol

Applications

Arotinolol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 75/25

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Bupivacaine

Applications

The local anesthetic

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Eperisone

Applications

Muscle relaxant

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 70/30

Frow rate

1.2 mL/min

Column temp.

9°C

View detail

LC

Samples

Chlormezanone

Applications

Muscle relaxant

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 70/30

Frow rate

0.6 mL/min

Column temp.

9°C

View detail

LC

Samples

Chlorphenesin

Applications

Muscle relaxant

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 70/30

Frow rate

0.6 mL/min

Column temp.

9°C

View detail

LC

Samples

trans-Stilbene oxide

Applications

Analysis in normal phase mobile phase

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

n-Hexane/CH3OH = 99.9/0.1

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

N-(3,5-Dinitrobenzoyl)-α-Methylbenzylamine

Applications

Analysis in normal phase mobile phase

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

n-Hexane/C2H5OH = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Flavanone

Applications

Analysis in normal phase mobile phase

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

n-Hexane/C2H5OH = 99/1

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bunitrolol

Applications

β-Blocking agent

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 70/30

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Citric acid , Tartaric acid , Malonic acid , Succinic acid , Lactic acid , Acetic acid , Gallic acid , Propionic acid , Phthalic acid , Phenoxyacetic acid , m-Hydroxybenzoic acid , p-Hydroxybenzoic acid , Vanilic acid , Caffeic acid , Benzoic acid , o-Hydroxybenzoic acid

Applications

Elution position of the aromatic organic acid

Column

ULTRON PS-80H

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

HClO4aq. (pH 2.1)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

60°C

View detail

LC

Samples

Aspartic acid , Glutamic acid , Serine , Glycine , Histidine , Arginine , Threonine , Alanine , Proline , Tyrosine , Valine , Methionine , Cysteine-cysteine , Isoleucine , Leucine , Phenylalanine , Lysine

Applications

Analysis of the PTC amino acid

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

A: CH3COONa (pH 6.5)/CH3CN = 93/7, B: CH3CN/H2O = 4/1

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Asulam

Applications

Asulam

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

50 mM Phosphoric acid buffer (pH 3.3)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Iprodione, Bensulide

Applications

Iprodione, Bensulide

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 60/40

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Methylephedrine hydrochloride , Noscapine , Thiamine , Dextromethorphan , Carbinoxamine maleate

Applications

The component of the cold remedy (1)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O/H3PO4 = 510/490/1 + 0.5% Sodium dodecyl sulfate

Frow rate

1.0 mL/min

Column temp.

50°C

View detail

LC

Samples

Acetaminophen , Caffeine , Riboflavin , Phenol , Potassium guaiacol-4-sulfonate

Applications

The component of the cold remedy (2)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

H2O/CH3CN/50 mM Tetrabutylammonium = 15/2/1 (Adjusted to pH 6 with Phosphoric acid)

Frow rate

1.0 mL/min

Column temp.

50°C

View detail

LC

Samples

Ethosuximide , Primidone , Phenobarbital , Phenytoin , Carbamazepin

Applications

Anticonvulsant analysis

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

100 mM Phosphoric acid buffer(pH 4.0)/CH3OH/CH3CN = 4/2/1

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Salicylic acid , Diphenhydramine , Methyl salicylate , α-Camphor , Thymol

Applications

The component of the anti-inflammatory agent

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM Phosphoric acid buffer(pH 2.6) + 20 mM Heptane sodium sulphonate/CH3OH/CH3CN = 3/2/2

Frow rate

1.0 mL/min

Column temp.

45°C

View detail

LC

Samples

Vitamin A , Vitamin D2 , Vitamin D3 , Vitamin E , Tocopherol acetate

Applications

Fat-soluble vitamin

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Prostaglandin , 2,4,5-Trihydroxybutyrophenone , Nordihydroguaiaretic acid , Butyl hydroxy anisole , Octyl gallate , 2,6-Di-tert-butyl-4-hydroxymethylphenol , Lauryl gallate , 2,6-Di-t-butyl 4-methylphenol

Applications

The phenolic system antioxidant (Added to commercial edible oil)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

A: 10 mM Phosphoric acid buffer(pH 2.6), B: CH3CN

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

p-Hydroxybenzoic acid , m-Hydroxybenzoic acid , Phenol , Acetylsalicylic acid , Benzoic acid , Salicylic acid

Applications

Acidic compounds

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM (NH4)3PO4(pH 2.5)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

30°C

View detail

LC

Samples

Pyridine , Phenol

Applications

Pyridine, Phenol test

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 30/70

Frow rate

1.0 mL/min

Column temp.

30°C

View detail

LC

Samples

2-(4-Hydroxyphenoxy)propionic acid

Applications

2-(4-Hydroxyphenoxy)propionic acid

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

2-(4-Hydroxyphenoxy)propionic acid

Applications

2-(4-Hydroxyphenoxy)propionic acid

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4(pH 3.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Brompheniramine maleate

Applications

Brompheniramine maleate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

EDDP perchlorate

Applications

EDDP perchlorate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

(CYS)2 , LYS , ARG , HIS , ASP , GLU , GLN , ASN , GLY , SER , ALA , THR , PRO , TYR , VAL , PHE , MET , TRP , LEU+ILE

Applications

Analysis of underivatized amino acids by LC/MS/MS

Column

ULTRON AF-HILIC-CD (PLSS)

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

A: 100 mM HCO2NH4(pH 3.0)/CH3CN = 10/90, B: 100 mM HCO2NH4(pH 3.0)/CH3CN = 70/30

Frow rate

0.36 mL/min

Column temp.

40°C

Injection volume

1.0 µL (5.0 µg/mL)

View detail

LC

Samples

Mirabegron

Applications

β3 adrenergic receptor agonist

Column

ULTRON ES-PhCD

Column Size

250 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/50mM KH2PO4(pH 4.0) = 200/750

Frow rate

0.9 mL/min

Column temp.

50°C

Injection volume

20 µL

View detail

LC

Samples

Toluene , Uridine , 2'-Deoxyuridine , 5-Methyluridine , Adenosine , Vidarabine , 2'-Deoxyguanosine , 3'-Deoxyguanosine , 4-Nitrophenyl-α-glucopyranoside , 4-Nitrophenyl-β-glucopyranoside , Theophylline , Theobromine ,

Applications

Analysis of polar compounds

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 4.6 mm I.D.

Mobile phase

20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90

Frow rate

0.50 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

mobile phase

View detail

LC

Samples

Toluene , Uridine , 2'-Deoxyuridine , 5-Methyluridine , Adenosine , Vidarabine , 2'-Deoxyguanosine , 3'-Deoxyguanosine , 4-Nitrophenyl-α-glucopyranoside , 4-Nitrophenyl-β-glucopyranoside , Theophylline , Theobromine ,

Applications

Analysis of polar compounds

Column

ULTRON AF-HILIC-DA

Column Size

100 mm L × 4.6 mm I.D.

Mobile phase

20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90

Frow rate

0.50 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

mobile phase

View detail

LC

Samples

L-DOPA , Dopamine , Adrenaline , Noradrenaline

Applications

Analysis of catecholamines

Column

ULTRON AF-HILIC-DA

Column Size

100 mm L × 4.6 mm I.D.

Mobile phase

20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90

Frow rate

0.50 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

mobile phase

View detail

LC

Samples

Acesulfame K , Saccharin , Caffeine , Sorbic acid , Benzoic acid , Quinine , Aspartame

Applications

Analysis of food additives

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 3.0 mm I.D.

Mobile phase

A: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90, B: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 70/30

Frow rate

Refer to the picture

Column temp.

30°C

Injection volume

2.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Val-Tyr-Val , Leucine Enkephalin , Methionine Enkephalin , Gly-Tyr

Applications

Analysis of peptide standards

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

A: 10mM HCO2NH4 (pH3.0) /CH3CN = 10/90, B: 10mM HCO2NH4 (pH3.0) /CH3CN = 70/30

Frow rate

0.26 mL/min: 67% A/ 33% B (70.0% CH3CN)

Column temp.

40°C

Injection volume

2.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Cetirizine hydrochloride

Applications

Analyses of Cetirizine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Amlodipine

Applications

Analyses of Amlodipine in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Atomoxetine hydrochloride

Applications

Analyses of Atomoxetine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Candesartan cilexetil

Applications

Analyses of Candesartan cilexetil in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolterodine

Applications

Analyses of Tolterodine in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analyses of Prilocaine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Duloxetine hydrochloride

Applications

Analyses of Duloxetine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Ibuprofen

Applications

Analyses of Ibuprofen in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Formoterol fumarate

Applications

Analyses of Formoterol fumarate in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM K2HPO4 + 20 mM KH2PO4 (pH 7.0)/C2H5OH = 94/6

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analyses of Tolperisone hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Cetirizine hydrochloride

Applications

Analyses of Cetirizine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Amlodipine

Applications

Analyses of Amlodipine in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Atomoxetine hydrochloride

Applications

Analyses of Atomoxetine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 80/20

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Candesartan cilexetil

Applications

Analyses of Candesartan cilexetil in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4/CH3CN = 75/25

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolterodine

Applications

Analyses of Tolterodine in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analyses of Prilocaine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Duloxetine hydrochloride

Applications

Analyses of Duloxetine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Ibuprofen

Applications

Analyses of Ibuprofen in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Formoterol fumarate

Applications

Analyses of Formoterol fumarate in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM K2HPO4 + 20 mM KH2PO4 (pH 7.0)/C2H5OH = 94/6

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analyses of Tolperisone hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Nitrendipine

Applications

Analysis of Nitrendipine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

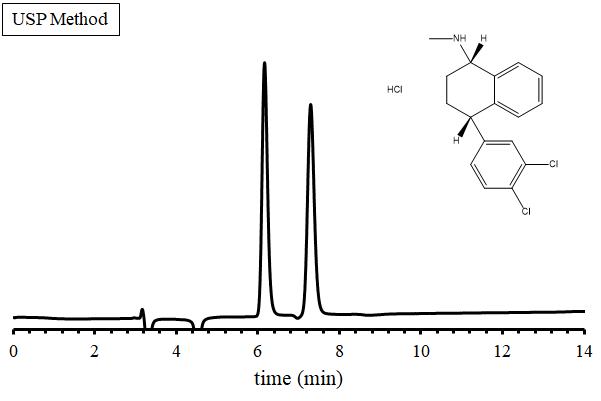

Samples

Sertraline hydrochloride

Applications

Analysis of Sertraline hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Nefopam hydrochloride

Applications

Analysis of Nefopam hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analysis of Tolperisone hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Nisoldipine

Applications

Analysis of Nisoldipine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 88/12

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Rabeprazole

Applications

Analysis of Rabeprozole

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Rotigotine

Applications

Analysis of Rotigotine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

1.0 µL

Diluent

methanol

View detail

LC

Samples

Cinacalcet hydrochloride

Applications

Analysis of Cinacalcet hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 93/7

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Atorvastatin calcium

Applications

Analysis of Atorvastatine calcium

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM K2HPO4 + H3PO4 (pH 7.5)/CH3OH = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Sitagliptin

Applications

Analysis of Sitagliptin

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20mM K2HPO4 (pH 6.8)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

10.0 µL

Diluent

water

View detail

LC

Samples

Montelukast sodium

Applications

Analysis of Montelukast sodium

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3OH = 60/40

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Trihexyphenidyl hydrochloride

Applications

Analysis of Trihexyphenidyl hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

mobile phase

View detail

LC

Samples

Sulconazole nitrate

Applications

Analysis of Sulconazole nitrate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3OH = 86/14

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Tamsulosin

Applications

Analysis of Tamsulosin

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/C2H5OH = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

2-(4-Hydroxyphenoxy)propionic acid

Applications

Analysis of 2-(4-Hydroxyphenoxy)propionic acid

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

3,3-Dimethyl-4-phenyl-2-azetidinone

Applications

Analysis of 3,3-Dimethyl-4-phenyl-2-azetidinone

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

2-Phenoxypropionic acid

Applications

Analysis of 2-Phenoxypropionic acid

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/C2H5OH = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

Benfluorex

Applications

Analysis of Benfluorex

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 88/12

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

Ropivacaine

Applications

Analysis of Ropivacaine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

5.0 µL

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analyses of Clopidogrel Related Compounds in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)10.0 µL (2)3.0 µL

View detail

LC

Samples

Voriconazole , Voriconazole Related Compound B

Applications

Analysis of Voriconazole

Column

ULTRON ES-CD-2

Column Size

250 mm L × 4.6 mm I.D.

Mobile phase

10 mM CH3CO2NH4 (pH 5.0)/CH3CN = 82/18

Frow rate

1.0 mL/min

Column temp.

30°C

Injection volume

20.0 µL

Diluent

mobile phase

View detail

LC

Samples

Sertraline hydrochloride , Sertraline Hydrochloride Related Compound A

Applications

Analysis of Sertraline hydrochloride

Column

ULTRON ES-CD

Column Size

250 mm L × 4.6 mm I.D.

Mobile phase

50.4mM NH4H2PO4 (pH 4.2)/CH3OH = 52/48

Frow rate

1.0 mL/min

Column temp.

30°C

Injection volume

20.0 µL

Diluent

mobile phase

View detail

LC

Samples

Sulindac

Applications

Analysis of Sulindac

Column

ULTRON ES-BSA-2

Column Size

150 mm L × 4.0 mm I.D.

Mobile phase

50mM sodium phosphate buffer (pH6.9)/1-Propanol = 92/8

Frow rate

0.75 mL/min

Column temp.

25°C

Injection volume

2.0 µL

View detail

LC

Samples

Ketoprofen

Applications

Analysis of Ketoprofen

Column

ULTRON ES-BSA-2

Column Size

150 mm L × 4.0 mm I.D.

Mobile phase

20mM sodium phosphate buffer (pH6.9)/1-Propanol/caprylic acid = 98/2/0.005

Frow rate

0.75 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

1-Propanol

View detail

LC

Samples

Mandelic acid

Applications

Analysis of Mandelic acid

Column

ULTRON ES-BSA-2

Column Size

150 mm L × 4.0 mm I.D.

Mobile phase

20mM sodium phosphate buffer (pH6.9)

Frow rate

0.75 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

mobile phase

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analysis of Clopidogrel Related Compounds

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

10.0 µL

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analysis of Clopidogrel Related Compounds

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

3.0 µL

View detail

LC

Samples

Cetirizine hydrochloride

Applications

Analysis of Cetirizine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Tolterodine

Applications

Analysis of Tolterodine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Tolterodine

Applications

Analysis of Tolterodine

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analysis of Prilocaine hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analysis of Prilocaine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Ibuprofen

Applications

Analysis of Ibuprofen

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analysis of Tolperisone hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

ethanol

View detail

LC

Samples

Amlodipine

Applications

Analysis of Amlodipine

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Atomoxetine hydrochloride

Applications

Analysis of Atomoxetine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 80/20

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Candesartan cilexetil

Applications

Analysis of Candesartan cilexetil

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4/CH3CN = 75/25

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolterodine

Applications

Analysis of Tolterodine

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analysis of Prilocaine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Duloxetine hydrochloride

Applications

Analysis of Duloxetine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Ibuprofen

Applications

Analysis of Ibuprofen

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

ethanol

View detail

LC

Samples

Formoterol fumarate

Applications

Analysis of Formoterol fumarate

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM K2HPO4 + 20 mM KH2PO4 (pH 7.0)/C2H5OH = 94/6

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analysis of Tolperisone hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

ethanol

View detail

LC

Samples

Acesulfame K , Saccharin , Sucralose , Advantame , Neotame , Aspartame

Applications

Analysis of artificial sweetener

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90

Frow rate

1.4 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Amlodipine

Applications

Analysis of Amlodipine for LCMS

Column

ULTRON ES-OVM

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

20 mM CH3CO2NH4/CH3CN = 80/20

Frow rate

0.2 mL/min

Column temp.

25°C

Injection volume

0.4 µL

Diluent

H2O /CH3CN = 50/50 (v/v)

View detail

LC

Samples

Dexketoprofen

Applications

Analysis of Dexketoprofen

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM CH3CO2NH4 (pH 3.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2 µL

Diluent

10% acetonitrile

View detail
