Application Search

GC
Samples: n-Hexane , Methyl Alcohol , Acetone , Isopropyl Alcohol , Ethyl Acetate , Methyl Ethyl Ketone , Benzene , Trichloroethylene , Isobutyl Alcohol , Isobutyl Acetate , Toluene , n-Butyl Acetate , Isoamyl Alcohol , Ethylbenzene , m-Xylene , o-Xylene , n-Propylbenzene , Cyclohexanone
Applications: Organic solvent in the air (ppm level)
Column: SBS-100 10% Shimalite TPA 60-80
Column Size: 3.1m×3.2mm
Column temp.: 110°C
Carrier gas: N2,30ml/min
Injection port temp.: 200°C
Detector temp.: 200°C(FID)

View detail

GC
Samples: Acetone , Isopropyl Alcohol , n-Hexane , Ethyl Acetate , Chloroform , Carbon Tetrachloride , n-Butyl Alcohol , Methyl Isobutyl Ketone , Isobutyl Acetate , Toluene , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cyclohexanone , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , o-Dichlorobenzene
Applications: Organic solvent in work environment (2)
Column: SBS-200 20% Shimalite W 100-120 (AW-DMCS)
Column Size: 3.1m×3.2mm
Column temp.: 100°C
Carrier gas: N2,50ml/min
Injection port temp.: 240°C
Detector temp.: 240°C(FID)

View detail

GC
Samples: Acetone , Isopropyl Alcohol , n-Hexane , Ethyl Acetate , Chloroform , Carbon Tetrachloride , n-Butyl Alcohol , Methyl Isobutyl Ketone , Isobutyl Acetate , Toluene , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cyclohexanone , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , o-Dichlorobenzene
Applications: Organic solvents of the atmosphere (ppm level)
Column: SBS-200 20% Shimalite W 100-120 (AW-DMCS)
Column Size: 3.1m×3.2mm
Column temp.: 100°C
Carrier gas: N2,50ml/min
Injection port temp.: 240°C
Detector temp.: 240°C(FID)

View detail

GC
Samples: n-Pentane , n-Hexane , n-Heptane , n-Octane , Acrolein , Carbon Tetrachloride , Benzene , Acrylonitrile , Acetonitrile , Perchloroethylene , Toluene , Ethylbenzene , m-Xylene , o-Xylene , n-Dodecane , Styrene monomer , n-Tridecane , p-Xylene
Applications: Organic solvent in work environment (1)
Column: Thermon-1000 25% Shimalite 80-100 (AW-DMCS)
Column Size: 3.1m×3.2mm
Column temp.: 130°C
Carrier gas: N2,40ml/min
Injection port temp.: 240°C
Detector temp.: 240°C(FID)

View detail

GC

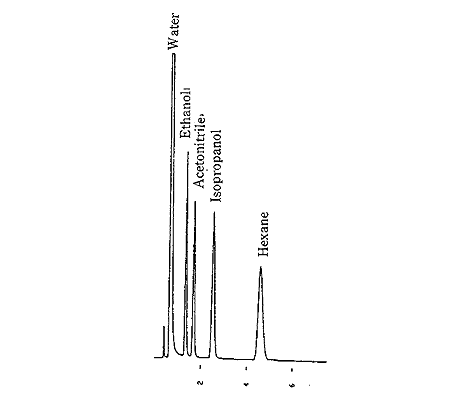

Samples: Ethanol , Acetonitrile , Isopropanol , n-Hexane
Applications: Lower alcohol in water and Hydrocarbon
Column: Thermon-1000 5% Sunpak-A
Column Size: 2.1m×3.2mm
Column temp.: 180°C
Carrier gas: N2,50ml/min
Injection port temp.: 250°C
Detector temp.: 230°C(FID)

View detail

GC
Samples: n-Pentane , n-Hexane , Benzene , iso-Octane , Toluene , Ethylbenzene , m-Xylene , o-Xylene , p-Xylene
Applications: Premium gasoline
Column: ULBON HR-1
Column Size: 50m×0.25mm(0.5μm)
Column temp.: 60°C→220°C(4°C/min)
Carrier gas: He,0.75ml/min
Detector temp.: 250°C(FID)
Injection volume: 0.5μl

View detail

GC
Samples: n-Pentane , n-Hexane , Benzene , iso-Octane , Toluene , Ethylbenzene , m-Xylene , o-Xylene , p-Xylene
Applications: Regular gasoline
Column: ULBON HR-1
Column Size: 50m×0.25mm(0.5μm)
Column temp.: 60°C→220°C(4°C/min)
Carrier gas: He,0.75ml/min
Detector temp.: 250°C(FID)
Injection volume: 0.5μl

View detail

GC
Samples: Solvents (4)
Applications: Solvents (4)
Column: ULBON HR-1701
Column Size: 50m×0.25mm(0.5μm)
Column temp.: 60°C→180°C(4°C/min)
Carrier gas: He,1.4ml/min
Detector temp.: 200°C(FID)
Injection volume: 1μl

View detail

GC
Samples: n-Hexane , Ethyl Ether , Acetone , Methyl Acetate , trans-1,2-Dichloroethylene , Methanol , Isopropyl Acetate , Isopropanol , Dichloromethane , n-Propyl Acetate , cis-1,2-Dichloroethylene , Methyl Isobutyl Ketone , Chloroform , Toluene , 1,4-Dioxane , Isobutanol , Isoamyl Acetate , Ethylbenzene , p-Xylene , m-Xylene , Methyl Cellosolve , o-Xylene , Ethyl Cellosolve , Styrene , Cellosolve Acetate , N,N-Dimethylformamide , 4-Methylcyclohexanone , Butyl Cellosolve , cis-4-Methylcyclohexanol , m-Dichlorobenzene , p-Dichlorobenzene , trans-4-Methylcyclohexanol , o-Dichlorobenzene , o-Cresol , p-Cresol , m-Cresol
Applications: Solvents (6)
Column: ULBON HR-20M
Column Size: 50m×0.25mm(0.5μm)
Column temp.: 60°C→240°C(3°C/min)
Carrier gas: He,1.3ml/min
Detector temp.: 250°C(FID)
Injection volume: 1μl

View detail

GC
Samples: Methanol , Acetone , Dichloromethane , trans-1,2-Dichloroethylene , n-Hexane , Ethyl Acetate , Tetrahydrofuran , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , Methyl Isobutyl Ketone , Toluene , Methyl Butyl Ketone , Tetrachloroethylene , Chlorobenzene , Ethylbenzene , p-Xylene , Styrene , 1,1,2,2-Tetrachloroethane , 2-Methylcyclohexanone , 4-Methylcyclohexanone , m-Dichlorobenzene , p-Dichlorobenzene , o-Cresol , p-Cresol
Applications: The work environment (1)
Column: ULBON HR-52
Column Size: 30m×0.53mm(5μm)
Column temp.: 60°C→130°C(3°C/min)
Carrier gas: He,8.0ml/min
Detector temp.: 150°C(FID)
Injection volume: 1ml

View detail

GC
Samples: Methanol , Ethanol , Acetone , n-Propanol , n-Hexane , Ethyl Acetate , Chloroform , Benzene , MIBK , Toluene , Isobutyl Acetate , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cellosolve Acetate
Applications: Solvents (1)
Column: ULBON HR-52
Column Size: 25m×0.32mm(0.5μm)
Column temp.: 40°C→90°C(2°C/min)
Carrier gas: He,0.83ml/min
Detector temp.: 200°C(FID)
Injection volume: 1μl

View detail

GC
Samples: Methanol , Acetone , Dichloromethane , trans-1,2-Dichloroethylene , n-Hexane , Ethyl Acetate , Tetrahydrofuran , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , 1,4-Dioxane , Methyl Isobutyl Ketone , Toluene , Methyl n-Butyl Ketone , n-Butyl Acetate , Tetrachloroethylene , Chlorobenzene , Ethylbenzene , p-Xylene , Styrene , o-Xylene , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , 3-Methylcyclohexanol(cis, trans) , 2-Methylcyclohexanone , 4-Methylcyclohexanone , m-Dichlorobenzene , p-Dichlorobenzene , o-Dichlorobenzene , o-Cresol , p-Cresol
Applications: Solvents (3)
Column: ULBON HR-52
Column Size: 50m×0.25mm(0.5μm)
Column temp.: 60°C→130°C(3°C/min)
Carrier gas: He,1.2ml/min
Detector temp.: 200°C(FID)
Injection volume: 1μl

View detail

GC
Samples: n-Hexane, Benzene , n-Octane , Toluene , n-Nonane , Ethylbenzene , p-Xylene , m-Xylene , o-Xylene , Isopropylbenzene , Styrene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,3,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , 4-n-Propyltoluene , 3-n-Propyltoluene , 2-n-Propyltoluene , 1,2,3,5-Tetramethylbenzene , 1,2,4,5-Tetramethylbenzene , 1,2,3,4-Tetramethylbenzene
Applications: Alkyl benzene isomer
Column: ULBON Xylene Master
Column Size: 50m×0.32mm
Column temp.: 70°C→120°C(2°C/min)
Carrier gas: He,1.4ml/min
Detector temp.: 200°C(FID)
Injection volume: 1μl

View detail

GC

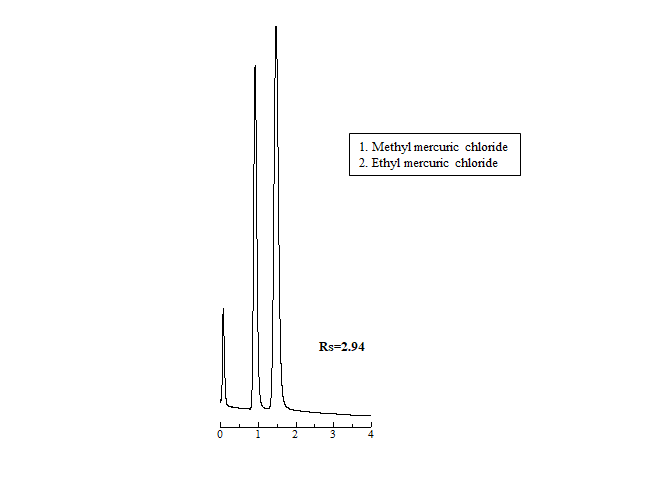

Samples: Methyl mercuric chloride , Ethyl mercuric chloride
Applications: Measurement of alkyl mercury compounds (each 100 ppb in n-hexane) using Shinwasorb
Column: Thermon-HG 5% Shinwasorb-U 60/80
Column Size: 0.5 m x 3.0 mm I.D. Glass
Column temp.: 160℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 250℃
Detector temp.: 250℃
Detector: ECD
Injection volume: 1.0 μL

View detail

GC
Samples: Diethyl ether , n-Hexane , Methanol , Methyl acetate , 2-Propanol , Ethyl acetate , Tetrahydrofuran , 2-Butanol , iso-Butanol , Toluene , n-Butyl acetate , Methyl n-butyl ketone , iso-Amyl alcohol , Ethylbenzene , m-Xylene , p-Xylene , o-Xylene , Styrene monomer ,
Applications: Measurement of organic solvents using SBS-120
Column: SBS-120 12% Shincarbon-A2 80/100
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 90℃
Carrier gas: 40 mL/min N₂
Injection port temp.: 230℃
Detector temp.: 230℃
Detector: FID
Injection volume: 1.0 μL
