Application Search

GC

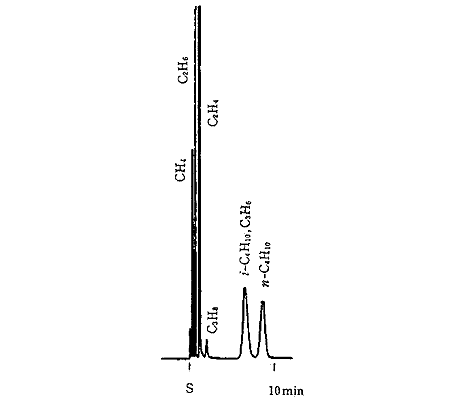

Samples: Methane , Ethane , Ethylene , Propane , iso-Butane , Propylene , n-Butane
Applications: Ethane and ethylene in the exhaust gas
Column: Squalane 1% Activated Alumina 60-80
Column Size: 1.1m×3.2mm
Column temp.: 40°C
Carrier gas: N2,30ml/min
Injection port temp.: 40°C
Detector temp.: 40°C(FID)

View detail

GC
Samples: Diethyl Phthalate , Di-iso-Butyl Phthalate , Di-n-Butyl Phthalate , Di-n-Amyl Phthalate , Diheptyl Phthalate , Dioctyl Phthalate
Applications: Phthalic acid ester (2) (200ppm)
Column: Thermon-3000 2% Chromosorb W 80-100 (AW-DMCS)
Column Size: 2.1m×3.2mm
Column temp.: 215°C
Carrier gas: N2,65ml/min
Injection port temp.: 260°C
Detector temp.: 260°C(FID)

View detail

GC
Samples: Dimethyl Phthalate , Diethyl Phthalate , Diallyl Phthalate , Di-iso-Butyl Phthalate , Di-n-Butyl Phthalate , Di-n-Amyl Phthalate , Di-2-Ethylhexyl Phthalate , Di-n-Octyl Phthalate
Applications: Phthalic acid ester (1)
Column: ULBON HR-1
Column Size: 25m×0.25mm(0.25μm)
Column temp.: 180°C→300°C(6°C/min)
Carrier gas: He,0.98ml/min
Detector temp.: 320°C(FID)
Injection volume: 0.5μl

View detail

GC
Samples: n-Butyl Formate , n-Butyl Acetate , n-Butyl Propionate , n-Butyl iso-Butyrate , n-Butyl n-Butyrate , n-Butyl Crotonate , n-Butyl n-Caproate , n-Butyl Lactate , n-Butyl n-Caprate , Di-n-Butyl Oxalate , n-Butyl Benzoate , Di-n-Butyl Malonate , Di-n-Butyl Fumarate , Di-n-Butyl Succinate , Di-n-Butyl Maleate , Di-n-Butyl Adipate , Di-n-Butyl Maleate , Di-n-Butyl Phthalate , Di-n-Butyl Sebacate , Di-n-Butyl Isophthalate , Di-n-Butyl Terephthalate , Tri-n-Butyl Citrate
Applications: Organic acid butyl ester
Column: ULBON HR-20M
Column Size: 25m×0.25mm(0.25μm)
Column temp.: 80°C→240°C(4°C/min)
Carrier gas: He,1.1ml/min
Detector temp.: 250°C(FID)
Injection volume: 1.0μm

View detail

GC
Samples: β-Pinene , Limonene , Linalool , Linalyl Acetate , Benzyl Acetate , α-Ionene , Phenethyl Alcohol , Lauryl Alcohol , Eugenol , Diethyl Phthalate , Vanillin , Benzyl Salicylate
Applications: perfume (2)
Column: ULBON HR-Thermon-600T
Column Size: 50m×0.25mm
Column temp.: 70°C→230°C(4°C/min)
Carrier gas: He,1.1ml/min
Detector temp.: 250°C(FID)

View detail

GC
Samples: Fragrance
Applications: Measurements of fragrance using Shinwasorb
Column: Thermon-3000 5% Shinwasorb-S 80/100
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 80～260℃（6℃/min)
Carrier gas: 50 mL/min N₂
Injection port temp.: 280℃
Detector temp.: 280℃
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Ethyl acetate , di-n-butyl phthalate , Teprenone (mono-cis isomer) , Teprenone (all-trans isomer) , ,
Applications: Analysis of teprenone using Shinwasorb -1-
Column: FFAP 5% Shinwasorb-U 80/100
Column Size: 2.1m×3.2mm glass
Column temp.: 235°C
Carrier gas: 47 mL/min N2
Injection port temp.: 270°C
Detector temp.: 270°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Ethyl acetate , di-n-butyl phthalate , Teprenone (mono-cis isomer) , Teprenone (all-trans isomer) , ,
Applications: Analysis of teprenone using Shinwasorb -2-
Column: FFAP 5% Shinwasorb-U 80/100
Column Size: 2.1m×3.2mm glass
Column temp.: 235°C
Carrier gas: 47 mL/min N2
Injection port temp.: 270°C
Detector temp.: 270°C
Detector: FID
Injection volume: 2.0 µL

View detail

GC
Samples: Deet, diethyl phthalate in ethanol
Applications: Analysis of deet (Pesticide guidelines) ~Purity test (4) Related substances~
Column: ULBON HR-20M
Column Size: 0.2 mm I.D. x 25 m df = 0.1 µmm
Column temp.: 170℃
Carrier gas: 21 cm/sec He (Adjust so that the retention time of deet is about 10 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 2.0 μL (Split rate: 1:70)

View detail

GC
Samples: 2-propanol, ethanol in water
Applications: Analysis of sodium aurothiomalate using Sunpak-H ~Purity test (4) Ethanol~
Column: Sunpak-H 80/100
Column Size: 3.1m x 3.2 mm I.D. Glass
Column temp.: 145℃
Carrier gas: 28 mL/min N2 (Adjust so that the retention time of 2-propanol is about 7 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Cyclohexane , Dicyclohexyl phthalate , Etofenprox
Applications: Analysis of etofenprox using Shinwasorb
Column: Silicone OV-225 2.5% Shinwasorb-U 60/80
Column Size: 1.1m x 3.2 mm I.D. Glass
Column temp.: 240℃
Carrier gas: 37 mL/min N₂ (Adjust so that the retention time of dicyclohexyl phthalate is about 8 minutes.)
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 3.0 μL

View detail

GC
Samples: Acetone , Allethrin , Di(2-ethylhexyl) phthalate
Applications: Analysis of allethrin using Shinwasorb Part 3
Column: Diethyleneglycol Succinate (DEGS) 2.5% Shinwasorb-U 80/100
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 200℃
Carrier gas: 36 mL/min N₂ (Adjust so that the retention time of allethrin is about 8 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Diazinon, Di-n-butyl phthalate in Acetone
Applications: Analysis of diazinon using Shinwasorb
Column: Silicone OV-11 10% Shinwasorb-U 60/80
Column Size: 1.6 m x 3.2 mm I.D. Glass
Column temp.: 200℃
Carrier gas: 25 mL/min N₂（Adjust so that the retention time of diazinon is about 7 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 3.0 μL

View detail

GC
Samples: Anhydrous caffeine, Fenitrothion in Acetone
Applications: Analysis of Fenitrothion Emulsifiable Concentrate using Shinwasorb
Column: Silicone OV-210 3% Shinwasorb-S 80/100
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 175℃
Carrier gas: 51 mL/min N₂（Adjust so that the retention time of Anhydrous caffeine is about 10 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 2.0 μL

View detail

LC

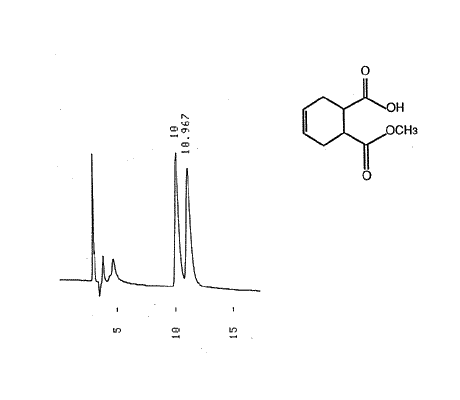

Samples: (1S,2R)-1-Methyl cis-1,2,3,6-tetrahydrophthalate
Applications: (1S,2R)-1-Methyl cis-1,2,3,6-tetrahydrophthalate
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.0)/CH3CN = 100/5
Frow rate: 1.0 mL/min
Column temp.: 25°C

View detail

LC
Samples: Sucrose , Lactose , Glucose , Galactose , Fructose
Applications: Yoghurt drink
Column: ULTRON PS-80C
Column Size: 300 mm L × 8.0 mm I.D.
Mobile phase: H2O
Frow rate: 0.5 mL/min
Column temp.: 80°C
Pressure: 2.0 MPa
Injection volume: 10 µL

View detail

LC

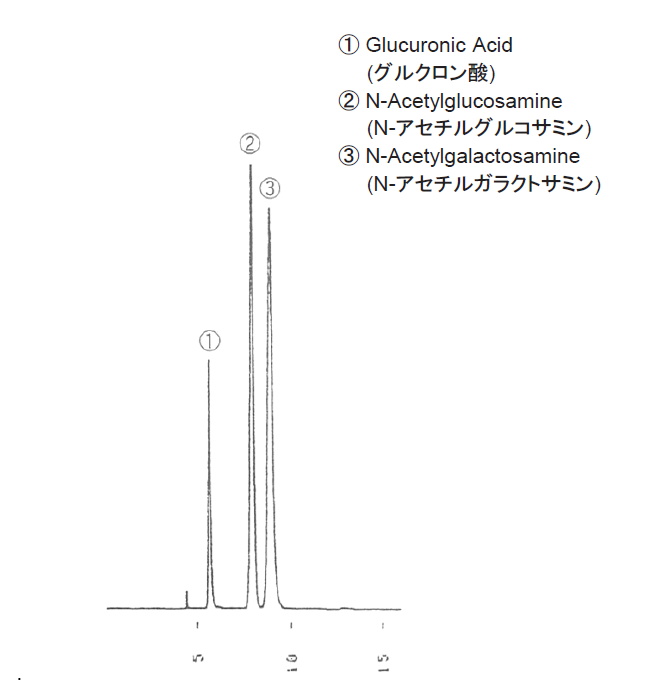

Samples: Glucuronic acid , N-Acetylglucosamine , N-Acetylgalactosamine
Applications: Uronic acid, Acetylation amino sugar
Column: ULTRON PS-80H
Column Size: 300 mm L × 8.0 mm I.D.
Mobile phase: HClO4aq. (pH 2.1)
Frow rate: 1.0 mL/min
Column temp.: 60°C
Pressure: 2.5 MPa

View detail

LC
Samples: Sucrose , Lactose , Glucose , Xylose , Galactose , Fructose , Inositol
Applications: Sugar and alditol
Column: ULTRON PS-80P
Column Size: 300 mm L × 8.0 mm I.D.
Mobile phase: H2O
Frow rate: 1.0 mL/min
Column temp.: 80°C
Pressure: 2.0 MPa

View detail

LC
Samples: Aspartic acid , Glutamic acid , Serine , Glycine , Histidine , Arginine , Threonine , Alanine , Proline , Tyrosine , Valine , Methionine , Cysteine-cysteine , Isoleucine , Leucine , Phenylalanine , Lysine
Applications: Analysis of the PTC amino acid
Column: STR ODS-II
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: A: CH3COONa (pH 6.5)/CH3CN = 93/7, B: CH3CN/H2O = 4/1
Frow rate: 1.0 mL/min
Column temp.: 40°C

View detail

LC
Samples: Escitalopram oxalate
Applications: Escitalopram oxalate
Column: ULTRON ES-OVM , ULTRON ES-OVM-E
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 50 mM KH2PO4 + 0.2 N NaOH(pH 7.0)/CH3CN = 85/15
Frow rate: 0.6 mL/min
Column temp.: 30°C

View detail

LC
Samples: Nicotinamide , Pyridoxine , Isoascorbic acid , Riboflavin , Nicotinic acid , Ascorbic acid , Biotin , Pantothenic acid , Folic acid , Cyanocobalamin , Thiamine
Applications: Water-soluble vitamins
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: A: 20 mM CH3CO2NH4(pH 6.8)/CH3CN = 10/90, B: 20 mM CH3CO2NH4(pH 6.8)/CH3CN = 70/30
Frow rate: 0.25 mL/min
Column temp.: 30°C
Injection volume: 1.0 µL

View detail

LC
Samples: (CYS)2 , LYS , ARG , HIS , ASP , GLU , GLN , ASN , GLY , SER , ALA , THR , PRO , TYR , VAL , PHE , MET , TRP , LEU+ILE
Applications: Analysis of underivatized amino acids by LC/MS/MS
Column: ULTRON AF-HILIC-CD (PLSS)
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: A: 100 mM HCO2NH4(pH 3.0)/CH3CN = 10/90, B: 100 mM HCO2NH4(pH 3.0)/CH3CN = 70/30
Frow rate: 0.36 mL/min
Column temp.: 40°C
Injection volume: 1.0 µL (5.0 µg/mL)

View detail

LC
Samples: Fucose , Xylose , GalNAc , Mannose , Glucose , GluNAc , Galactose , Neu5Ac , Glucuronic acid
Applications: Glycan-constituting monosaccharides
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: A: 200 mM CH3CO2NH4(pH 6.8)/CH3CN = 10/90 (for peak 1 to 7), B: 200 mM CH3CO2NH4(pH 6.8)/CH3CN = 18/82 (for peak 8 and 9)
Frow rate: 0.26 mL/min
Column temp.: 45°C
Injection volume: 1.0 µL

View detail

LC
Samples: L-DOPA , Dopamine , Adrenaline , Noradrenaline
Applications: Analysis of catecholamines
Column: ULTRON AF-HILIC-DA
Column Size: 100 mm L × 4.6 mm I.D.
Mobile phase: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90
Frow rate: 0.50 mL/min
Column temp.: 30°C
Injection volume: 4.0 µL
Diluent: mobile phase

View detail

LC
Samples: Turanose , Palatinose , Maltulose , Maltose , Lactose , Trehalose
Applications: Analysis of disaccharides with different glycosidic linkages
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90
Frow rate: 0.45 mL/min
Column temp.: 40°C
Injection volume: 1.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC
Samples: Val-Tyr-Val , Leucine Enkephalin , Methionine Enkephalin , Gly-Tyr
Applications: Analysis of peptide standards
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: A: 10mM HCO2NH4 (pH3.0) /CH3CN = 10/90, B: 10mM HCO2NH4 (pH3.0) /CH3CN = 70/30
Frow rate: 0.26 mL/min: 67% A/ 33% B (70.0% CH3CN)
Column temp.: 40°C
Injection volume: 2.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC
Samples: Tadalafil
Applications: Analyses of Tadalafil in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Tadalafil
Applications: Analyses of Tadalafil in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC

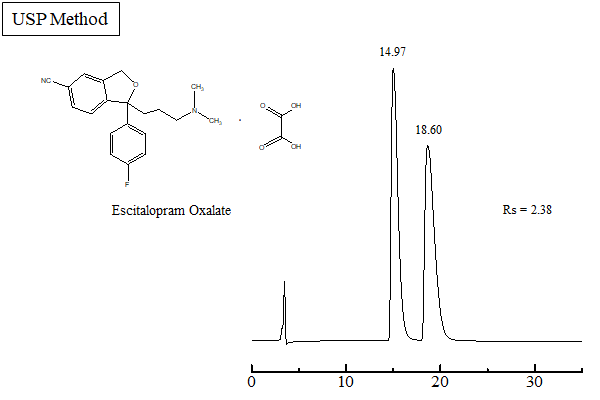

Samples: Escitalopram oxalate
Applications: Analyses of Escitalopram oxalate in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 50 mM KH2PO4 + 0.2 N NaOH(pH 7.0)/CH3CN = 85/15
Frow rate: 0.6 mL/min
Column temp.: 30°C
Injection volume: (1)15.0 µL (2)0.5 µL
Diluent: mobile phase
