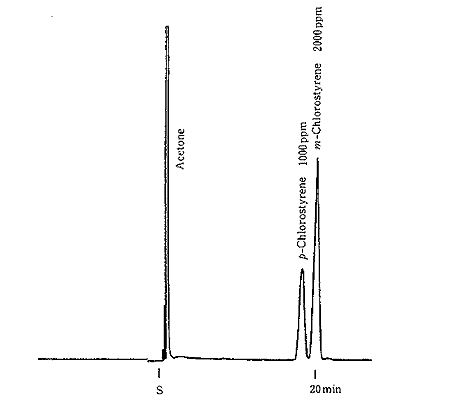

GC

Samples

p-Chlorostyrene , m-Chlorostyrene

Applications

Chlorostyrene isomer

Column

Bentone 34+DNP(5%+5%) Shimalite 80-100 (AW)

Column Size

3.1m×3.2mm

Column temp.

110°C

Carrier gas

He,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(TCD)

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene Monomer , Cyclopentanol

Applications

Residual styrene monomer in the packaging material

Column

FFAP 20% Chromosorb W 80-100 AW

Column Size

3.1m×3.2mm

Column temp.

130°C

Carrier gas

N2,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene Monomer , Cyclopenthanol , N,N-Dimethylformamide

Applications

Styrene monomer in the resin

Column

FON 20% Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

110°C

Carrier gas

N2,50ml/min

Injection port temp.

230°C

Detector temp.

230°C(FID)

View detail

GC

Samples

Benzene , n-Octane , Toluene , n-Nonane , Ethylbenzene , p-Xylene , m-Xylene , o-Xylene , Isopropylbenzene , Styrene , n-Decane , p-Ethyltoluene , o-Ethyltoluene , 1,2,4-Trimethylbenzene

Applications

Styrene monomer and Lower Hydrocarbons

Column

Shinchrom F51+Bentone 34(6%+2%) Chromosorb W 80-100 (AW‐DMCS)

Column Size

2.1m×3.2mm

Column temp.

80°C

Carrier gas

N2,60ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

n-Pentane , n-Hexane , n-Heptane , n-Octane , Acrolein , Carbon Tetrachloride , Benzene , Acrylonitrile , Acetonitrile , Perchloroethylene , Toluene , Ethylbenzene , m-Xylene , o-Xylene , n-Dodecane , Styrene monomer , n-Tridecane , p-Xylene

Applications

Organic solvent in work environment (1)

Column

Thermon-1000 25% Shimalite 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

130°C

Carrier gas

N2,40ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

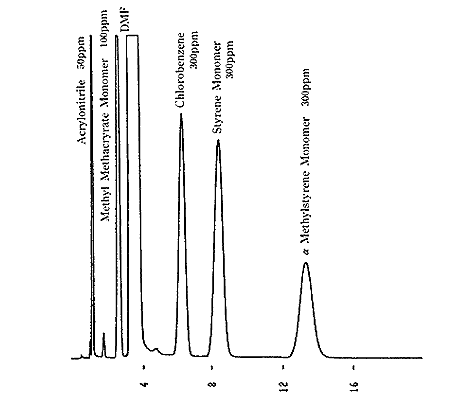

GC

Samples

Acrylonitrile , Methyl Methacrylate Monomer , DMF , Chlorobenzene , Styrene Monomer , α-Methylstyrene Monomer , N,N-Dimetylformamide

Applications

Residual solvent in the packaging material

Column

Thermon-1000 5% Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

220°C

Carrier gas

N2,50ml/min

Injection port temp.

260°C

Detector temp.

260°C

Detector

FID

Injection volume

1 μL

View detail

GC

Samples

Solvents

Applications

Solvents (5)

Column

ULBON HR-1

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→120°C(2°C/min)

Carrier gas

He,0.93ml/min

Detector temp.

150°C(FID)

Injection volume

1μl

View detail

GC

Samples

Solvents (4)

Applications

Solvents (4)

Column

ULBON HR-1701

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→180°C(4°C/min)

Carrier gas

He,1.4ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

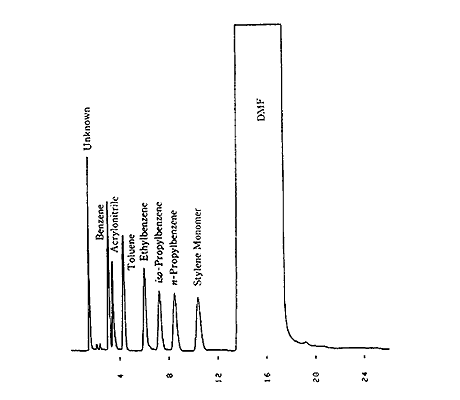

GC

Samples

Benzene , Acrylonitrile , Toluene , Ethylbenzene , iso-Propylbenzene , n-Propylbenzene , Styrene Monomer , N,N-Dimethylformamide

Applications

Styrene monomer (10ppm) in DMF

Column

ULBON HR-20M

Column Size

30m×0.53mm(5.0μm/min)

Column temp.

120°C

Carrier gas

He,10ml/min

Detector temp.

200°C(FID)

Injection volume

2μl

View detail

GC

Samples

n-Hexane , Ethyl Ether , Acetone , Methyl Acetate , trans-1,2-Dichloroethylene , Methanol , Isopropyl Acetate , Isopropanol , Dichloromethane , n-Propyl Acetate , cis-1,2-Dichloroethylene , Methyl Isobutyl Ketone , Chloroform , Toluene , 1,4-Dioxane , Isobutanol , Isoamyl Acetate , Ethylbenzene , p-Xylene , m-Xylene , Methyl Cellosolve , o-Xylene , Ethyl Cellosolve , Styrene , Cellosolve Acetate , N,N-Dimethylformamide , 4-Methylcyclohexanone , Butyl Cellosolve , cis-4-Methylcyclohexanol , m-Dichlorobenzene , p-Dichlorobenzene , trans-4-Methylcyclohexanol , o-Dichlorobenzene , o-Cresol , p-Cresol , m-Cresol

Applications

Solvents (6)

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→240°C(3°C/min)

Carrier gas

He,1.3ml/min

Detector temp.

250°C(FID)

Injection volume

1μl

View detail

GC

Samples

Methanol , Acetone , Dichloromethane , trans-1,2-Dichloroethylene , n-Hexane , Ethyl Acetate , Tetrahydrofuran , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , Methyl Isobutyl Ketone , Toluene , Methyl Butyl Ketone , Tetrachloroethylene , Chlorobenzene , Ethylbenzene , p-Xylene , Styrene , 1,1,2,2-Tetrachloroethane , 2-Methylcyclohexanone , 4-Methylcyclohexanone , m-Dichlorobenzene , p-Dichlorobenzene , o-Cresol , p-Cresol

Applications

The work environment (1)

Column

ULBON HR-52

Column Size

30m×0.53mm(5μm)

Column temp.

60°C→130°C(3°C/min)

Carrier gas

He,8.0ml/min

Detector temp.

150°C(FID)

Injection volume

1ml

View detail

GC

Samples

Methanol , Acetone , Dichloromethane , trans-1,2-Dichloroethylene , n-Hexane , Ethyl Acetate , Tetrahydrofuran , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , 1,4-Dioxane , Methyl Isobutyl Ketone , Toluene , Methyl n-Butyl Ketone , n-Butyl Acetate , Tetrachloroethylene , Chlorobenzene , Ethylbenzene , p-Xylene , Styrene , o-Xylene , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , 3-Methylcyclohexanol(cis, trans) , 2-Methylcyclohexanone , 4-Methylcyclohexanone , m-Dichlorobenzene , p-Dichlorobenzene , o-Dichlorobenzene , o-Cresol , p-Cresol

Applications

Solvents (3)

Column

ULBON HR-52

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→130°C(3°C/min)

Carrier gas

He,1.2ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

GC

Samples

n-Hexane, Benzene , n-Octane , Toluene , n-Nonane , Ethylbenzene , p-Xylene , m-Xylene , o-Xylene , Isopropylbenzene , Styrene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,3,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , 4-n-Propyltoluene , 3-n-Propyltoluene , 2-n-Propyltoluene , 1,2,3,5-Tetramethylbenzene , 1,2,4,5-Tetramethylbenzene , 1,2,3,4-Tetramethylbenzene

Applications

Alkyl benzene isomer

Column

ULBON Xylene Master

Column Size

50m×0.32mm

Column temp.

70°C→120°C(2°C/min)

Carrier gas

He,1.4ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene monomer , Cyclopentanol , N,N-Dimethylformamide

Applications

Measurement of styrene monomer in DMF using Shinwasorb

Column

FON 10% Shinwasorb-S 60/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

110℃

Carrier gas

50 mL/min N₂

Injection port temp.

230℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Mixture of 22 organic solvents

Applications

Measurement of organic solvents using Shinwasorb -2-

Column

PEG1500 12.5% Shinwasorb-U 40/60

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

60～120℃ (4℃/min)

Carrier gas

40 mL/min N₂

Injection port temp.

200℃

Detector temp.

200℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene monomer , Cyclopentanol , N, N-Dimethylformamide ,

Applications

Measurement of styrene monomer in DMF using Shinwasorb

Column

FFAP 10% Shinwasorb-U 60/80

Column Size

3.1m×3.2mm glass

Column temp.

120°C

Carrier gas

50 mL/min N2

Injection port temp.

240°C

Detector temp.

240°C

Detector

FID

Injection volume

1.0 μL

View detail

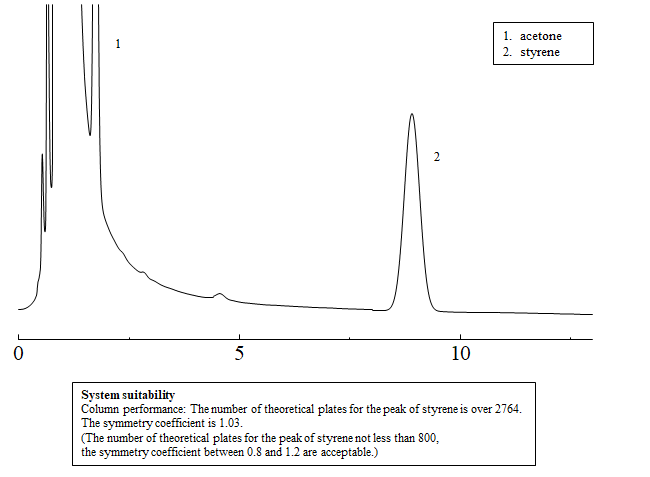

GC

Samples

acetone , styrene , , ,

Applications

Analysis of polystyrene sulfonate calcium using Shinwasorb

Column

PEG20M 7.5% Shinwasorb-S 80/100

Column Size

2.1m×3.2mm glass

Column temp.

90°C

Carrier gas

60 mL/min N2

Injection port temp.

260°C

Detector temp.

260°C

Detector

FID

Injection volume

5.0 µL

View detail

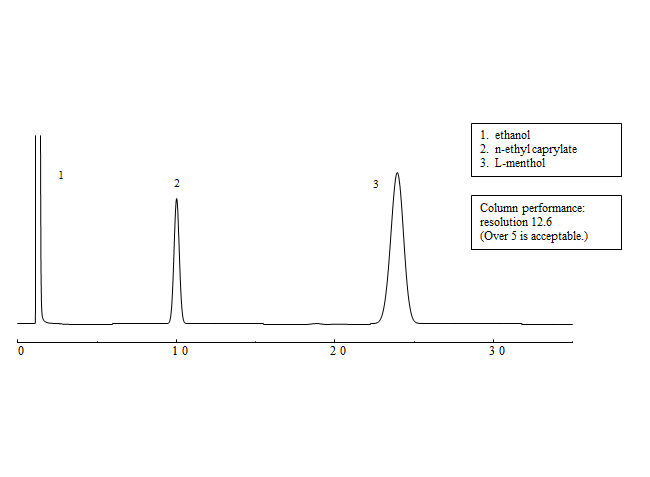

GC

Samples

ethanol , n-ethyl caprylate , L-menthol , , ,

Applications

Analysis of polystyrene peppermint oil　using Shinwasorb

Column

PEG6000 12.5% Shinwasorb-S 60/80

Column Size

2.1m×3.2mm glass

Column temp.

140°C

Carrier gas

33 mL/min N2

Injection port temp.

200°C

Detector temp.

200°C

Detector

FID

Injection volume

1.0 µL

View detail

GC

Samples

Diethyl ether , n-Hexane , Methanol , Methyl acetate , 2-Propanol , Ethyl acetate , Tetrahydrofuran , 2-Butanol , iso-Butanol , Toluene , n-Butyl acetate , Methyl n-butyl ketone , iso-Amyl alcohol , Ethylbenzene , m-Xylene , p-Xylene , o-Xylene , Styrene monomer ,

Applications

Measurement of organic solvents using SBS-120

Column

SBS-120 12% Shincarbon-A2 80/100

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

90℃

Carrier gas

40 mL/min N₂

Injection port temp.

230℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail
