GC

Samples

Ethylbenzene , p-Xylene , m-Xylene , o-Xylene

Applications

Xylene isomer (each 1000ppm)

Column

Bentone 34+DNP 5%+5% Shimalite 80/100 NAW

Column Size

3.1m×3.2mm

Column temp.

80°C

Carrier gas

N2,50ml/min

Injection port temp.

230°C

Detector temp.

230°C(FID)

View detail

GC

Samples

Methyl Alcohol , Ethyl Alcohol , Isopropyl Alcohol , Ethyl Acetate , Methyl Ethyl Ketone , Benzene , Methyl Isobutyl Ketone , Toluene , Butyl Acetate , Cellosolve , Ethylbenzene , m-Xylene , p-Xylene , o-Xylene , Cyclohexanone

Applications

Organic solvents (2)

Column

SBS-1 10% Shimalite TPA 60-80

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,40ml/min

Injection port temp.

230°C

Detector temp.

230°C(FID)

View detail

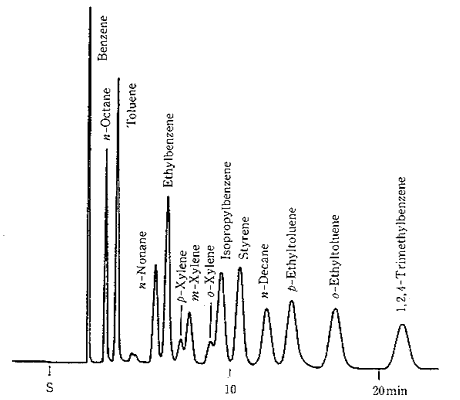

GC

Samples

Benzene , n-Octane , Toluene , n-Nonane , Ethylbenzene , p-Xylene , m-Xylene , o-Xylene , Isopropylbenzene , Styrene , n-Decane , p-Ethyltoluene , o-Ethyltoluene , 1,2,4-Trimethylbenzene

Applications

Styrene monomer and Lower Hydrocarbons

Column

Shinchrom F51+Bentone 34(6%+2%) Chromosorb W 80-100 (AW‐DMCS)

Column Size

2.1m×3.2mm

Column temp.

80°C

Carrier gas

N2,60ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Ethylbenzene , p-Xylene , m-Xylene , o-Xylene

Applications

Xylenol isomer

Column

Shinchrom F51+Bentone 34(6%+4%) Chromosorb W 80-100 (AW‐DMCS)

Column Size

2.1m×3.2mm

Column temp.

80°C

Carrier gas

N2,60ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

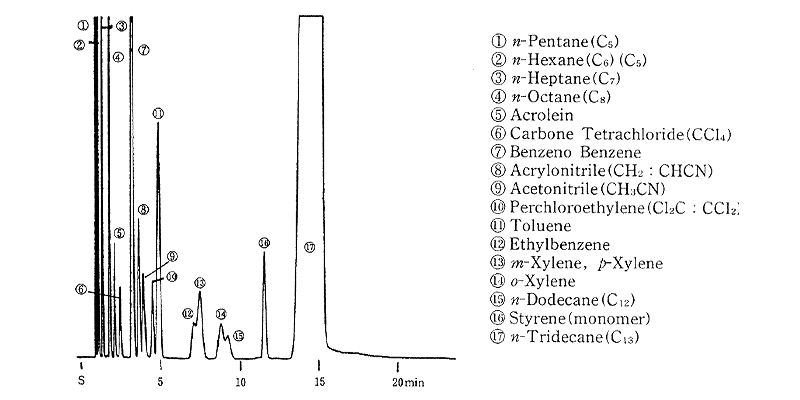

GC

Samples

n-Pentane , n-Hexane , n-Heptane , n-Octane , Acrolein , Carbon Tetrachloride , Benzene , Acrylonitrile , Acetonitrile , Perchloroethylene , Toluene , Ethylbenzene , m-Xylene , o-Xylene , n-Dodecane , Styrene monomer , n-Tridecane , p-Xylene

Applications

Organic solvent in work environment (1)

Column

Thermon-1000 25% Shimalite 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

130°C

Carrier gas

N2,40ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

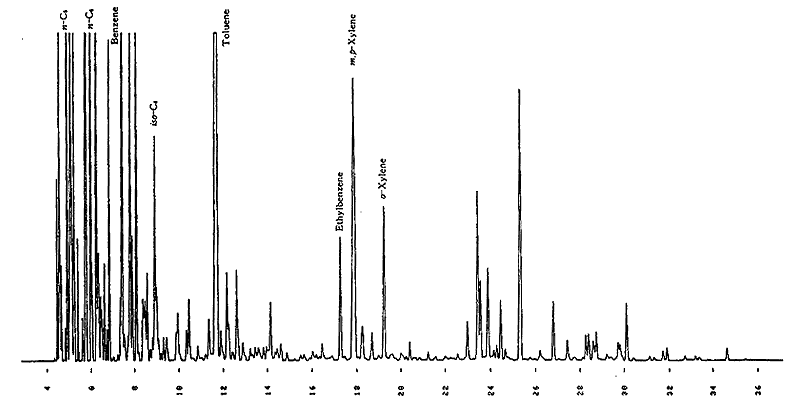

GC

Samples

n-Pentane , n-Hexane , Benzene , iso-Octane , Toluene , Ethylbenzene , m-Xylene , o-Xylene , p-Xylene

Applications

Premium gasoline

Column

ULBON HR-1

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→220°C(4°C/min)

Carrier gas

He,0.75ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μl

View detail

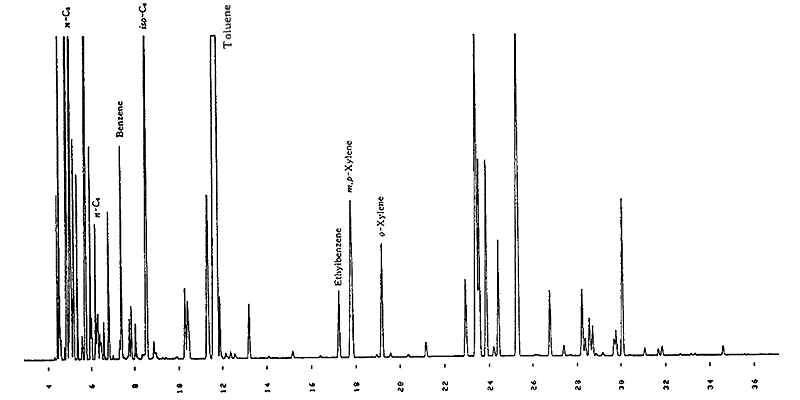

GC

Samples

n-Pentane , n-Hexane , Benzene , iso-Octane , Toluene , Ethylbenzene , m-Xylene , o-Xylene , p-Xylene

Applications

Regular gasoline

Column

ULBON HR-1

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→220°C(4°C/min)

Carrier gas

He,0.75ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μl

View detail

GC

Samples

Methanol , Ethyl Ether , Isopropanol , trans-1,2-Dichloroethylene , Ethyl Acetate , Chloroform , Isobutanol , Trichloroethylene , n-Butanol , 1,4-Dioxane , Toluene , Tetrachloroethylene , n-Butyl Acetate , Ethylbenzene , p-Xylene , Isoamyl Acetate , o-Xylene , n-Amyl Acetate , Cyclohexanol , Cyclohexanone , 2-Methylcyclohexanol , 2-Methylcyclohexanone , p-Dichlorobenzene , o-Dichlorobenzene , o-Cresol , m-Cresol

Applications

The work environment (2)

Column

ULBON HR-1701

Column Size

30m×0.53mm(5μm)

Column temp.

60°C→180°C(4°C/min)

Carrier gas

He,10ml/min

Detector temp.

200°C(FID)

Injection volume

1ml

View detail

GC

Samples

Solvents (4)

Applications

Solvents (4)

Column

ULBON HR-1701

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→180°C(4°C/min)

Carrier gas

He,1.4ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

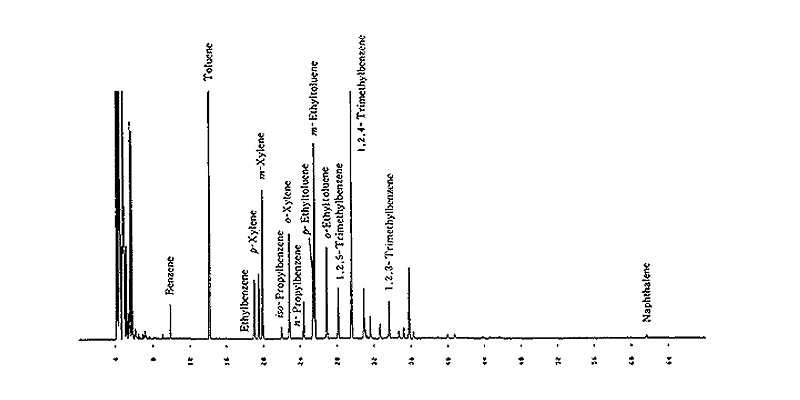

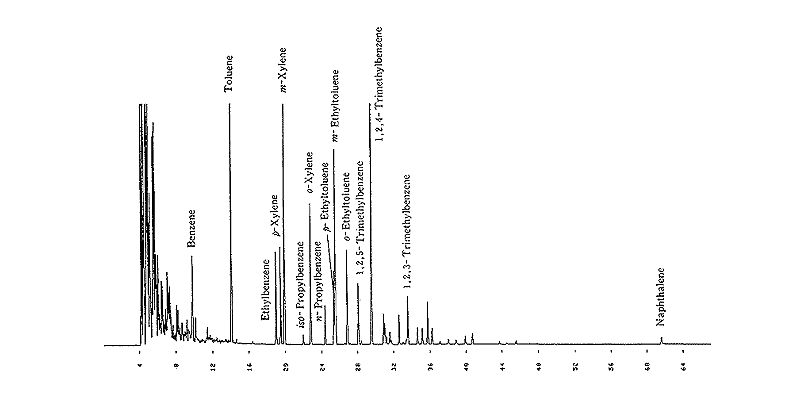

GC

Samples

Benzene , Toluene , Ethylbenzene , p-Xylene , m-Xylene , iso-Propylbenzene , o-Xylene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,2,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , Naphthalene

Applications

Aromatic hydrocarbons in Premium gasoline

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

50°C→180°C(2°C/min)

Carrier gas

He,1.04ml/min

Detector temp.

250°C(FID)

Injection volume

0.2μl

View detail

GC

Samples

n-Hexane , Ethyl Ether , Acetone , Methyl Acetate , trans-1,2-Dichloroethylene , Methanol , Isopropyl Acetate , Isopropanol , Dichloromethane , n-Propyl Acetate , cis-1,2-Dichloroethylene , Methyl Isobutyl Ketone , Chloroform , Toluene , 1,4-Dioxane , Isobutanol , Isoamyl Acetate , Ethylbenzene , p-Xylene , m-Xylene , Methyl Cellosolve , o-Xylene , Ethyl Cellosolve , Styrene , Cellosolve Acetate , N,N-Dimethylformamide , 4-Methylcyclohexanone , Butyl Cellosolve , cis-4-Methylcyclohexanol , m-Dichlorobenzene , p-Dichlorobenzene , trans-4-Methylcyclohexanol , o-Dichlorobenzene , o-Cresol , p-Cresol , m-Cresol

Applications

Solvents (6)

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→240°C(3°C/min)

Carrier gas

He,1.3ml/min

Detector temp.

250°C(FID)

Injection volume

1μl

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , p-Xylene , m-Xylene , iso-Propylbenzene , o-Xylene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,2,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , Naphthalene

Applications

Aromatic hydrocarbons in Regular gasoline

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

50°C→180°C(2°C/min)

Carrier gas

He,1.04ml/min

Detector temp.

250°C(FID)

Injection volume

0.2μl

View detail

GC

Samples

Methanol , Acetone , Dichloromethane , trans-1,2-Dichloroethylene , n-Hexane , Ethyl Acetate , Tetrahydrofuran , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , Methyl Isobutyl Ketone , Toluene , Methyl Butyl Ketone , Tetrachloroethylene , Chlorobenzene , Ethylbenzene , p-Xylene , Styrene , 1,1,2,2-Tetrachloroethane , 2-Methylcyclohexanone , 4-Methylcyclohexanone , m-Dichlorobenzene , p-Dichlorobenzene , o-Cresol , p-Cresol

Applications

The work environment (1)

Column

ULBON HR-52

Column Size

30m×0.53mm(5μm)

Column temp.

60°C→130°C(3°C/min)

Carrier gas

He,8.0ml/min

Detector temp.

150°C(FID)

Injection volume

1ml

View detail

GC

Samples

Methanol , Acetone , Dichloromethane , trans-1,2-Dichloroethylene , n-Hexane , Ethyl Acetate , Tetrahydrofuran , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , 1,4-Dioxane , Methyl Isobutyl Ketone , Toluene , Methyl n-Butyl Ketone , n-Butyl Acetate , Tetrachloroethylene , Chlorobenzene , Ethylbenzene , p-Xylene , Styrene , o-Xylene , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , 3-Methylcyclohexanol(cis, trans) , 2-Methylcyclohexanone , 4-Methylcyclohexanone , m-Dichlorobenzene , p-Dichlorobenzene , o-Dichlorobenzene , o-Cresol , p-Cresol

Applications

Solvents (3)

Column

ULBON HR-52

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→130°C(3°C/min)

Carrier gas

He,1.2ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

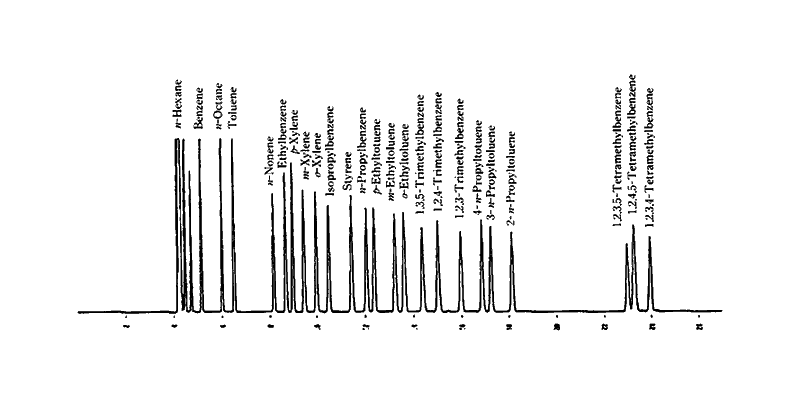

GC

Samples

n-Hexane, Benzene , n-Octane , Toluene , n-Nonane , Ethylbenzene , p-Xylene , m-Xylene , o-Xylene , Isopropylbenzene , Styrene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,3,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , 4-n-Propyltoluene , 3-n-Propyltoluene , 2-n-Propyltoluene , 1,2,3,5-Tetramethylbenzene , 1,2,4,5-Tetramethylbenzene , 1,2,3,4-Tetramethylbenzene

Applications

Alkyl benzene isomer

Column

ULBON Xylene Master

Column Size

50m×0.32mm

Column temp.

70°C→120°C(2°C/min)

Carrier gas

He,1.4ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

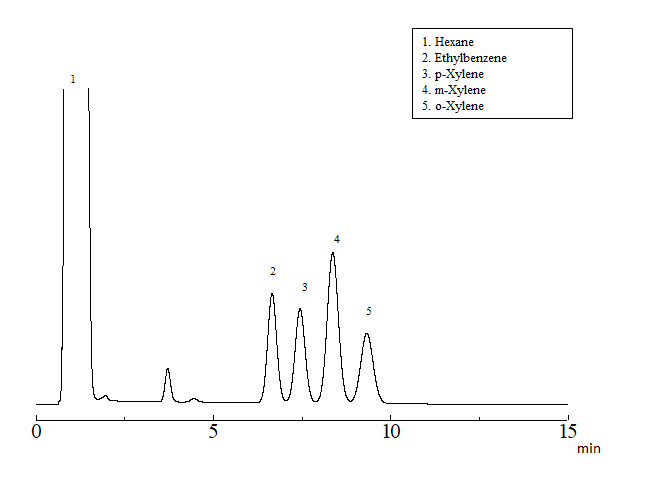

GC

Samples

Ethylbenzene , p-Xylene , m-Xylene , o-Xylene

Applications

Measurement of xylene isomers using Shinwasorb

Column

Shinchrom F51+Bentone 34 3+2% Shinwasorb-U 60/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

80℃

Carrier gas

40 mL/min N₂

Injection port temp.

240℃

Detector temp.

240℃

Detector

FID

Injection volume

1.0 μL

View detail

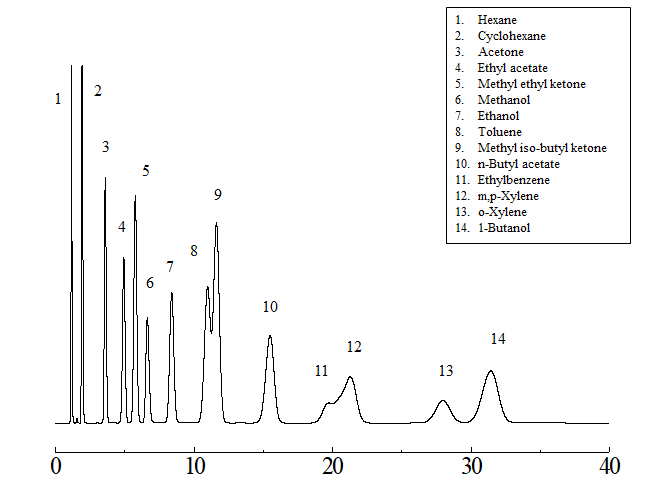

GC

Samples

Mixture of 13 organic solvents

Applications

Measurement of organic solvents using Shinwasorb -1-

Column

PEG1500 12.5% Shinwasorb-U 40/60

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

70℃

Carrier gas

40 mL/min N₂

Injection port temp.

200℃

Detector temp.

200℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Mixture of 22 organic solvents

Applications

Measurement of organic solvents using Shinwasorb -2-

Column

PEG1500 12.5% Shinwasorb-U 40/60

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

60～120℃ (4℃/min)

Carrier gas

40 mL/min N₂

Injection port temp.

200℃

Detector temp.

200℃

Detector

FID

Injection volume

1.0 μL

View detail

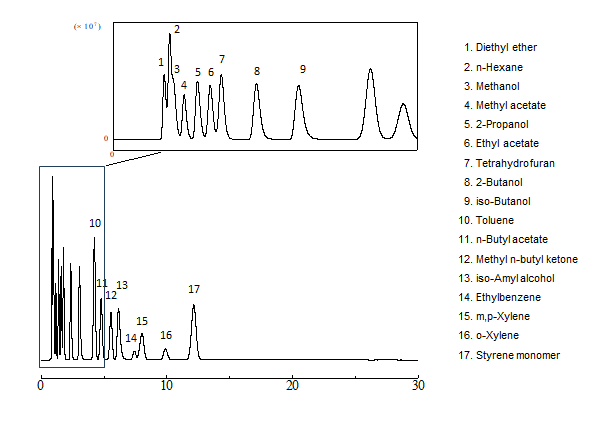

GC

Samples

Diethyl ether , n-Hexane , Methanol , Methyl acetate , 2-Propanol , Ethyl acetate , Tetrahydrofuran , 2-Butanol , iso-Butanol , Toluene , n-Butyl acetate , Methyl n-butyl ketone , iso-Amyl alcohol , Ethylbenzene , m-Xylene , p-Xylene , o-Xylene , Styrene monomer ,

Applications

Measurement of organic solvents using SBS-120

Column

SBS-120 12% Shincarbon-A2 80/100

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

90℃

Carrier gas

40 mL/min N₂

Injection port temp.

230℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail
