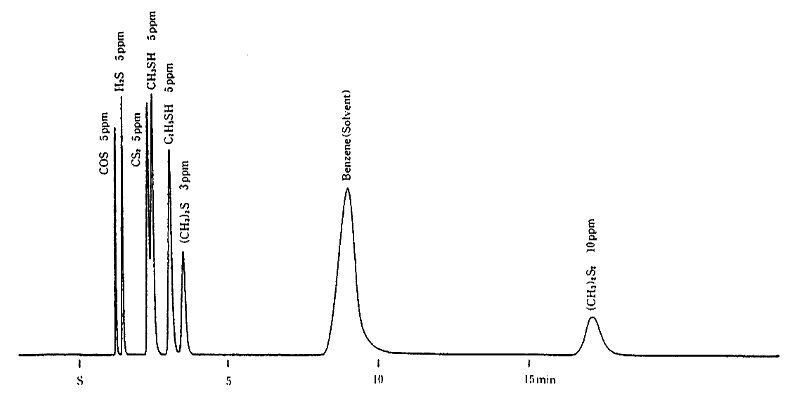

GC

Samples

Carbonyl Sulfide , Hydrogen Sulfide , Carbon Disulfide , Methyl Mercaptan , Ethyl Mercaptan , Dimethyl Sulfide , Benzene(Solvent) , Dimethyl Disulfide

Applications

Sulfur Compounds of Air Pollution

Column

1,2,3-TCEP 25% Shimalite 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Injection port temp.

180°C

Detector temp.

180°C

Detector

FPD

View detail

GC

Samples

Ethylbenzene , p-Xylene , m-Xylene , o-Xylene

Applications

Xylene isomer (each 1000ppm)

Column

Bentone 34+DNP 5%+5% Shimalite 80/100 NAW

Column Size

3.1m×3.2mm

Column temp.

80°C

Carrier gas

N2,50ml/min

Injection port temp.

230°C

Detector temp.

230°C(FID)

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene Monomer , Cyclopentanol

Applications

Residual styrene monomer in the packaging material

Column

FFAP 20% Chromosorb W 80-100 AW

Column Size

3.1m×3.2mm

Column temp.

130°C

Carrier gas

N2,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene Monomer , Cyclopenthanol , N,N-Dimethylformamide

Applications

Styrene monomer in the resin

Column

FON 20% Chromosorb W 80-100 (AW-DMCS)

Column Size

2.1m×3.2mm

Column temp.

110°C

Carrier gas

N2,50ml/min

Injection port temp.

230°C

Detector temp.

230°C(FID)

View detail

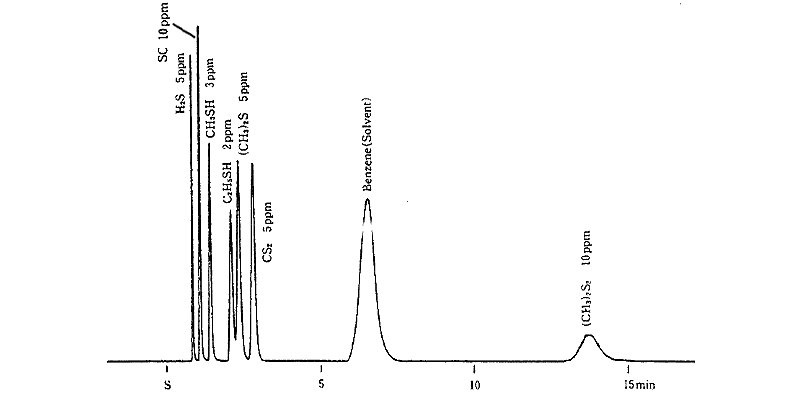

GC

Samples

Hydrogen Sulfide , Sulfur Dioxide , Methyl Mercaptan , Ethyl Mercaptan , Dimethyl Sulfide , Carbon Disulfide , Benzene , Dimethyl Disulfide

Applications

Air pollution sulfur compound (1)

Column

PPE-5rings 10% Shimalite TPA 60-80

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Injection port temp.

180°C

Detector temp.

180°C(FPD)

View detail

GC

Samples

Methyl Alcohol , Ethyl Alcohol , Isopropyl Alcohol , Ethyl Acetate , Methyl Ethyl Ketone , Benzene , Methyl Isobutyl Ketone , Toluene , Butyl Acetate , Cellosolve , Ethylbenzene , m-Xylene , p-Xylene , o-Xylene , Cyclohexanone

Applications

Organic solvents (2)

Column

SBS-1 10% Shimalite TPA 60-80

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,40ml/min

Injection port temp.

230°C

Detector temp.

230°C(FID)

View detail

GC

Samples

n-Hexane , Methyl Alcohol , Acetone , Isopropyl Alcohol , Ethyl Acetate , Methyl Ethyl Ketone , Benzene , Trichloroethylene , Isobutyl Alcohol , Isobutyl Acetate , Toluene , n-Butyl Acetate , Isoamyl Alcohol , Ethylbenzene , m-Xylene , o-Xylene , n-Propylbenzene , Cyclohexanone

Applications

Organic solvent in the air (ppm level)

Column

SBS-100 10% Shimalite TPA 60-80

Column Size

3.1m×3.2mm

Column temp.

110°C

Carrier gas

N2,30ml/min

Injection port temp.

200°C

Detector temp.

200°C(FID)

View detail

GC

Samples

Acetone , Isopropyl Alcohol , n-Hexane , Ethyl Acetate , Chloroform , Carbon Tetrachloride , n-Butyl Alcohol , Methyl Isobutyl Ketone , Isobutyl Acetate , Toluene , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cyclohexanone , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , o-Dichlorobenzene

Applications

Organic solvent in work environment (2)

Column

SBS-200 20% Shimalite W 100-120 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Acetone , Isopropyl Alcohol , n-Hexane , Ethyl Acetate , Chloroform , Carbon Tetrachloride , n-Butyl Alcohol , Methyl Isobutyl Ketone , Isobutyl Acetate , Toluene , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cyclohexanone , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , o-Dichlorobenzene

Applications

Organic solvents of the atmosphere (ppm level)

Column

SBS-200 20% Shimalite W 100-120 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Dichloromethane , trans-1,2-Dichloroethylene , Chloroform , 1,2-Dichloroethane , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , Toluene , Tetrachloroethylene , Chlorobenzene , 1,1,2,2-Tetrachloroethane , o-Dichlorobenzene

Applications

Organic solvents in work environment (3)

Column

SBS-300 20% Shimalite W 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,30ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Dichloromethane , trans-1,2-Dichloroethylene , Chloroform , 1,2-Dichloroethane , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , Toluene , Tetrachloroethylene , Chlorobenzene , 1,1,2,2-Tetrachloroethane , o-Dichlorobenzene

Applications

Chlorinated solvents of the atmosphere (ppm level)

Column

SBS-300 20% Shimalite W 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,30ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Benzene , n-Octane , Toluene , n-Nonane , Ethylbenzene , p-Xylene , m-Xylene , o-Xylene , Isopropylbenzene , Styrene , n-Decane , p-Ethyltoluene , o-Ethyltoluene , 1,2,4-Trimethylbenzene

Applications

Styrene monomer and Lower Hydrocarbons

Column

Shinchrom F51+Bentone 34(6%+2%) Chromosorb W 80-100 (AW‐DMCS)

Column Size

2.1m×3.2mm

Column temp.

80°C

Carrier gas

N2,60ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Ethylbenzene , p-Xylene , m-Xylene , o-Xylene

Applications

Xylenol isomer

Column

Shinchrom F51+Bentone 34(6%+4%) Chromosorb W 80-100 (AW‐DMCS)

Column Size

2.1m×3.2mm

Column temp.

80°C

Carrier gas

N2,60ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Benzene , Toluene , Acetone , iso-Propanol , Ethanol , Isobutanol , Methanol

Applications

The impurity component in the carbinol

Column

Sorbitol 30% Shimalite 60-80 (NAW)

Column Size

6.1m×3.2mm

Column temp.

110°C

Carrier gas

N2,50ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

n-Pentane , n-Hexane , n-Heptane , n-Octane , Acrolein , Carbon Tetrachloride , Benzene , Acrylonitrile , Acetonitrile , Perchloroethylene , Toluene , Ethylbenzene , m-Xylene , o-Xylene , n-Dodecane , Styrene monomer , n-Tridecane , p-Xylene

Applications

Organic solvent in work environment (1)

Column

Thermon-1000 25% Shimalite 80-100 (AW-DMCS)

Column Size

3.1m×3.2mm

Column temp.

130°C

Carrier gas

N2,40ml/min

Injection port temp.

240°C

Detector temp.

240°C(FID)

View detail

GC

Samples

Acrylonitrile , Methyl Methacrylate Monomer , DMF , Chlorobenzene , Styrene Monomer , α-Methylstyrene Monomer , N,N-Dimetylformamide

Applications

Residual solvent in the packaging material

Column

Thermon-1000 5% Sunpak-A

Column Size

2.1m×3.2mm

Column temp.

220°C

Carrier gas

N2,50ml/min

Injection port temp.

260°C

Detector temp.

260°C

Detector

FID

Injection volume

1 μL

View detail

GC

Samples

Dimethyl Ether , Methanol , Isopropanol , Methyl Ethyl Ketone , Isopropyl Acetate , 2-Butanol , n-Propyl Acetate , Isobutanol , Dioxane , Methyl Cellosolve , Toluene , Ethyl Cellosolve , N,N-Dimethylformamide , Chlorobenzene , Cellosolve Acetate , Cyclohexanone , Cyclohexanol , 2-Methyl Cyclohexanone , 2-Methyl Cyclohexanol , o-Dichlorobenzene

Applications

Organic solvents (4)

Column

Ucon LB 550X 20% Chromosorb W 80-100 (AW)

Column Size

3.1m×3.2mm

Column temp.

100°C

Carrier gas

N2,50ml/min

Injection port temp.

230°C

Detector temp.

230°C(FID)

View detail

GC

Samples

2,6-Xylenol , p-Cresol , m-Cresol , 2,4,6-Trimethylphenol , 2,4-Xylenol , 2,5-Xylenol , 2,3,6-Trimethylphenol , 2,3-Xylenol , p-Ethylphenol , m-Ethylphenol , 3,5-Xylenol , 3,4-Xylenol

Applications

Analysis of the impurity in the 3,5- xylenol ( 10% benzene solution )

Column

ULBON ALPhen

Column Size

50m×0.20mm

Column temp.

130°C

Carrier gas

N2,0.39ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μm

View detail

GC

Samples

Phenol , o-Cresol , p-Cresol , m-Cresol

Applications

Analysis of m-cresol in the p-cresol ( 10% benzene solution )

Column

ULBON ALPhen

Column Size

50m×0.20mm

Column temp.

130°C

Carrier gas

N2,0.39ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μm

View detail

GC

Samples

n-Pentane , n-Hexane , Benzene , iso-Octane , Toluene , Ethylbenzene , m-Xylene , o-Xylene , p-Xylene

Applications

Premium gasoline

Column

ULBON HR-1

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→220°C(4°C/min)

Carrier gas

He,0.75ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μl

View detail

GC

Samples

Solvents

Applications

Solvents (5)

Column

ULBON HR-1

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→120°C(2°C/min)

Carrier gas

He,0.93ml/min

Detector temp.

150°C(FID)

Injection volume

1μl

View detail

GC

Samples

n-Pentane , n-Hexane , Benzene , iso-Octane , Toluene , Ethylbenzene , m-Xylene , o-Xylene , p-Xylene

Applications

Regular gasoline

Column

ULBON HR-1

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→220°C(4°C/min)

Carrier gas

He,0.75ml/min

Detector temp.

250°C(FID)

Injection volume

0.5μl

View detail

GC

Samples

Methanol , Ethyl Ether , Isopropanol , trans-1,2-Dichloroethylene , Ethyl Acetate , Chloroform , Isobutanol , Trichloroethylene , n-Butanol , 1,4-Dioxane , Toluene , Tetrachloroethylene , n-Butyl Acetate , Ethylbenzene , p-Xylene , Isoamyl Acetate , o-Xylene , n-Amyl Acetate , Cyclohexanol , Cyclohexanone , 2-Methylcyclohexanol , 2-Methylcyclohexanone , p-Dichlorobenzene , o-Dichlorobenzene , o-Cresol , m-Cresol

Applications

The work environment (2)

Column

ULBON HR-1701

Column Size

30m×0.53mm(5μm)

Column temp.

60°C→180°C(4°C/min)

Carrier gas

He,10ml/min

Detector temp.

200°C(FID)

Injection volume

1ml

View detail

GC

Samples

Methanol , Ethanol , Acetone , IPA , n-Propanol , Ethyl Acetate , MEK , Chloroform , Benzene , n-Butanol , Toluene , MIBK , Isobutyl Acetate , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cellosolve Acetate

Applications

Solvents (2)

Column

ULBON HR-1701

Column Size

25m×0.32mm(0.5μm)

Column temp.

40°C→90°C(2°C/min)

Carrier gas

He,0.83ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

GC

Samples

Solvents (4)

Applications

Solvents (4)

Column

ULBON HR-1701

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→180°C(4°C/min)

Carrier gas

He,1.4ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

GC

Samples

Benzene , Acrylonitrile , Toluene , Ethylbenzene , iso-Propylbenzene , n-Propylbenzene , Styrene Monomer , N,N-Dimethylformamide

Applications

Styrene monomer (10ppm) in DMF

Column

ULBON HR-20M

Column Size

30m×0.53mm(5.0μm/min)

Column temp.

120°C

Carrier gas

He,10ml/min

Detector temp.

200°C(FID)

Injection volume

2μl

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , p-Xylene , m-Xylene , iso-Propylbenzene , o-Xylene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,2,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , Naphthalene

Applications

Aromatic hydrocarbons in Premium gasoline

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

50°C→180°C(2°C/min)

Carrier gas

He,1.04ml/min

Detector temp.

250°C(FID)

Injection volume

0.2μl

View detail

GC

Samples

n-Hexane , Ethyl Ether , Acetone , Methyl Acetate , trans-1,2-Dichloroethylene , Methanol , Isopropyl Acetate , Isopropanol , Dichloromethane , n-Propyl Acetate , cis-1,2-Dichloroethylene , Methyl Isobutyl Ketone , Chloroform , Toluene , 1,4-Dioxane , Isobutanol , Isoamyl Acetate , Ethylbenzene , p-Xylene , m-Xylene , Methyl Cellosolve , o-Xylene , Ethyl Cellosolve , Styrene , Cellosolve Acetate , N,N-Dimethylformamide , 4-Methylcyclohexanone , Butyl Cellosolve , cis-4-Methylcyclohexanol , m-Dichlorobenzene , p-Dichlorobenzene , trans-4-Methylcyclohexanol , o-Dichlorobenzene , o-Cresol , p-Cresol , m-Cresol

Applications

Solvents (6)

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→240°C(3°C/min)

Carrier gas

He,1.3ml/min

Detector temp.

250°C(FID)

Injection volume

1μl

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , p-Xylene , m-Xylene , iso-Propylbenzene , o-Xylene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,2,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , Naphthalene

Applications

Aromatic hydrocarbons in Regular gasoline

Column

ULBON HR-20M

Column Size

50m×0.25mm(0.5μm)

Column temp.

50°C→180°C(2°C/min)

Carrier gas

He,1.04ml/min

Detector temp.

250°C(FID)

Injection volume

0.2μl

View detail

GC

Samples

Methanol , Acetone , Dichloromethane , trans-1,2-Dichloroethylene , n-Hexane , Ethyl Acetate , Tetrahydrofuran , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , Methyl Isobutyl Ketone , Toluene , Methyl Butyl Ketone , Tetrachloroethylene , Chlorobenzene , Ethylbenzene , p-Xylene , Styrene , 1,1,2,2-Tetrachloroethane , 2-Methylcyclohexanone , 4-Methylcyclohexanone , m-Dichlorobenzene , p-Dichlorobenzene , o-Cresol , p-Cresol

Applications

The work environment (1)

Column

ULBON HR-52

Column Size

30m×0.53mm(5μm)

Column temp.

60°C→130°C(3°C/min)

Carrier gas

He,8.0ml/min

Detector temp.

150°C(FID)

Injection volume

1ml

View detail

GC

Samples

Methanol , Ethanol , Acetone , n-Propanol , n-Hexane , Ethyl Acetate , Chloroform , Benzene , MIBK , Toluene , Isobutyl Acetate , n-Butyl Acetate , Ethylbenzene , m-Xylene , o-Xylene , Cellosolve Acetate

Applications

Solvents (1)

Column

ULBON HR-52

Column Size

25m×0.32mm(0.5μm)

Column temp.

40°C→90°C(2°C/min)

Carrier gas

He,0.83ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

GC

Samples

Methanol , Acetone , Dichloromethane , trans-1,2-Dichloroethylene , n-Hexane , Ethyl Acetate , Tetrahydrofuran , 1,1,1-Trichloroethane , Carbon Tetrachloride , Trichloroethylene , 1,4-Dioxane , Methyl Isobutyl Ketone , Toluene , Methyl n-Butyl Ketone , n-Butyl Acetate , Tetrachloroethylene , Chlorobenzene , Ethylbenzene , p-Xylene , Styrene , o-Xylene , Butyl Cellosolve , 1,1,2,2-Tetrachloroethane , 3-Methylcyclohexanol(cis, trans) , 2-Methylcyclohexanone , 4-Methylcyclohexanone , m-Dichlorobenzene , p-Dichlorobenzene , o-Dichlorobenzene , o-Cresol , p-Cresol

Applications

Solvents (3)

Column

ULBON HR-52

Column Size

50m×0.25mm(0.5μm)

Column temp.

60°C→130°C(3°C/min)

Carrier gas

He,1.2ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

GC

Samples

n-Hexane, Benzene , n-Octane , Toluene , n-Nonane , Ethylbenzene , p-Xylene , m-Xylene , o-Xylene , Isopropylbenzene , Styrene , n-Propylbenzene , p-Ethyltoluene , m-Ethyltoluene , o-Ethyltoluene , 1,3,5-Trimethylbenzene , 1,2,4-Trimethylbenzene , 1,2,3-Trimethylbenzene , 4-n-Propyltoluene , 3-n-Propyltoluene , 2-n-Propyltoluene , 1,2,3,5-Tetramethylbenzene , 1,2,4,5-Tetramethylbenzene , 1,2,3,4-Tetramethylbenzene

Applications

Alkyl benzene isomer

Column

ULBON Xylene Master

Column Size

50m×0.32mm

Column temp.

70°C→120°C(2°C/min)

Carrier gas

He,1.4ml/min

Detector temp.

200°C(FID)

Injection volume

1μl

View detail

GC

Samples

Carbon Disulfide , Hydrogen Sulfide , Methyl Mercaptan ,Ethyl Mercaptan , DMS , Benzene . DMDS

Applications

Air pollution sulfur compound (3)

Column

β,β-ODPN 25% Chromosorb W 60-80 (AW-DMCS-ST)

Column Size

3.1m×3.2mm

Column temp.

70°C

Carrier gas

N2,50ml/min

Detector temp.

180°C(FPD)

Injection volume

-

View detail

GC

Samples

Ethylbenzene , p-Xylene , m-Xylene , o-Xylene

Applications

Measurement of xylene isomers using Shinwasorb

Column

Shinchrom F51+Bentone 34 3+2% Shinwasorb-U 60/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

80℃

Carrier gas

40 mL/min N₂

Injection port temp.

240℃

Detector temp.

240℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Dichloromethane , trans-1,2-Dichloroethylene , Chloroform , 1,2-Dichloroethane , 1,1,1-Trichloroethane , Carbon tetrachloride , Trichloroethylene , Toluene , Tetrachloroethylene , Chlorobenzene , 1,1,2,2,-Tetrachloroethane , o-Dichlorobenzene

Applications

Measurement of chlorinated solvents in air using Shinwasorb

Column

SBS-300 10% Shinwasorb-S 60/80

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

100℃

Carrier gas

30 mL/min N₂

Injection port temp.

240℃

Detector temp.

240℃

Detector

FID

Injection volume

1.0 mL

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene monomer , Cyclopentanol , N,N-Dimethylformamide

Applications

Measurement of styrene monomer in DMF using Shinwasorb

Column

FON 10% Shinwasorb-S 60/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

110℃

Carrier gas

50 mL/min N₂

Injection port temp.

230℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Mixture of 13 organic solvents

Applications

Measurement of organic solvents using Shinwasorb -1-

Column

PEG1500 12.5% Shinwasorb-U 40/60

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

70℃

Carrier gas

40 mL/min N₂

Injection port temp.

200℃

Detector temp.

200℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Mixture of 22 organic solvents

Applications

Measurement of organic solvents using Shinwasorb -2-

Column

PEG1500 12.5% Shinwasorb-U 40/60

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

60～120℃ (4℃/min)

Carrier gas

40 mL/min N₂

Injection port temp.

200℃

Detector temp.

200℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Propyleneglycol , 1,3-propanediol

Applications

Measurement of food additives using Sunpak-A

Column

Sunpak-A 50/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

180℃

Carrier gas

50 mL/min N₂

Injection port temp.

200℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Propyleneglycol , 1,3-propanediol

Applications

Measurement of food additives using Sunpak-A

Column

Sunpak-A 50/80

Column Size

2.1 m x 3.2 mm I.D. Glass

Column temp.

180℃

Carrier gas

50 mL/min N₂

Injection port temp.

200℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Carbon sulfide , Hydrogen sulfide , Carbon disulfide , Methyl mercaptan , Ethyl mercaptane , Dimethyl sulfide

Applications

Measurements of offensive odor substances using Shinwasorb -3-

Column

1,2,3-TCEP 25% Shinwasorb-S 80/100 ST

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

70℃

Carrier gas

50 mL/min N₂

Injection port temp.

180℃

Detector temp.

180℃

Detector

FPD

Injection volume

1.0 μL

View detail

GC

Samples

Benzene , Toluene , Ethylbenzene , Isopropylbenzene , n-Propylbenzene , Styrene monomer , Cyclopentanol , N, N-Dimethylformamide ,

Applications

Measurement of styrene monomer in DMF using Shinwasorb

Column

FFAP 10% Shinwasorb-U 60/80

Column Size

3.1m×3.2mm glass

Column temp.

120°C

Carrier gas

50 mL/min N2

Injection port temp.

240°C

Detector temp.

240°C

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

o-Dichlorobenzene, m-Bromochlorobenzene in acetone

Applications

Analysis of o-dichlorobenzene using Shinwasorb

Column

PEG20M-TPA 2.5% Shinwasorb-U 60/80

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

115℃

Carrier gas

39 mL/min N₂ (Adjust so that the retention time of o-dichlorobenzene is about 11 minutes.)

Injection port temp.

200°C

Detector temp.

200°C

Detector

FID

Injection volume

2.0 μL

View detail

GC

Samples

Ethanol , Toluene , Chlorobenzene

Applications

Analysis of allethrin using Sunpak-H Part 1 ～Purity (4) Toluene～

Column

Sunpak-H 80/100

Column Size

1.1 m x 3.2 mm I.D. Glass

Column temp.

170℃

Carrier gas

37 mL/min N₂ (Adjust so that the retention time of toluene is about 5 minutes.)

Injection port temp.

200°C

Detector temp.

200°C

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Organic solvents

Applications

Analysis of organic solvents using Sunpak-A -1-

Column

Sunpak-A 50/80

Column Size

2.0 m x 3.0 mm I.D. Glass

Column temp.

150℃ ～ 220℃ (3 min hold) program rate 4℃/min

Carrier gas

50 mL/min N₂

Injection port temp.

250°C

Detector temp.

250°C

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Organic solvents

Applications

Analysis of organic solvents using Sunpak-A -2-

Column

Sunpak-A 50/80

Column Size

2.0 m x 3.0 mm I.D. Glass

Column temp.

150℃ ～ 220℃ (3 min hold) program rate 4℃/min

Carrier gas

50 mL/min N₂

Injection port temp.

250°C

Detector temp.

250°C

Detector

FID

Injection volume

1.0 μL

View detail

GC

Samples

Diethyl ether , n-Hexane , Methanol , Methyl acetate , 2-Propanol , Ethyl acetate , Tetrahydrofuran , 2-Butanol , iso-Butanol , Toluene , n-Butyl acetate , Methyl n-butyl ketone , iso-Amyl alcohol , Ethylbenzene , m-Xylene , p-Xylene , o-Xylene , Styrene monomer ,

Applications

Measurement of organic solvents using SBS-120

Column

SBS-120 12% Shincarbon-A2 80/100

Column Size

3.1 m x 3.2 mm I.D. Glass

Column temp.

90℃

Carrier gas

40 mL/min N₂

Injection port temp.

230℃

Detector temp.

230℃

Detector

FID

Injection volume

1.0 μL

View detail

LC

Samples

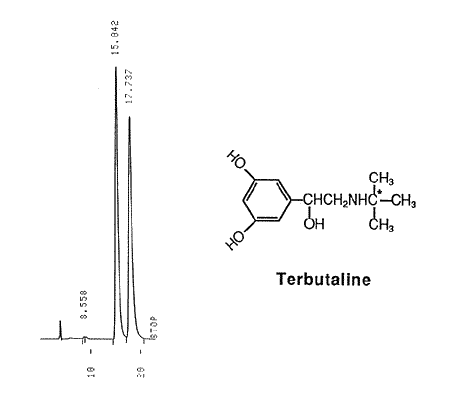

Terbutaline

Applications

Terbutaline

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/CH3CN = 99/1

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

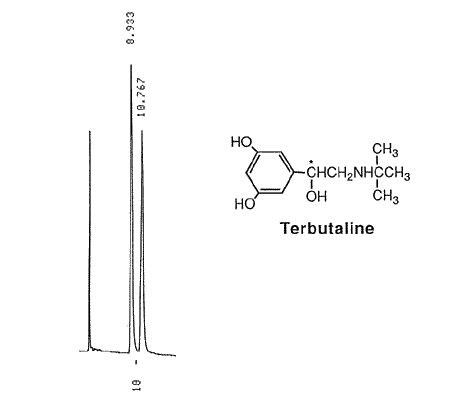

Terbutaline

Applications

Bronchodilator agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

5 µL (ca. 0.25 mg/mL)

View detail

LC

Samples

Citric acid , Tartaric acid , Malonic acid , Succinic acid , Lactic acid , Acetic acid , Gallic acid , Propionic acid , Phthalic acid , Phenoxyacetic acid , m-Hydroxybenzoic acid , p-Hydroxybenzoic acid , Vanilic acid , Caffeic acid , Benzoic acid , o-Hydroxybenzoic acid

Applications

Elution position of the aromatic organic acid

Column

ULTRON PS-80H

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

HClO4aq. (pH 2.1)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

60°C

View detail

LC

Samples

Iprodione, Bensulide

Applications

Iprodione, Bensulide

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 60/40

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

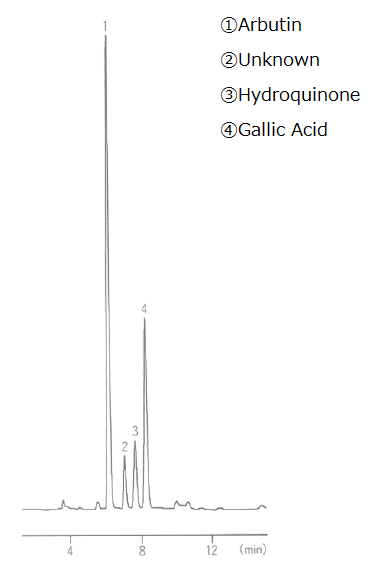

Arbutin , Hydroquinone , Gallic acid

Applications

Arbutin in the Bearberry Leaf end

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

100 mM Phosphoric acid buffer (pH 2.1)/CH3OH = 40/1

Frow rate

0.9 mL/min

Column temp.

35°C

View detail

LC

Samples

Acetaminophen , Caffeine , Riboflavin , Phenol , Potassium guaiacol-4-sulfonate

Applications

The component of the cold remedy (2)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

H2O/CH3CN/50 mM Tetrabutylammonium = 15/2/1 (Adjusted to pH 6 with Phosphoric acid)

Frow rate

1.0 mL/min

Column temp.

50°C

View detail

LC

Samples

Prostaglandin , 2,4,5-Trihydroxybutyrophenone , Nordihydroguaiaretic acid , Butyl hydroxy anisole , Octyl gallate , 2,6-Di-tert-butyl-4-hydroxymethylphenol , Lauryl gallate , 2,6-Di-t-butyl 4-methylphenol

Applications

The phenolic system antioxidant (Added to commercial edible oil)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

A: 10 mM Phosphoric acid buffer(pH 2.6), B: CH3CN

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Toluene , Uridine , 2'-Deoxyuridine , 5-Methyluridine , Adenosine , Vidarabine , 2'-Deoxyguanosine , 3'-Deoxyguanosine , 4-Nitrophenyl-α-glucopyranoside , 4-Nitrophenyl-β-glucopyranoside , Theophylline , Theobromine ,

Applications

Analysis of polar compounds

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 4.6 mm I.D.

Mobile phase

20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90

Frow rate

0.50 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

mobile phase

View detail

LC

Samples

Toluene , Uridine , 2'-Deoxyuridine , 5-Methyluridine , Adenosine , Vidarabine , 2'-Deoxyguanosine , 3'-Deoxyguanosine , 4-Nitrophenyl-α-glucopyranoside , 4-Nitrophenyl-β-glucopyranoside , Theophylline , Theobromine ,

Applications

Analysis of polar compounds

Column

ULTRON AF-HILIC-DA

Column Size

100 mm L × 4.6 mm I.D.

Mobile phase

20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90

Frow rate

0.50 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

mobile phase

View detail

LC

Samples

L-DOPA , Dopamine , Adrenaline , Noradrenaline

Applications

Analysis of catecholamines

Column

ULTRON AF-HILIC-DA

Column Size

100 mm L × 4.6 mm I.D.

Mobile phase

20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90

Frow rate

0.50 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

mobile phase

View detail

LC

Samples

Acesulfame K , Saccharin , Caffeine , Sorbic acid , Benzoic acid , Quinine , Aspartame

Applications

Analysis of food additives

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 3.0 mm I.D.

Mobile phase

A: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90, B: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 70/30

Frow rate

Refer to the picture

Column temp.

30°C

Injection volume

2.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Tamsulosin

Applications

Analysis of Tamsulosin

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/C2H5OH = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

Epinephrine

Applications

Analysis of Epinephrine

Column

ULTRON ES-CD-EP

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10mM CH3CO2NH4(pH 4.0)/CH3CN = 99/1

Frow rate

0.3 mL/min

Column temp.

25°C

Injection volume

10.0 µL

Diluent

10mM CH3CO2NH4(pH 4.0)

View detail
