LC

Samples

Glutethimide

Applications

Hypnotic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Proglumide

Applications

Peptic ulcer agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/C2H5OH = 100/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Sucrose , Lactose , Glucose , Galactose , Fructose

Applications

Yoghurt drink

Column

ULTRON PS-80C

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

0.5 mL/min

Column temp.

80°C

Pressure

2.0 MPa

Injection volume

10 µL

View detail

LC

Samples

Glucuronic acid , N-Acetylglucosamine , N-Acetylgalactosamine

Applications

Uronic acid, Acetylation amino sugar

Column

ULTRON PS-80H

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

HClO4aq. (pH 2.1)

Frow rate

1.0 mL/min

Column temp.

60°C

Pressure

2.5 MPa

View detail

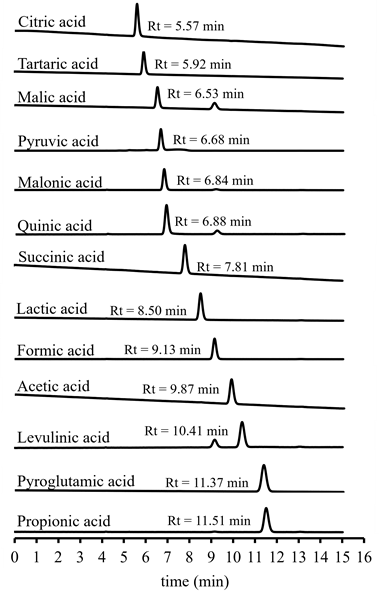

LC

Samples

Citric acid , Tartaric acid , Malic acid , Malonic acid , Succinic acid , Glycolic acid , Formic acid , Lactic acid , Acetic acid , Fumaric acid , Adipic acid , Pyroglutamic acid , Propionic acid , Acrylic acid , Pivalic acid , Methacrylic acid , Crotonic acid

Applications

Elution position of the aliphatic organic acid

Column

ULTRON PS-80H

Column Size

300 mm L × 8.0 mm I.D. + 300 mm L × 8.0 mm I.D.

Mobile phase

HClO4aq. (pH 2.1)

Frow rate

1.0 mL/min

Column temp.

60°C

View detail

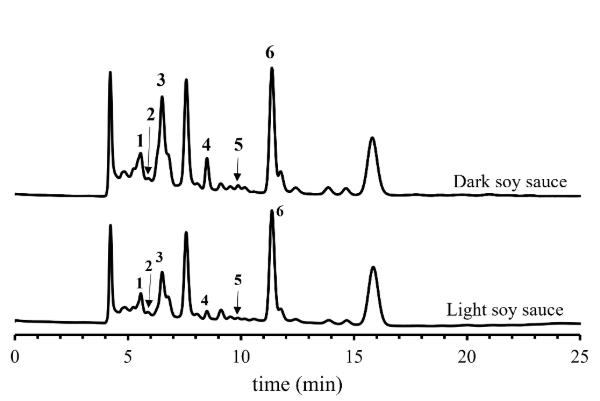

LC

Samples

Citric acid , Tartaric acid , Malic acid , Succinic acid , Lactic acid , Acetic acid , Pyroglutamic acid

Applications

Analysis of the soy sauce

Column

ULTRON PS-80H

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

HClO4aq. (pH 2.1)

Frow rate

1.0 mL/min

Column temp.

60°C

View detail

LC

Samples

Stachyose , Raffinose , Glucose

Applications

Separation of stachyose and raffinose

Column

ULTRON PS-80N

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

60°C

Pressure

2.5 MPa

Injection volume

10 µL (2 mg/mL)

View detail

LC

Samples

Maltotriose , Maltose , Glucose , Glycerol , Ethanol

Applications

Sake

Column

ULTRON PS-80N

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

60°C

Pressure

2.2 MPa

Injection volume

10 µL (undiluted solution)

View detail

LC

Samples

Maltotriose , Maltose , Glucose

Applications

Starch syrup

Column

ULTRON PS-80N

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

60°C

Pressure

2.2 MPa

Injection volume

5 µL (25 mg/mL)

View detail

LC

Samples

Sucrose , Lactose , Glucose , Xylose , Galactose , Fructose , Inositol

Applications

Sugar and alditol

Column

ULTRON PS-80P

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

80°C

Pressure

2.0 MPa

View detail

LC

Samples

Aspartic acid , Glutamic acid , Serine , Glycine , Histidine , Arginine , Threonine , Alanine , Proline , Tyrosine , Valine , Methionine , Cysteine-cysteine , Isoleucine , Leucine , Phenylalanine , Lysine

Applications

Analysis of the PTC amino acid

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

A: CH3COONa (pH 6.5)/CH3CN = 93/7, B: CH3CN/H2O = 4/1

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Nicotinic acid , Nicotinamide , Pantothenic acid , Pyridoxine , Riboflavin phosphate , Thiamine , Caffeine , Folic acid , Biotin , Riboflavin

Applications

The water-soluble vitamin (1)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

100 mM Phosphoric acid buffer(pH 2.1) + 0.8 mM Octane sodium sulphonate/CH3CN = 9/1

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Cholic acid , Glycocholic acid , Taurocholic acid , Chenodeoxycholic acid , Glycochenodeoxycholic acid , Deoxycholic acid , Taurochenodeoxycholic acid , Taurodeoxycholic acid

Applications

Bile acid

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/30 mM (NH4)2HPO4(Ajusted to pH 7.2 with NH4H2PO4), A: 10/90, B: 50/50

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Inosine 5'-monophosphate , Pyroglutamic acid

Applications

5'-IMP(Inosinic acid), Pyroglutamic acid

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM Phosphoric acid buffer(pH 6.7)/CH3OH = 99/1

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Nicotinic acid , Nicotinic acid amide , Calcium pantothenate , Pyridoxine hydrochloride , Riboflavin phosphate , Thiamine , Folic acid , Biotin , Riboflavin

Applications

The water-soluble vitamin

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM H3PO4/5 mM Sodium 1-hexanesulfonate = 91/9

Frow rate

1.0 mL/min

Column temp.

45°C

View detail

LC

Samples

Aminoglutethimide

Applications

Aminoglutethimide

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 92/8

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Nicotinamide , Pyridoxine , Isoascorbic acid , Riboflavin , Nicotinic acid , Ascorbic acid , Biotin , Pantothenic acid , Folic acid , Cyanocobalamin , Thiamine

Applications

Water-soluble vitamins

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

A: 20 mM CH3CO2NH4(pH 6.8)/CH3CN = 10/90, B: 20 mM CH3CO2NH4(pH 6.8)/CH3CN = 70/30

Frow rate

0.25 mL/min

Column temp.

30°C

Injection volume

1.0 µL

View detail

LC

Samples

Ethyl α-D-glucoside , Fructose , Glucose , Sucrose , Maltose , Lactose

Applications

Sugars in food

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

10 mM CH3CO2NH4(pH 6.8)/CH3CN = 12/88

Frow rate

0.3 mL/min

Column temp.

40°C

Injection volume

1.0 µL (each 1 mg/mL)

View detail

LC

Samples

(CYS)2 , LYS , ARG , HIS , ASP , GLU , GLN , ASN , GLY , SER , ALA , THR , PRO , TYR , VAL , PHE , MET , TRP , LEU+ILE

Applications

Analysis of underivatized amino acids by LC/MS/MS

Column

ULTRON AF-HILIC-CD (PLSS)

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

A: 100 mM HCO2NH4(pH 3.0)/CH3CN = 10/90, B: 100 mM HCO2NH4(pH 3.0)/CH3CN = 70/30

Frow rate

0.36 mL/min

Column temp.

40°C

Injection volume

1.0 µL (5.0 µg/mL)

View detail

LC

Samples

Fucose , Xylose , GalNAc , Mannose , Glucose , GluNAc , Galactose , Neu5Ac , Glucuronic acid

Applications

Glycan-constituting monosaccharides

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

A: 200 mM CH3CO2NH4(pH 6.8)/CH3CN = 10/90 (for peak 1 to 7), B: 200 mM CH3CO2NH4(pH 6.8)/CH3CN = 18/82 (for peak 8 and 9)

Frow rate

0.26 mL/min

Column temp.

45°C

Injection volume

1.0 µL

View detail

LC

Samples

Toluene , Uridine , 2'-Deoxyuridine , 5-Methyluridine , Adenosine , Vidarabine , 2'-Deoxyguanosine , 3'-Deoxyguanosine , 4-Nitrophenyl-α-glucopyranoside , 4-Nitrophenyl-β-glucopyranoside , Theophylline , Theobromine ,

Applications

Analysis of polar compounds

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 4.6 mm I.D.

Mobile phase

20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90

Frow rate

0.50 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

mobile phase

View detail

LC

Samples

Toluene , Uridine , 2'-Deoxyuridine , 5-Methyluridine , Adenosine , Vidarabine , 2'-Deoxyguanosine , 3'-Deoxyguanosine , 4-Nitrophenyl-α-glucopyranoside , 4-Nitrophenyl-β-glucopyranoside , Theophylline , Theobromine ,

Applications

Analysis of polar compounds

Column

ULTRON AF-HILIC-DA

Column Size

100 mm L × 4.6 mm I.D.

Mobile phase

20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90

Frow rate

0.50 mL/min

Column temp.

30°C

Injection volume

4.0 µL

Diluent

mobile phase

View detail

LC

Samples

Glucose , Maltose , Maltotriose , Maltotetraose , Maltopentaose , Maltohexaose , Maltoheptaose ,

Applications

Analysis of maltooligosaccharides

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 2.0 mm I.D.

Mobile phase

A: H2O /CH3CN = 10/90, B: H2O /CH3CN = 70/30

Frow rate

0.26 mL/min: 69% A /31% B (71.4% CH3CN)

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O

View detail

LC

Samples

Xylose , Fructose , Glucose , Mannitol , Xylobiose , Sucrose , Lactulose , Lactose , Trehalose , Xylotriose , 1-Kestose(GF2) , Raffinose , Nystose(GF3) ,

Applications

Analysis of monosaccharides, disaccharides, and oligosaccharides

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 2.0 mm I.D.

Mobile phase

A: H2O /CH3CN = 10/90, B: H2O /CH3CN = 70/30

Frow rate

0.26 mL/min

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Xylose , Fructose , Glucose , Mannitol , Xylobiose , Sucrose , Lactulose , Lactose , Trehalose , Xylotriose , 1-Kestose(GF2) , Raffinose , Nystose(GF3) ,

Applications

Analysis of monosaccharides, disaccharides, and oligosaccharides

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 2.0 mm I.D.

Mobile phase

A: 20mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90, B: 20mM CH3CO2NH4 (pH6.8) /CH3CN = 70/30

Frow rate

0.26 mL/min

Column temp.

40°C

Injection volume

2.5 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Erythritol , Xylitol , Fructose , Glucose , Sorbitol , Sucrose , Inositol , Maltose , Maltitol , Lactose , Lactitol

Applications

Analysis of saccharides and sweeteners

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

A: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90, B: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 70/30

Frow rate

0.32 mL/min

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Erythritol , Psicose , Tagatose , Allose , Glucose , Sucrose

Applications

Analysis of rare sugar, Glucose, and Sucrose

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90

Frow rate

0.36 mL/min

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Maleic acid , Pyruvic acid , Ascorbic acid , Gluconic acid , Adipic acid , Fumaric acid , Tartaric acid , Malic acid , Citric acid

Applications

Analysis of organic acid

Column

ULTRON AF-HILIC-CD (PLSS)

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

100mM CH3CO2NH4 (pH6.8) /CH3CN = 25/75

Frow rate

0.20 mL/min

Column temp.

40°C

Injection volume

2.0 µL

Diluent

mobile phase

View detail

LC

Samples

Turanose , Palatinose , Maltulose , Maltose , Lactose , Trehalose

Applications

Analysis of disaccharides with different glycosidic linkages

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90

Frow rate

0.45 mL/min

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Thalidomide

Applications

Analysis of Thalidomide

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

0.7 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

Sucralose , Fructose , Glucose , Sucrose , Lactose

Applications

Analysis of artificial sweetener and sugars

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

100mM CH3CO2NH4 (pH6.8) /CH3CN = 15/85

Frow rate

1.0 mL/min

Column temp.

40°C

Injection volume

10.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Sucralose , Fructose , Glucose , Sucrose , Lactose

Applications

Analysis of artificial sweetener and sugars

Column

ULTRON PS-80N

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

80°C

Injection volume

10.0 µL

View detail

LC

Samples

Sucralose , Fructose , Glucose , Sucrose , Lactose

Applications

Analysis of artificial sweetener and sugars

Column

ULTRON PS-80C

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

80°C

Injection volume

10.0 µL

View detail

LC

Samples

Sucralose , Fructose , Glucose , Sucrose , Lactose

Applications

Analysis of artificial sweetener and sugars

Column

ULTRON PS-80P

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

80°C

Injection volume

10.0 µL

View detail

LC

Samples

Ethanol , Acetic Acid , 1,4-Sorbitan , Fructose , Glucose , Sorbitol , Sucrose , Maltitol , Maltotriose

Applications

Analysis of ethanol, acetic acid, and sugars

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM HCO2NH4 (pH 4.0)/CH3CN = 17/83

Frow rate

0.5 mL/min

Column temp.

40°C

Injection volume

10 µL

Diluent

mobile phase

View detail

LC

Samples

Glucose , Galactose , Arabinose , Mannose

Applications

Analysis of Glucose, Galactose, Arabinose and Mannose

Column

ULTRON PS-80P

Column Size

300 mm L × 8.0 mm I.D. + 300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

0.5 mL/min

Column temp.

80°C

Injection volume

10 µL

Diluent

water

View detail
