GC

Samples

H2 , HD , D2

Applications

Analysis of deuterium (heavy hydrogen)

Column

Shinwa OGO-SP

Column Size

3.0 m x 3.0 mm I.D. Stainless steel

Column temp.

-196℃

Carrier gas

60 mL/min He

Injection port temp.

40℃

Detector temp.

100℃

Detector

TCD 120 mA

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Shincarbon-ST column 2m

Column

Shincarbon-ST 50/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

40°C (3 min. hold) - 200°C (20°C/min.)

Carrier gas

50 mL/min Ar

Injection port temp.

200°C

Detector temp.

200°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Shincarbon-ST column 6m

Column

Shincarbon-ST 50/80 mesh

Column Size

6.0 m x 3.0 mm I.D. Stainless

Column temp.

40°C (8 min. hold) - 200°C (20°C/min.)

Carrier gas

50 mL/min Ar

Injection port temp.

200°C

Detector temp.

200°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane

Applications

Inorganic gases analysis including hydrogen by Molecular Sieve 5A column

Column

Molecular Sieve 5A 60/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

60°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane

Applications

Inorganic gases analysis including hydrogen by Molecular Sieve 13X column

Column

Molecular Sieve 13X 60/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

60°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Activated Charcoal column

Column

Activated Charcoal 60/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

60°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Silica Gel column

Column

Silica Gel 60/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

60°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Sunpak-A column

Column

Sunpak-A 50/80 mesh

Column Size

2.0 m x 3.0 mm I.D. Stainless

Column temp.

40°C

Carrier gas

30 mL/min Ar

Injection port temp.

60°C

Detector temp.

60°C

Detector

TCD

Injection volume

1.0 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide

Applications

Inorganic gases analysis including hydrogen by Micropacked-ST column

Column

Micropacked-ST

Column Size

2.0 m x 1.0 mm I.D. Stainless

Column temp.

80°C

Carrier gas

200 kPa Ar

Injection port temp.

80°C

Detector temp.

80°C

Detector

TCD

Injection volume

0.05 mL

View detail

GC

Samples

Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane

Applications

Inorganic gases analysis including hydrogen by Micropacked-MS column

Column

Micropacked-MS

Column Size

2.0 m x 1.0 mm I.D. Stainless

Column temp.

80°C

Carrier gas

200 kPa Ar

Injection port temp.

80°C

Detector temp.

80°C

Detector

TCD

Injection volume

0.05 mL

View detail

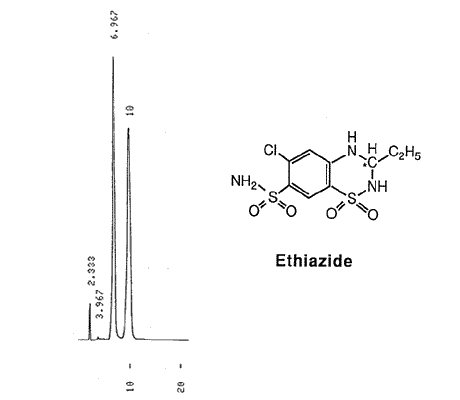

LC

Samples

Ethiazide

Applications

Ethiazide

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92.5/7.5

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Terbutaline

Applications

Terbutaline

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/CH3CN = 99/1

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

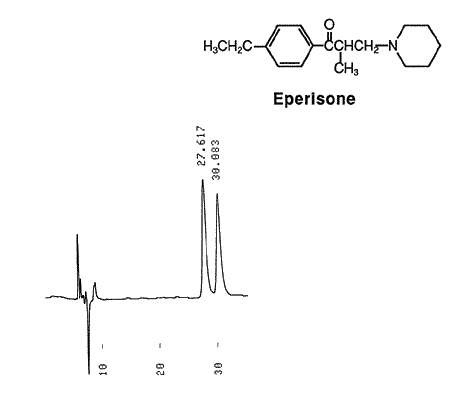

LC

Samples

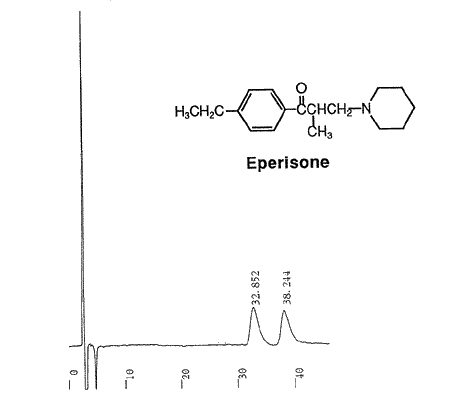

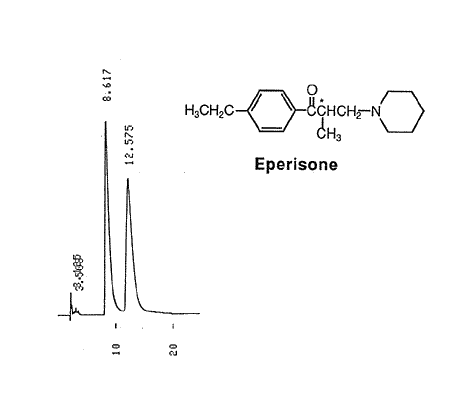

Eperisone

Applications

Muscle relaxant

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

0.6 mL/min

Column temp.

25°C

View detail

LC

Samples

Clorprenaline

Applications

Clorprenaline

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 94/6

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlormezanone

Applications

Chlormezanone

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 93/7

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Alimemazine

Applications

Antihistaminic drug

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/CH3CN = 70/30

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

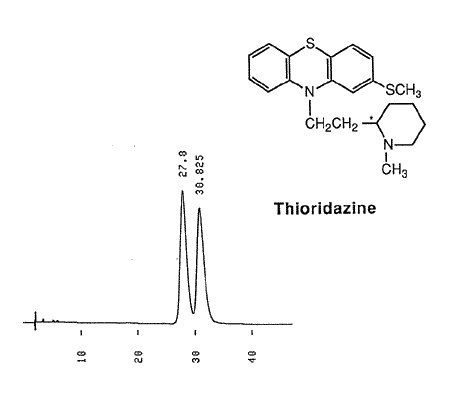

LC

Samples

Thioridazine

Applications

Thioridazine

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 75/25

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

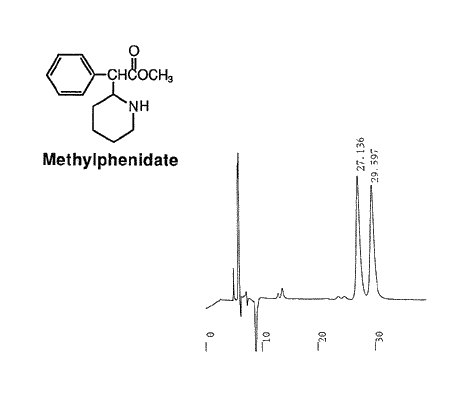

Methylphenidate

Applications

The central neuron stimulant

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/CH3CN = 90/10

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

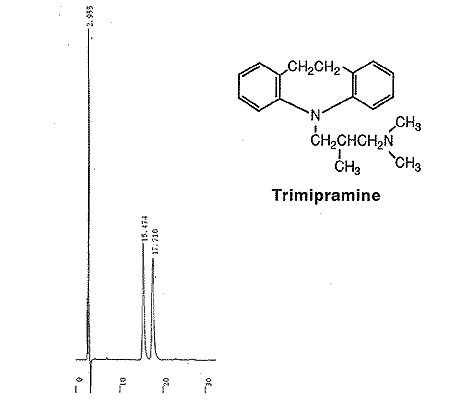

LC

Samples

Trimipramine

Applications

Trimipramine

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 75/25

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Flavanone

Applications

Flavanone

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Hexobarbital

Applications

Hexobarbital

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 83/17

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Benzoin

Applications

Benzoin

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 88/12

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlorpheniramine maleate

Applications

Chlorpheniramine maleate

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 83/17

Frow rate

1.0 mL/min

Column temp.

15°C

View detail

LC

Samples

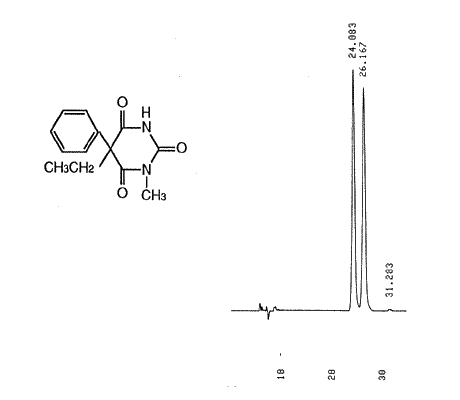

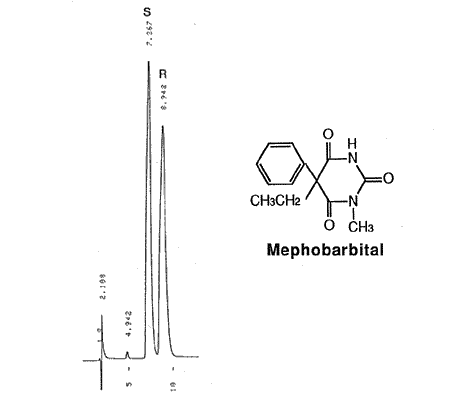

Mephobarbital

Applications

Mephobarbital

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

0.6 mL/min

Column temp.

25°C

View detail

LC

Samples

PTH-valine

Applications

PTH-valine

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3OH = X/Y

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

(1S,2R)-1-Methyl cis-1,2,3,6-tetrahydrophthalate

Applications

(1S,2R)-1-Methyl cis-1,2,3,6-tetrahydrophthalate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

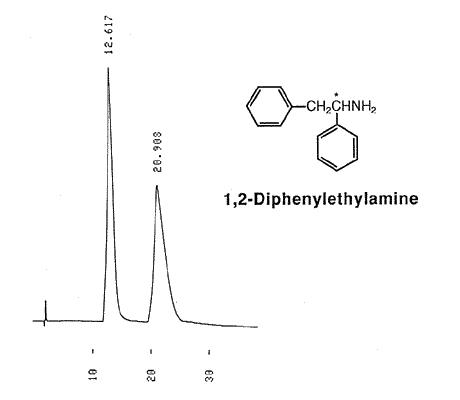

LC

Samples

1,2-Diphenylethylamine

Applications

1,2-Diphenylethylamine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

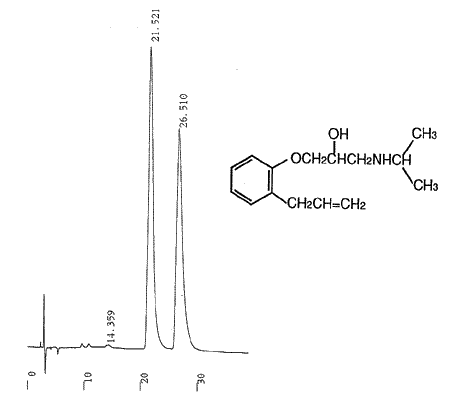

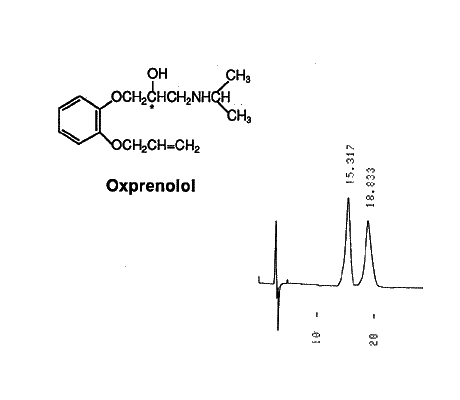

Oxprenolol

Applications

Oxprenolol

Column

ULTRON ES-OVM

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/CH3CN = 100/10

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Bunitrolol

Applications

β-Blocking agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/C2H5OH = 100/3

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Arotinolol

Applications

β-Blocking agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

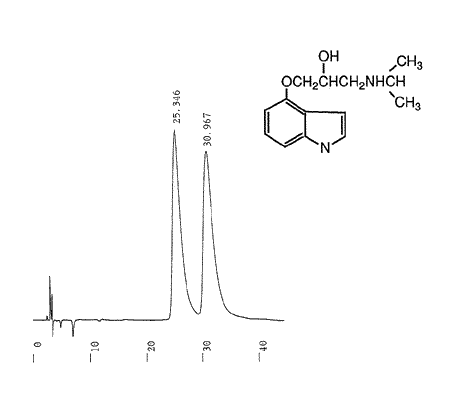

LC

Samples

Pindolol

Applications

β-Blocking agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)/C2H5OH = 100/30

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

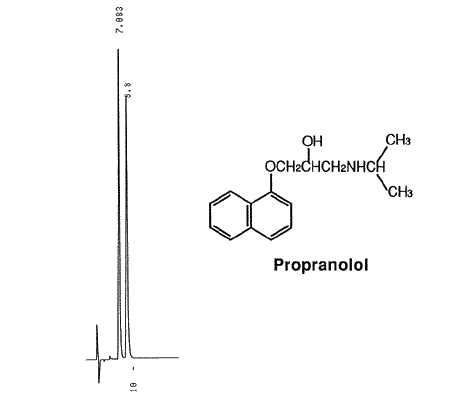

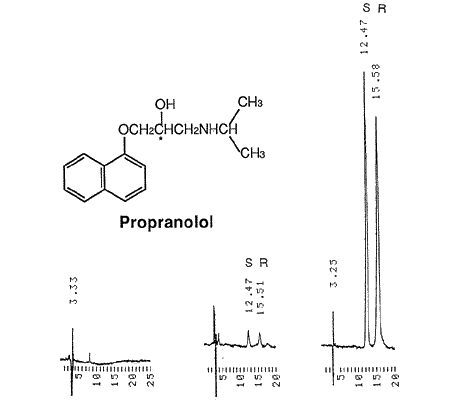

LC

Samples

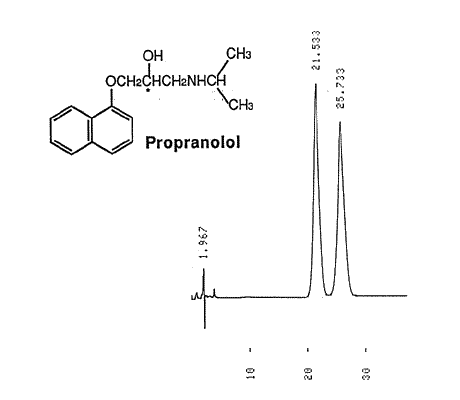

Propranolol

Applications

β-Blocking agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.8)/CH3CN = 100/30

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bay K 8644

Applications

Calcium rivalry medicine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Verapamil

Applications

Calcium rivalry medicine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Prenylamine

Applications

Calcium rivalry medicine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/CH3CN = 100/15

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Clorprenaline

Applications

Bronchodilator agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)/C2H5OH = 100/3

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

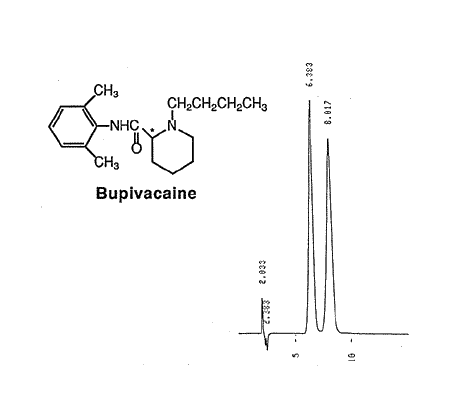

Bupivacaine

Applications

The local anesthetic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlormezanone

Applications

Muscle relaxant

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

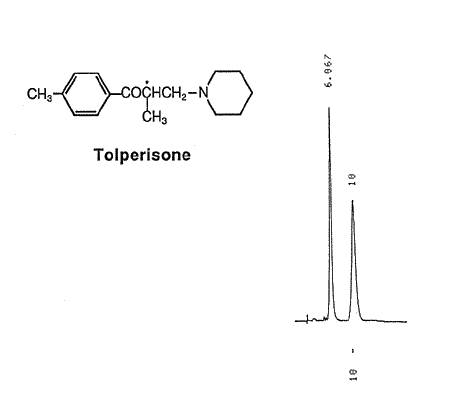

Samples

Tolperisone

Applications

Muscle relaxant

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.5)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Ethiazide

Applications

Antihypertensive diuretic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Trimipramine maleate

Applications

Analysis of the antidepressive drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/C2H5OH = 100/30

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

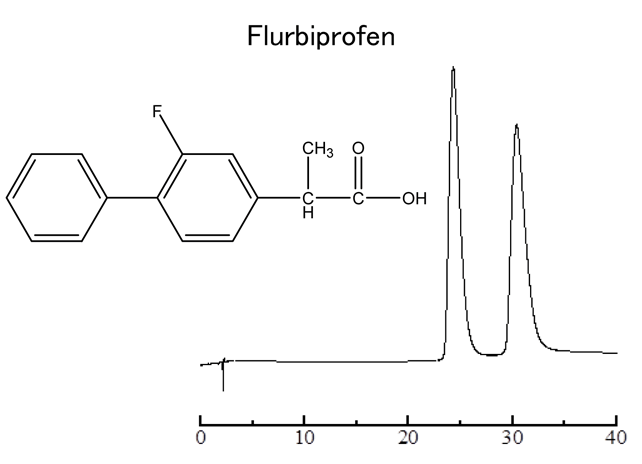

Samples

Flurbiprofen

Applications

Flurbiprofen

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

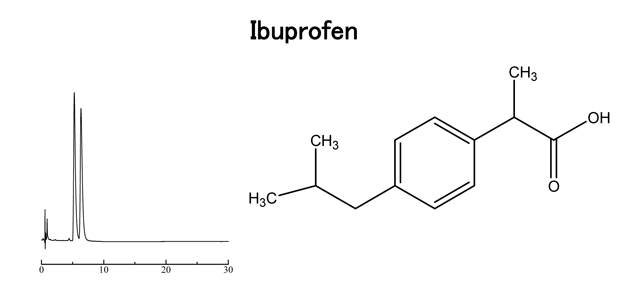

Samples

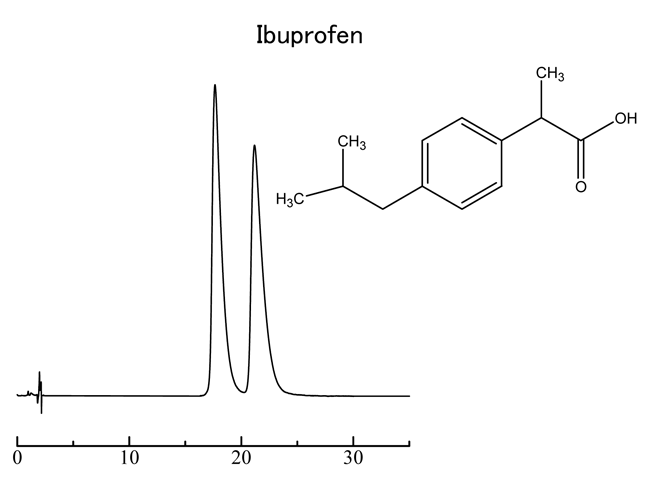

Ibuprofen

Applications

Ibuprofen

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

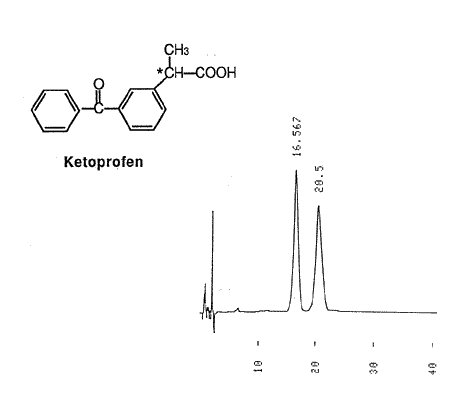

Samples

Ketoprofen

Applications

Antiinflammatory agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

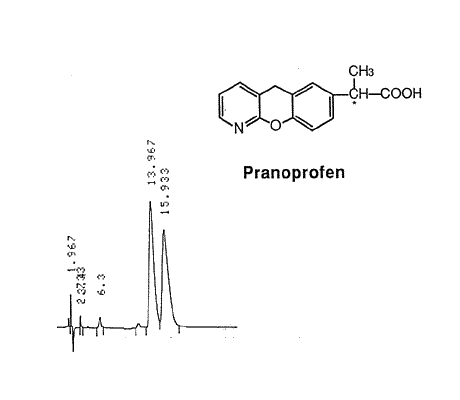

Pranoprofen

Applications

Antiinflammatory agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/8

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Zaltoprofen

Applications

Antiinflammatory agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 87/13

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

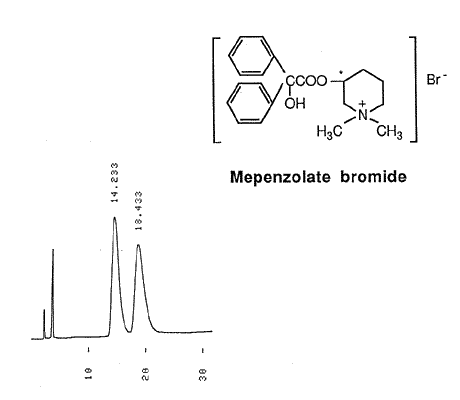

Samples

Mepenzolate bromide

Applications

Anticholinergic agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

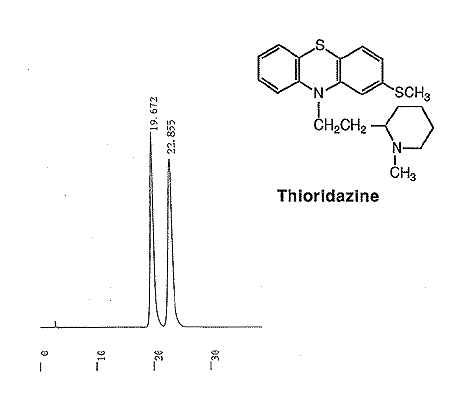

Thioridazine hydrochloride

Applications

Antipsychotic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 77/23

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Mephobarbital

Applications

Antiepileptic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

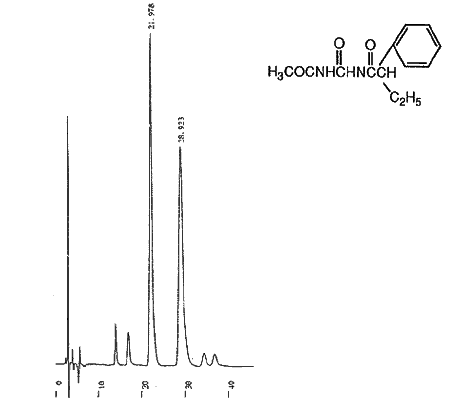

Samples

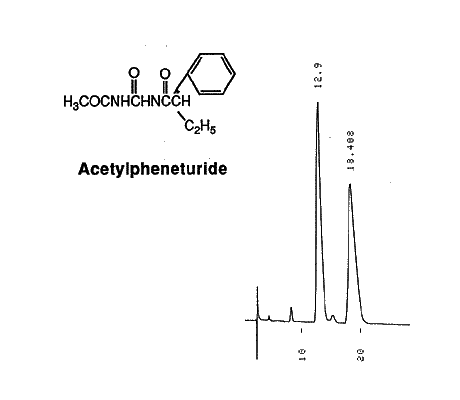

Acetylpheneturide

Applications

Antiepileptic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/7.5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

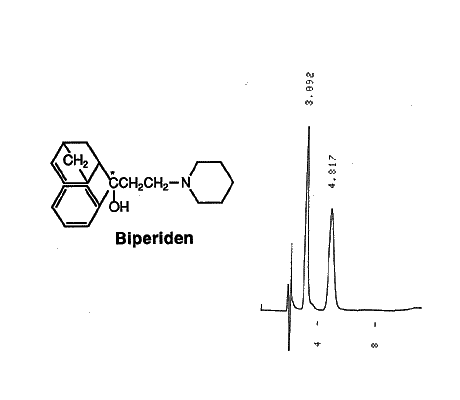

Biperiden

Applications

Antiparkinsonic agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

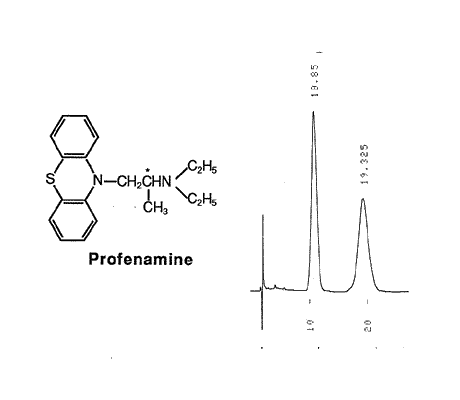

Samples

Profenamine

Applications

Antiparkinsonic agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

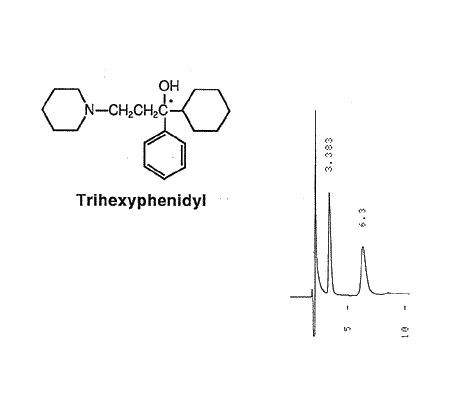

Trihexyphenidyl

Applications

Antiparkinsonic agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Alimemazine

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Chlorpheniramine

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Dimethindene maleate

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 100/9

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Homochlorcyclizine

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/20

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Promethazine

Applications

Antihistaminic drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 3.0)/CH3CN = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Hydroxyzine

Applications

Antianxiety agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

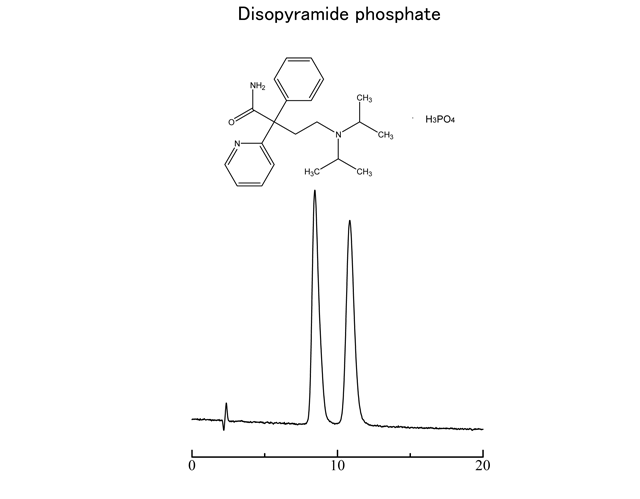

Disopyramide phosphate

Applications

Disopyramide phosphate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/C2H5OH = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Glutethimide

Applications

Hypnotic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Hexobarbital

Applications

Hypnotic

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 6.0)/C2H5OH = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

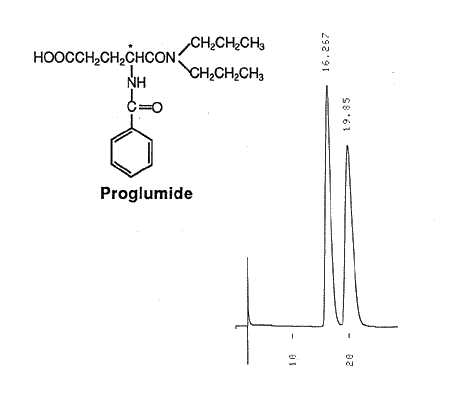

Samples

Proglumide

Applications

Peptic ulcer agent

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/C2H5OH = 100/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Thyroxine

Applications

Thyroxine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/CH3CN = 100/20

Frow rate

1.2 mL/min

Column temp.

15°C

View detail

LC

Samples

Benproperine

Applications

Antitussive drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 100/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Meclizine

Applications

Meclizine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/C2H5OH = 100/35

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Flavanone

Applications

Flavonoid

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/CH3CN = 100/30

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

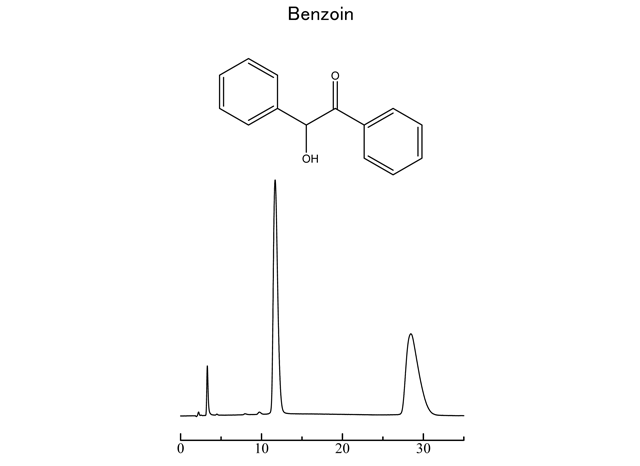

Samples

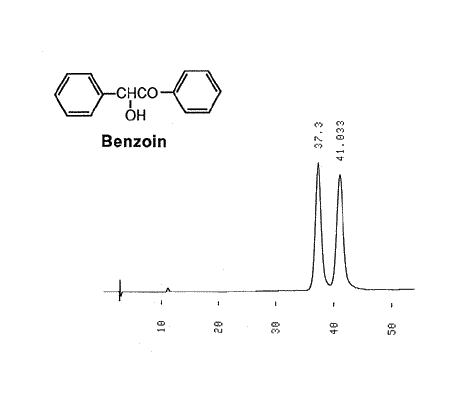

Benzoin

Applications

Benzoin

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/C2H5OH = 100/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

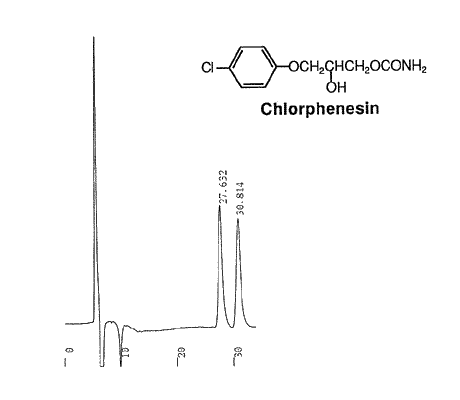

Samples

Chlorphenesin

Applications

Muscle relaxant

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 5.5)

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Eperisone

Applications

Muscle relaxant

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 5.5)/C2H5OH = 100/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Cloperastine

Applications

Antitussive drug

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 (pH 4.6)/C2H5OH = 100/15

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

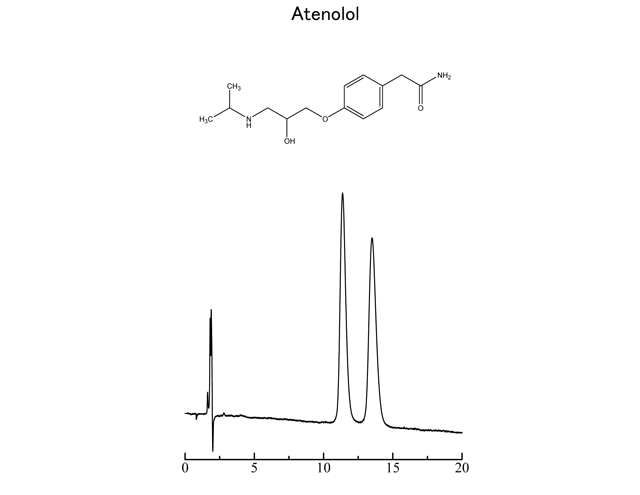

Atenolol

Applications

Atenolol

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20mM KH2PO4 + 20mM K2HPO4 (pH 6.0)/C2H5OH = 99/1

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

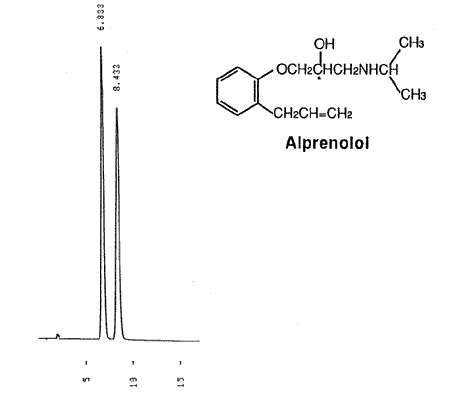

Alprenolol

Applications

β-Blocking agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.9 µL (0.6 mg/mL)

View detail

LC

Samples

Bufetolol

Applications

β-Blocking agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

1.0 µL (ca. 1 mg/mL)

View detail

LC

Samples

Terbutaline

Applications

Bronchodilator agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 6.0)

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

5 µL (ca. 0.25 mg/mL)

View detail

LC

Samples

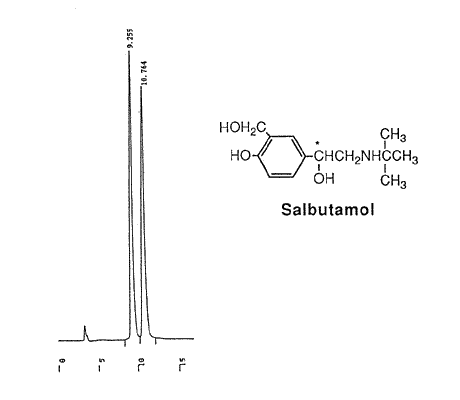

Salbutamol

Applications

Bronchodilator agent

Column

ULTRON ES-PEPSIN

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 5.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

1.0 µL (0.25 mg/mL)

View detail

LC

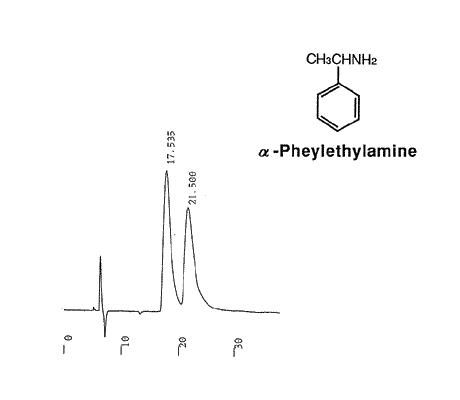

Samples

α-Phenylethylamine , (S)-(-)-α-Methylbenzylamine

Applications

α-Phenylethylamine

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 95/5

Frow rate

0.6 mL/min

Column temp.

15°C

View detail

LC

Samples

α-Phenylethylalchol

Applications

α-Phenylethylalchol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

0.6 mL/min

Column temp.

15°C

View detail

LC

Samples

Propranolol

Applications

β-Blocking agent

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 65/35

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

20 µL

View detail

LC

Samples

Acetylpheneturide

Applications

Antiepileptic

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 76/24

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Atenolol

Applications

Atenolol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 90/10

Frow rate

0.3 mL/min

Column temp.

25°C

View detail

LC

Samples

Alprenolol

Applications

Alprenolol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

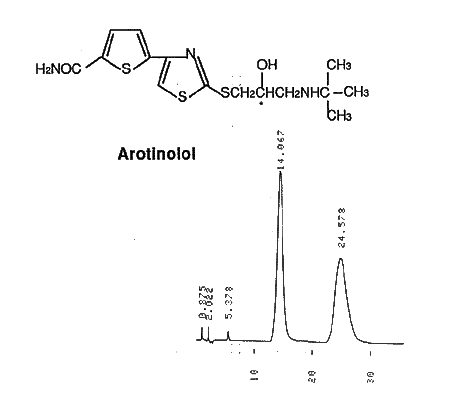

LC

Samples

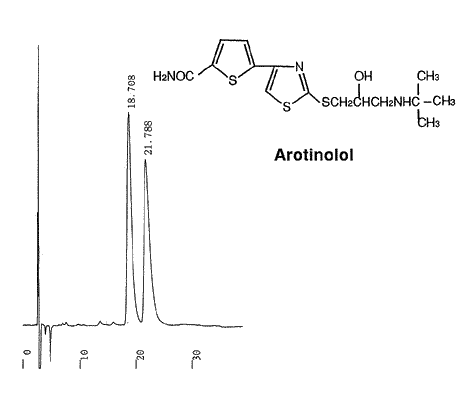

Arotinolol

Applications

Arotinolol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 75/25

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

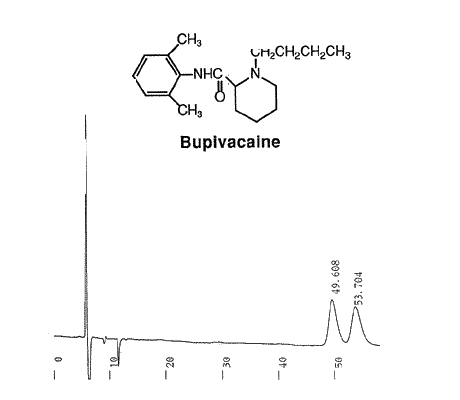

Bupivacaine

Applications

The local anesthetic

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Eperisone

Applications

Muscle relaxant

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 70/30

Frow rate

1.2 mL/min

Column temp.

9°C

View detail

LC

Samples

Chlormezanone

Applications

Muscle relaxant

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 70/30

Frow rate

0.6 mL/min

Column temp.

9°C

View detail

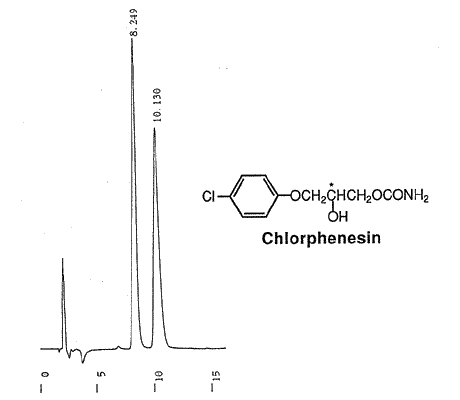

LC

Samples

Chlorphenesin

Applications

Muscle relaxant

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 70/30

Frow rate

0.6 mL/min

Column temp.

9°C

View detail

LC

Samples

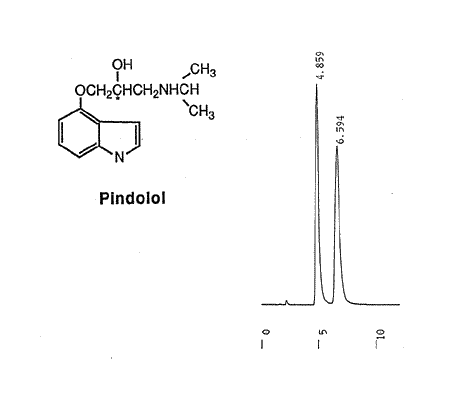

Pindolol

Applications

Pindolol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Bunitrolol

Applications

β-Blocking agent

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 70/30

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Propranolol

Applications

Propranolol

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 60/40

Frow rate

1.2 mL/min

Column temp.

25°C

View detail

LC

Samples

Sucrose , Lactose , Glucose , Galactose , Fructose

Applications

Yoghurt drink

Column

ULTRON PS-80C

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

0.5 mL/min

Column temp.

80°C

Pressure

2.0 MPa

Injection volume

10 µL

View detail

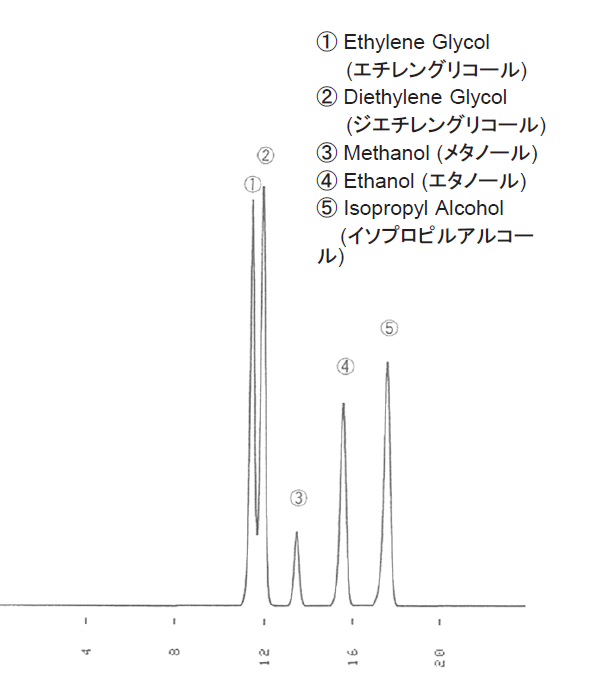

LC

Samples

Ethylene glycol , Diethylene glycol , Methanol , Ethanol , Isopropyl alcohol

Applications

Alcohols

Column

ULTRON PS-80H

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

60°C

Pressure

2.5 MPa

Injection volume

6.0 µL (10 mg/mL)

View detail

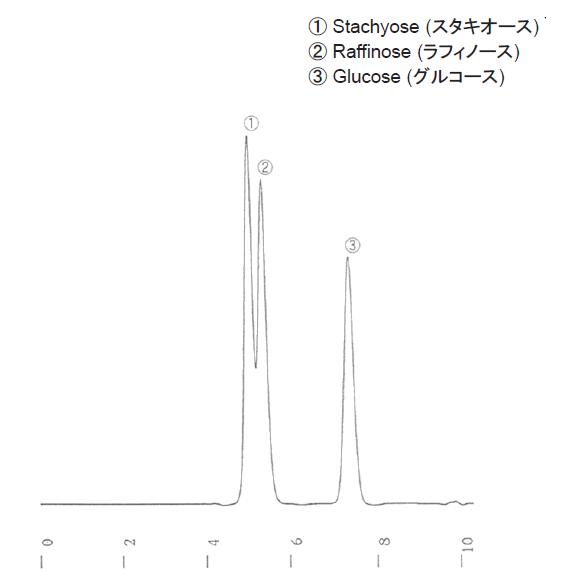

LC

Samples

Stachyose , Raffinose , Glucose

Applications

Separation of stachyose and raffinose

Column

ULTRON PS-80N

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

60°C

Pressure

2.5 MPa

Injection volume

10 µL (2 mg/mL)

View detail

LC

Samples

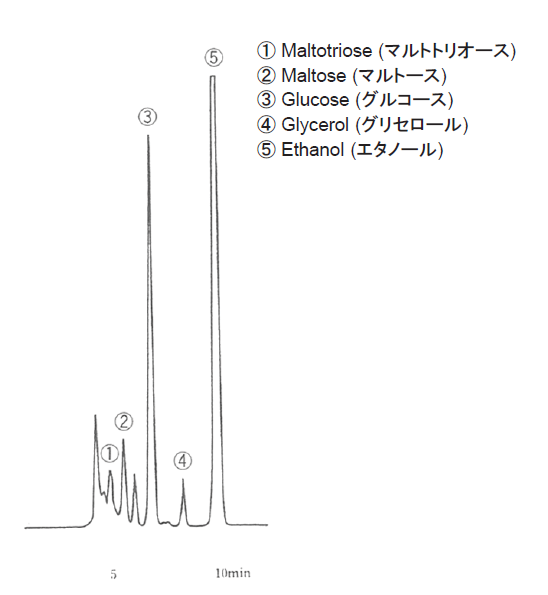

Maltotriose , Maltose , Glucose , Glycerol , Ethanol

Applications

Sake

Column

ULTRON PS-80N

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

60°C

Pressure

2.2 MPa

Injection volume

10 µL (undiluted solution)

View detail

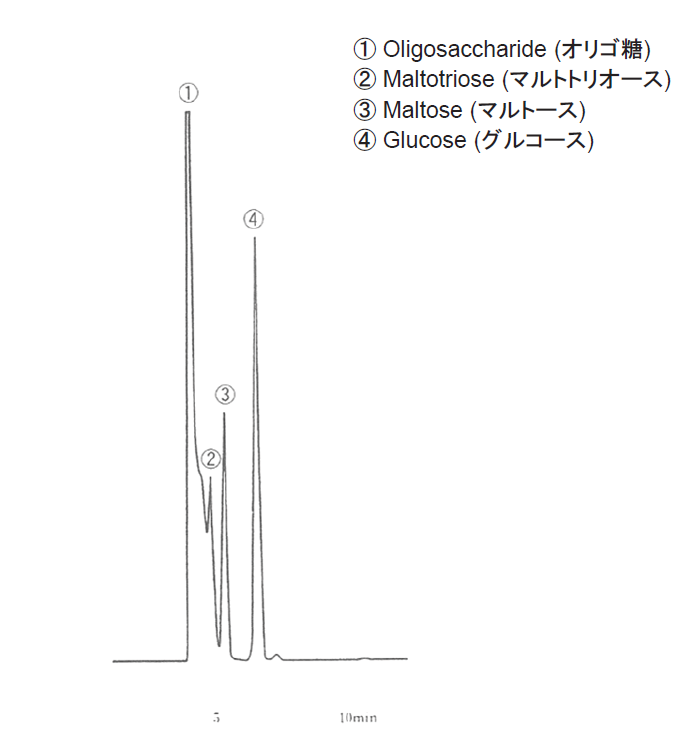

LC

Samples

Maltotriose , Maltose , Glucose

Applications

Starch syrup

Column

ULTRON PS-80N

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

60°C

Pressure

2.2 MPa

Injection volume

5 µL (25 mg/mL)

View detail

LC

Samples

Sucrose , Lactose , Glucose , Xylose , Galactose , Fructose , Inositol

Applications

Sugar and alditol

Column

ULTRON PS-80P

Column Size

300 mm L × 8.0 mm I.D.

Mobile phase

H2O

Frow rate

1.0 mL/min

Column temp.

80°C

Pressure

2.0 MPa

View detail

LC

Samples

Nicotinamide adenine dinucleotide oxidized , Nicotinamide adenine dinucleotide reduced

Applications

NAD, NADH

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM NH4H2PO4 (pH 2.6)

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Aspartic acid , Glutamic acid , Serine , Glycine , Histidine , Arginine , Threonine , Alanine , Proline , Tyrosine , Valine , Methionine , Cysteine-cysteine , Isoleucine , Leucine , Phenylalanine , Lysine

Applications

Analysis of the PTC amino acid

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

A: CH3COONa (pH 6.5)/CH3CN = 93/7, B: CH3CN/H2O = 4/1

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Iprodione, Bensulide

Applications

Iprodione, Bensulide

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 60/40

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Methylephedrine hydrochloride , Noscapine , Thiamine , Dextromethorphan , Carbinoxamine maleate

Applications

The component of the cold remedy (1)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O/H3PO4 = 510/490/1 + 0.5% Sodium dodecyl sulfate

Frow rate

1.0 mL/min

Column temp.

50°C

View detail

LC

Samples

Acetaminophen , Caffeine , Riboflavin , Phenol , Potassium guaiacol-4-sulfonate

Applications

The component of the cold remedy (2)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

H2O/CH3CN/50 mM Tetrabutylammonium = 15/2/1 (Adjusted to pH 6 with Phosphoric acid)

Frow rate

1.0 mL/min

Column temp.

50°C

View detail

LC

Samples

Methyl p-hydroxybenzoate , Ethyl p-hydroxybenzoate , Propyl p-hydroxybenzoate , Butyl p-hydroxybenzoate

Applications

The elution behavior of the acid sample

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 50/50

Frow rate

1.0 mL/min

Column temp.

30°C

View detail

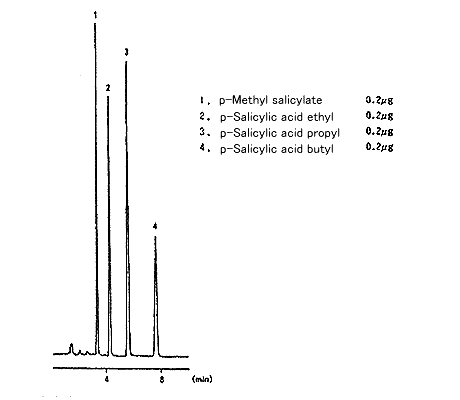

LC

Samples

Methyl salicylate , Ethyl salicylate , Propyl salicylate , Butyl salicylate

Applications

The elution behavior of the acid sample

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 70/30

Frow rate

1.0 mL/min

Column temp.

30°C

View detail

LC

Samples

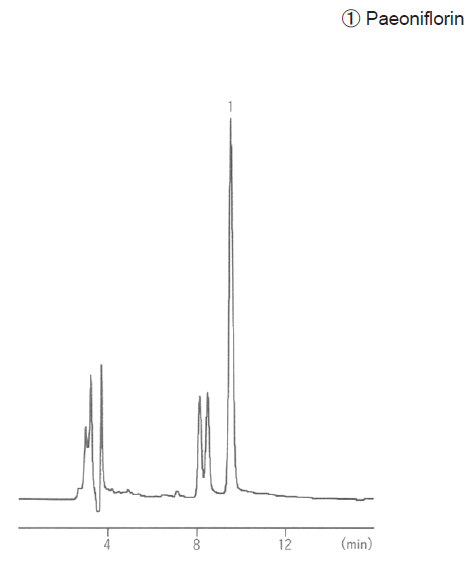

Paeoniflorin

Applications

Paeoniflorin in the peony end

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM CH3COONa (pH 4.8)/CH3CN = 5/1

Frow rate

0.5 mL/min

Column temp.

40°C

View detail

LC

Samples

Salicylic acid , Diphenhydramine , Methyl salicylate , α-Camphor , Thymol

Applications

The component of the anti-inflammatory agent

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM Phosphoric acid buffer(pH 2.6) + 20 mM Heptane sodium sulphonate/CH3OH/CH3CN = 3/2/2

Frow rate

1.0 mL/min

Column temp.

45°C

View detail

LC

Samples

Nicotinic acid , Nicotinamide , Pantothenic acid , Pyridoxine , Riboflavin phosphate , Thiamine , Caffeine , Folic acid , Biotin , Riboflavin

Applications

The water-soluble vitamin (1)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

100 mM Phosphoric acid buffer(pH 2.1) + 0.8 mM Octane sodium sulphonate/CH3CN = 9/1

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Cholic acid , Glycocholic acid , Taurocholic acid , Chenodeoxycholic acid , Glycochenodeoxycholic acid , Deoxycholic acid , Taurochenodeoxycholic acid , Taurodeoxycholic acid

Applications

Bile acid

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/30 mM (NH4)2HPO4(Ajusted to pH 7.2 with NH4H2PO4), A: 10/90, B: 50/50

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

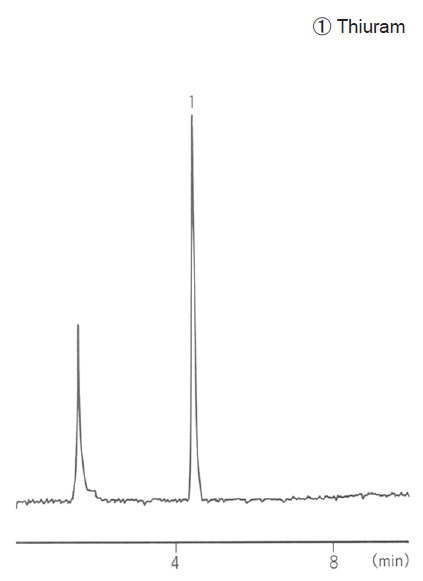

LC

Samples

Thiuram

Applications

Thiuram

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 50/50

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Cytidine 5'-monophosphate , Uridine 5'-monophosphate , Guanosine 5'-monophosphate , Adenosine 5'-triphosphate , Cytidine , Uridine , Adenosine 5'-monophosphate , Inosine , Guanosine

Applications

Nucleoside, Nucleotide

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

0.1 M KH2PO4(pH 5.8) + 0.2 mM Na2SO4

Frow rate

1.0 mL/min

Column temp.

ambient

Pressure

UV-254 nm

View detail

LC

Samples

Prostaglandin , 2,4,5-Trihydroxybutyrophenone , Nordihydroguaiaretic acid , Butyl hydroxy anisole , Octyl gallate , 2,6-Di-tert-butyl-4-hydroxymethylphenol , Lauryl gallate , 2,6-Di-t-butyl 4-methylphenol

Applications

The phenolic system antioxidant (Added to commercial edible oil)

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

A: 10 mM Phosphoric acid buffer(pH 2.6), B: CH3CN

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Tartaric acid , Malic acid , Malonic acid , Acetic acid , Citric acid , Succinic acid , Malic acid degradate , Propionic acid

Applications

Organic acids

Column

STR ODS-II

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

5 mM NH4H2PO4(pH 2.4)

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

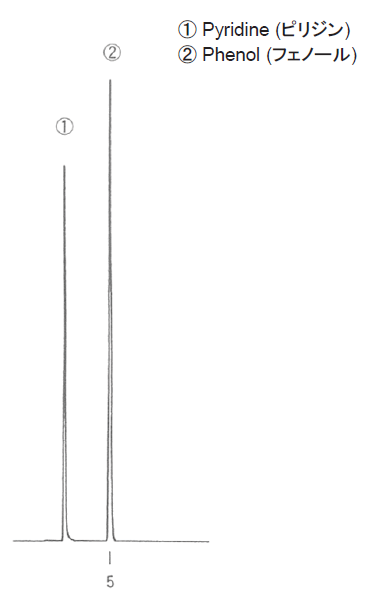

Pyridine , Phenol

Applications

Pyridine, Phenol test

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 30/70

Frow rate

1.0 mL/min

Column temp.

30°C

View detail

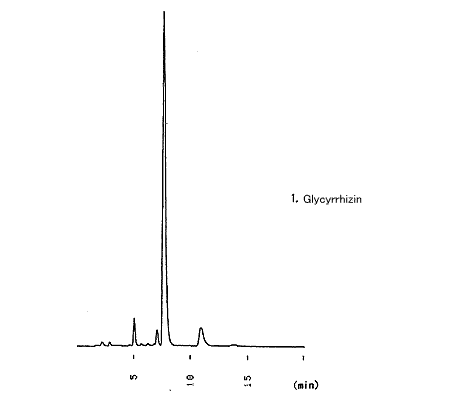

LC

Samples

Glycyrrhizin

Applications

Glycyrrhizin

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 7/3

Frow rate

1.0 mL/min

Column temp.

30°C

View detail

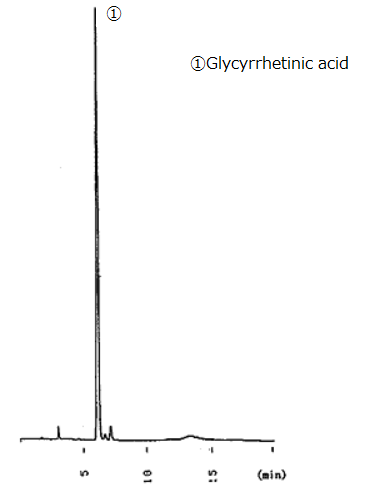

LC

Samples

Glycyrrhetic acid

Applications

Glycyrrhetic acid

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 1/4

Frow rate

1.0 mL/min

Column temp.

30°C

View detail

LC

Samples

Cortisone acetate , Butyl p-hydroxybenzoate

Applications

Cortisone acetate, Butyl p-hydroxybenzoate

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/H2O = 35/65

Frow rate

1.0 mL/min

Column temp.

30°C

View detail

LC

Samples

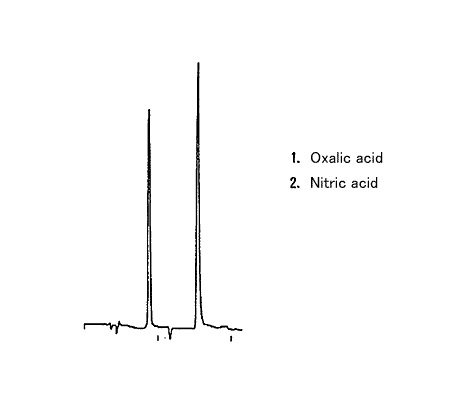

Oxalic acid , Nitric acid

Applications

Oxalic acid (COO-)2, Nitric acid(NO3-)

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 2.2)/CH3OH = 91/9 + 2 mM Tetrabutylammonium bromide

Frow rate

1.0 mL/min

Column temp.

ambient

View detail

LC

Samples

Predonisone , Cortisone , Hydrocortisone , Cortisone acetate , Hydrocortisone acetate

Applications

Separation of the steroid

Column

ULTRON VX-ODS

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

H2O/CH3OH/THF = 70/10/20

Frow rate

1.0 mL/min

Column temp.

40°C

View detail

LC

Samples

Bepotastine besilate

Applications

Bepotastine besilate

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 75/25

Frow rate

0.7 mL/min

Column temp.

40°C

View detail

LC

Samples

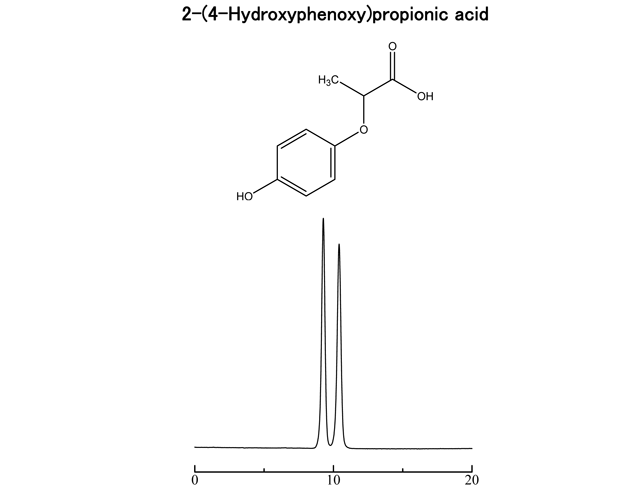

2-(4-Hydroxyphenoxy)propionic acid

Applications

2-(4-Hydroxyphenoxy)propionic acid

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

2-(4-Hydroxyphenoxy)propionic acid

Applications

2-(4-Hydroxyphenoxy)propionic acid

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4(pH 3.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Aminoglutethimide

Applications

Aminoglutethimide

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 92/8

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

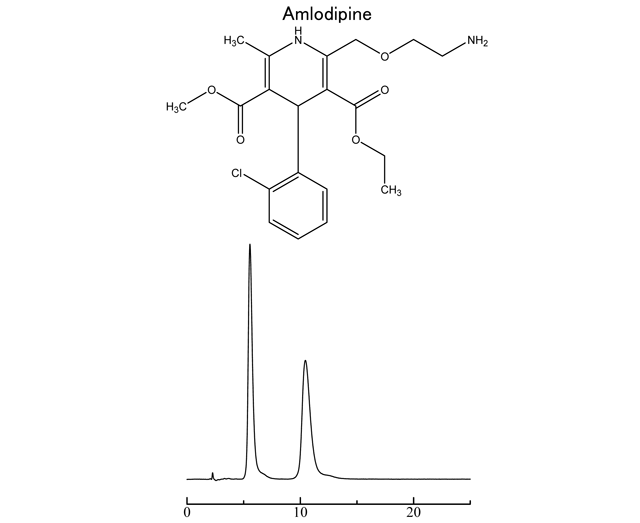

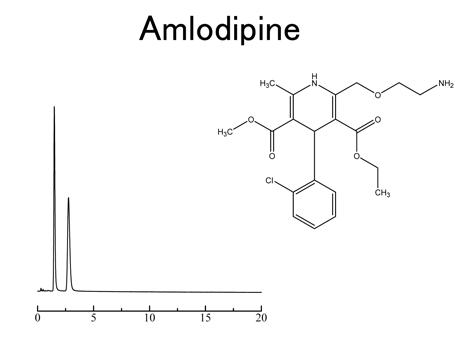

Amlodipine

Applications

Amlodipine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Benidipine hydrochloride

Applications

Benidipine hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bepotastine besilate

Applications

Bepotastine besilate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bepridil hydrochloride

Applications

Bepridil hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4(pH 3.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bicalutamide

Applications

Bicalutamide

Column

ULTRON ES-CD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4(pH 3.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bicalutamide

Applications

Bicalutamide

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4(pH 3.0)/CH3CN = 87/13

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bromacil

Applications

Bromacil

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Brompheniramine maleate

Applications

Brompheniramine maleate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

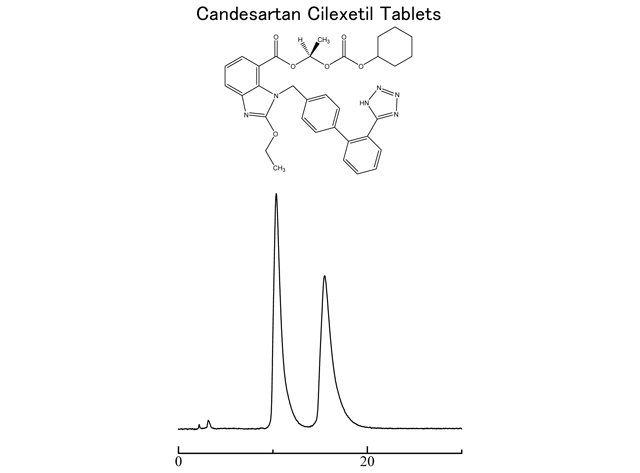

Candesartan cilexetil

Applications

Candesartan cilexetil

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

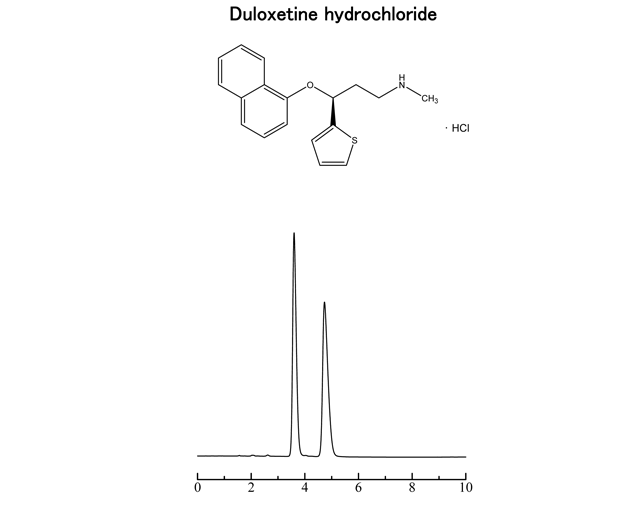

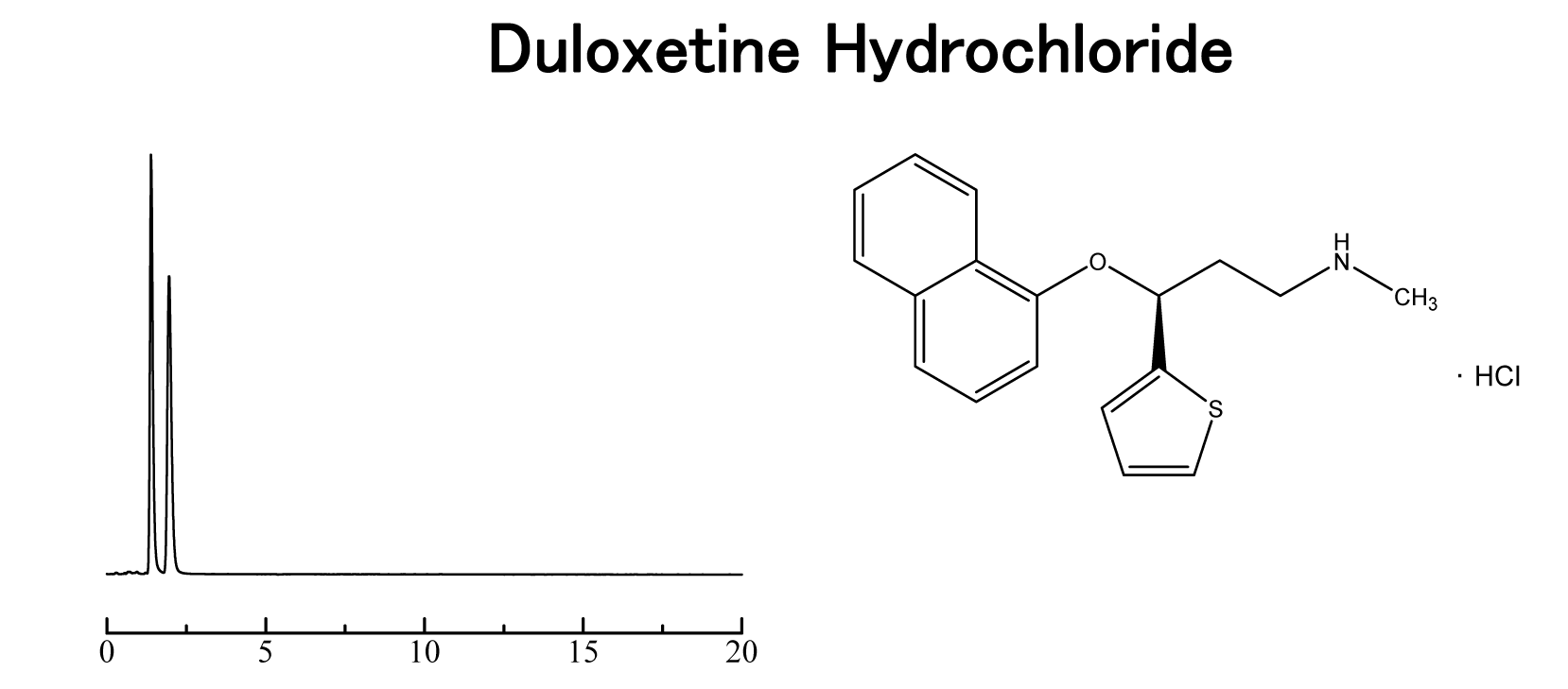

Duloxetine hydrochloride

Applications

Duloxetine hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Duloxetine hydrochloride

Applications

Duloxetine hydrochloride

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4(pH 3.0)/CH3CN = 65/35

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

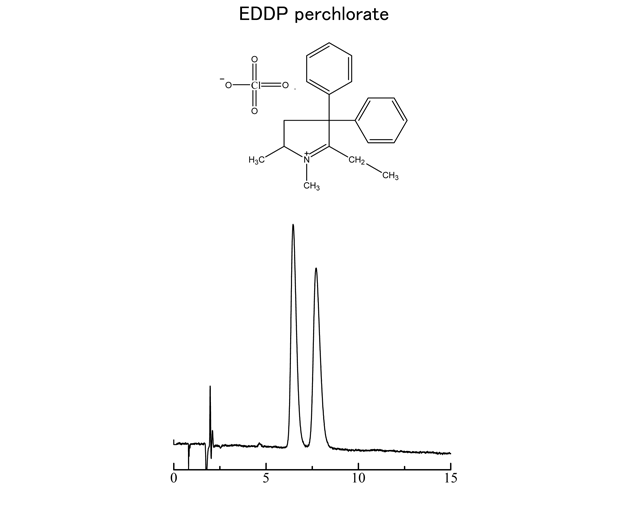

EDDP perchlorate

Applications

EDDP perchlorate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

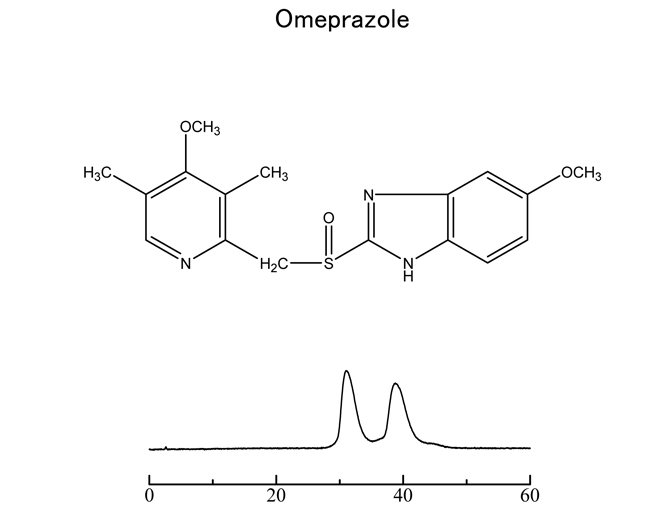

Omeprazole

Applications

Omeprazole

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 95/5

Frow rate

0.9 mL/min

Column temp.

25°C

View detail

LC

Samples

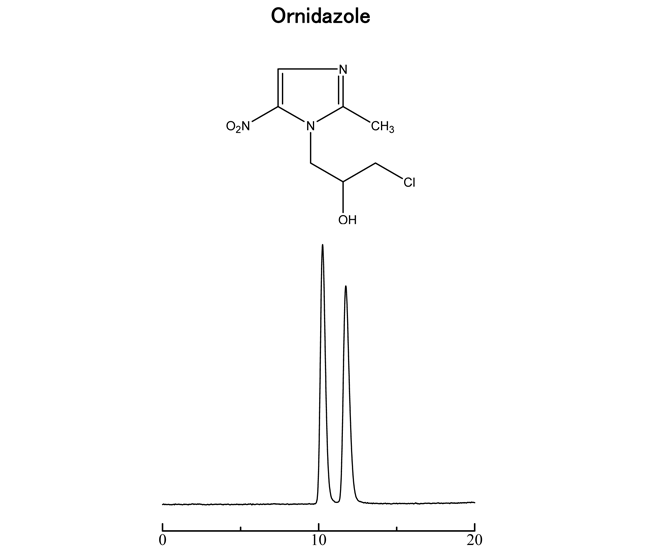

Ornidazole

Applications

Ornidazole

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3OH = 95/5

Frow rate

0.5 mL/min

Column temp.

25°C

View detail

LC

Samples

Amlodipine

Applications

Amlodipine

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Atomoxetine hydrochloride

Applications

Atomoxetine hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 6.0)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Atomoxetine hydrochloride

Applications

Atomoxetine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 6.0)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

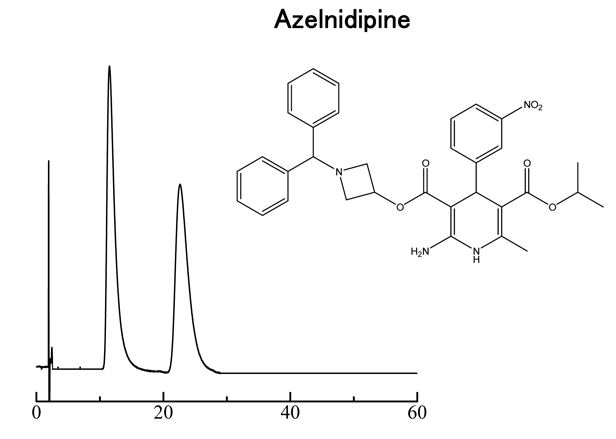

Azelnidipine

Applications

Azelnidipine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 6.0)/C2H5OH = 72/28

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Bupropion hydrochloride

Applications

Bupropion hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 6.0)/C2H5OH = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

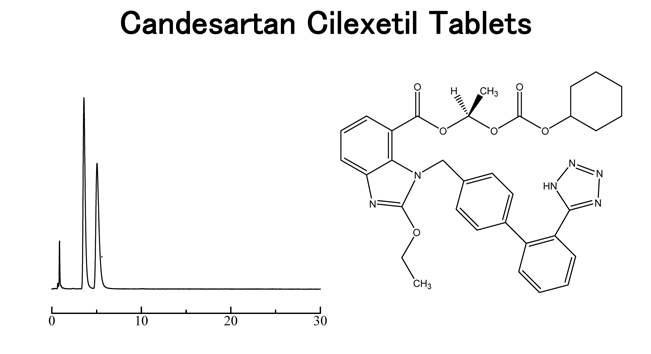

Candesartan cilexetil

Applications

Candesartan cilexetil

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

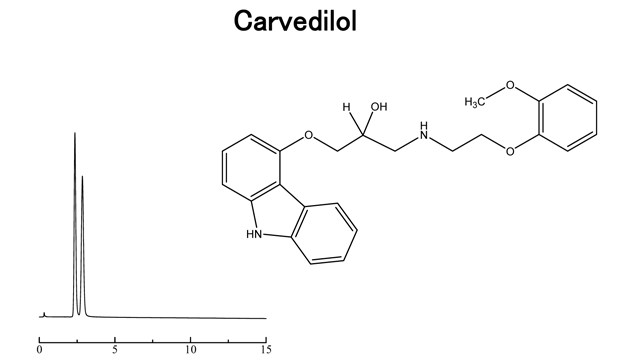

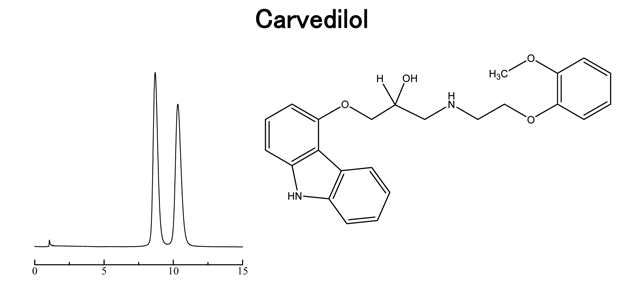

Carvedilol

Applications

Carvedilol

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 7.0)/CH3OH = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Carvedilol

Applications

Carvedilol

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 7.0)/CH3OH = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Cetirizine hydrochloride

Applications

Cetirizine hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 6.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2 µL

Diluent

mobile phase

View detail

LC

Samples

Cetirizine hydrochloride

Applications

Cetirizine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 6.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Doxylamine succinate

Applications

Doxylamine succinate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 6.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Duloxetine hydrochloride

Applications

Duloxetine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Escitalopram oxalate

Applications

Escitalopram oxalate

Column

ULTRON ES-OVM , ULTRON ES-OVM-E

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

50 mM KH2PO4 + 0.2 N NaOH(pH 7.0)/CH3CN = 85/15

Frow rate

0.6 mL/min

Column temp.

30°C

View detail

LC

Samples

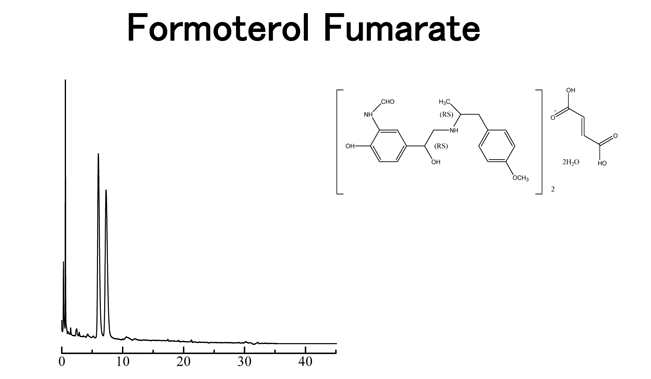

Formoterol fumarate

Applications

Formoterol fumarate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 7.0)/C2H5OH = 94/6

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

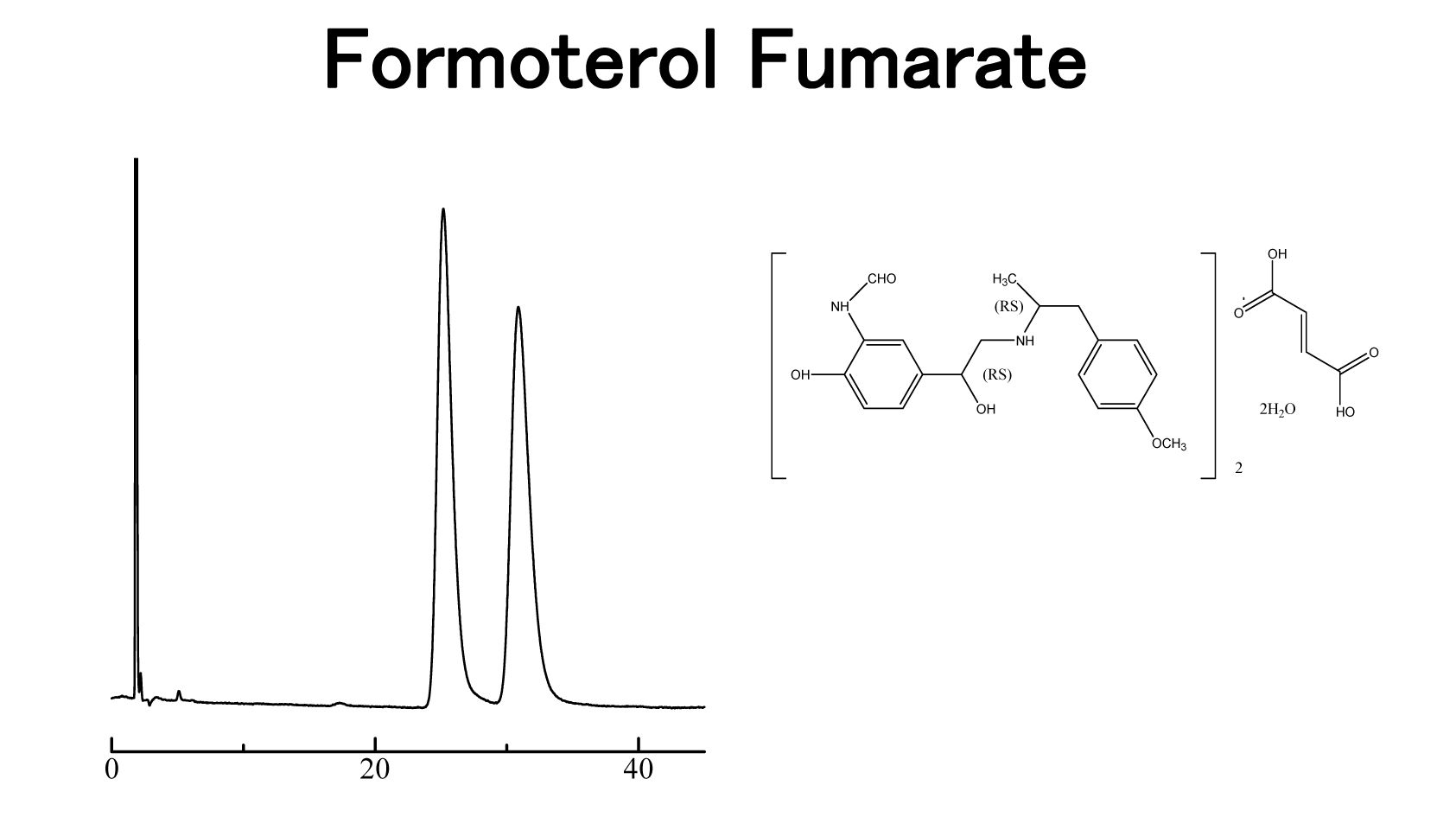

Formoterol fumarate

Applications

Formoterol fumarate

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4(pH 7.0)/C2H5OH = 94/6

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

Ibuprofen

Applications

Ibuprofen

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4(pH 4.6)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

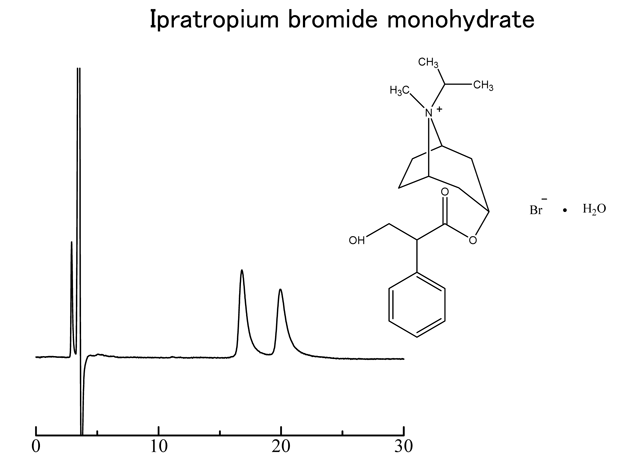

Ipratropium bromide

Applications

Ipratropium bromide

Column

ULTRON ES-PhCD

Column Size

150 mm L × 6.0 mm I.D.

Mobile phase

20 mM KH2PO4(pH4.6)/CH3CN = 65/35

Frow rate

1.0 mL/min

Column temp.

25°C

View detail

LC

Samples

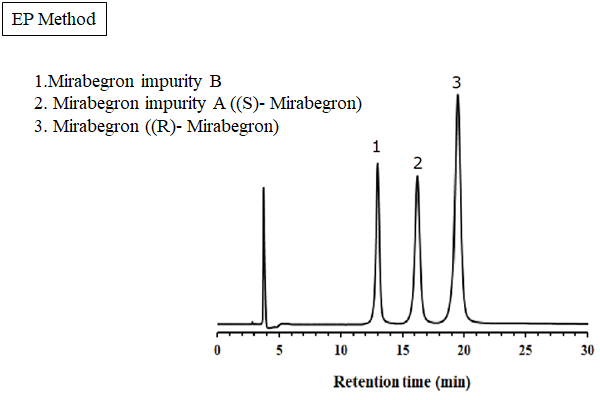

Mirabegron

Applications

β3 adrenergic receptor agonist

Column

ULTRON ES-PhCD

Column Size

250 mm L × 4.6 mm I.D.

Mobile phase

CH3CN/50mM KH2PO4(pH 4.0) = 200/750

Frow rate

0.9 mL/min

Column temp.

50°C

Injection volume

20 µL

View detail

LC

Samples

Glucose , Maltose , Maltotriose , Maltotetraose , Maltopentaose , Maltohexaose , Maltoheptaose ,

Applications

Analysis of maltooligosaccharides

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 2.0 mm I.D.

Mobile phase

A: H2O /CH3CN = 10/90, B: H2O /CH3CN = 70/30

Frow rate

0.26 mL/min: 69% A /31% B (71.4% CH3CN)

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O

View detail

LC

Samples

Xylose , Fructose , Glucose , Mannitol , Xylobiose , Sucrose , Lactulose , Lactose , Trehalose , Xylotriose , 1-Kestose(GF2) , Raffinose , Nystose(GF3) ,

Applications

Analysis of monosaccharides, disaccharides, and oligosaccharides

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 2.0 mm I.D.

Mobile phase

A: H2O /CH3CN = 10/90, B: H2O /CH3CN = 70/30

Frow rate

0.26 mL/min

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Xylose , Fructose , Glucose , Mannitol , Xylobiose , Sucrose , Lactulose , Lactose , Trehalose , Xylotriose , 1-Kestose(GF2) , Raffinose , Nystose(GF3) ,

Applications

Analysis of monosaccharides, disaccharides, and oligosaccharides

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 2.0 mm I.D.

Mobile phase

A: 20mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90, B: 20mM CH3CO2NH4 (pH6.8) /CH3CN = 70/30

Frow rate

0.26 mL/min

Column temp.

40°C

Injection volume

2.5 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Erythritol , Xylitol , Fructose , Glucose , Sorbitol , Sucrose , Inositol , Maltose , Maltitol , Lactose , Lactitol

Applications

Analysis of saccharides and sweeteners

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

A: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90, B: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 70/30

Frow rate

0.32 mL/min

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Erythritol , Psicose , Tagatose , Allose , Glucose , Sucrose

Applications

Analysis of rare sugar, Glucose, and Sucrose

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90

Frow rate

0.36 mL/min

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Acesulfame K , Saccharin , Caffeine , Sorbic acid , Benzoic acid , Quinine , Aspartame

Applications

Analysis of food additives

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 3.0 mm I.D.

Mobile phase

A: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90, B: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 70/30

Frow rate

Refer to the picture

Column temp.

30°C

Injection volume

2.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Turanose , Palatinose , Maltulose , Maltose , Lactose , Trehalose

Applications

Analysis of disaccharides with different glycosidic linkages

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90

Frow rate

0.45 mL/min

Column temp.

40°C

Injection volume

1.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Val-Tyr-Val , Leucine Enkephalin , Methionine Enkephalin , Gly-Tyr

Applications

Analysis of peptide standards

Column

ULTRON AF-HILIC-CD

Column Size

150 mm L × 2.0 mm I.D.

Mobile phase

A: 10mM HCO2NH4 (pH3.0) /CH3CN = 10/90, B: 10mM HCO2NH4 (pH3.0) /CH3CN = 70/30

Frow rate

0.26 mL/min: 67% A/ 33% B (70.0% CH3CN)

Column temp.

40°C

Injection volume

2.0 µL

Diluent

H2O /CH3CN = 50/50

View detail

LC

Samples

Cyanuric acid , Ammelide , Melamine , Ammeline

Applications

Analysis of melamine compounds

Column

ULTRON AF-HILIC-CD

Column Size

100 mm L × 2.0 mm I.D.

Mobile phase

20mM HCO2NH4 (pH6.8) /CH3CN = 18/82

Frow rate

0.15 mL/min

Column temp.

30°C

Injection volume

2.0 µL

Diluent

Dissolved samples in 0.1% NaOH aq and add acetonitrile into ratio to 50%

View detail

LC

Samples

Cetirizine hydrochloride

Applications

Analyses of Cetirizine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Carvedilol

Applications

Analyses of Carvedilol in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 7.0)/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Amlodipine

Applications

Analyses of Amlodipine in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Atomoxetine hydrochloride

Applications

Analyses of Atomoxetine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Candesartan cilexetil

Applications

Analyses of Candesartan cilexetil in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolterodine

Applications

Analyses of Tolterodine in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analyses of Prilocaine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Duloxetine hydrochloride

Applications

Analyses of Duloxetine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Rabeprazole sodium salt

Applications

Analyses of Rabeprazole sodium salt in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Ibuprofen

Applications

Analyses of Ibuprofen in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Formoterol fumarate

Applications

Analyses of Formoterol fumarate in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM K2HPO4 + 20 mM KH2PO4 (pH 7.0)/C2H5OH = 94/6

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analyses of Tolperisone hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL (2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Tadalafil

Applications

Analyses of Tadalafil in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Cetirizine hydrochloride

Applications

Analyses of Cetirizine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Carvedilol

Applications

Analyses of Carvedilol in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 7.0)/CH3CN = 75/25

Frow rate

(1)1.0 mL/min (2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Amlodipine

Applications

Analyses of Amlodipine in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Atomoxetine hydrochloride

Applications

Analyses of Atomoxetine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 80/20

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Candesartan cilexetil

Applications

Analyses of Candesartan cilexetil in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4/CH3CN = 75/25

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolterodine

Applications

Analyses of Tolterodine in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analyses of Prilocaine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Duloxetine hydrochloride

Applications

Analyses of Duloxetine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Rabeprazole sodium salt

Applications

Analyses of Rabeprazole sodium salt in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Ibuprofen

Applications

Analyses of Ibuprofen in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Formoterol fumarate

Applications

Analyses of Formoterol fumarate in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM K2HPO4 + 20 mM KH2PO4 (pH 7.0)/C2H5OH = 94/6

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analyses of Tolperisone hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

ethanol

View detail

LC

Samples

Tadalafil

Applications

Analyses of Tadalafil in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15

Frow rate

(1)1.0 mL/min　(2)0.28 mL/min

Column temp.

25°C

Injection volume

(1)2.0 µL　(2)0.5 µL

Diluent

methanol

View detail

LC

Samples

Lenalidomide

Applications

Analysis of Lenalidomide

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 95/5

Frow rate

0.7 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Nitrendipine

Applications

Analysis of Nitrendipine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Sertraline hydrochloride

Applications

Analysis of Sertraline hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Tosufloxacin tosilate hydrate

Applications

Analysis of Tosufloxacin tosilate hydrate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 7.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Nefopam hydrochloride

Applications

Analysis of Nefopam hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analysis of Tolperisone hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Nisoldipine

Applications

Analysis of Nisoldipine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 88/12

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Rabeprazole

Applications

Analysis of Rabeprozole

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Rotigotine

Applications

Analysis of Rotigotine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

1.0 µL

Diluent

methanol

View detail

LC

Samples

Cinacalcet hydrochloride

Applications

Analysis of Cinacalcet hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 93/7

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Cisapride

Applications

Analysis of Cisapride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/C2H5OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Sitagliptin

Applications

Analysis of Sitagliptin

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20mM K2HPO4 (pH 6.8)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

10.0 µL

Diluent

water

View detail

LC

Samples

Lafutidine

Applications

Analysis of Laftidine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3OH = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

1.0 µL

Diluent

methanol

View detail

LC

Samples

Montelukast sodium

Applications

Analysis of Montelukast sodium

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3OH = 60/40

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Escitalopram oxalate

Applications

Analyses of Escitalopram oxalate in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

50 mM KH2PO4 + 0.2 N NaOH(pH 7.0)/CH3CN = 85/15

Frow rate

0.6 mL/min

Column temp.

30°C

Injection volume

(1)15.0 µL (2)0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Rebamipide

Applications

Analysis of Rebamipide

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 87/13

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

1.0 µL

Diluent

methanol

View detail

LC

Samples

Efavirentz

Applications

Analysis of Efavirentz

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

ethanol

View detail

LC

Samples

Sulfinpyrazone

Applications

Analysis of Sulfinpyrazone

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM CH3COONH4 (pH 6.8)/CH3CH(OH)CH3 = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Trihexyphenidyl hydrochloride

Applications

Analysis of Trihexyphenidyl hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

mobile phase

View detail

LC

Samples

Sulconazole nitrate

Applications

Analysis of Sulconazole nitrate

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3OH = 86/14

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Tamsulosin

Applications

Analysis of Tamsulosin

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/C2H5OH = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

2-(4-Hydroxyphenoxy)propionic acid

Applications

Analysis of 2-(4-Hydroxyphenoxy)propionic acid

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

3,3-Dimethyl-4-phenyl-2-azetidinone

Applications

Analysis of 3,3-Dimethyl-4-phenyl-2-azetidinone

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Pronethalol hydrochloride

Applications

Analysis of Pronethalol hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

Thalidomide

Applications

Analysis of Thalidomide

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

0.7 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

2-Phenoxypropionic acid

Applications

Analysis of 2-Phenoxypropionic acid

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/C2H5OH = 90/10

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

Benfluorex

Applications

Analysis of Benfluorex

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 88/12

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

water

View detail

LC

Samples

Glycopyrronium bromide

Applications

Analysis of Glycopyrronium bromide

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

View detail

LC

Samples

Ropivacaine

Applications

Analysis of Ropivacaine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

5.0 µL

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analyses of Clopidogrel Related Compounds in ULTRON ES-OVM series.(Faster analyses with 3µm particles)

Column

ULTRON ES-OVM

Column Size

(1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

(1)10.0 µL (2)3.0 µL

View detail

LC

Samples

Sertraline hydrochloride , Sertraline Hydrochloride Related Compound A

Applications

Analysis of Sertraline hydrochloride

Column

ULTRON ES-CD

Column Size

250 mm L × 4.6 mm I.D.

Mobile phase

50.4mM NH4H2PO4 (pH 4.2)/CH3OH = 52/48

Frow rate

1.0 mL/min

Column temp.

30°C

Injection volume

20.0 µL

Diluent

mobile phase

View detail

LC

Samples

Glycopyrrolate , Glycopyrrolate erythro isomer

Applications

Analysis of Glycopyrrolate

Column

ULTRON ES-CD

Column Size

250 mm L × 4.6 mm I.D.

Mobile phase

23.3 mM NaH2PO4(pH 6.5)/CH3OH/CH3CN = 40/50/10

Frow rate

1.0 mL/min

Column temp.

30°C

Injection volume

10.0 µL

Diluent

mobile phase

View detail

LC

Samples

Methotrexate

Applications

Analysis of Methotrexate

Column

ULTRON ES-BSA-2

Column Size

150 mm L × 4.0 mm I.D.

Mobile phase

50mM sodium phosphate buffer (pH6.9)/1-Propanol = 92/8

Frow rate

1.5 mL/min

Column temp.

25°C

Injection volume

20.0 µL

Diluent

mobile phase

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analysis of Clopidogrel Related Compounds

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

10.0 µL

View detail

LC

Samples

Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate

Applications

Analysis of Clopidogrel Related Compounds

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

10 mM KH2PO4/CH3CN = 75/25

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

3.0 µL

View detail

LC

Samples

Escitalopram oxalate

Applications

Analysis of Escitalopram oxalate

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

50 mM KH2PO4 + 0.2 N NaOH(pH 7.0)/CH3CN = 85/15

Frow rate

0.6 mL/min

Column temp.

30°C

Injection volume

0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Cetirizine hydrochloride

Applications

Analysis of Cetirizine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

mobile phase

View detail

LC

Samples

Tolterodine

Applications

Analysis of Tolterodine

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Tolterodine

Applications

Analysis of Tolterodine

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analysis of Prilocaine hydrochloride

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Prilocaine hydrochloride

Applications

Analysis of Prilocaine hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Rabeprazole sodium salt

Applications

Analysis of Rabeprazole sodium salt

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

ethanol

View detail

LC

Samples

Ibuprofen

Applications

Analysis of Ibuprofen

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

ethanol

View detail

LC

Samples

Tolperisone hydrochloride

Applications

Analysis of Tolperisone hydrochloride

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

ethanol

View detail

LC

Samples

Tadalafil

Applications

Analysis of tadalafil

Column

ULTRON ES-OVM

Column Size

150 mm L × 4.6 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

2.0 µL

Diluent

methanol

View detail

LC

Samples

Tadalafil

Applications

Analysis of Tadalafil

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15

Frow rate

1.0 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

methanol

View detail

LC

Samples

Carvedilol

Applications

Analysis of Carvedilol

Column

ULTRON ES-OVM

Column Size

100 mm L × 3.0 mm I.D.

Mobile phase

20 mM KH2PO4 + 20 mM K2HPO4 (pH 7.0)/CH3CN = 75/25

Frow rate

0.28 mL/min

Column temp.

25°C

Injection volume

0.5 µL

Diluent

ethanol
