Ligand Exchange Chromatography

PDF DownloadLigand Exchange Chromatography: Specifications and Prices

HPLC Columns for Sugar and Sugar Alcohol Analyses

ULTRON PS-80N, ULTRON PS-80C, ULTRON PS-80P

To the application of this productReference

ULTRON PS-80N
Corresponds to USP number L58: Strong cation exchange resin consisting of sulfonated cross-linked styrene-divinylbenzene copolymer in the sodium form, about 7 to 11 micrometers in diameter.

ULTRON PS-80C
Corresponds to USP number L19: Strong cation exchange resin consisting of sulfonated cross-linked styrene-divinylbenzene copolymer in the calcium form, 9 micrometers in diameter.

ULTRON PS-80P
Corresponds to USP number L34: Strong cation exchange resin consisting of sulfonated cross-linked styrene-divinylbenzene copolymer in the lead form, 9 micrometers in diameter.

The ULTRON PS series consists of HPLC columns packed with sulfonic acid type polystyrene cation exchange resin designed for sugar and sugar alcohol analyses. Columns are available in the following three types: PS-80N (Na type), PS-80C (Ca type), and PS-80P (Pb type).

Features

  1. PS series columns are effective for quantitative analyses because saccharides are not adsorbed on matrices.
  2. PS series columns use aqueous mobile phases.
  3. Durable due to the use of a mechanically strong polymer gel.

Applications

・Oligosaccharides, disaccharides, monosaccharides
・Sugar alcohols
・Monitoring of fermentation hydrolysis of polysaccharides

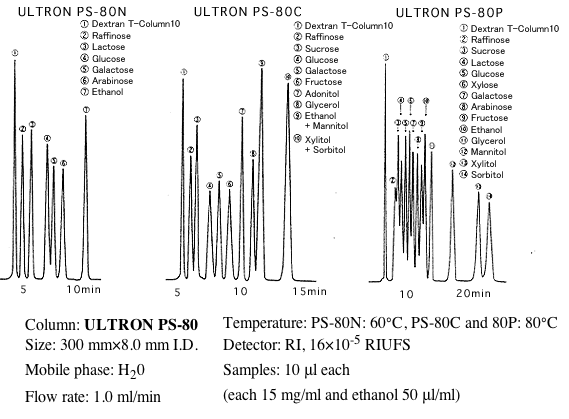

Elution positions of sugars and sugar alcohols

Elution Positions of Sugars and Sugar Alcohols

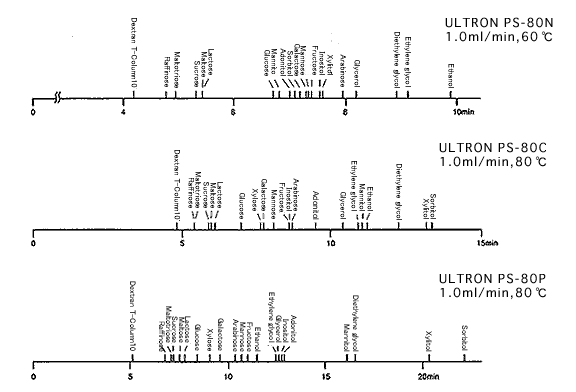

Retention indices of standard samples

Retention Indices of Standard Samples

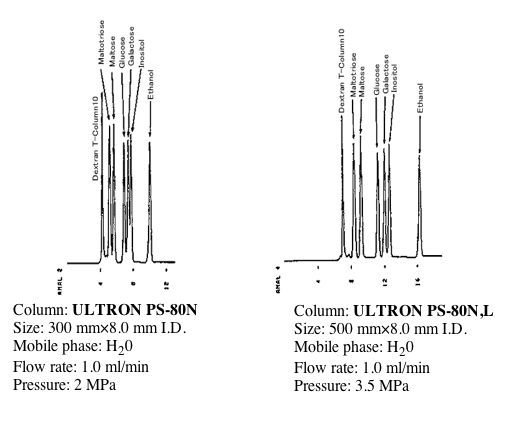

Comparison of retention between 300 mm×8.0 mm and 500 mm×8.0 mm PS-80N columns

Comparison of retention between 300 mm×8.0 mm and 500 mm×8.0 mm PS-80N columns

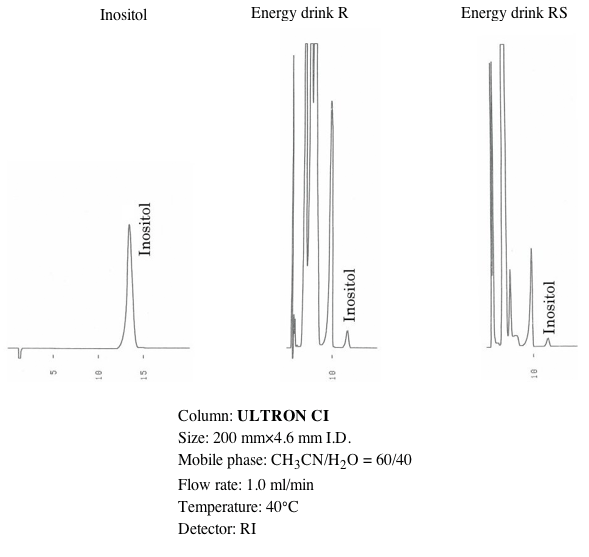

HPLC Column for Inositol in Energy Drinks

ULTRON CI

Reference

ULTRON CI is a strong cation exchange polymer packed HPLC column designed for analyses of inositol.

Features

  1. ULTRON CI provides excellent quantitative analyses of inositol in energy drinks.
  2. ULTRON CI displays good retention reproducibility.
  3. ULTRON CI polymer beads possess good mechanical strength.
  4. Maximum operating pressure is 8.0 MPa.
  5. Maximum operating temperature is 90°C.
Applications

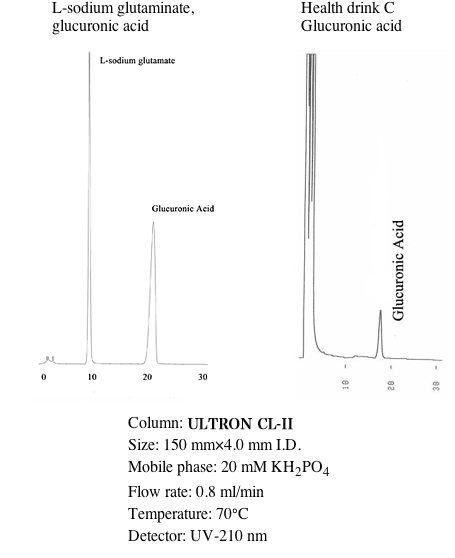

HPLC Column for Glucuronic Acid in Energy Drinks

ULTRON CL-II

Reference

ULTRON CL-II is a strong anion exchange polymer packed HPLC column designed for analyses of glucuronic acid.

Features

  1. ULTRON CL-II provides excellent quantitative analyses of glucuronic acid in energy drinks.
  2. ULTRON CL-II displays good retention reproducibility.
  3. ULTRON CL-II polymer beads possess good mechanical strength.
  4. Maximum operating pressure is 8.0 MPa.
  5. Maximum operating temperature is 70°C.
Applications

PDF DownloadLigand Exchange Chromatography: Specifications and Prices
