Application Search

GC
Samples: 2,6-Xylenol , p-Cresol , m-Cresol , 2,4,6-Trimethylphenol , 2,4-Xylenol , 2,5-Xylenol , 2,3,6-Trimethylphenol , 2,3-Xylenol , p-Ethylphenol , m-Ethylphenol , 3,5-Xylenol , 3,4-Xylenol
Applications: Analysis of the impurity in the 3,5- xylenol ( 10% benzene solution )
Column: ULBON ALPhen
Column Size: 50m×0.20mm
Column temp.: 130°C
Carrier gas: N2,0.39ml/min
Detector temp.: 250°C(FID)
Injection volume: 0.5μm

View detail

GC
Samples: Phenol , o-Cresol , p-Cresol , m-Cresol
Applications: Analysis of m-cresol in the p-cresol ( 10% benzene solution )
Column: ULBON ALPhen
Column Size: 50m×0.20mm
Column temp.: 130°C
Carrier gas: N2,0.39ml/min
Detector temp.: 250°C(FID)
Injection volume: 0.5μm

View detail

GC

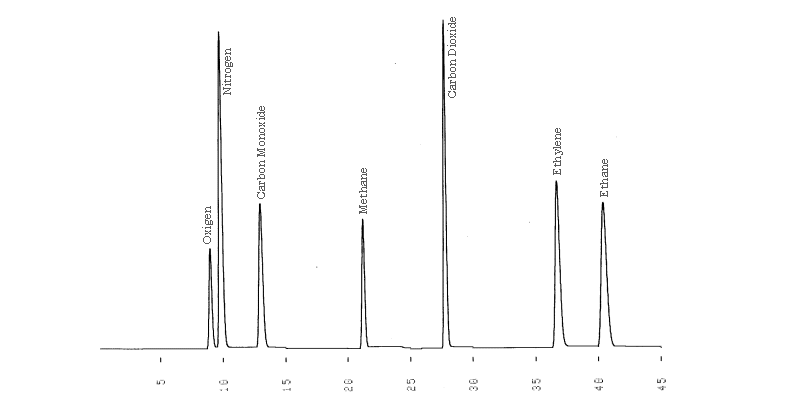

Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (3) Analysis by the 2m column
Column: Shincarbon-ST
Column Size: 2m × 3mmI.D.
Column temp.: 40°C (5min. hold) → 200°C (10°C/min.)
Carrier gas: He
Detector temp.: 200°C
Injection volume: 0.5mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (4) Analysis by the 4m column
Column: Shincarbon-ST
Column Size: 4m (2m×2) × 3mmI.D.
Column temp.: 40°C (7min. hold) → 200°C (10°C/min.)
Carrier gas: He
Detector temp.: 200°C
Injection volume: 0.5mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (5) Analysis by the 6m column
Column: Shincarbon-ST
Column Size: 6m (2m×3)) × 3mmI.D.
Column temp.: 40°C (12min. hold) → 200°C (10°C/min.)
Carrier gas: He
Detector temp.: 200°C
Injection volume: 0.5mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (6) Analysis by the 8m column
Column: Shincarbon-ST
Column Size: 8m (2m×4) × 3mmI.D.
Column temp.: 40°C (20min. hold) → 200°C (10°C/min.)
Carrier gas: He
Detector temp.: 200°C
Injection volume: 0.5mL

View detail

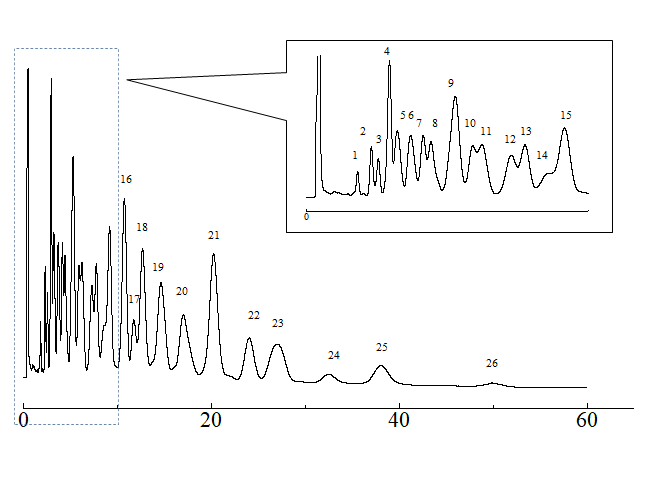

GC
Samples: kerosene
Applications: Analysis of the kerosene
Column: ULBON HR-1
Column Size: 0.25mmI.D. × 50m (0.5um)
Column temp.: 90°C → 200°C (2°C/min.)
Carrier gas: He
Detector temp.: 250°C
Injection volume: 0.5ul

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide , Ethylene , Ethane
Applications: Inorganic gas and Lower hydrocarbons (7) Analysis by the 8m column
Column: Micropacked-ST
Column Size: 2m ×　1mmI.D.
Column temp.: 35°C (2min. hold) → 200°C (25°C/min.)
Carrier gas: He,200kPa
Detector temp.: 200°C
Injection volume: 0.05mL

View detail

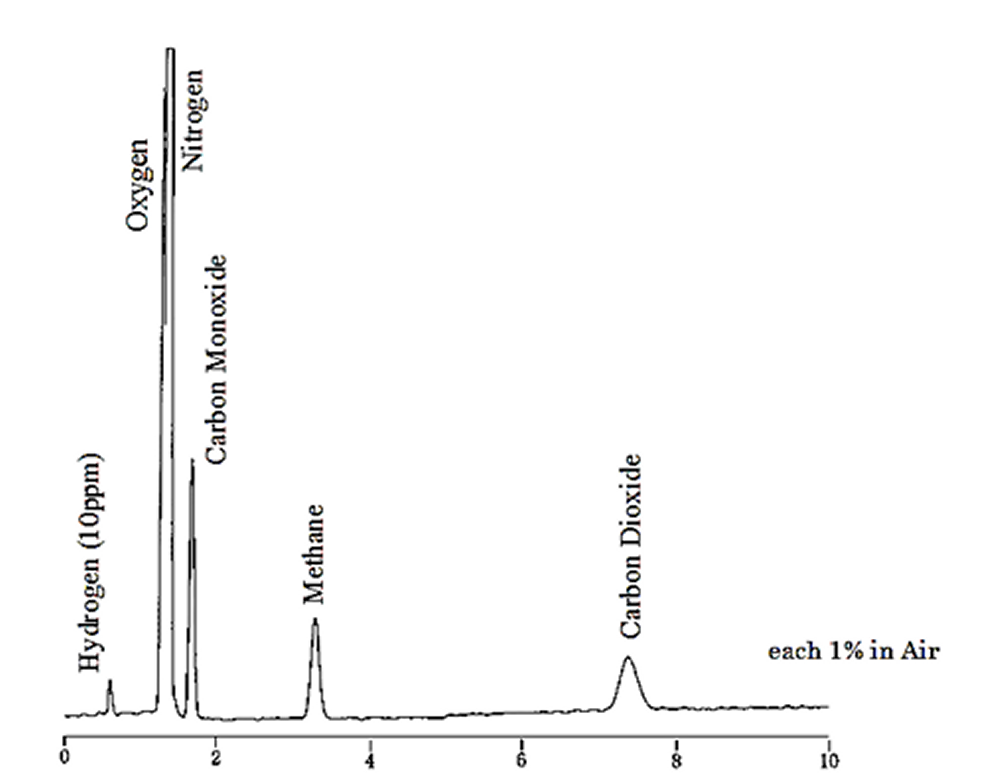

GC

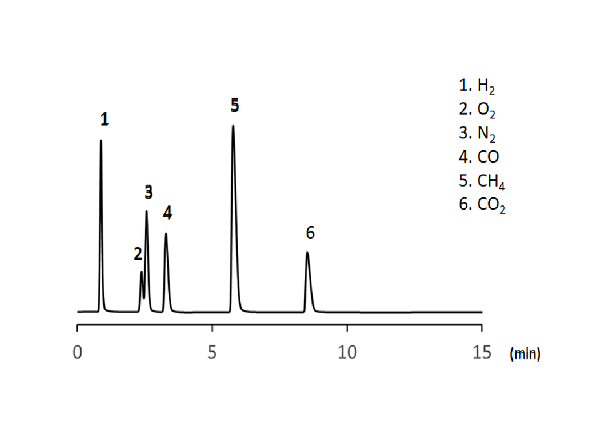

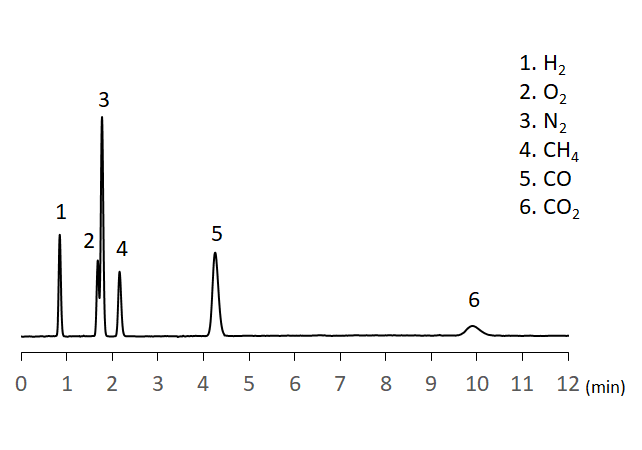

Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gas and Lower hydrocarbons (8) Analysis by the 8m column
Column: Micropacked-ST
Column Size: 2m ×　1mmI.D.
Column temp.: 80°C
Carrier gas: Ar,200kPa
Detector temp.: 80°C
Injection volume: 0.05mL

View detail

GC
Samples: Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gas and Lower hydrocarbons (9) Analysis by the 8m column
Column: Micropacked-ST
Column Size: 3m ×　1mmI.D.
Column temp.: 35°C (3.5min. hold) → 80°C (10°C/min.)
Carrier gas: He,300kPa
Detector temp.: 80°C
Injection volume: 0.05mL

View detail

GC

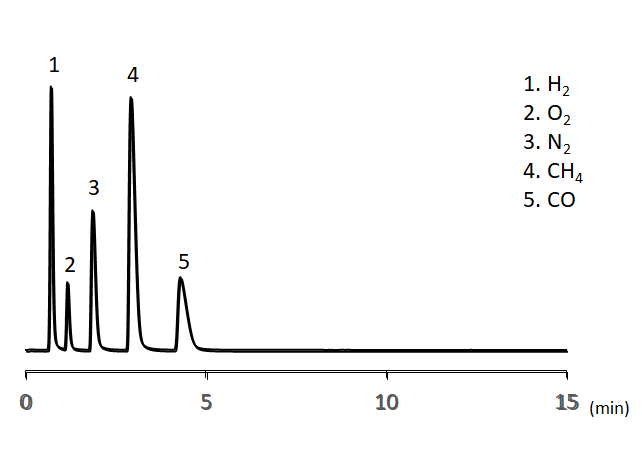

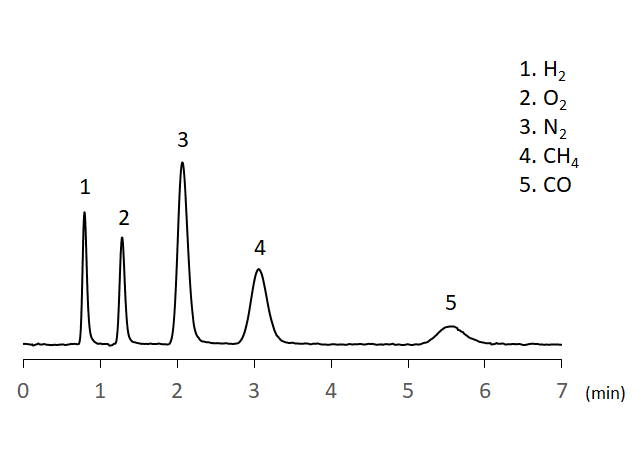

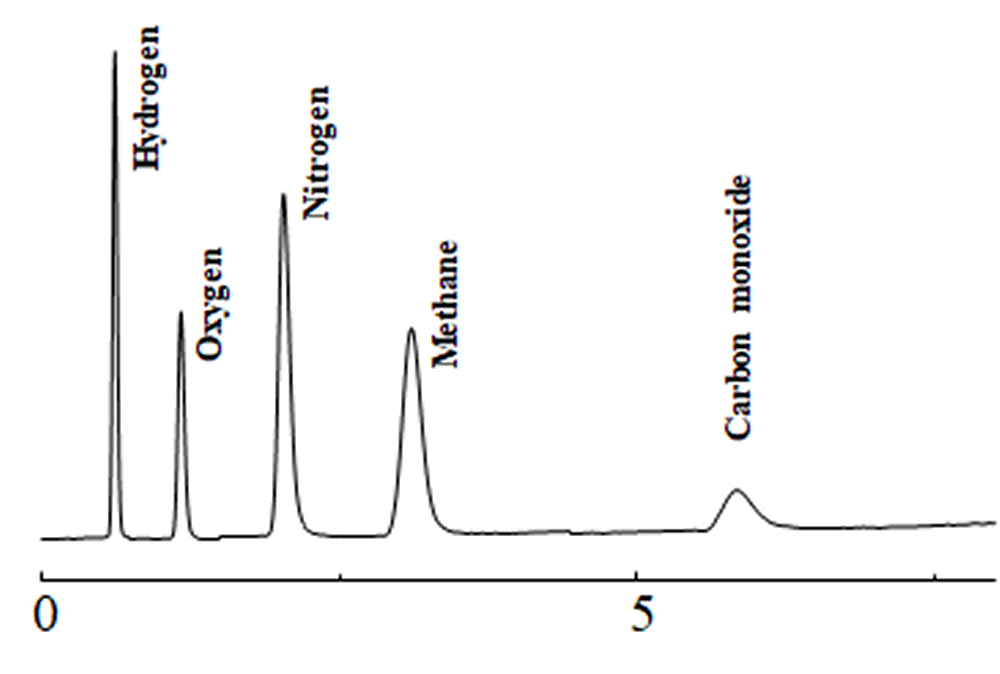

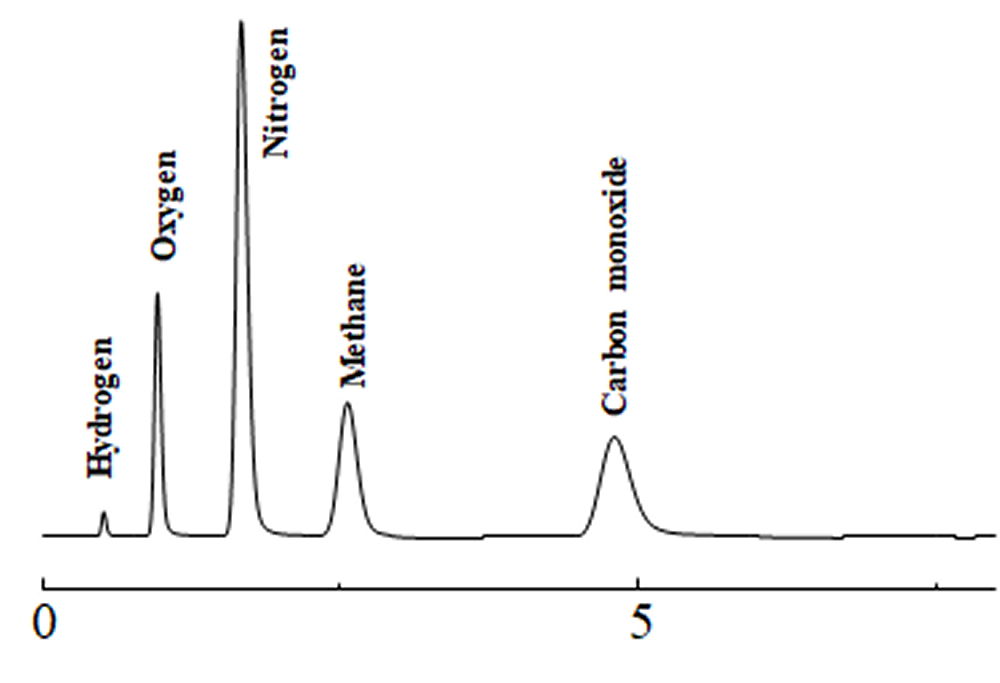

Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gas and Lower hydrocarbons (10) Analysis by the 8m column
Column: Micropacked-MS
Column Size: 2m ×　1mmI.D.
Column temp.: 80°C
Carrier gas: He,200kPa
Detector temp.: 80°C
Injection volume: 0.05mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gas and Lower hydrocarbons (11) Analysis by the 8m column
Column: Micropacked-MS
Column Size: 2m ×　1mmI.D.
Column temp.: 80°C
Carrier gas: Ar,200kPa
Detector temp.: 80°C
Injection volume: 0.05mL

View detail

GC
Samples: 1,8-Cineole , β-Phenethyl Alcohol , Benzyl Acetate
Applications: Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　1
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.25um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

GC
Samples: Linalool , Anisaldehyde , Geraniol , Perillaldehyde
Applications: Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　2
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

GC
Samples: α-Pinene , Limonene , Isobornyl Acetate , α-Ionone
Applications: Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　3
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

GC
Samples: Myrcene , 1,8-Cineole , L-Menthol , Anisaldehyde
Applications: Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　4
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

GC
Samples: α-Pinene , 1,8-Cineole , β-Phenethyl Alcohol
Applications: Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　5
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

GC
Samples: L-Menthon , Anisaldehyde , Geraniol , L-Perillaldehyde , α-Ionone
Applications: Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　6
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

GC
Samples: Myrcene , Limonene
Applications: Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　7
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

GC
Samples: Benzyl Alcohol , β-Phethyl Alcohol , Eugenol
Applications: Analysis of the fragrance of a flower using NeedlEx (for organic solvent)　8
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

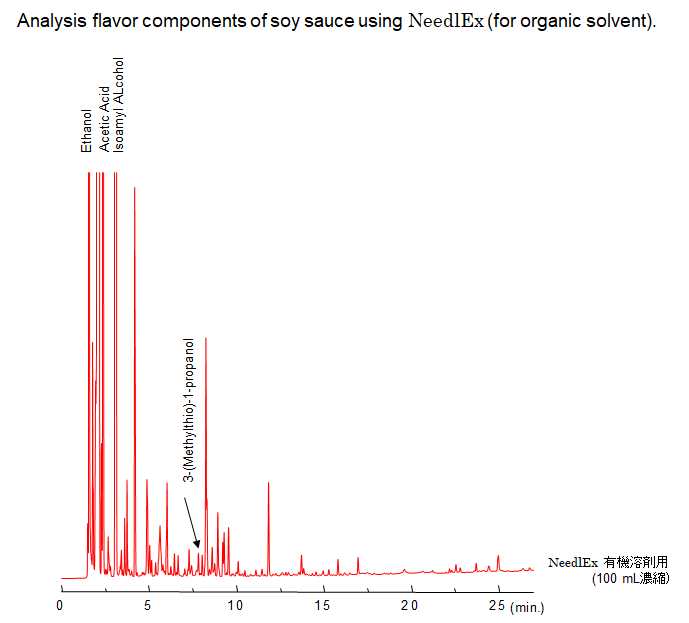

GC
Samples: Ethanol , Acetic Acid , Isoamyl Alcohol , 3-(Methylthio)-1-propanol
Applications: Analysis flavor components of soy sauce using NeedlEx (for organic solvent).
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

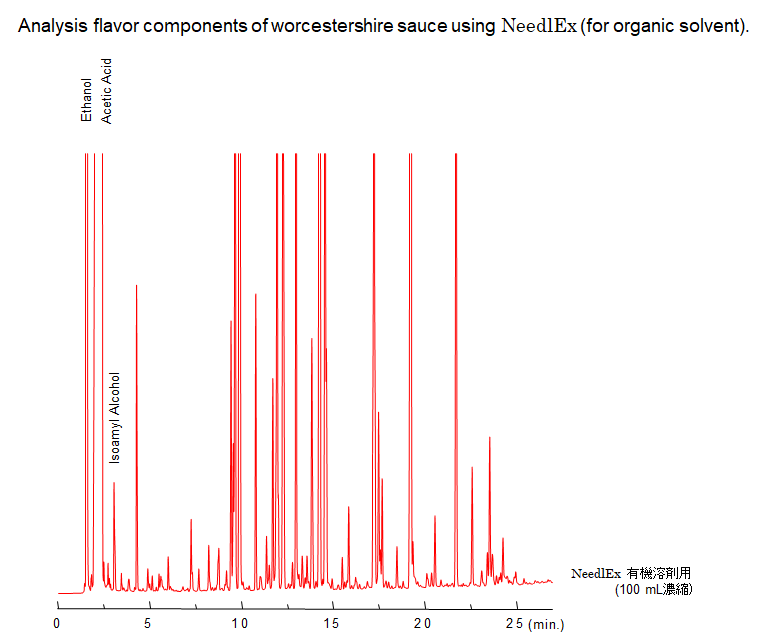

GC
Samples: Ethanol , Acetic Acid , Isoamyl Alcohol
Applications: Analysis flavor components of worcestershire sauce using NeedlEx (for organic solvent).
Column: ULBON HR-1
Column Size: 0.32mmI.D. × 30m (0.26um)
Column temp.: 50°C→200°C(5°C/min)
Carrier gas: He,2.4ml/min
Detector temp.: 250°C(FID)
Injection volume: -

View detail

GC
Samples: Chloroform , Fenitrothion , Fluoranthene
Applications: Analysis of fenitrothion using Shinwasorb
Column: Polyphenyl Ether (5 rings) 1.5% Shinwasorb-S 100/120
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 195℃
Carrier gas: 55 mL/min N₂
Injection port temp.: 230℃
Detector temp.: 230℃
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Carbonyl sulfide , Hydrogen sulfide , Carbon disulfide , Methyl mercaptan , Ethyl mercaptan , Dimethyl sulfide , Dimethyl disulfide
Applications: Analysis of methyl mercaptan, hydrogen sulfide, dimethyl sulfide, and dimethyl disulfide using Shinwasorb
Column: β,β’-Oxydipropionitrile 12.5% Shinwasorb-S 60/80 ST
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 70℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 180℃
Detector temp.: 180℃
Detector: FPD (S)
Injection volume: 1.0 μL

View detail

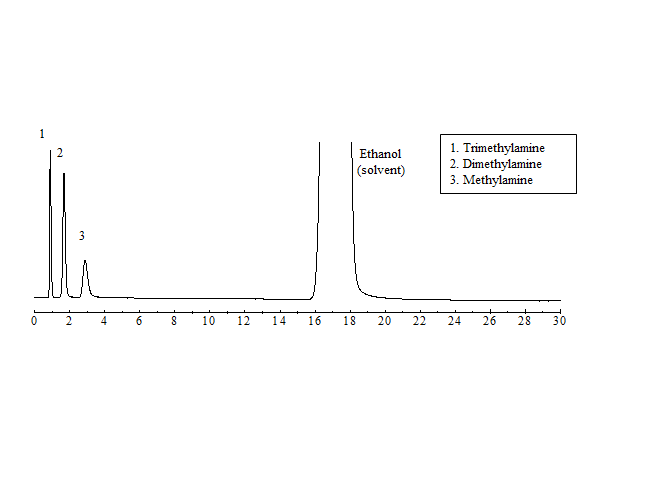

GC
Samples: Trimethylamine , Dimethylamine , Methylamine
Applications: Analysis of methylamines using Shinwasorb
Column: Diglycerol+TEP+KOH 7.5+7.5+1% Shinwasorb-S 60/80
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 70℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 220℃
Detector temp.: 220℃
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: PCBs
Applications: Analysis of PCBs using Shinwasorb
Column: Silicone OV-17 2％ Shinwasorb-U 60/80　　
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 210℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 260℃
Detector temp.: 260℃
Detector: ECD
Injection volume: 4.0 μL

View detail

GC
Samples: PCBs
Applications: Analysis of PCBs using Shinwasorb
Column: Silicone OV-1 2％ Shinwasorb-U 60/80　　
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 195℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 260℃
Detector temp.: 260℃
Detector: ECD
Injection volume: 4.0 μL

View detail

GC
Samples: H2 , HD , D2
Applications: Analysis of deuterium (heavy hydrogen)
Column: Shinwa OGO-SP
Column Size: 3.0 m x 3.0 mm I.D. Stainless steel
Column temp.: -196℃
Carrier gas: 60 mL/min He
Injection port temp.: 40℃
Detector temp.: 100℃
Detector: TCD 120 mA
Injection volume: 1.0 mL

View detail

GC
Samples: Sorbic acid , Dehydroacetic acid , Benzoic acid , trans-Stilbene
Applications: Analysis of preservatives using Shinwasorb -1-
Column: DEGS+H3PO4 5.0+0.5% Shinwasorb-S 40/60
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 185℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 260℃
Detector temp.: 260℃
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: preservatives
Applications: Analysis of preservatives using Shinwasorb -2-
Column: Advance-DS+H3PO4 2+0.25% Shinwasorb-S 60/80
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 200℃
Carrier gas: 50 mL/min N₂
Injection port temp.: 260℃
Detector temp.: 260℃
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Methyl iodide , iso-Propyl iodide , n-Octane , o-Xylene
Applications: Analysis of hypromellose using Shinwasorb
Column: Silicone DC-200 10% Shinwasorb-S 100/120
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 90℃
Carrier gas: 38 mL/min N₂
Injection port temp.: 200℃
Detector temp.: 200℃
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: homatropine hydrobromide , atropine
Applications: Analysis of opium alkaloid atropine using Shinwasorb
Column: Silicone OV-17 1% Shinwasorb-S 60/80
Column Size: 1.6m×3.2mm glass
Column temp.: 210°C
Carrier gas: 40 mL/min N2
Injection port temp.: 270°C
Detector temp.: 270°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: homatropine hydrobromide , scopolamine
Applications: Analysis of opium alkaloid scopolamine using Shinwasorb
Column: Silicone OV-17 1% Shinwasorb-S 60/80
Column Size: 1.6m×3.2mm glass
Column temp.: 210°C
Carrier gas: 45 mL/min N2
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: decane , undecane , dodecane , tridecane , tetradecane , pentadecane , hexadecane , heptadecane , octadecane , nonadecane , eicosane , heneicosane , docosane
Applications: Analysis of mixture of kerosene and gas oil using Shinwasorb
Column: Silicone SE-52 5% Shinwasorb-U 40/60
Column Size: 2.5 m x 3.0 mm I.D. Stainless steel
Column temp.: 80～250℃ (6℃/min), 250℃ (12 min hold)
Carrier gas: 50 mL/min N2
Injection port temp.: 270°C
Detector temp.: 270°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Ethyl acetate , di-n-butyl phthalate , Teprenone (mono-cis isomer) , Teprenone (all-trans isomer) , ,
Applications: Analysis of teprenone using Shinwasorb -1-
Column: FFAP 5% Shinwasorb-U 80/100
Column Size: 2.1m×3.2mm glass
Column temp.: 235°C
Carrier gas: 47 mL/min N2
Injection port temp.: 270°C
Detector temp.: 270°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: n-valeric acid , valproic acid
Applications: Analysis of valproate sodium using Shinwasorb
Column: DEGA+H3PO4 2.5+0.5% Shinwasorb-S 80/100
Column Size: 2.1m×3.2mm glass
Column temp.: 145°C
Carrier gas: 35 mL/min N2
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Ethanol , Dl-camphor , Methyl salicylate ,
Applications: Analysis of dl-camphor using Shinwasorb
Column: PEG 20M 5% Shinwasorb-S 60/80
Column Size: 3.1m×3.2mm glass
Column temp.: 160°C
Carrier gas: 45 mL/min N2
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Ethyl acetate , di-n-butyl phthalate , Teprenone (mono-cis isomer) , Teprenone (all-trans isomer) , ,
Applications: Analysis of teprenone using Shinwasorb -2-
Column: FFAP 5% Shinwasorb-U 80/100
Column Size: 2.1m×3.2mm glass
Column temp.: 235°C
Carrier gas: 47 mL/min N2
Injection port temp.: 270°C
Detector temp.: 270°C
Detector: FID
Injection volume: 2.0 µL

View detail

GC
Samples: acetone , styrene , , ,
Applications: Analysis of polystyrene sulfonate calcium using Shinwasorb
Column: PEG20M 7.5% Shinwasorb-S 80/100
Column Size: 2.1m×3.2mm glass
Column temp.: 90°C
Carrier gas: 60 mL/min N2
Injection port temp.: 260°C
Detector temp.: 260°C
Detector: FID
Injection volume: 5.0 µL

View detail

GC
Samples: ethanol , n-ethyl caprylate , L-menthol , , ,
Applications: Analysis of polystyrene peppermint oil　using Shinwasorb
Column: PEG6000 12.5% Shinwasorb-S 60/80
Column Size: 2.1m×3.2mm glass
Column temp.: 140°C
Carrier gas: 33 mL/min N2
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 1.0 µL

View detail

GC

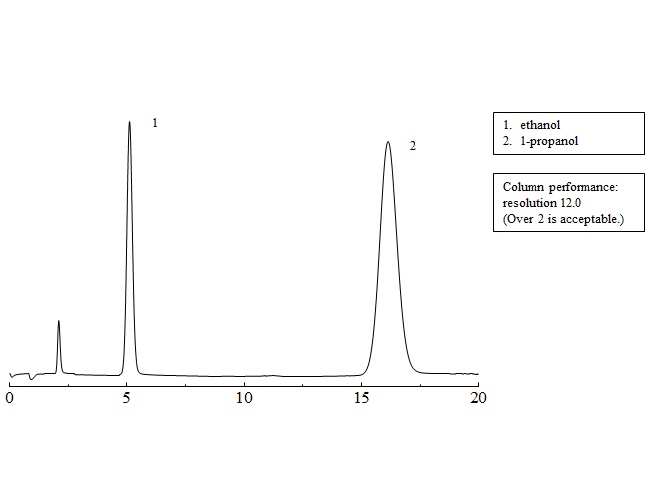

Samples: ethanol , 1-propanol , , ,
Applications: Analysis of doxycycline hydrochloride hydrate using Sunpak-A
Column: Sunpak-A 80/100
Column Size: 1.6m×3.2mm glass
Column temp.: 115°C
Carrier gas: 30 mL/min N2
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 1.0 µL

View detail

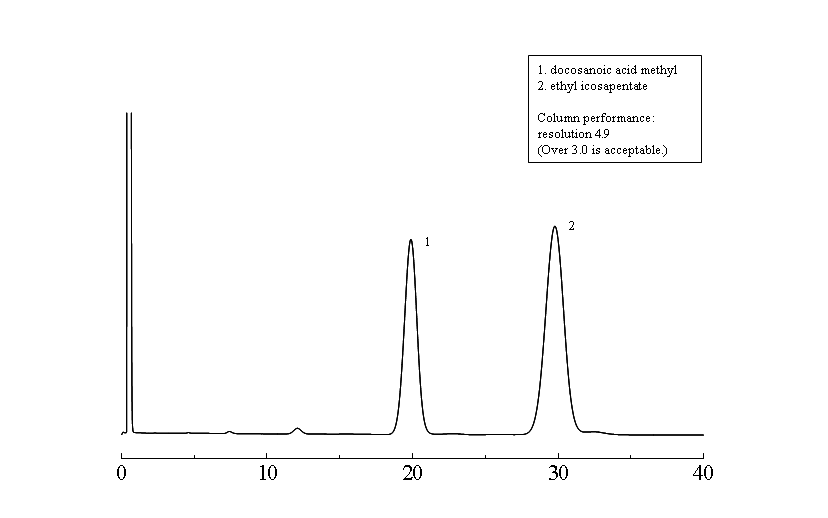

GC
Samples: docosanoic acid methyl , ethyl icosapentate ,
Applications: Analysis of ethyl icosapentate using Shinwasorb
Column: DEGS 12.5% Shinwasorb-S 60/80
Column Size: 1.8 m x 4.0 mm I.D. Glass
Column temp.: 210℃
Carrier gas: 47 mL/min N2
Injection port temp.: 230℃
Detector temp.: 200℃ 　
Detector: FID
Injection volume: 3.0 μL

View detail

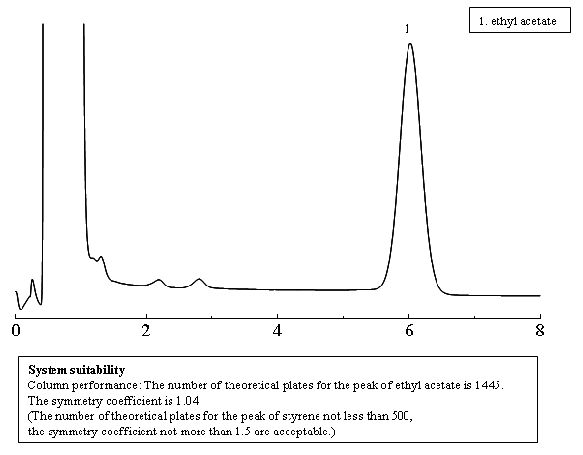

GC
Samples: ethyl acetate
Applications: Analysis of sultamicillin tosilate hydrate using Sunpak-H
Column: Sunpak-H 80/100
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 130℃
Carrier gas: 34 mL/min N2
Injection port temp.: 200℃
Detector temp.: 200℃ 　
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: ethyl acetate
Applications: Analysis of sultamicillin tosilate hydrate using Sunpak-H
Column: Sunpak-H 80/100
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 130℃
Carrier gas: 34 mL/min N2
Injection port temp.: 200℃
Detector temp.: 200℃ 　
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Chloroform , Trichloroethylene , N,N-dimethylformamide ,
Applications: Analysis of tranilast using Sunpak-H ～Purity test (3) Chloroform～
Column: Sunpak-H 80/100
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 160℃
Carrier gas: 45 mL/min N2
Injection port temp.: 200℃
Detector temp.: 200℃ 　
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: N,N-dimethylformamide , Triphenylantimony , Spectinomycin ,
Applications: Analysis of spectinomycin hydrochloride hydrate using Shinwasorb
Column: Silicone SE-52 2.5% Shinwasorb-S 80/100
Column Size: 0.6 m x 3.2 mm I.D. Glass
Column temp.: 180℃
Carrier gas: 37 mL/min N2
Injection port temp.: 215℃
Detector temp.: 220℃ 　
Detector: FID
Injection volume: 1.0 μL

View detail

GC

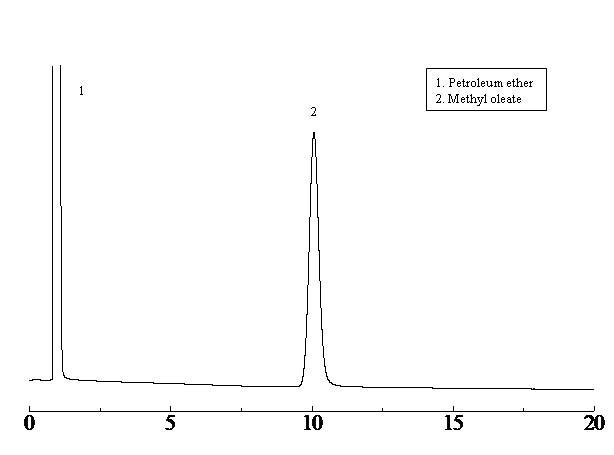

Samples: Petroleum ether , Methyl oleate
Applications: Analysis of oleic acid using Shinwasorb
Column: Shinchrom E71 10% Shinwasorb-U 80/100
Column Size: 2.1m×3.2mm
Column temp.: 210°C
Carrier gas: N2,21 ml/min
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 0.2 μL

View detail

GC
Samples: Ethyl acetate , Caffeine , o-Toluene sulfonamide
Applications: Analysis of saccharin using Shinwasorb
Column: DEGS 1.5% Shinwasorb-S 60/80
Column Size: 1.0 m x 3.0 mm I.D. Glass
Column temp.: 210°C
Carrier gas: N2,55ml/min
Injection port temp.: 225°C
Detector temp.: 250°C
Detector: FID

View detail

GC
Samples: Limonene , Cineole
Applications: Analysis of eucalyptus oil using Shinwasorb
Column: Thermon-3000 5% Shinwasorb-S 80/100
Column Size: 5.1 m x 3.2 mm I.D. Glass
Column temp.: 130°C
Carrier gas: N2,35ml/min
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID

View detail

GC
Samples: Dichloromethane , l-menthol ,
Applications: Analysis of l-menthol using Shinwasorb
Column: PEG6000 12.5％ Shinwasorb-S 60/80
Column Size: 2.1m x3.2 mm I.D. Glass
Column temp.: 140°C
Carrier gas: N2,33ml/min
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 5.0 μL

View detail

GC

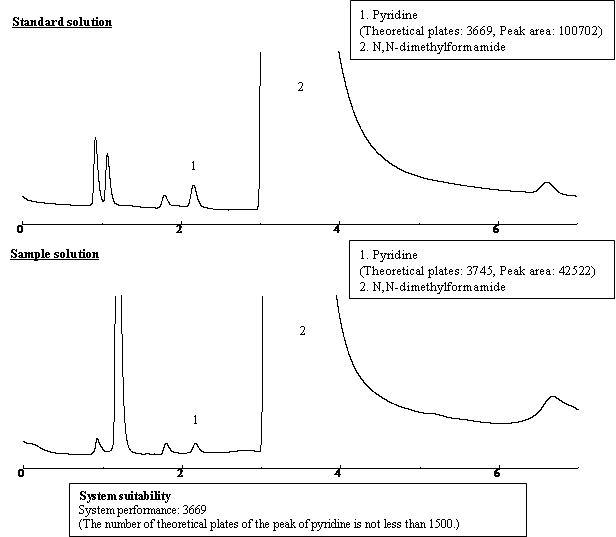

Samples: Pyridine , N,N-dimethylformamide
Applications: Analysis of niceritrol using Shinwasorb
Column: PEG20M 5% Shinwasorb-S 80/100
Column Size: 3.1m x3.2 mm I.D. Glass
Column temp.: 160°C
Carrier gas: N2, 55ml/min
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Isopropyl iodide , Methylcyclohexane , o-xylene
Applications: Analysis of hydroxypropylcellulose (JP)
Column: ULBON HR-1
Column Size: 0.53 mm I.D. x 30 m df = 3.0 µm
Column temp.: 40℃ (3 min)～10℃/min～100℃～50℃/min～250℃ (3 min)
Carrier gas: 52 cm/sec He
Injection port temp.: 180°C
Detector temp.: 280°C
Detector: FID
Injection volume: 2.0 μL Split rate: 1:50

View detail

GC
Samples: Ethylene glycol , Diethylene glycol
Applications: Analysis of macrogol 400 using Shinwasorb
Column: Sorbitol 3% Shinwasorb-S 80/100
Column Size: 1.6 m x 3.2 mm I.D. Glass
Column temp.: 160℃
Carrier gas: 47 mL/min N2
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Cyclohexane , N,N-dimethylaniline , Naphthalene ,
Applications: Analysis of ampicillin hydrate using Shinwasorb
Column: Silicone OV-17 1.5% Shinwasorb-S 60/80
Column Size: 2.1 m x 2.6 mm I.D. Glass
Column temp.: 105℃
Carrier gas: 20 mL/min He（adjust so that the retention time of N,N-dimethylaniline is about 5 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Cyclohexane , Ethyl acetate , 2-propanol ,
Applications: Analysis of lenampicillin hydrochloride using Shinwasorb
Column: Quadrol 5% Shinwasorb-S 60/80
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 100℃
Carrier gas: 70 mL/min N₂ (Adjust so that the retention time of cyclohexane is about 1 minute.)
Injection port temp.: 160°C
Detector temp.: 160°C
Detector: FID
Injection volume: 4.0 μL

View detail

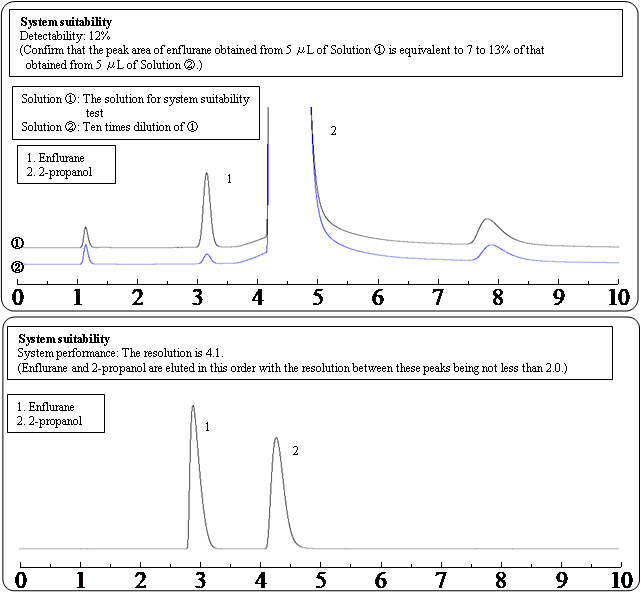

GC
Samples: Enflurane , 2-propanol ,
Applications: Analysis of enflurane using Shinwasorb
Column: DEGS 10% Shinwasorb-S 60/80
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 80℃
Carrier gas: 32 mL/min He (Adjust so that the retention time of enflurane is about 3 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 5.0 μL

View detail

GC
Samples: Isoflurane , Ethyl acetate
Applications: Analysis of isoflurane using Shinwasorb
Column: Igepal CO-880+Ucon LB-550X 5+7.5% Shinwasorb-S 100/120
Column Size: 3.5 m x 3.0 mm I.D. Stainless steel
Column temp.: 80℃
Carrier gas: 37 mL/min N2 (Adjust so that the retention time of isoflurane is about 7 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC

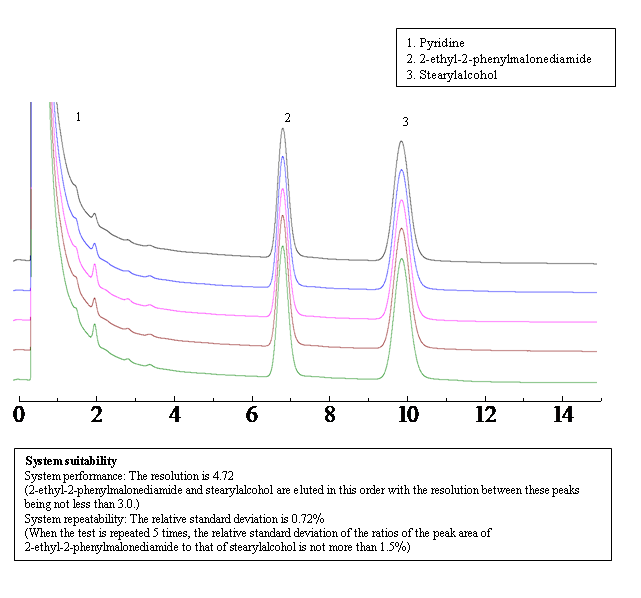

Samples: Pyridine , 2-ethyl-2-phenylmalonediamide , Stearylalcohol ,
Applications: Analysis of primidone using Shinwasorb ～Purity test (3) 2-ethyl-2-phenylmalonediamide～
Column: Silicone OV-17 1.5% Shinwasorb-S 100/120
Column Size: 1.6 m x 3.2 mm I.D. Glass
Column temp.: 195℃
Carrier gas: 31 mL/min N2 (Adjust so that the retention time of stearylalcohol is about 10 minutes.)
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Deet, diethyl phthalate in ethanol
Applications: Analysis of deet (Pesticide guidelines) ~Purity test (4) Related substances~
Column: ULBON HR-20M
Column Size: 0.2 mm I.D. x 25 m df = 0.1 µmm
Column temp.: 170℃
Carrier gas: 21 cm/sec He (Adjust so that the retention time of deet is about 10 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 2.0 μL (Split rate: 1:70)

View detail

GC
Samples: Methanol in ethanol
Applications: Analysis of etidronate disodium using Sunpak-A ~Purity test (4) Methanol~
Column: Sunpak-A 50/80
Column Size: 2.1m x3.2 mm I.D. Glass
Column temp.: 130℃
Carrier gas: 30 mL/min N2 (Adjust so that the retention time of methanol is about 2 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: 2-propanol, ethanol in water
Applications: Analysis of sodium aurothiomalate using Sunpak-H ~Purity test (4) Ethanol~
Column: Sunpak-H 80/100
Column Size: 3.1m x 3.2 mm I.D. Glass
Column temp.: 145℃
Carrier gas: 28 mL/min N2 (Adjust so that the retention time of 2-propanol is about 7 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC

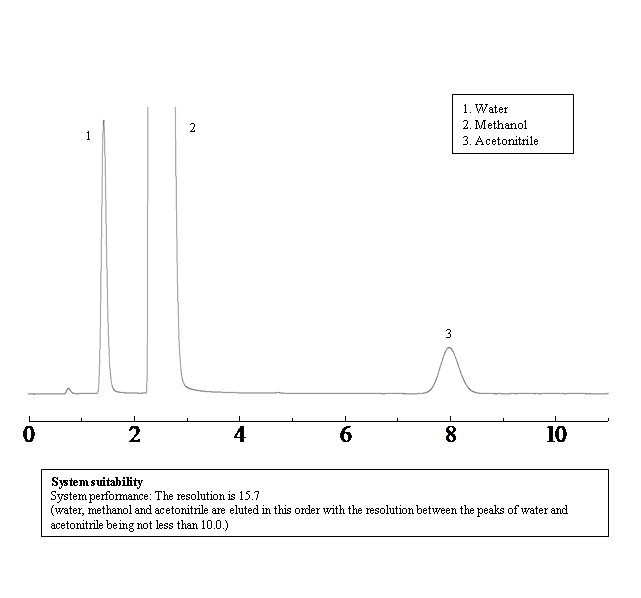

Samples: water, acetonitrile in methanol
Applications: Analysis of panipenem using Sunpak-A ~Water~
Column: Sunpak-A 80/100
Column Size: 2.1m x 3.2 mm I.D. Glass
Column temp.: 125℃
Carrier gas: 29 mL/min He (Adjust so that the retention time of acetonitrile is about 8 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC

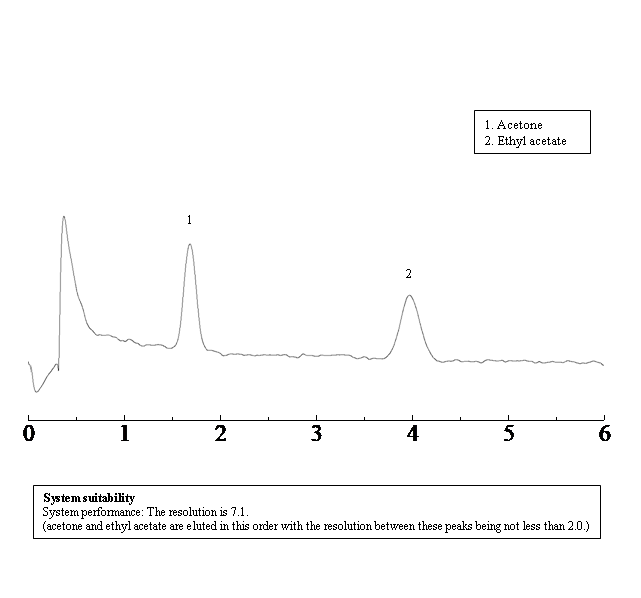

Samples: Acetone , Ethyl acetate
Applications: Analysis of piperacillin hydrate using Sunpak-H ~(4) Residual solvents~
Column: Sunpak-H 80/100
Column Size: 1.1m x 3.2 mm I.D. Glass
Column temp.: 145℃
Carrier gas: 33 mL/min N2 (Adjust so that the retention time of ethyl acetate is about 4 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Cyclohexane , Dicyclohexyl phthalate , Etofenprox
Applications: Analysis of etofenprox using Shinwasorb
Column: Silicone OV-225 2.5% Shinwasorb-U 60/80
Column Size: 1.1m x 3.2 mm I.D. Glass
Column temp.: 240℃
Carrier gas: 37 mL/min N₂ (Adjust so that the retention time of dicyclohexyl phthalate is about 8 minutes.)
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 3.0 μL

View detail

GC
Samples: Etofenprox in Cyclohexane
Applications: Analysis of etofenprox using Shinwasorb -2- ～Purity (3) Related substances～
Column: Silicone OV-225 2.5% Shinwasorb-U 60/80
Column Size: 1.1m x 3.2 mm I.D. Glass
Column temp.: 240℃
Carrier gas: 37 mL/min N₂
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 3.0 μL

View detail

GC

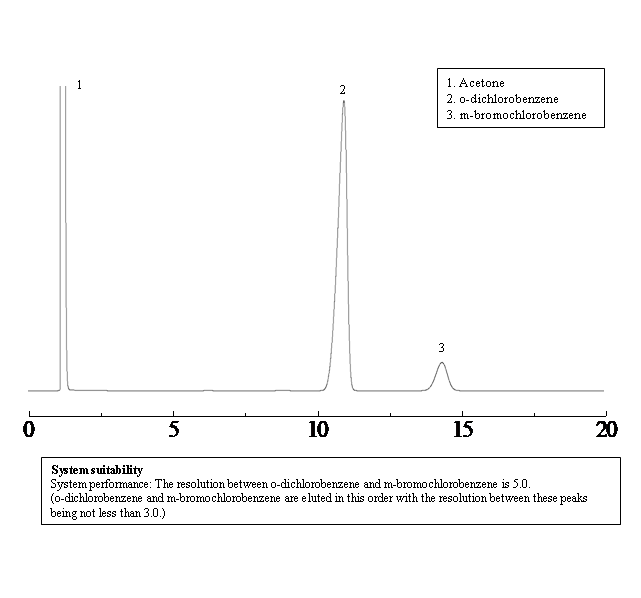

Samples: o-Dichlorobenzene, m-Bromochlorobenzene in acetone
Applications: Analysis of o-dichlorobenzene using Shinwasorb
Column: PEG20M-TPA 2.5% Shinwasorb-U 60/80
Column Size: 3.1 m x 3.2 mm I.D. Glass
Column temp.: 115℃
Carrier gas: 39 mL/min N₂ (Adjust so that the retention time of o-dichlorobenzene is about 11 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Ethanol , Toluene , Chlorobenzene
Applications: Analysis of allethrin using Sunpak-H Part 1 ～Purity (4) Toluene～
Column: Sunpak-H 80/100
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 170℃
Carrier gas: 37 mL/min N₂ (Adjust so that the retention time of toluene is about 5 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Acetone , cis-Allethrin , trans-Allethrin
Applications: Analysis of allethrin using Shinwasorb Part 2 ～Isomer ratio～
Column: Silicone DC QF-1 2.5% Shinwasorb-U 80/100
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 165℃
Carrier gas: 45 mL/min N₂ (Adjust so that the retention time of trans-allethrin is about 40 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Acetone , Allethrin , Di(2-ethylhexyl) phthalate
Applications: Analysis of allethrin using Shinwasorb Part 3
Column: Diethyleneglycol Succinate (DEGS) 2.5% Shinwasorb-U 80/100
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 200℃
Carrier gas: 36 mL/min N₂ (Adjust so that the retention time of allethrin is about 8 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Acetone , Dichlorvos , 1-chloronaphthalene
Applications: Analysis of dichlorvos using Shinwasorb
Column: Silicone DC-550 10% Shinwasorb-S 60/80
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 180℃
Carrier gas: 40 mL/min N₂ (Adjust so that the retention time of dichlorvos is about 6 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Chloroform , Fenitrothion , Fluoranthene
Applications: Analysis of fenitrothion using Shinwasorb
Column: Polyphenyl Ether (5 rings) 1.5% Shinwasorb-S 100/120
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 195℃
Carrier gas: 55 mL/min N₂ (Adjust so that the retention time of fenitrothion is about 16 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 2.0 μL

View detail

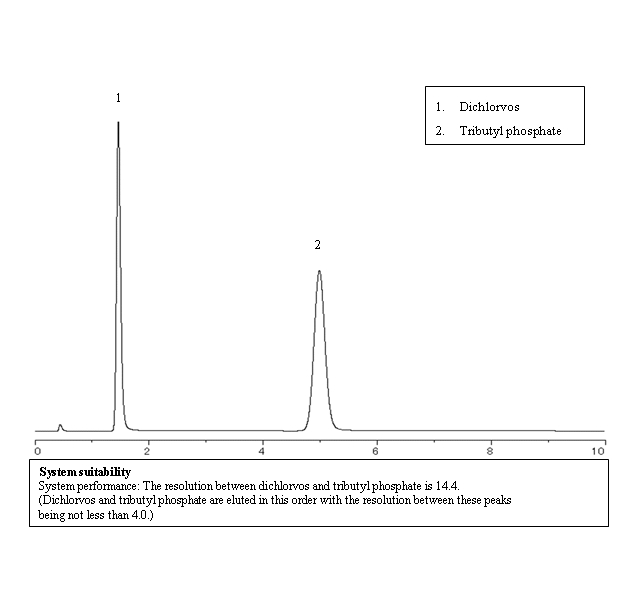

GC
Samples: Dichlorvos , Tributyl phosphate
Applications: Analysis of dichlorvos using Shinwasorb -2-
Column: Silicone OV-225 1% Shinwasorb-U 60/80
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 170℃
Carrier gas: 50 mL/min N₂（Adjust so that the retention time of tributyl phosphate is about 5 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FPD
Injection volume: 2.0 μL

View detail

GC
Samples: Acetone , Allethrin , Cinerin I , Jasmolin I , Pyrethrin I , Cinerin II , Jasmolin II , Pyrethrin II
Applications: Analysis of pyrethrum extract using Shinwasorb
Column: Silicone OV-17 1% Shinwasorb-S 80/100
Column Size: 1.1 m x 3.2 mm I.D. Glass
Column temp.: 205℃
Carrier gas: 35 mL/min N₂（Adjust so that the retention time of Allethrin is about 3 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FPD
Injection volume: 1.0 μL

View detail

GC
Samples: Dichlorvos, Diphenyl in Acetone
Applications: Analysis of dichlorvos resin strip using Shinwasorb
Column: Silicone OV-11 10% Shinwasorb-U 60/80
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 170℃
Carrier gas: 35 mL/min N₂（Adjust so that the retention time of dichlorvos is about 8 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 3.0 μL

View detail

GC
Samples: Diazinon, Di-n-butyl phthalate in Acetone
Applications: Analysis of diazinon using Shinwasorb
Column: Silicone OV-11 10% Shinwasorb-U 60/80
Column Size: 1.6 m x 3.2 mm I.D. Glass
Column temp.: 200℃
Carrier gas: 25 mL/min N₂（Adjust so that the retention time of diazinon is about 7 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 3.0 μL

View detail

GC
Samples: Anhydrous caffeine, Fenitrothion in Acetone
Applications: Analysis of Fenitrothion Emulsifiable Concentrate using Shinwasorb
Column: Silicone OV-210 3% Shinwasorb-S 80/100
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 175℃
Carrier gas: 51 mL/min N₂（Adjust so that the retention time of Anhydrous caffeine is about 10 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC
Samples: Anhydrous caffeine, Fenitrothion in Acetone
Applications: Analysis of Fenitrothion Microcapsule using Shinwasorb
Column: Silicone OV-210 1.5% Shinwasorb-U 60/80
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 165℃
Carrier gas: 50 mL/min N₂（Adjust so that the retention time of diazinon is about 17 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

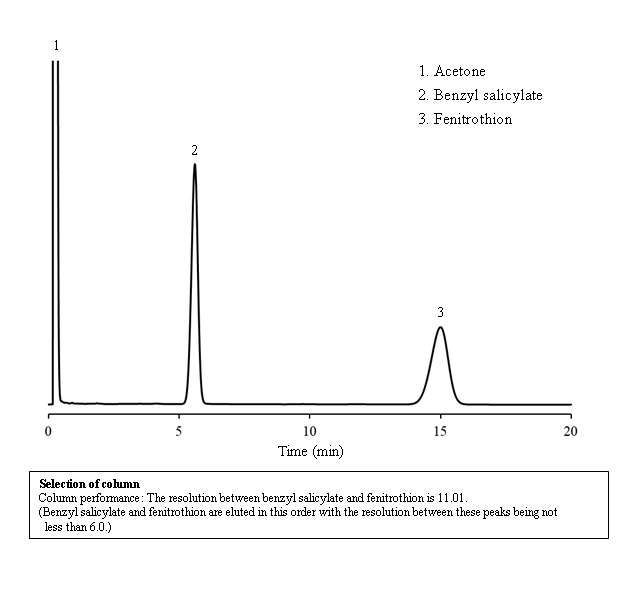

GC
Samples: Benzyl salicylate, Fenitrothion in Acetone
Applications: Analysis of fenitrothion, phthalthrin mixed emulsifiable concentrate using Shinwasorb -1-
Column: Silicone OV-210 1.5% Shinwasorb-U 60/80
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 175℃
Carrier gas: 52 mL/min N₂ (Adjust so that the retention time of fenitrothion is about 15 minutes.)
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: FID
Injection volume: 2.0 μL

View detail

GC

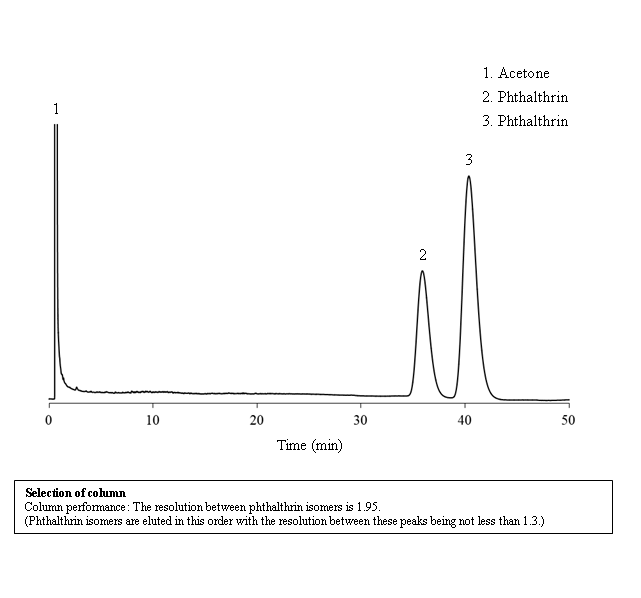

Samples: Phthalthrin in Acetone
Applications: Analysis of phthalthrin using Shinwasorb ～Isomer ratio phthalthrin～
Column: Silicone DC QF-1 2.5% Shinwasorb-S 80/100
Column Size: 2.1 m x 3.2 mm I.D. Glass
Column temp.: 200℃
Carrier gas: 40 mL/min N₂（ Adjusted so that the retention time of 3.Phthalthrin is about 40 minutes.)
Injection port temp.: 230°C
Detector temp.: 230°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Organic solvents
Applications: Analysis of organic solvents using Sunpak-A -1-
Column: Sunpak-A 50/80
Column Size: 2.0 m x 3.0 mm I.D. Glass
Column temp.: 150℃ ～ 220℃ (3 min hold) program rate 4℃/min
Carrier gas: 50 mL/min N₂
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: Organic solvents
Applications: Analysis of organic solvents using Sunpak-A -2-
Column: Sunpak-A 50/80
Column Size: 2.0 m x 3.0 mm I.D. Glass
Column temp.: 150℃ ～ 220℃ (3 min hold) program rate 4℃/min
Carrier gas: 50 mL/min N₂
Injection port temp.: 250°C
Detector temp.: 250°C
Detector: FID
Injection volume: 1.0 μL

View detail

GC
Samples: HCl , SO2 , Cl2 , CHCl3 , SO2Ci2 , CCl4 ,
Applications: Analysis of sulfuryl chloride
Column: TAKU-1 20% Shimalite-F 40/80
Column Size: 5.1 m × 3.2 mm glass
Column temp.: 70°C
Carrier gas: He, 40 ml/min
Injection port temp.: 150°C
Detector temp.: 150°C
Detector: TCD
Injection volume: 1.5 μL

View detail

GC
Samples: Air , HCl , Water
Applications: Analysis of Hydrogen chloride
Column: SF-96 15% Shimalite-F 20/80
Column Size: 3.1 m × 3.2 mm glass
Column temp.: 60°C
Carrier gas: He, 30 ml/min
Injection port temp.: 190°C
Detector temp.: 190°C
Detector: TCD
Injection volume: 1.0 ml

View detail

GC

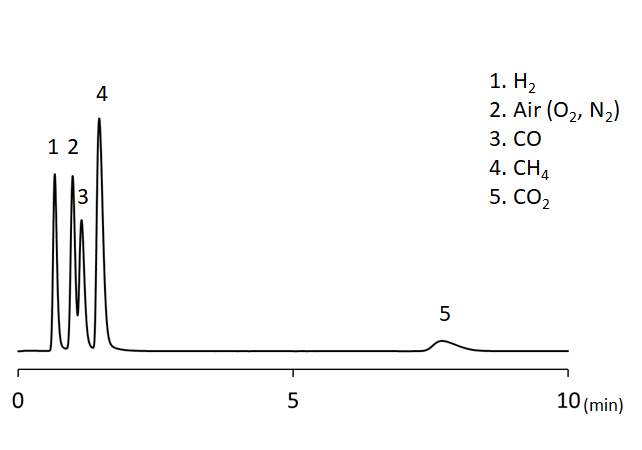

Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Shincarbon-ST column 2m
Column: Shincarbon-ST 50/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 40°C (3 min. hold) - 200°C (20°C/min.)
Carrier gas: 50 mL/min Ar
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Shincarbon-ST column 6m
Column: Shincarbon-ST 50/80 mesh
Column Size: 6.0 m x 3.0 mm I.D. Stainless
Column temp.: 40°C (8 min. hold) - 200°C (20°C/min.)
Carrier gas: 50 mL/min Ar
Injection port temp.: 200°C
Detector temp.: 200°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gases analysis including hydrogen by Molecular Sieve 5A column
Column: Molecular Sieve 5A 60/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 60°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gases analysis including hydrogen by Molecular Sieve 13X column
Column: Molecular Sieve 13X 60/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 60°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Activated Charcoal column
Column: Activated Charcoal 60/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 60°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Silica Gel column
Column: Silica Gel 60/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 60°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Sunpak-A column
Column: Sunpak-A 50/80 mesh
Column Size: 2.0 m x 3.0 mm I.D. Stainless
Column temp.: 40°C
Carrier gas: 30 mL/min Ar
Injection port temp.: 60°C
Detector temp.: 60°C
Detector: TCD
Injection volume: 1.0 mL

View detail

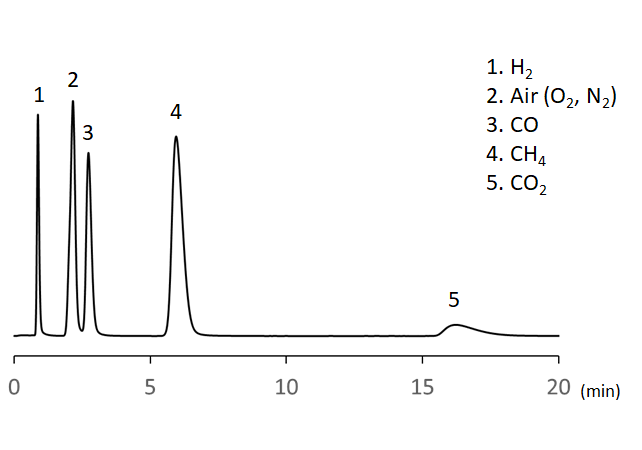

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane , Carbon Dioxide
Applications: Inorganic gases analysis including hydrogen by Micropacked-ST column
Column: Micropacked-ST
Column Size: 2.0 m x 1.0 mm I.D. Stainless
Column temp.: 80°C
Carrier gas: 200 kPa Ar
Injection port temp.: 80°C
Detector temp.: 80°C
Detector: TCD
Injection volume: 0.05 mL

View detail

GC
Samples: Hydrogen , Oxigen , Nitrogen , Carbon Monoxide , Methane
Applications: Inorganic gases analysis including hydrogen by Micropacked-MS column
Column: Micropacked-MS
Column Size: 2.0 m x 1.0 mm I.D. Stainless
Column temp.: 80°C
Carrier gas: 200 kPa Ar
Injection port temp.: 80°C
Detector temp.: 80°C
Detector: TCD
Injection volume: 0.05 mL

View detail

LC
Samples: Trimipramine maleate
Applications: Analysis of the antidepressive drug
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 3.0)/C2H5OH = 100/30
Frow rate: 1.0 mL/min
Column temp.: 25°C

View detail

LC
Samples: trans-Stilbene oxide
Applications: Analysis in normal phase mobile phase
Column: ULTRON ES-PhCD
Column Size: 150 mm L × 6.0 mm I.D.
Mobile phase: n-Hexane/CH3OH = 99.9/0.1
Frow rate: 1.0 mL/min
Column temp.: 25°C

View detail

LC
Samples: N-(3,5-Dinitrobenzoyl)-α-Methylbenzylamine
Applications: Analysis in normal phase mobile phase
Column: ULTRON ES-PhCD
Column Size: 150 mm L × 6.0 mm I.D.
Mobile phase: n-Hexane/C2H5OH = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C

View detail

LC
Samples: Flavanone
Applications: Analysis in normal phase mobile phase
Column: ULTRON ES-PhCD
Column Size: 150 mm L × 6.0 mm I.D.
Mobile phase: n-Hexane/C2H5OH = 99/1
Frow rate: 1.0 mL/min
Column temp.: 25°C

View detail

LC
Samples: Citric acid , Tartaric acid , Malic acid , Succinic acid , Lactic acid , Acetic acid , Pyroglutamic acid
Applications: Analysis of the soy sauce
Column: ULTRON PS-80H
Column Size: 300 mm L × 8.0 mm I.D.
Mobile phase: HClO4aq. (pH 2.1)
Frow rate: 1.0 mL/min
Column temp.: 60°C

View detail

LC
Samples: Aspartic acid , Glutamic acid , Serine , Glycine , Histidine , Arginine , Threonine , Alanine , Proline , Tyrosine , Valine , Methionine , Cysteine-cysteine , Isoleucine , Leucine , Phenylalanine , Lysine
Applications: Analysis of the PTC amino acid
Column: STR ODS-II
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: A: CH3COONa (pH 6.5)/CH3CN = 93/7, B: CH3CN/H2O = 4/1
Frow rate: 1.0 mL/min
Column temp.: 40°C

View detail

LC

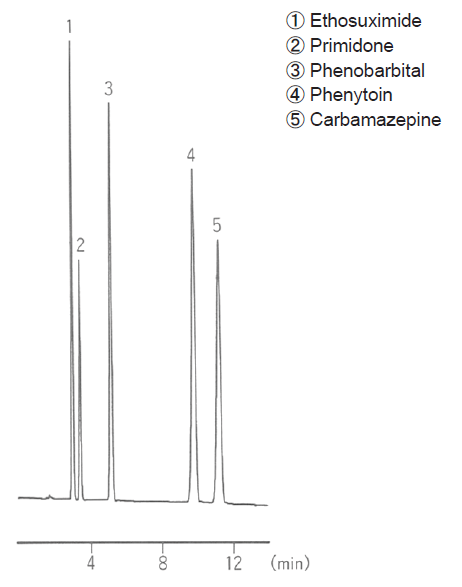

Samples: Ethosuximide , Primidone , Phenobarbital , Phenytoin , Carbamazepin
Applications: Anticonvulsant analysis
Column: STR ODS-II
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 100 mM Phosphoric acid buffer(pH 4.0)/CH3OH/CH3CN = 4/2/1
Frow rate: 1.0 mL/min
Column temp.: 40°C

View detail

LC
Samples: (CYS)2 , LYS , ARG , HIS , ASP , GLU , GLN , ASN , GLY , SER , ALA , THR , PRO , TYR , VAL , PHE , MET , TRP , LEU+ILE
Applications: Analysis of underivatized amino acids by LC/MS/MS
Column: ULTRON AF-HILIC-CD (PLSS)
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: A: 100 mM HCO2NH4(pH 3.0)/CH3CN = 10/90, B: 100 mM HCO2NH4(pH 3.0)/CH3CN = 70/30
Frow rate: 0.36 mL/min
Column temp.: 40°C
Injection volume: 1.0 µL (5.0 µg/mL)

View detail

LC
Samples: Toluene , Uridine , 2'-Deoxyuridine , 5-Methyluridine , Adenosine , Vidarabine , 2'-Deoxyguanosine , 3'-Deoxyguanosine , 4-Nitrophenyl-α-glucopyranoside , 4-Nitrophenyl-β-glucopyranoside , Theophylline , Theobromine ,
Applications: Analysis of polar compounds
Column: ULTRON AF-HILIC-CD
Column Size: 100 mm L × 4.6 mm I.D.
Mobile phase: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90
Frow rate: 0.50 mL/min
Column temp.: 30°C
Injection volume: 4.0 µL
Diluent: mobile phase

View detail

LC
Samples: Toluene , Uridine , 2'-Deoxyuridine , 5-Methyluridine , Adenosine , Vidarabine , 2'-Deoxyguanosine , 3'-Deoxyguanosine , 4-Nitrophenyl-α-glucopyranoside , 4-Nitrophenyl-β-glucopyranoside , Theophylline , Theobromine ,
Applications: Analysis of polar compounds
Column: ULTRON AF-HILIC-DA
Column Size: 100 mm L × 4.6 mm I.D.
Mobile phase: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90
Frow rate: 0.50 mL/min
Column temp.: 30°C
Injection volume: 4.0 µL
Diluent: mobile phase

View detail

LC
Samples: L-DOPA , Dopamine , Adrenaline , Noradrenaline
Applications: Analysis of catecholamines
Column: ULTRON AF-HILIC-DA
Column Size: 100 mm L × 4.6 mm I.D.
Mobile phase: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90
Frow rate: 0.50 mL/min
Column temp.: 30°C
Injection volume: 4.0 µL
Diluent: mobile phase

View detail

LC

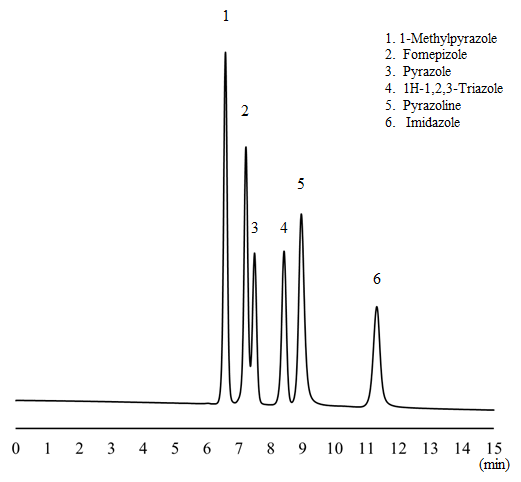

Samples: 1-Methylpyrazole , Fomepizole , Pyrazole , 1H-1,2,3-Triazole , Pyrazoline , Imidazole ,
Applications: Analysis of heterocyclic compounds
Column: ULTRON AF-HILIC-DA
Column Size: 250 mm L × 4.6 mm I.D.
Mobile phase: 20mM HCO2NH4 (pH3.2) /CH3CN = 10/90
Frow rate: 0.50 mL/min
Column temp.: 30°C
Injection volume: 4.0 µL
Diluent: mobile phase

View detail

LC

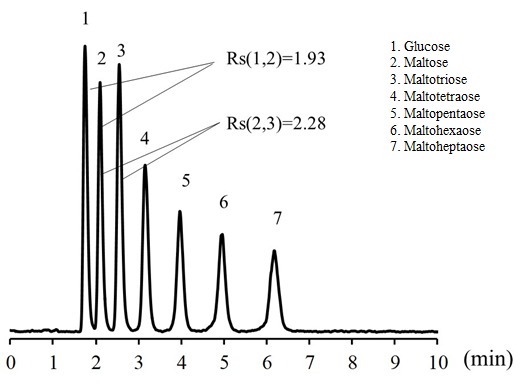

Samples: Glucose , Maltose , Maltotriose , Maltotetraose , Maltopentaose , Maltohexaose , Maltoheptaose ,
Applications: Analysis of maltooligosaccharides
Column: ULTRON AF-HILIC-CD
Column Size: 100 mm L × 2.0 mm I.D.
Mobile phase: A: H2O /CH3CN = 10/90, B: H2O /CH3CN = 70/30
Frow rate: 0.26 mL/min: 69% A /31% B (71.4% CH3CN)
Column temp.: 40°C
Injection volume: 1.0 µL
Diluent: H2O

View detail

LC
Samples: Xylose , Fructose , Glucose , Mannitol , Xylobiose , Sucrose , Lactulose , Lactose , Trehalose , Xylotriose , 1-Kestose(GF2) , Raffinose , Nystose(GF3) ,
Applications: Analysis of monosaccharides, disaccharides, and oligosaccharides
Column: ULTRON AF-HILIC-CD
Column Size: 100 mm L × 2.0 mm I.D.
Mobile phase: A: H2O /CH3CN = 10/90, B: H2O /CH3CN = 70/30
Frow rate: 0.26 mL/min
Column temp.: 40°C
Injection volume: 1.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC
Samples: Xylose , Fructose , Glucose , Mannitol , Xylobiose , Sucrose , Lactulose , Lactose , Trehalose , Xylotriose , 1-Kestose(GF2) , Raffinose , Nystose(GF3) ,
Applications: Analysis of monosaccharides, disaccharides, and oligosaccharides
Column: ULTRON AF-HILIC-CD
Column Size: 100 mm L × 2.0 mm I.D.
Mobile phase: A: 20mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90, B: 20mM CH3CO2NH4 (pH6.8) /CH3CN = 70/30
Frow rate: 0.26 mL/min
Column temp.: 40°C
Injection volume: 2.5 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC
Samples: Erythritol , Xylitol , Fructose , Glucose , Sorbitol , Sucrose , Inositol , Maltose , Maltitol , Lactose , Lactitol
Applications: Analysis of saccharides and sweeteners
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: A: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90, B: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 70/30
Frow rate: 0.32 mL/min
Column temp.: 40°C
Injection volume: 1.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC
Samples: Erythritol , Psicose , Tagatose , Allose , Glucose , Sucrose
Applications: Analysis of rare sugar, Glucose, and Sucrose
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90
Frow rate: 0.36 mL/min
Column temp.: 40°C
Injection volume: 1.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC

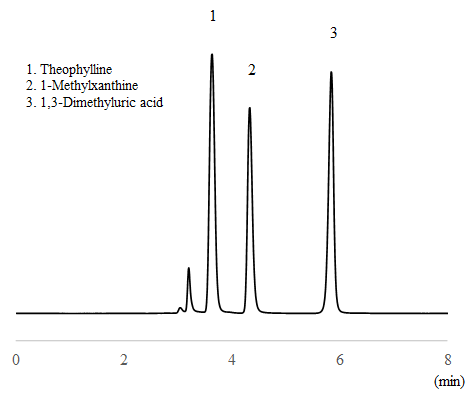

Samples: Theophylline , 1-Methylxanthine , 1,3-Dimethyluric acid
Applications: Analysis of Theophyline and metabolites
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 10mM CH3CO2NH4 (pH6.8) /CH3CN = 13/87
Frow rate: 0.15 mL/min
Column temp.: 30°C
Injection volume: 1.0 µL
Diluent: Dissolved samples in 0.1% NaOH aq and add acetonitrile into ratio to 90%

View detail

LC
Samples: Maleic acid , Pyruvic acid , Ascorbic acid , Gluconic acid , Adipic acid , Fumaric acid , Tartaric acid , Malic acid , Citric acid
Applications: Analysis of organic acid
Column: ULTRON AF-HILIC-CD (PLSS)
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 25/75
Frow rate: 0.20 mL/min
Column temp.: 40°C
Injection volume: 2.0 µL
Diluent: mobile phase

View detail

LC
Samples: Acesulfame K , Saccharin , Caffeine , Sorbic acid , Benzoic acid , Quinine , Aspartame
Applications: Analysis of food additives
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 3.0 mm I.D.
Mobile phase: A: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90, B: 20mM CH3CO2NH4 (pH4.7) /CH3CN = 70/30
Frow rate: Refer to the picture
Column temp.: 30°C
Injection volume: 2.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC

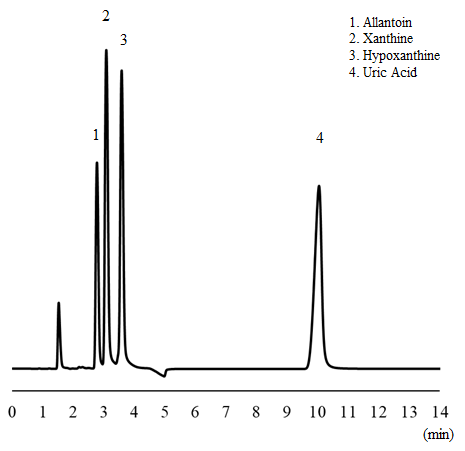

Samples: Allantoin , Xanthine , Hypoxanthine , Uric acid
Applications: Analysis of Uric acid metabolite
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 10mM CH3CO2NH4 (pH4.7) /CH3CN = 10/90
Frow rate: 0.35 mL/min
Column temp.: 30°C
Injection volume: 1.0 µL
Diluent: Dissolved samples in 0.1% NaOH aq and add acetonitrile into ratio to 50%

View detail

LC
Samples: Turanose , Palatinose , Maltulose , Maltose , Lactose , Trehalose
Applications: Analysis of disaccharides with different glycosidic linkages
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90
Frow rate: 0.45 mL/min
Column temp.: 40°C
Injection volume: 1.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC

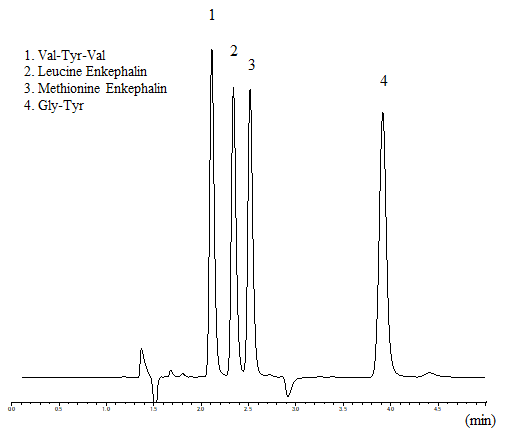

Samples: Val-Tyr-Val , Leucine Enkephalin , Methionine Enkephalin , Gly-Tyr
Applications: Analysis of peptide standards
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: A: 10mM HCO2NH4 (pH3.0) /CH3CN = 10/90, B: 10mM HCO2NH4 (pH3.0) /CH3CN = 70/30
Frow rate: 0.26 mL/min: 67% A/ 33% B (70.0% CH3CN)
Column temp.: 40°C
Injection volume: 2.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC
Samples: Caffeine , Theophylline , Theobromine , 1-Methylxanthine , Xanthine
Applications: Analysis of Xanthines
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 10mM CH3CO2NH4 (pH6.8) /CH3CN = 13/87
Frow rate: 0.15 mL/min
Column temp.: 30°C
Injection volume: 1.0 µL
Diluent: Dissolved samples in 0.1% NaOH aq and add acetonitrile into ratio to 90%

View detail

LC
Samples: Cetirizine hydrochloride
Applications: Analyses of Cetirizine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: mobile phase

View detail

LC

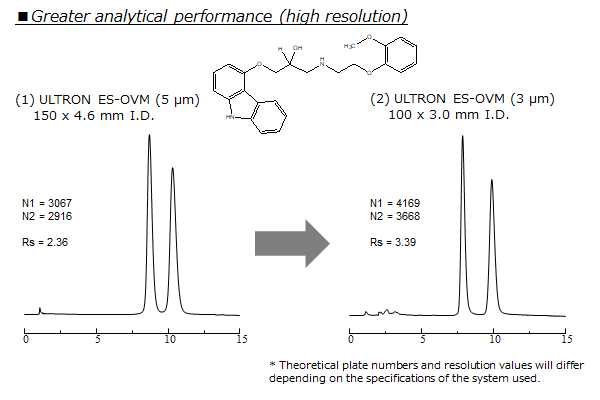

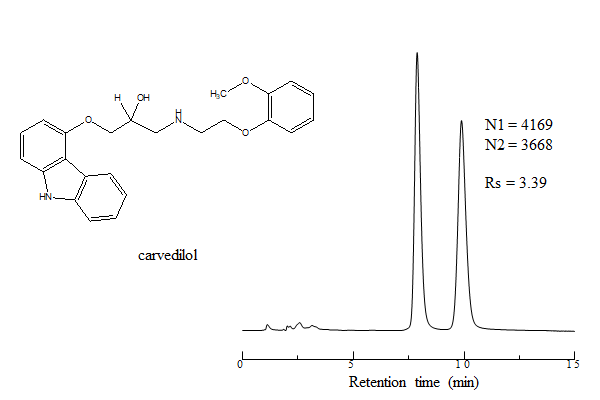

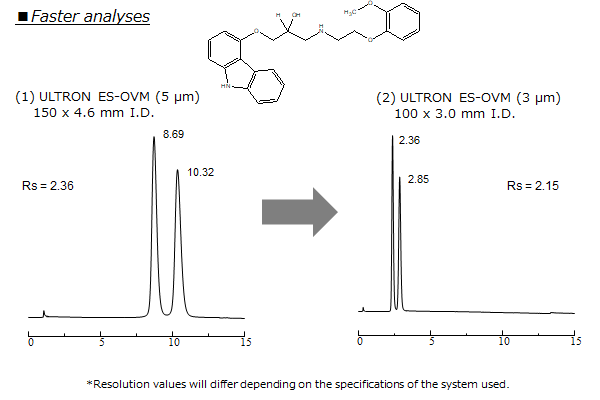

Samples: Carvedilol
Applications: Analyses of Carvedilol in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 7.0)/CH3CN = 75/25
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: ethanol

View detail

LC

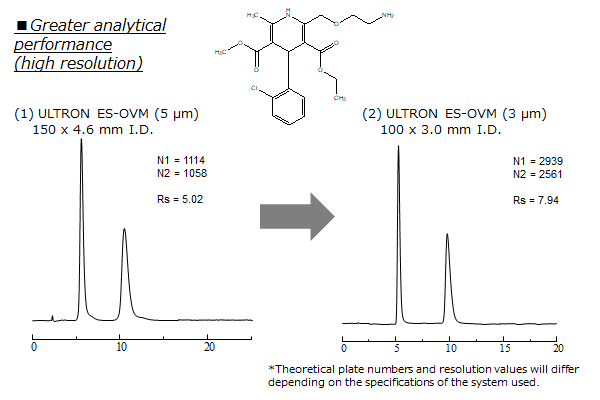

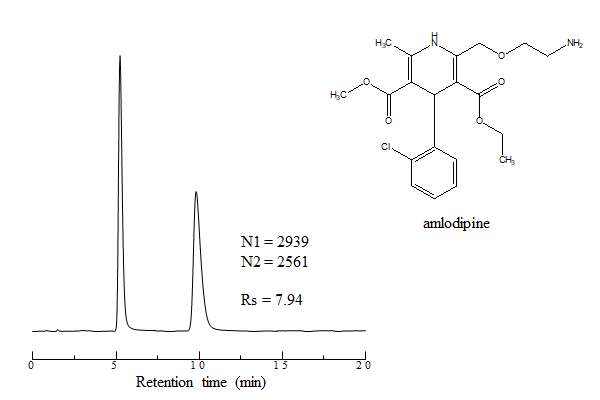

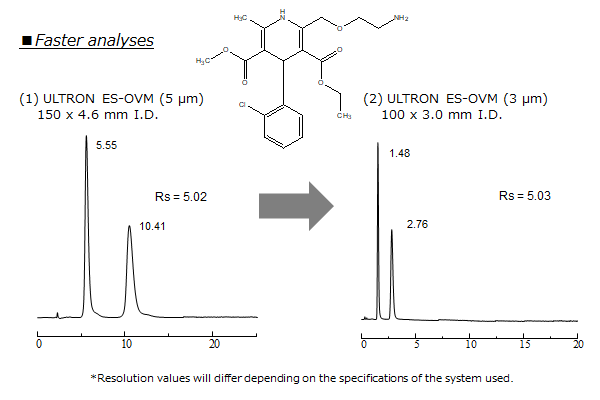

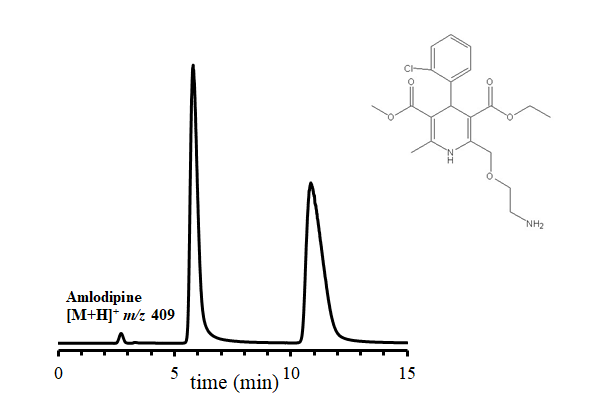

Samples: Amlodipine
Applications: Analyses of Amlodipine in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Atomoxetine hydrochloride
Applications: Analyses of Atomoxetine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 80/20
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: methanol

View detail

LC

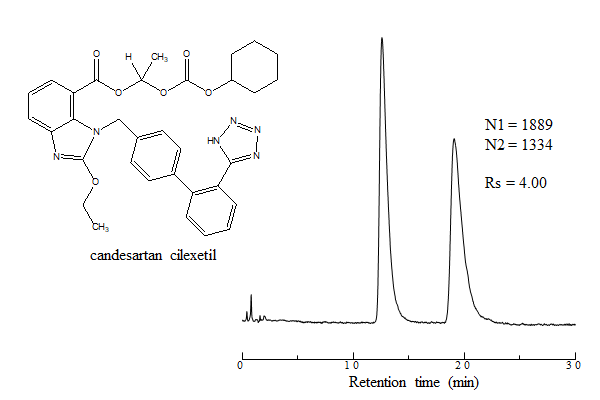

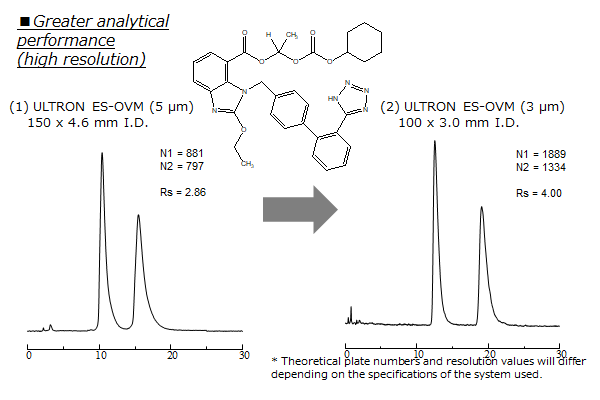

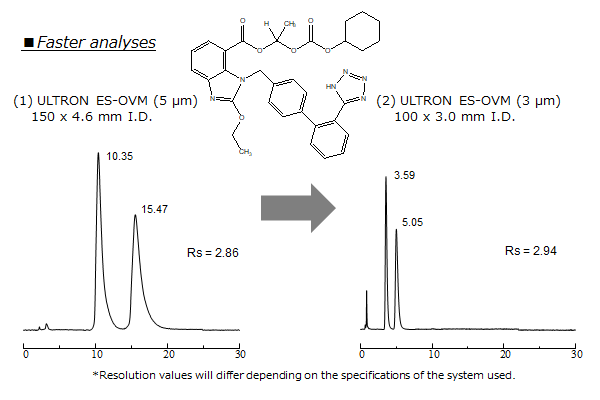

Samples: Candesartan cilexetil
Applications: Analyses of Candesartan cilexetil in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4/CH3CN = 75/25
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: methanol

View detail

LC

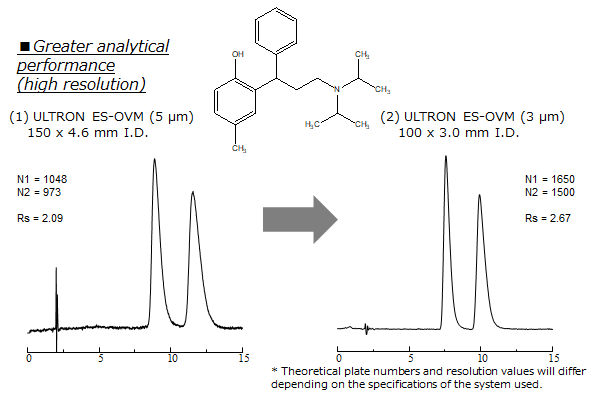

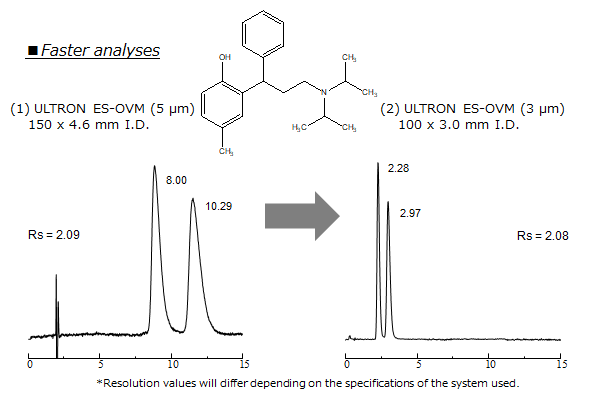

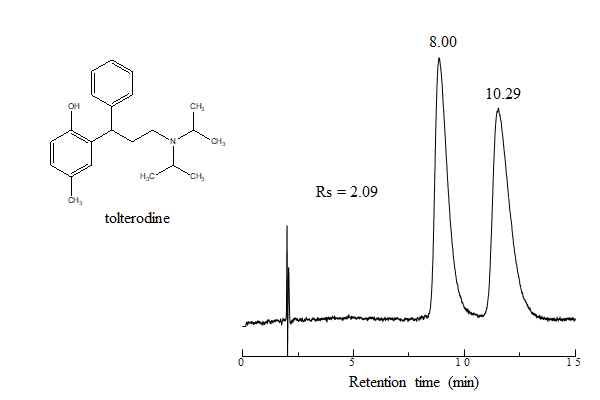

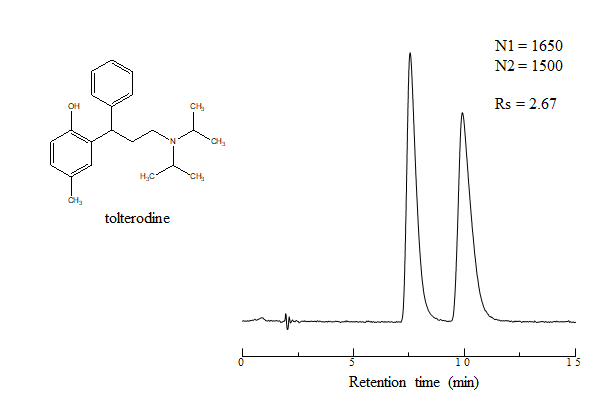

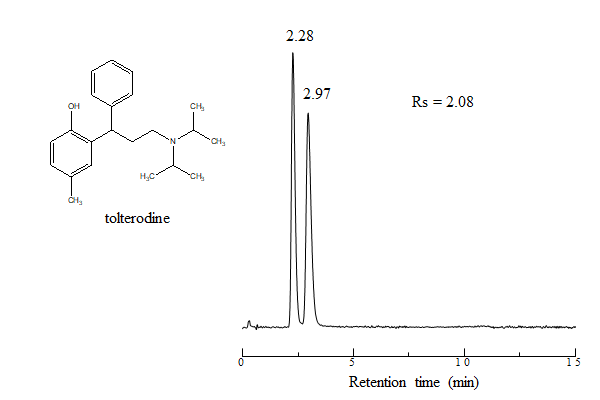

Samples: Tolterodine
Applications: Analyses of Tolterodine in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: methanol

View detail

LC

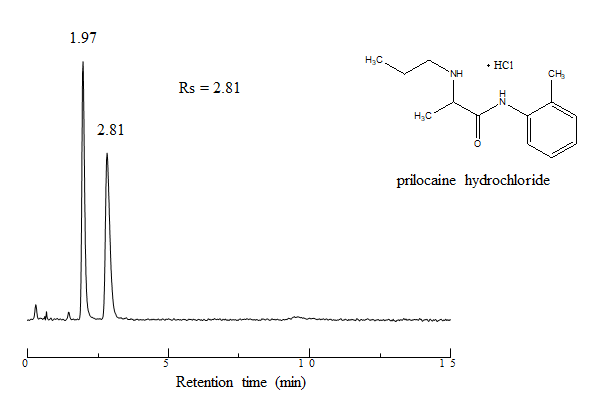

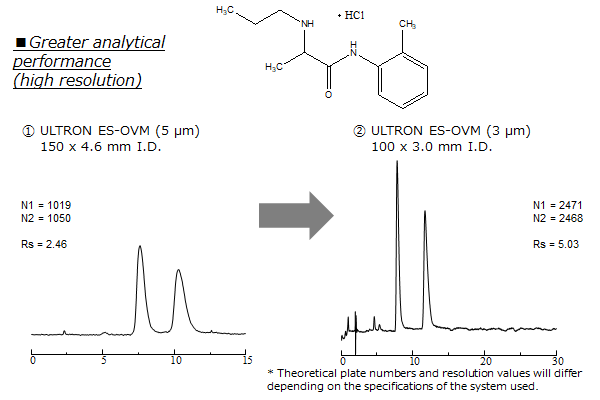

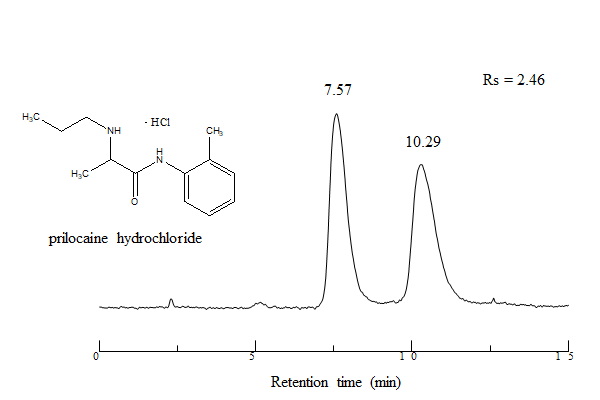

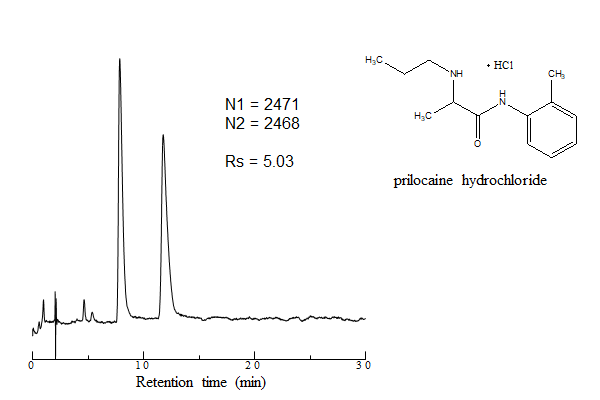

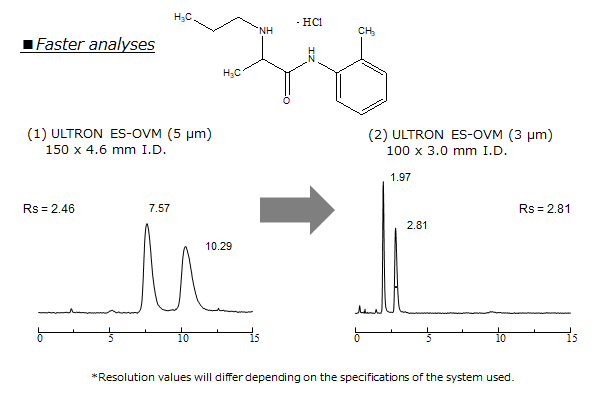

Samples: Prilocaine hydrochloride
Applications: Analyses of Prilocaine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: methanol

View detail

LC

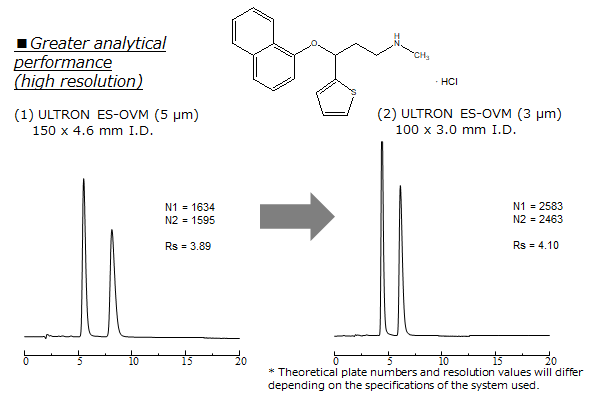

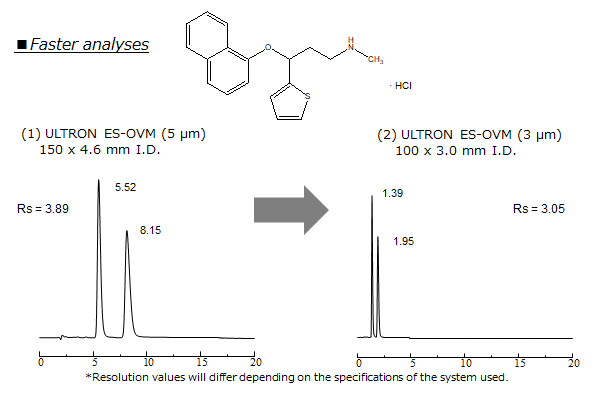

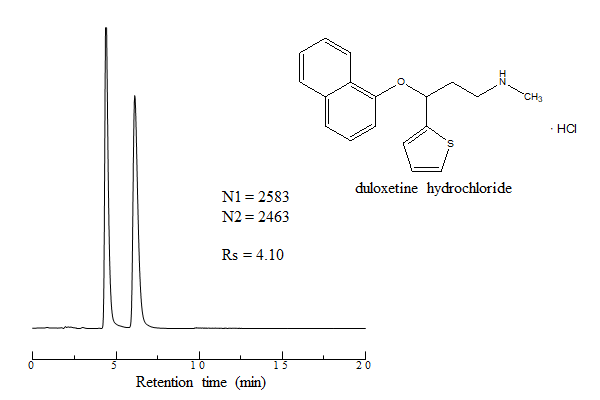

Samples: Duloxetine hydrochloride
Applications: Analyses of Duloxetine hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: mobile phase

View detail

LC
Samples: Rabeprazole sodium salt
Applications: Analyses of Rabeprazole sodium salt in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: ethanol

View detail

LC
Samples: Ibuprofen
Applications: Analyses of Ibuprofen in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: ethanol

View detail

LC
Samples: Formoterol fumarate
Applications: Analyses of Formoterol fumarate in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM K2HPO4 + 20 mM KH2PO4 (pH 7.0)/C2H5OH = 94/6
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Tolperisone hydrochloride
Applications: Analyses of Tolperisone hydrochloride in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL (2)0.5 µL
Diluent: ethanol

View detail

LC
Samples: Tadalafil
Applications: Analyses of Tadalafil in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Cetirizine hydrochloride
Applications: Analyses of Cetirizine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: mobile phase

View detail

LC
Samples: Carvedilol
Applications: Analyses of Carvedilol in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 7.0)/CH3CN = 75/25
Frow rate: (1)1.0 mL/min (2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: ethanol

View detail

LC
Samples: Amlodipine
Applications: Analyses of Amlodipine in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Atomoxetine hydrochloride
Applications: Analyses of Atomoxetine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 80/20
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Candesartan cilexetil
Applications: Analyses of Candesartan cilexetil in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4/CH3CN = 75/25
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Tolterodine
Applications: Analyses of Tolterodine in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Prilocaine hydrochloride
Applications: Analyses of Prilocaine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Duloxetine hydrochloride
Applications: Analyses of Duloxetine hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: mobile phase

View detail

LC
Samples: Rabeprazole sodium salt
Applications: Analyses of Rabeprazole sodium salt in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: ethanol

View detail

LC
Samples: Ibuprofen
Applications: Analyses of Ibuprofen in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: ethanol

View detail

LC
Samples: Formoterol fumarate
Applications: Analyses of Formoterol fumarate in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM K2HPO4 + 20 mM KH2PO4 (pH 7.0)/C2H5OH = 94/6
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Tolperisone hydrochloride
Applications: Analyses of Tolperisone hydrochloride in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: ethanol

View detail

LC
Samples: Tadalafil
Applications: Analyses of Tadalafil in ULTRON ES-OVM series.(Greater analytical performance with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15
Frow rate: (1)1.0 mL/min　(2)0.28 mL/min
Column temp.: 25°C
Injection volume: (1)2.0 µL　(2)0.5 µL
Diluent: methanol

View detail

LC
Samples: Lenalidomide
Applications: Analysis of Lenalidomide
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/C2H5OH = 95/5
Frow rate: 0.7 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Nitrendipine
Applications: Analysis of Nitrendipine
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Sertraline hydrochloride
Applications: Analysis of Sertraline hydrochloride
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Tosufloxacin tosilate hydrate
Applications: Analysis of Tosufloxacin tosilate hydrate
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 7.0)/CH3CN = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: ethanol

View detail

LC
Samples: Nefopam hydrochloride
Applications: Analysis of Nefopam hydrochloride
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: ethanol

View detail

LC
Samples: Tolperisone hydrochloride
Applications: Analysis of Tolperisone hydrochloride
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20mM K2HPO4 (pH 5.5)/C2H5OH = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: ethanol

View detail

LC
Samples: Nisoldipine
Applications: Analysis of Nisoldipine
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 88/12
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: ethanol

View detail

LC
Samples: Rabeprazole
Applications: Analysis of Rabeprozole
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: ethanol

View detail

LC
Samples: Rotigotine
Applications: Analysis of Rotigotine
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 1.0 µL
Diluent: methanol

View detail

LC
Samples: Cinacalcet hydrochloride
Applications: Analysis of Cinacalcet hydrochloride
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 93/7
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: ethanol

View detail

LC
Samples: Atorvastatin calcium
Applications: Analysis of Atorvastatine calcium
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM K2HPO4 + H3PO4 (pH 7.5)/CH3OH = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: ethanol

View detail

LC
Samples: Cisapride
Applications: Analysis of Cisapride
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/C2H5OH = 80/20
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Sitagliptin
Applications: Analysis of Sitagliptin
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20mM K2HPO4 (pH 6.8)/CH3CN = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 10.0 µL
Diluent: water

View detail

LC
Samples: Lafutidine
Applications: Analysis of Laftidine
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3OH = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 1.0 µL
Diluent: methanol

View detail

LC
Samples: Montelukast sodium
Applications: Analysis of Montelukast sodium
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3OH = 60/40
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Escitalopram oxalate
Applications: Analyses of Escitalopram oxalate in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 50 mM KH2PO4 + 0.2 N NaOH(pH 7.0)/CH3CN = 85/15
Frow rate: 0.6 mL/min
Column temp.: 30°C
Injection volume: (1)15.0 µL (2)0.5 µL
Diluent: mobile phase

View detail

LC
Samples: Rebamipide
Applications: Analysis of Rebamipide
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 87/13
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 1.0 µL
Diluent: methanol

View detail

LC
Samples: Efavirentz
Applications: Analysis of Efavirentz
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: ethanol

View detail

LC
Samples: Sulfinpyrazone
Applications: Analysis of Sulfinpyrazone
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 10 mM CH3COONH4 (pH 6.8)/CH3CH(OH)CH3 = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Trihexyphenidyl hydrochloride
Applications: Analysis of Trihexyphenidyl hydrochloride
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: mobile phase

View detail

LC
Samples: Sulconazole nitrate
Applications: Analysis of Sulconazole nitrate
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3OH = 86/14
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Tamsulosin
Applications: Analysis of Tamsulosin
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/C2H5OH = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: water

View detail

LC
Samples: 2-(4-Hydroxyphenoxy)propionic acid
Applications: Analysis of 2-(4-Hydroxyphenoxy)propionic acid
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 90/10
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: water

View detail

LC
Samples: 3,3-Dimethyl-4-phenyl-2-azetidinone
Applications: Analysis of 3,3-Dimethyl-4-phenyl-2-azetidinone
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/C2H5OH = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Pronethalol hydrochloride
Applications: Analysis of Pronethalol hydrochloride
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: water

View detail

LC
Samples: Thalidomide
Applications: Analysis of Thalidomide
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5
Frow rate: 0.7 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: water

View detail

LC
Samples: 2-Phenoxypropionic acid
Applications: Analysis of 2-Phenoxypropionic acid
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/C2H5OH = 90/10
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: water

View detail

LC
Samples: Benfluorex
Applications: Analysis of Benfluorex
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 88/12
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: water

View detail

LC
Samples: Glycopyrronium bromide
Applications: Analysis of Glycopyrronium bromide
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20mM K2HPO4 (pH 5.5)/C2H5OH = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL

View detail

LC
Samples: Ropivacaine
Applications: Analysis of Ropivacaine
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/C2H5OH = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 5.0 µL

View detail

LC
Samples: Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate
Applications: Analyses of Clopidogrel Related Compounds in ULTRON ES-OVM series.(Faster analyses with 3µm particles)
Column: ULTRON ES-OVM
Column Size: (1)150 mm L × 4.6 mm I.D.　(2)100 mm L × 3.0 mm I.D.
Mobile phase: 10 mM KH2PO4/CH3CN = 75/25
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: (1)10.0 µL (2)3.0 µL

View detail

LC
Samples: Voriconazole , Voriconazole Related Compound B
Applications: Analysis of Voriconazole
Column: ULTRON ES-CD-2
Column Size: 250 mm L × 4.6 mm I.D.
Mobile phase: 10 mM CH3CO2NH4 (pH 5.0)/CH3CN = 82/18
Frow rate: 1.0 mL/min
Column temp.: 30°C
Injection volume: 20.0 µL
Diluent: mobile phase

View detail

LC
Samples: Sertraline hydrochloride , Sertraline Hydrochloride Related Compound A
Applications: Analysis of Sertraline hydrochloride
Column: ULTRON ES-CD
Column Size: 250 mm L × 4.6 mm I.D.
Mobile phase: 50.4mM NH4H2PO4 (pH 4.2)/CH3OH = 52/48
Frow rate: 1.0 mL/min
Column temp.: 30°C
Injection volume: 20.0 µL
Diluent: mobile phase

View detail

LC
Samples: Lamivudine
Applications: Analysis of Lamivudine
Column: ULTRON ES-CD-2
Column Size: 250 mm L × 4.6 mm I.D.
Mobile phase: 100mM CH3COONH4/CH3OH = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 10.0 µL
Diluent: water

View detail

LC
Samples: Glycopyrrolate , Glycopyrrolate erythro isomer
Applications: Analysis of Glycopyrrolate
Column: ULTRON ES-CD
Column Size: 250 mm L × 4.6 mm I.D.
Mobile phase: 23.3 mM NaH2PO4(pH 6.5)/CH3OH/CH3CN = 40/50/10
Frow rate: 1.0 mL/min
Column temp.: 30°C
Injection volume: 10.0 µL
Diluent: mobile phase

View detail

LC
Samples: Fexofenadine Related Compound B , Fexofenadine hydrochloride
Applications: Analysis of Fexofenadine
Column: ULTRON ES-CD-F
Column Size: 250 mm L × 4.6 mm I.D.
Mobile phase: Glacial acetic acid and water(2.3:2000)/CH3CN = 80/20
Frow rate: 0.5 mL/min
Column temp.: 25°C
Injection volume: 20.0 µL
Diluent: mobile phase

View detail

LC
Samples: Epinephrine
Applications: Analysis of Epinephrine
Column: ULTRON ES-CD-EP
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 10mM CH3CO2NH4(pH 4.0)/CH3CN = 99/1
Frow rate: 0.3 mL/min
Column temp.: 25°C
Injection volume: 10.0 µL
Diluent: 10mM CH3CO2NH4(pH 4.0)

View detail

LC
Samples: Methotrexate
Applications: Analysis of Methotrexate
Column: ULTRON ES-BSA-2
Column Size: 150 mm L × 4.0 mm I.D.
Mobile phase: 50mM sodium phosphate buffer (pH6.9)/1-Propanol = 92/8
Frow rate: 1.5 mL/min
Column temp.: 25°C
Injection volume: 20.0 µL
Diluent: mobile phase

View detail

LC
Samples: Sulindac
Applications: Analysis of Sulindac
Column: ULTRON ES-BSA-2
Column Size: 150 mm L × 4.0 mm I.D.
Mobile phase: 50mM sodium phosphate buffer (pH6.9)/1-Propanol = 92/8
Frow rate: 0.75 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL

View detail

LC
Samples: Ketoprofen
Applications: Analysis of Ketoprofen
Column: ULTRON ES-BSA-2
Column Size: 150 mm L × 4.0 mm I.D.
Mobile phase: 20mM sodium phosphate buffer (pH6.9)/1-Propanol/caprylic acid = 98/2/0.005
Frow rate: 0.75 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: 1-Propanol

View detail

LC
Samples: Mandelic acid
Applications: Analysis of Mandelic acid
Column: ULTRON ES-BSA-2
Column Size: 150 mm L × 4.0 mm I.D.
Mobile phase: 20mM sodium phosphate buffer (pH6.9)
Frow rate: 0.75 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: mobile phase

View detail

LC
Samples: Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate
Applications: Analysis of Clopidogrel Related Compounds
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 10 mM KH2PO4/CH3CN = 75/25
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 10.0 µL

View detail

LC
Samples: Clopidogrel Related Compound A , Clopidogrel Related Compound B , Clopidogrel Related Compound C , Clopidogrel bisulfate
Applications: Analysis of Clopidogrel Related Compounds
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 10 mM KH2PO4/CH3CN = 75/25
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 3.0 µL

View detail

LC
Samples: Escitalopram oxalate
Applications: Analysis of Escitalopram oxalate
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 50 mM KH2PO4 + 0.2 N NaOH(pH 7.0)/CH3CN = 85/15
Frow rate: 0.6 mL/min
Column temp.: 30°C
Injection volume: 0.5 µL
Diluent: mobile phase

View detail

LC
Samples: Cetirizine hydrochloride
Applications: Analysis of Cetirizine hydrochloride
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 90/10
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: mobile phase

View detail

LC
Samples: Tolterodine
Applications: Analysis of Tolterodine
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Tolterodine
Applications: Analysis of Tolterodine
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Prilocaine hydrochloride
Applications: Analysis of Prilocaine hydrochloride
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Prilocaine hydrochloride
Applications: Analysis of Prilocaine hydrochloride
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Rabeprazole sodium salt
Applications: Analysis of Rabeprazole sodium salt
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: ethanol

View detail

LC
Samples: Ibuprofen
Applications: Analysis of Ibuprofen
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: ethanol

View detail

LC
Samples: Tolperisone hydrochloride
Applications: Analysis of Tolperisone hydrochloride
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: ethanol

View detail

LC
Samples: Tadalafil
Applications: Analysis of tadalafil
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2.0 µL
Diluent: methanol

View detail

LC
Samples: Tadalafil
Applications: Analysis of Tadalafil
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Carvedilol
Applications: Analysis of Carvedilol
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 7.0)/CH3CN = 75/25
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: ethanol

View detail

LC
Samples: Amlodipine
Applications: Analysis of Amlodipine
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 90/10
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Atomoxetine hydrochloride
Applications: Analysis of Atomoxetine hydrochloride
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 80/20
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Candesartan cilexetil
Applications: Analysis of Candesartan cilexetil
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4/CH3CN = 75/25
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Tolterodine
Applications: Analysis of Tolterodine
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 92/8
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Prilocaine hydrochloride
Applications: Analysis of Prilocaine hydrochloride
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3CN = 95/5
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Duloxetine hydrochloride
Applications: Analysis of Duloxetine hydrochloride
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3CN = 80/20
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: mobile phase

View detail

LC
Samples: Rabeprazole sodium salt
Applications: Analysis of Rabeprazole sodium salt
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 6.0)/CH3OH = 80/20
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: ethanol

View detail

LC
Samples: Ibuprofen
Applications: Analysis of Ibuprofen
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 (pH 4.6)/CH3OH = 80/20
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: ethanol

View detail

LC
Samples: Formoterol fumarate
Applications: Analysis of Formoterol fumarate
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM K2HPO4 + 20 mM KH2PO4 (pH 7.0)/C2H5OH = 94/6
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Tolperisone hydrochloride
Applications: Analysis of Tolperisone hydrochloride
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + 20 mM K2HPO4 (pH 5.5)/C2H5OH = 95/5
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: ethanol

View detail

LC
Samples: Tadalafil
Applications: Analysis of Tadalafil
Column: ULTRON ES-OVM
Column Size: 100 mm L × 3.0 mm I.D.
Mobile phase: 20 mM KH2PO4 + H3PO4 (pH 3.0)/CH3CN = 85/15
Frow rate: 0.28 mL/min
Column temp.: 25°C
Injection volume: 0.5 µL
Diluent: methanol

View detail

LC
Samples: Sucralose , Fructose , Glucose , Sucrose , Lactose
Applications: Analysis of artificial sweetener and sugars
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 15/85
Frow rate: 1.0 mL/min
Column temp.: 40°C
Injection volume: 10.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC
Samples: Sucralose , Fructose , Glucose , Sucrose , Lactose
Applications: Analysis of artificial sweetener and sugars
Column: ULTRON PS-80N
Column Size: 300 mm L × 8.0 mm I.D.
Mobile phase: H2O
Frow rate: 1.0 mL/min
Column temp.: 80°C
Injection volume: 10.0 µL

View detail

LC
Samples: Sucralose , Fructose , Glucose , Sucrose , Lactose
Applications: Analysis of artificial sweetener and sugars
Column: ULTRON PS-80C
Column Size: 300 mm L × 8.0 mm I.D.
Mobile phase: H2O
Frow rate: 1.0 mL/min
Column temp.: 80°C
Injection volume: 10.0 µL

View detail

LC
Samples: Sucralose , Fructose , Glucose , Sucrose , Lactose
Applications: Analysis of artificial sweetener and sugars
Column: ULTRON PS-80P
Column Size: 300 mm L × 8.0 mm I.D.
Mobile phase: H2O
Frow rate: 1.0 mL/min
Column temp.: 80°C
Injection volume: 10.0 µL

View detail

LC
Samples: Acesulfame K , Saccharin , Sucralose , Advantame , Neotame , Aspartame
Applications: Analysis of artificial sweetener
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 10/90
Frow rate: 1.4 mL/min
Column temp.: 30°C
Injection volume: 4.0 µL
Diluent: H2O /CH3CN = 50/50

View detail

LC
Samples: Dehydroascorbic acid , Ascorbic acid
Applications: Analyses of Ascorbic acid
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 100mM CH3CO2NH4 (pH6.8) /CH3CN = 30/70
Frow rate: 0.2 mL/min
Column temp.: 30°C
Injection volume: 10.0 µL
Diluent: H2O /CH3CN = 10/90

View detail

LC
Samples: Amlodipine
Applications: Analysis of Amlodipine for LCMS
Column: ULTRON ES-OVM
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: 20 mM CH3CO2NH4/CH3CN = 80/20
Frow rate: 0.2 mL/min
Column temp.: 25°C
Injection volume: 0.4 µL
Diluent: H2O /CH3CN = 50/50 (v/v)

View detail

LC
Samples: Oligo deoxythymidine primers , Oligo dT primers
Applications: Analyses of Oligo deoxythymidine primers
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 2.0 mm I.D.
Mobile phase: A: CH3CN　B: 100 mM CH3CO2NH4 (pH 6.7)
Frow rate: 0.15 mL/min
Column temp.: 30°C
Injection volume: 5.0 µL
Diluent: CH3CN/TE buffer* = 70/30

View detail

LC
Samples: Ethanol , Acetic Acid , 1,4-Sorbitan , Fructose , Glucose , Sorbitol , Sucrose , Maltitol , Maltotriose
Applications: Analysis of ethanol, acetic acid, and sugars
Column: ULTRON AF-HILIC-CD
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 10 mM HCO2NH4 (pH 4.0)/CH3CN = 17/83
Frow rate: 0.5 mL/min
Column temp.: 40°C
Injection volume: 10 µL
Diluent: mobile phase

View detail

LC
Samples: Dexketoprofen
Applications: Analysis of Dexketoprofen
Column: ULTRON ES-OVM
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: 20 mM CH3CO2NH4 (pH 3.0)/CH3CN = 95/5
Frow rate: 1.0 mL/min
Column temp.: 25°C
Injection volume: 2 µL
Diluent: 10% acetonitrile

View detail

LC
Samples: Glucose , Galactose , Arabinose , Mannose
Applications: Analysis of Glucose, Galactose, Arabinose and Mannose
Column: ULTRON PS-80P
Column Size: 300 mm L × 8.0 mm I.D. + 300 mm L × 8.0 mm I.D.
Mobile phase: H2O
Frow rate: 0.5 mL/min
Column temp.: 80°C
Injection volume: 10 µL
Diluent: water

View detail

LC
Samples: Linolenic acid , Myristic acid , Palmitoleic acid , Arachidonic acid , Linoleic acid , Palmitic acid , Oleic acid
Applications: Analysis of Long-chain fatty acid
Column: STR ODS-Ⅱ
Column Size: 150 mm L × 4.6 mm I.D.
Mobile phase: CH3CN/0.1% H3PO4 aq = 80/20
Frow rate: 1.0 mL/min
Column temp.: 40°C
Injection volume: 5 µL
Diluent: ethyl acetate

View detail

LC
Samples: myo-inositol , 1-propanol
Applications: Analysis of Inositol ～conform to Japanese Pharmaceutical Excipients 2018～
Column: ULTRON PS-80N
Column Size: 300 mm L × 8.0 mm I.D.
Mobile phase: H2O
Frow rate: 0.87 mL/min
Column temp.: 65°C
Injection volume: 10 µL
Diluent: H2O

View detail

LC
Samples: Hydroxychloroquine , Chloroquine
Applications: Analysis of Hydroxychloroquine and Chloroquine
Column: STR ODS-Ⅱ
Column Size: 250 mm L × 4.6 mm I.D.
Mobile phase: CH3CN/CH3OH/H2O/H3PO4 = 100/100/800/2　containing 96mg of Sodium 1-pentanesulfonate
Frow rate: 1.0 mL/min
Column temp.: 30°C
Injection volume: 20 µL

View detail

LC
Samples: Hydroxychloroquine , Chloroquine
Applications: Analysis of Chloroquine
Column: ULTRON VX-ODS
Column Size: 100 mm L × 2.0 mm I.D.
Mobile phase: Solution A/Solution B = 97/3 Solution A: CH3CN/H2O/H3PO4 = 100/900/2 Solution B: CH3CN/H2O/H3PO4 = 800/200/1
Frow rate: 0.8 mL/min
Column temp.: 35°C
Injection volume: 3 µL

View detail

LC/GC Search / Application Note

Shinwa Chemical Industries
Application Search

Keyword index

Search result
"LYS" Filtered 223 Item.

Shinwa Chemical Industries Application Search

Keyword index

Search result "LYS" Filtered 223 Item.

Shinwa Chemical Industries
Application Search

Search result
"LYS" Filtered 223 Item.
